Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 10, 2015.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-749
  • Executive Order 749 / D749
  • ARB # D-749
  • Executive Order No: D-749
  • C.A.R.B. No. D-749
  • Resolution D-749
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-749 PDF

D-749 Document:


CARB_D-749

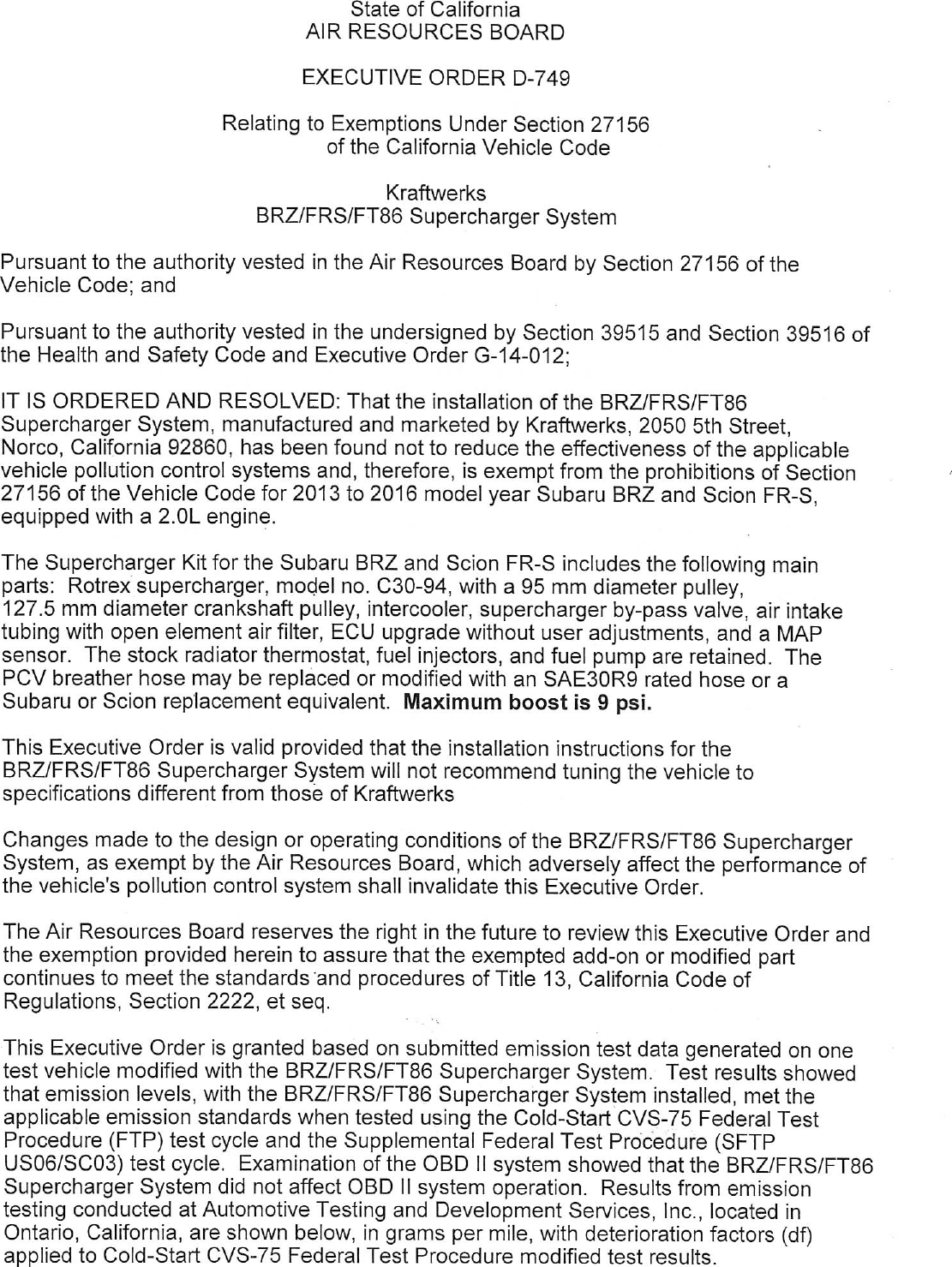

                                     State of California
                                 AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—749

                        Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                       Kraftwerks
                            BRZ/FRS/FT86 Supercharger System

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the BRZ/FRS/FT86
Supercharger System, manufactured and marketed by Kraftwerks, 2050 5th Street,
Norco, California 92860, has been found not to reduce the effectiveness of the applicable
vehicle pollution control systems and, therefore, is exempt from the prohibitions of Section
27156 of the Vehicle Code for 2013 to 2016 model year Subaru BRZ and Scion FR—S,
equipped with a 2.0L engine.

The Supercharger Kit for the Subaru BRZ and Scion FR—S includes the following main
parts: Rotrex supercharger, model no. C30—94, with a 95 mm diameter pulley,
127.5 mm diameter crankshaft pulley, intercooler, supercharger by—pass valve, air intake
tubing with open element air filter, ECU upgrade without user adjustments, and a MAP
sensor. The stock radiator thermostat, fuel injectors, and fuel pump are retained. The
PCV breather hose may be replaced or modified with an SAE30R9 rated hose or a
Subaru or Scion replacement equivalent. Maximum boost is 9 psi.

This Executive Order is valid provided that the installation instructions for the
BRZ/FRS/FT86 Supercharger System will not recommend tuning the vehicle to
specifications different from those of Kraftwerks

Changes made to the design or operating conditions of the BRZ/FRS/FT86 Supercharger
System, as exempt by the Air Resources Board, which adversely affect the performance of
the vehicle‘s pollution control system shall invalidate this Executive Order.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

This Executive Order is granted based on submitted emission test data generated on one
test vehicle modified with the BRZ/FRS/FT86 Supercharger System. Test results showed
that emission levels, with the BRZ/FRS/FT86 Supercharger System installed, met the
applicable emission standards when tested using the Cold—Start CVS—75 Federal Test
Procedure (FTP) test cycle and the Supplemental Federal Test Procedure (SFTP
USO6/SC03) test cycle. Examination of the OBD II system showed that the BRZ/FRS/FT86
Supercharger System did not affect OBD II system operation. Results from emission
testing conducted at Automotive Testing and Development Services, Inc., located in
Ontario, California, are shown below, in grams per mile, with deterioration factors (df)
applied to Cold—Start CVS—75 Federal Test Procedure modified test results.


2013 model year Subaru BRZ                 CVS—75 FTP
                                   NMOG       CO    NOx              HCHO
Standards, 50K*                    0.075      3.4   0.05             0.015
Device Test                        0.039      0.8   0.03.            0.001

                                            USO6/SCO3
                                NMHC+NOx           cCO
Standards 4k                      0.14/0.20        8.0/2.7
Device                            0.06/0.05        6.6/1.5

*LEV II LEV CVS—75 FTP emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
BRZ/FRS/FT86 SUPERCHARGER SYSTEM.

Marketing of the BRZ/FRS/FT86 Supercharger System using any identification other than
that shown in this Executive Order or marketing of the BRZ/FRS/FT86 Supercharger
System for an application other than those listed in this Executive Order shall be prohibited
unless prior approval is obtained from the Air Resources Board.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

This Executive Order shall not apply to any BRZ/FRS/FT86 Supercharger System
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice—of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this       ___// C   day of July 2015.




                 Annette Hebert, Chief
                 Emissions Compliance, Automotive Regulations and Science Division




          KRAFTWERKS — BRZ/FRS/FT86 SUPERCHARGER SYSTEM — D—749



Document Created: 2015-08-17 17:13:15
Document Modified: 2015-08-17 17:13:15
