Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 20, 1981.
As of Friday, September 13th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1981 and older model year motor vehicles t hat are powered by gasoline with conventional carburetors

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-75-4
  • Executive Order 75-4 / D75-4
  • ARB # D-75-4
  • Executive Order No: D-75-4
  • C.A.R.B. No. D-75-4
  • Resolution D-75-4
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-75-4 PDF

D-75-4 Document:


CARB_D-75-4

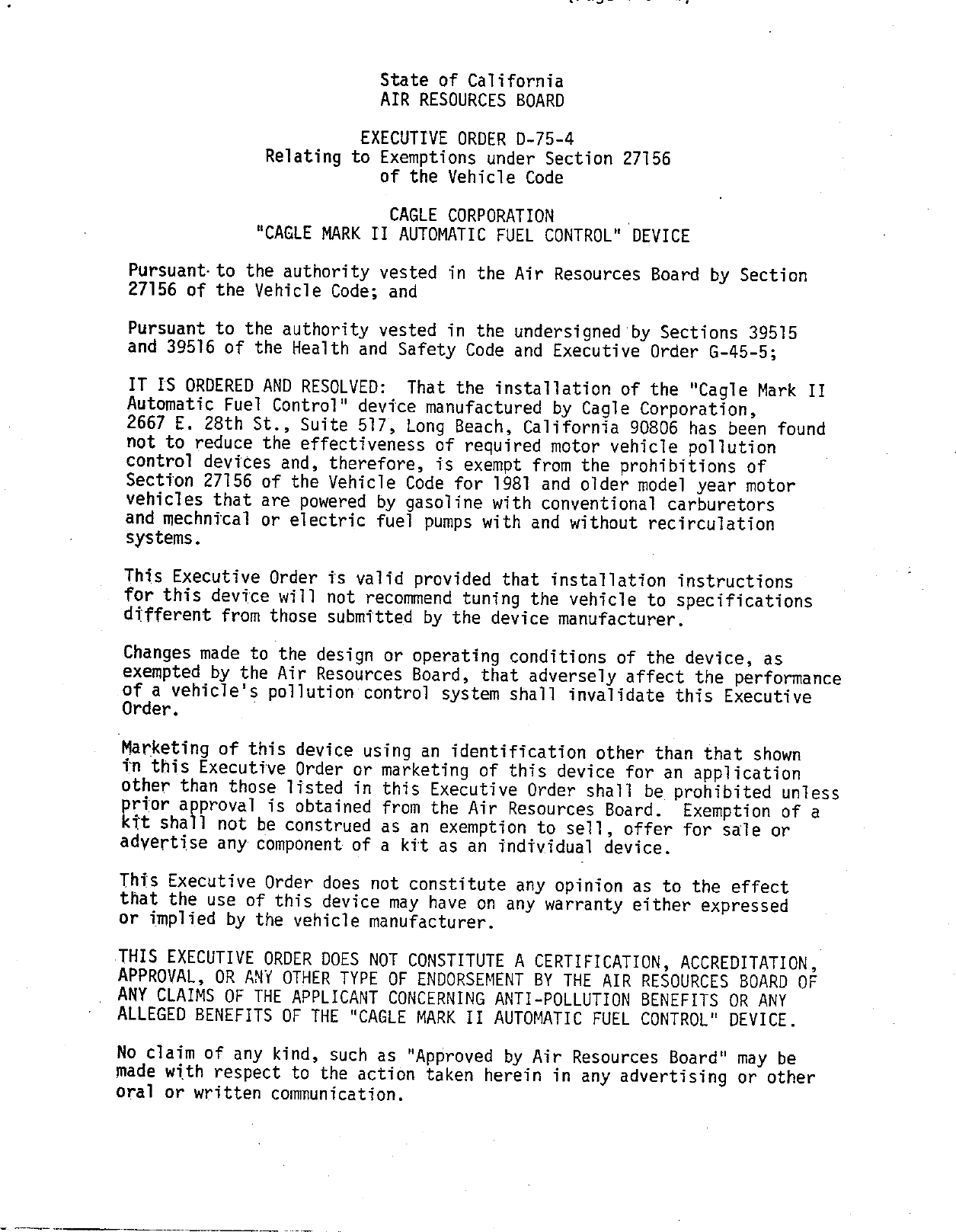

                            State of California
                            AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—75—4
                 Relating to Exemptions under Section 27156
                             of the Vehicle Code

                           CAGLE CORPORATION        .
             "CAGLE MARK II AUTOMATIC FUEL CONTROL" DEVICE

Pursuantto the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515
and 39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESQLVED: That the installation of the "Cagle Mark II
Automatic Fuel Control" device manufactured by Cagle Corporation,
2667 E. 28th St., Suite 517, Long Beach, California 90806 has been found
not to reduce the effectiveness of required motor vehicle poliution
control devices and, therefore, is exempt from the prohibitions of
Sectton 27156 of the Vehicle Code for 1981 and older model year motor
vehicles that are powered by gasoline with conventional carburetors
and mechnical or electric fuel pumps with and without recirculation
systems.

This Executive Order is valid provided that installation instructions
for this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.       '

Marketing of this device using an identification other than that shown
in this Executive Order or marketing of this device for an application
other than those listed in this Executive Order shall be prohibited unfess
prior agprova] is obtained from the Air Resources Board. Exemption of a
kit shall not be construed as an exemption to sell, offer for sale or
advertise any component of a kit as an indfvidual device.

This Executive Order does not constitute any opinion as to the effect
that the use of this device may have on any warranty either expressed
or implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY QTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE "CAGLE MARK II AUTOMATIC FUEL CONTROL®" DEVICE.

No claim of any kind, such as "Approved by Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.


CAGLE CORPORATION                                    EXECUTIVE ORDER D—75—4
                                                           (Page 2 of 2)



Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section.43644 of the Health and Safety Code provides as follows:

     "43644.   (a) No person shall install, sell, offer for sale, or
     advertise, or, except in an application to the state board for
     certification of a device, represent, any device as a motor vehicle
     pollution control device for use on any used motor vehicle unless
     that device has been certified by the state board. No person shall
     sell, offer for sale, advertise, or represent any motor vehicle
     pollution control device as a certified device which, in fact, is
     not a certified device. Any violation of this subdivision is a
     misdemeanor."           '

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he
deems advisable.

Executive Orders D—75 dated June 13, 1977, D—75—1 dated September 21,
1979, D—75—2 dated August 15, 1979 and D—75—3 dated January 1, 1981 are
superseded and of no further force and effect.

                                              tA
Executed at El Monte, California, this   20        day of August, 1981.




                                   K{%chand , Chief
                                   Mobile Source Control Division


                             State of California
                             AIR RESQURCES BOARD

                                Staff Report

                               August 10, 1981

Evaluation of "Cagle Corporation Mark II Automatic Fuel Control" Device
for Compliance with the Requirements of Section 27156 of the Vehicle Code



I.    INTRODUCTION

      Caglie Corporation of 2667 East 28th Street, Suite 517, Long Beach

California 90806 requested by letter dated June 15, 1981    (See Appendix A)

an update of the existing Air Resources Board‘s Executive Order No. D—75—3.

The applicant requested that the exemption from the prohibitions of Vehicle

Code Section 27156 for their "Cagle Mark II Automatic Fuel Control" device

be updated to include all 1981 and older model—year motor vehicles that

are powered by gasoline engines with conventional carburetors and mechanical

or electrical fuel pumps with and without fuel recirculation systems.

II.   DEVICE DESCRIPTION AND OPERATION

      The "Cagle Mark II Automatic Fuel Control" is a fuel pressure regulator

installed between the fuel pump and the carburetor.     It has three external

fittings: (1) a fitting at the top for measuring intake manifold vacuum;
(2) an inlet fitting marked "PUMP" for connection to the fuel pump; and
(3) an outlet fitting marked "CARB" for connection to the carbufietor.      It

is designed to reduce the fuel supply pressure under low fuel demand

conditions but still maintain the required fuel flow to the carburetor

under all operating modes.     The device is controlled by the intake mani—

fold vacuum operating on a spring balanced Buna—N diaphragm.


     A cross sectional view of the device is shown in Appendix B.

     For a more detailed description of the device and its operation, the

reader is refered to Air Resources Board Staff Report dated December 17,

1980, titled "Cagle Corporation Mark II Automatic Fuel Control Device

for Compliance with the Requirements of Section 27156 of the Vehicle Code".

III. DISCUSSION
     Prior to issuing Executive Order No. D—75—2 (which exempted 1979 and

older model—year vehicles) the staff performed comparative exhaust emissions

tests on a 1979 Ford Fairmont with a 302 CID engine and on a 1979 Chevrolet

with a 231 CID engine.       The results of these tests were as follows:



                             1979 Ford Fairmont
                     ARB Emission Data — Cold Start CVS

                                           Grams _per miles
                                   HC            CO       NOx

                  Baseline        0. 492        3. 37   2.46

                  Device          0.517         3.65    2.48



                             1979 Chevrolet Malibu
                    ARB Emission Data — Cold Start CVS

                                           Grams_per miles
                                   HC            CO      NOx

               Baseline           0. 440        9.43    0.89

               Device           _ 0.353         6.21    0.89


     In addition, fuel pressure measurements were taken before and

after the regulator for various manifold vacuums.   The results were

as follows:

Manifold Vacuum            Fuel Pressure (#/ing)                Change
 (inches Hg)        Before Regulator    After Regulator       in Pressure

     15                  4.2                 2.55                1.65

     13                  4.2                 2.50                1.70

     11                  4.2                 2.50                1.70
      9                  4.2                 3.05                1.15

      7                  4.2                 3.70                0. 50
      5                  4.2                 3.88                0.32
      3                  3.6                 3.6                 0



     Then on September 9, 1980, the applicant requested, via letter, that

the Executive Order be updated to include 1980 model—year vehicles.      In

response to that request, the staff compared the vehicle‘s fuel system

design on some 1979 and 1980 model—year vehicles.   Since no significant

differences, that could adversely affect exhaust emissions, were noted, no

additional tests were requested for the update.

     In response to this request, the staff compared the vehicle‘s fuel

system on some 1981, 1980 and 1979 model—year vehicles.    No significant

differences were noted between the vehicle‘s fuel system design even

though newer cars tend to operate more fuel efficient.    The staff,

therefore again, did not recommend or performed any additional tests.


v.   CONCLUSION AND RECOMMENDATION

     Previous ARB confirmatory emissions tests showed that the use of

the "Cagle Mark II Automatic Fuel Control" device did not have an adverse

effect on the exhaust emission control system of 1979 model—year vehicles.

The staff then granted an exemption from the Vehicle Code for 1979 and older.

     An update to include 1980 model year vehicles was granted on the basis

that the vehicles fuel system on 1979 and 1980 were similar in design.

     An engineering evaluation of the vehicle‘s fuel system design on

1981, 1980, and 1979 indicate that the use of the Cagle device should not

have an adverse effect on 1981 model—year vehicles.

     Based on the above, the staff concluded that granting the Cagle

Corporation an exemption from the prohibitions of the Vehicle Code Section

27156 for its "Cagle Mark II Automatic Fuel Control" device for 1981 and

older model vehicles that are powered by gasoline engines with conventional

carburetors and mechanical or—electrical fuel pumps with or without fuel

recirculation system is justified.   The staff, therefore, recommends that

Executive Order No. D—75—4 be adopted.


    css
                 APPENDIX A:
      &

C    _‘»,-'


    DNE (213) 595—4987
     or (213) 426—8483
                                                                  AUTOMATIC FUEL CONTROL




                                                        Cagle Corporation
                                                      2667 E. 28th St., Suite 517 — Long Beach, Ca. 20806


                                               June     15,   1981



              K. D. Drachand, Chief
              Mobile Source Control Division
              Air Resources Board, State of California
              9528 Telstar Avenue
              El Monte,    California 91731

              Dear Mr.    Drachand:

                       Cagle Corporation, a Nevada Corporation qualified
              and authorized to transact business in the state of
              California, hereby requests an update of their existing
              exemption of Section 27156 of the California Vehicle Code
              granted January 6, 1981 for 1980 and older model year
              vehicles that are powered by gasoline engines with con—
              ventional carburetors and mechanical or electric fuel
              pumps with and without fuel recirculation systems.   Update
              to include all 1981 and older model year vehicles that
              meet the aforementioned criteria.

                       Completed Exemption Application VC 27156,              including
              Exhibits A & B are enclosed.

                                               Yours truly,

                                                 GLE CORPORATION



                                               Gene C. Allen;u
                                               Engineering

              GCA/e
              encl.


APPENDIX B:
