Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 6, 1984.
As of Sunday, December 22nd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1984 and older model year motor vehicles that are powered by gasoline with conventional carburetors and mechanical or electrical fuel pumps with and without recirculation systems.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-75-7
  • Executive Order 75-7 / D75-7
  • ARB # D-75-7
  • Executive Order No: D-75-7
  • C.A.R.B. No. D-75-7
  • Resolution D-75-7
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-75-7 PDF

D-75-7 Document:


CARB_D-75-7

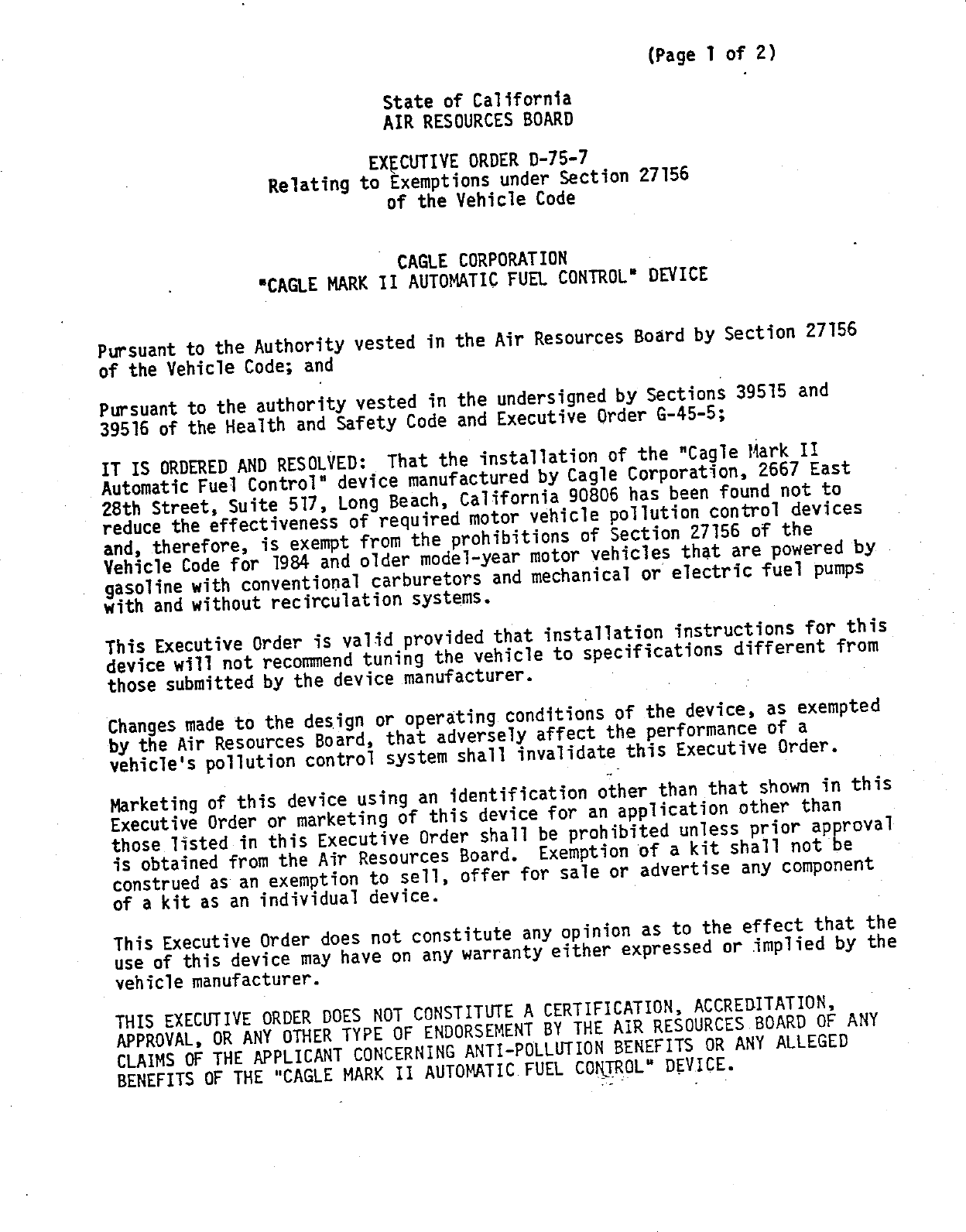

                                                         (Page 1 of 2)
                              State of California
                              AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—75—7
                 Relating to Exemptions under Section 27156
                             of the Vehicle Code


                              CAGLE CORPORATION
                "CAGLE MARK 11 AUTOMATIC FUEL CONTROL® DEVICE


Pursuant to the Authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED:   That the installation of the "Cagle Mark I1
Automatic Fuel Control" device manufactured by Cagle Corporation, 2667 East
28th Street, Suite 517, Long Beach, CaTifornia 90806 has been found not to
reduce the effectiveness of required motor vehicle pollution control devices
and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for 1984 and older modeT—year motor vehicles that are powered by
gasoline with conventional carburetors and mechanical or electric fuel pumps
with and without recirculation systems.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s polilution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those Tisted in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE "CAGLE MARK II AUTOMATIC FUEL CONTROL® DEVICE.


CAGLE CORPORATION                                    EXECUTIVE ORDER D—75—7
                                                          (Page 2 of 2)



No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punxshab]e as a
misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pallution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board.    No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deenmns
advisable.

Executive Order No. D—75—6, dated August 19 1983, is superseded and of no
further force and effect.




                                     Bb C L.
Executed at El Monte, California, this    é;Jtéi   day of July, 1984.




                                         K. D. Drachand, Chief
                                         Mobile Source Division
i


               STATE OF CALIFORNIA

               AIR RESOURCES BOARD




EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC
   FUEL CONTROL®" DEVICE FOR EXEMPTION FROM THE
  PROHIBITIONS IN VEKHICLE CODE SECTION 27156 IN
   ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
          CALIFORNIA ADMINISTRATIVE CODE




                  July 2, 1984


                                           Issue Date:   July 2, 1984




              EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC
                 FUEL CONTROL® DEVICE FOR EXEMPTION FROM THE
                PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN
                 ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
                         CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Diviston

                             State of California

                              Air Resources Board
                              9528 Telstar Avenue
                             E1 Monte, California
                                     91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commerical products constitute
endorsement or recommendation for use.)


                                    SUMMARY



      Cagle Corporation requested an update of their existing exemption,
Executive Order No. D—75—6, from the prohibition in Yehicle Code Section 27156

for their "Cagle Mark II Automatic Fuel Control" fuel pressure regulator for

automobiles.   In particular, Cagle requested that the exemption be updated to

include all 1984 model—year gasoline—powered vehicles with conventional

carburetors.

      The company presented third party testimonials citing actual experienced

fuel economy results.   However, no laboratory test data are available to

substantiate any fuel benefit claims.

      Based on previous emissions tests performed on 1979 model—year vehicles,

and an engineering evaluation of 1979 through 1984 model—year vehicle‘s fue!l

systems, the staff has concluded that the Cagle fuel pressure regulator will

have no adverse effect on emissions from 1984 model—year automobile.

      The staff recommends granting Cagle‘s request to update the exemption.


                                     CONTENTS



                                                 Page Number



 SUMMARY



 CONTENTS                                            i1


 I.     INTRODUCTION



 II.    CONCLUSIONS



 III.   RECOMMENDATIONS



(IV.    DEVICE DESCRIPTION AND OPERATION



        DISCUSSION



APPENDIX




                                           i1.


 Evaluation of "Cagle Corporation Mark II Automatic Fuel Control" Device for
  Exemption from the Prohibitions in Vehicle Code Section 27156 in Accordance
— with Section 2222, Title 13 of the California Administrative Code



 I.    INTRODUCTION

       Cagle Corporation of 2667 East 28th Street, Suite 517, Long Beach

 California 90806 requested by letter dated June 20, 1984, an update of the

 existing Air Resourceszoard's Executive Order No. D—75—6.    The applicant

 requested that the exemption from the prohibitions in Vehicle Code Section

 27156 for their "Cagle Mark II Automatic Fuel Control" device be updated to

 include all 1984 and older model—year motor vehicles that are powered by

 gasoline engines with conventional carburetors and mechanical or electrical

 fuel pumps with and without fuel recirculation systems.

 II.   CONCLUSION
       Previous Air Resources Board (ARB) confirmatory emissions tests showed

 that the use of the "Cagle Mark II Automatic Fuel Control" device did not have

 an adverse effect on the exhaust emission control system of 1979 model—year

 vehicles.   The staff then granted an exemption from the Vehicle Code for 1979

 and older model—year vehicles.

       Updates to include 1980, 1981, 1982 and 1983 model—year vehicles were

 granted on the basis that the vehicles fuel systems on 1979, 1980, 1981, 1982

 and 1983 were similar in design.
       An engineering evaluation of the vehicle‘s fuel system design on 1984,

 1983, 1982, 1981, 1980, and 1979 model—year vehicles indicates that the use of

 the Cagle device should not have an adverse effect on 1984 model—year vehicles.


III.    RECOMMENDATIONS

       Based on the above, the staff concluded that it is justified to grant

the Cagle Corporation an exemption from the prohibitions in Vehicle Code

Section 27156 for its "Cagle Mark II Automatic Fuel Control" device for 1984

and older model vehicles that are powered by gasoline engines with
conventional carburetors and mechanical or electrical fuel pumps with or

without fuel recirculation system.   The staff, therefore, recommends that

Executive Order No. D—75—7 be issued.

IV.    DEVICE DESCRIPTION AND OPERATION

       The "Cagle Mark II Automatic Fuel Control" is a fuel pressure regulator

installed between the fuel pump and the carburetor.   It has three external

fittings: (1) a fitting at the top for measuring intake manifold vacuum; (2)

an inlet fftting marked "PUMP" for connection to the fuel pump; and (3) an
outlet fitting market "CARB" for connection to the carburetor.   It is designed

to reduce the fuel supply pressure under Tow fuel demand conditions but still

maintain the required fuel flow to the carburetor under all operating modes.

The device is controlled by intake manifold vacuum operating on a spring

balanced Buna—N diaphragm.

       A cross sectional view of the device is shown in the Appendix.
       For a more detailed description of the device and its operation, the
reader is referred to ARB Staff Report dated December 17, 1980, entitled

"Cagle Corporation Mark I1 Automatic Fuel Control Device for Compliance with

the Requirements of Section 27156 of the Yehicle Code".

V.     DISCUSSION

       Prior to issuing Executive Order No. D—75—2 (which exempted 1979 and

older model—year vehicles) the staff performed comparative exhaust


emissions tests on a 1979 Ford Fairmont with a 302 CID engine and on a 1979

Chevrolet with a 231 CID engine.          The results of these tests were as follows:

                                1979 Ford Fairmont
                      ARB Emission Data — Cold Start CVS—75

                                          Exhaust Emissions
                                          (Grams per miles)           Fuel Economy
                                     HC            co           NOx      (mpg)
                  Baseline          0.492         3.37         2.46       15.2

                  Device            0.517         3.65         2.48       15.2


                              1979 Chevrolet MaTibu
                      ARB Emission Data — Cold Start CVS—75

                                          Exhaust Emissions
                                          (Grams per miles)           Fuel Economy
                                     HC          _CO            NOx      (mpg)
                  Baseline          0 .440        9.43         0.89       15.2

                  Device            0.353         6.21         0.89       16.0

      In addition, fuel pressure measurements were taken before and after the

regulator for various manifold vacuums.         The results were as follows:



Manifold Vacuum                Fuel Pressure (#/in2)                     Change
 (inches Hg)          Before Regulator          After Regulator        in Pressure

      15                     4.2                        2.55               1.65

      13                     4.2                        2.50               1.70

      11                     4.2                        2.50               1.70

       9                     4.2                        3.05               1.15

      7                      4 .2                       3.70              0.50

       5                     4.2                        3.88               0.32
      3                      3.6                        3.60              0.00


      Then on September 9, 1980, June 15, 1981,'    August 20 1982, and

August 9, 1983, the applicant requested, via letters, that the exemption be

updated to include 1980, 1981, 1982 and 1983 model—year vehicles,

respectively.   In response to those requests, the staff compared the vehicle‘s

fuel system design on some 1979, 1980, 1981, 1982 and 1983 model—year

vehicles.   Since no significant differences, that could adversely affect

exhaust emissions, were noted, no additional tests were requested for the

updates.

      In response to this request, the staff compared the vehicle‘s fuel

syfitem on some 1984, 1983, 1982, 1981, 1980 and 1979 model—year vehicles.     No

significant differences were noted between the vehicle‘s fuel system design

even though newer cars tend to operate more fuel efficient.   The staff,

therefore again, did not recommend or perform any additional tests.

      The company presented third party testimonials citing actual experienced

fuel economy results.   However, no laboratory test data are available to

substantiate any fuel benefit claims.


APPENDIX


thatnerm



Document Created: 2005-09-01 12:40:09
Document Modified: 2005-09-01 12:40:09

Previous E.O. D-75-6 | Previous E.O. D-74 | Next E.O. D-75-8 | Next E.O. D-76
