Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 22, 1986.
As of Sunday, December 22nd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1986 and older model year motor vehicles tha are powered by gasoline with conventional carburetors and mechanical or electric fuel pumps with and without recirculation systems.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-75-9
  • Executive Order 75-9 / D75-9
  • ARB # D-75-9
  • Executive Order No: D-75-9
  • C.A.R.B. No. D-75-9
  • Resolution D-75-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-75-9 PDF

D-75-9 Document:

CARB_D-75-9

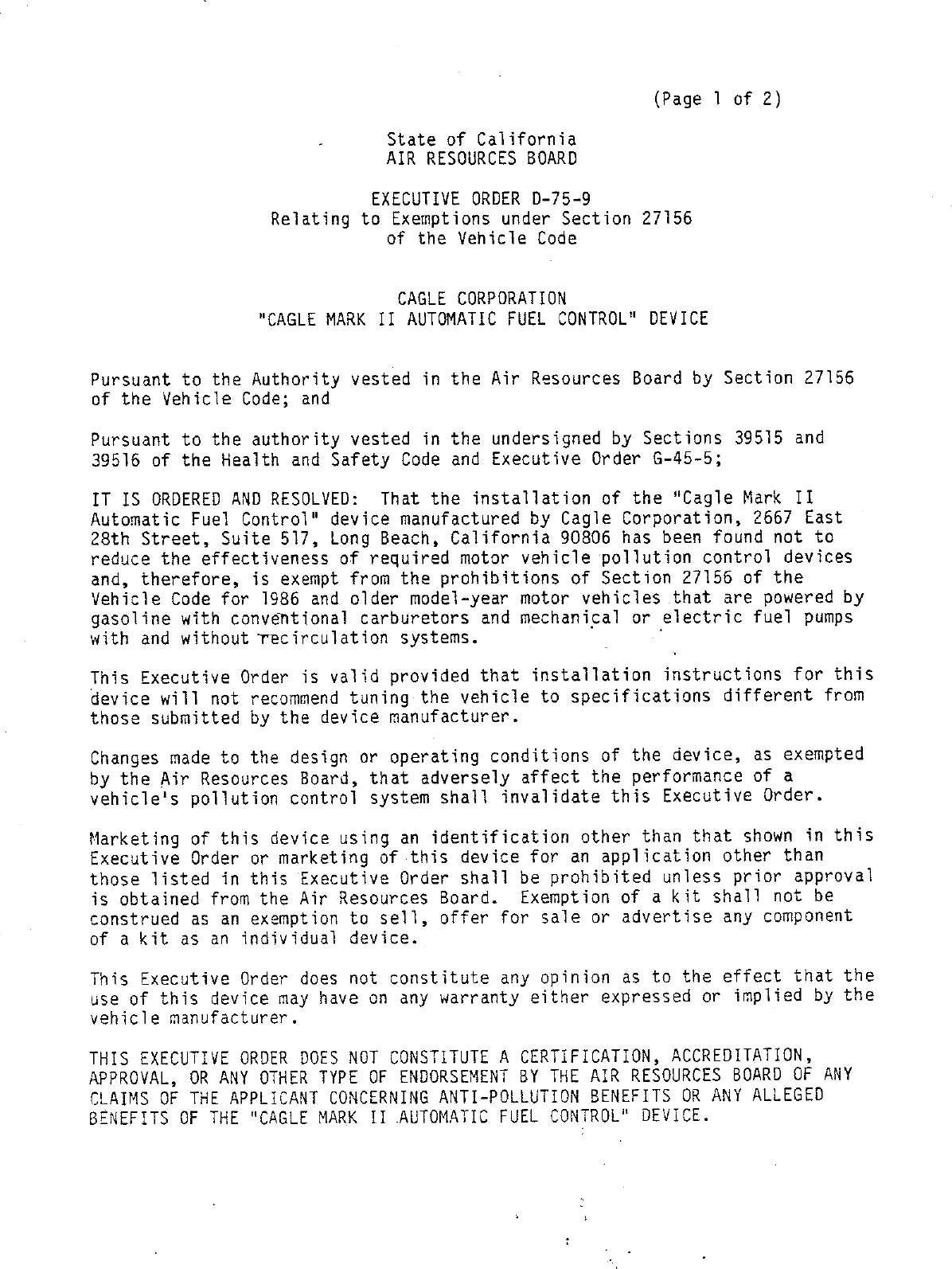

(Page 1 of 2) State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—75—9 Relating to Exemptions under Section 27156 of the Vehicle Code CAGLE CORPORATION "CAGLE MARK II AUTOMATIC FUEL CONTROL®" DEVICE Pursuant to the Authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and Safety Code and Executive Order G—45—5; IT IS ORDERED AND RESOLVED: That the installation of the "Cagle Mark II Automatic Fuel Control" device manufactured by Cagle Corporation, 2667 East 28th Street, Suite §17, Long Beach, California 90806 has been found not to reduce the effectiveness of required motor vehicle pollution control devices and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for 1986 and older model—year motor vehicles that are powered by gasoline with conventional carburetors and mechanical or electric fuel pumps with and without Tecirculation systems. j This Executive Order is valid provided that installation instructions for this device will not recommend tuning the vehicle to specifications different from those submitted by the device manufacturer. Changes made to the design or operating conditions of the device, as exempted by the Air Resources Board, that adversely affect the performance of a vehicle‘s pollution control system shall invalidate this Executive Order. Marketing of this device using an identification other than that shown in this Executive Order or marketing of this device for an application other than those listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air Resources Board. Exemption of a kit shall not be construed as an exemption to sell, offer for sale or advertise any component of a kit as an individual device. This Executive Order does not constitute any opinion as to the effect that the use of this device may have on any warranty either expressed or implied by the vehicle manufacturer. THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE "CAGLE MARK II AUTOMATIC FUEL CONTROL®" DEVICE.

CAGLE CORPORATION EXECUTIVE ORDER D—75—9 (Page 2 of 2) No claim of any kind, such as "Approved by Air Resources Board" may be made with respect to the action taken herein in any advertising or other oral or written communication . Section 17500 of the Business and Professions Code makes untrue or misleading advertising unlawful, and Section 17534 makes violation punishable as a misdemeanor. Section 43644 of the Health and Safety Code provides as follows: "43644. (a) No person shall install, sell, offer for sale, or advertise, or, except in an application to the state board for certification of a device, represent, any device as a motor vehicle pollution control device for use on any used motor vehicle unless that device has been certified by the state board. No person shall sell, offer for sale, advertise, or represent any motor vehicle pollution control device as a certified device which, in fact, is not a certified device. Any violation of this subdivision is a misdemeanor." Any apparent violation of the conditions of this Executive Order will be submitted to the Attorney General of California for such action as he deems advisable. ~— Executive Order No. D—75—8, dated May 16, 1985, is superseded and of no further force and effect. > Executed at El Monte, California, this 27 *" day of April, 1986. /Vianmi® K. D. Drachand, Chief Mobile Source Division

STATE OF CALIFORNIA AIR RESOURCES BOARD EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC FUEL CONTROL®" DEVICE FOR EXEMPTION FROM THE PROHIBITIONS IN VEKHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE April, 1986

Issue Date: April, 1986 EVALUATION OF "CAGLE CORPORATION MARK II AUTOMATIC FUEL CONTROL® DEVICE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE by Mobile Source Division State of California Air Resources Board 9528 Telstar Avenue E1 Monte, California 91731 (This report has been reviewed by the staff of the California Air Resources Board and approved for publication. Approval does not signify that the contents necessarily reflect the views and policies of the Air Resources Board, nor does mention of trade names or commerical products constitute endorsement or recommendation for use.)

SUMMARY Cagle Corporation requested an update of their existing exemption, Executive Order (E.0.) No. D—75—8, from the prohibition in Vehicle Code Section 27156 for their "Cagle Mark II Automatic Fuel Control" fuel pressure regulator for automobiles. In particular, Cagle requested that the 1985 and older model—year carbureted vehicle exemptions be updated to include all 1986 model—year gasoline—powered vehicles with conventional carburetors. Based on previous emissions tests performed on 1979 model—year vehicles, and an engineering evaluation of 1979 through 1986 model—year vehicle‘s fuel systems, the staff has concluded that the Cagle fuel pressure regulator will have no adverse effect on emissions from applicable 1986 model—year automobile. The staff recommends granting Cagle‘s request to update the Section 27156 exemption to include 1986 model—year vehicles equipped with conventional carburetors.

CONTENTS Page Number SUMMARY CONTENTS 11 INTRODUCTION II. CONCLUSIONS 111. RECOMMENDATIONS IV. DEVICE DESCRIPTION AND OPERATION DISCUSSION APPENDIX i1.

Evaluation of "Cagle Corporation Mark II Automatic Fuel Control" Device for Exemption from the Prohibitions in Vehicle Code Section 27156 in Accordance with Section 2222, Title 13 of the California Administrative Code I. INTRODUCTION Cagle Corporation of 2667 East 28th Street, Suite 517, Long Beach California 90806 requested an update of the existing Air Resources Board‘s Executive Order No. D—75—8. The applicant requested that the exemption from the prohibitions in Vehicle Code Section 27156 for their "Cagle Mark II Automatic Fuel Control" device be updated to include all 1986 and older model—year motor vehicles that are powered by gasoline engines with conventional carburetors and mechanical or electrical fuel pumps with and without fuel recirculation systems. E.0. No. D—75—8 exempts 1985 and older model—year vehicles of this type. II. CONCLUSION Previous Air Resources Board (ARB) confirmatory emissions tests showed that the use of the "Cagle Mark II Automatic Fuel Control" device did not have an adverse effect on the exhaust emission control system of specified 1979 model—year vehicles. An exemption from the Vehicle Code for 1979 and older model—year vehicles was granted. The manufacturer was granted updates of the E.0. to include applicable 1980 through 1985 model—year vehicles on the basis that the vehicles‘ fuel systems on 1979 through 1985 were similar in design,. An engineering evaluation of the vehicles‘ fuel system on 1986 model—year vehicles indicates that it is similar in design to that of 1985 vehicles; the use of the Cagle device,therefore, should not have an adverse effect on applicable 1986 model—year vehicles either.

III. RECOMMENDATIONS Based on the above, the staff concludes that the "Cagle Mark II Automatic Fuel Control" device meets the criteria for an exemption from the prohibitions in Vehicle Code Section 27156 for 1986.and older model vehicles that are powered by gasoline engines with conventional carburetors and mechanical or electrical fuel pumps with or without fuel recirculation system. The staff, therefore, recommends that Executive Order No. D—75—9 be issued to Cagle Corporation. IV. DEVICE DESCRIPTION AND OPERATION The "Cagle Mark II Automatic Fuel Control" is a fuel pressure regulator installed between the fuel pump and the carburetor. The device has three external fittings: (1) a fitting at the top for measuring intake manifold vacuum, (2) an inlet fitting marked "PUMP" for connection to the fuel pump, and (3) an outlet fitting market "CARB" for connection to the carburetor. It is designed to reduce the fuel supply pressure under low fuel demand conditions but still maintain the required fuel flow to the carburetor under all operating modes. The device is controlled by intake manifold vacuum cperating on a spring balanced Buna—N diaphragm (see the Appendix for a cross sectional view of the device). For a more detailed description of the device and its operation, the reader is referred to ARB Staff Report dated December 17, 1980, entitled "Cagle Corporation Mark II Automatic Fuel Control Device for Compliance with the Requirements of Section 27156 of the Vehicle Code".

V. DISCUSSION The staff previously performed comparative exhaust emissions tests on a 1979 Ford Fairmont with a 302 CID engine and on a 1979 Chevrolet with a 231 CID engine. Based on the test results the staff concluded that the Cagle device would not have an adverse effect on 1979 and older model—year vehicles with conventional carburetors and mechanical fuel pumps with and without fuel recirculation system. The manufacturer was granted updates of the E.0. to include applicable 1980 through 1985 model—year vehicles on the basis that the vehicles‘ fuel systems on 1979 through 1985 were similar in design. The staff compared the vehicle‘s fuel system on 1985 through 1986 model—year vehicles. No significant differences were noted between the vehicles‘ fuel system design even though newer cars tend to operate»mbre fuel efficient. The staff concluded that the Cagle device would not have an adverse effect on applicable 1986 model—year vehicles and, therefore, did not recommend any additional tests.

enflrar. 0 2C ltko . e XIQN3dd¥y e 2tR oun


Document Created: 2005-09-01 12:40:44
Document Modified: 2005-09-01 12:40:44
