Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 25, 2015.
As of Wednesday, September 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-756
  • Executive Order 756 / D756
  • ARB # D-756
  • Executive Order No: D-756
  • C.A.R.B. No. D-756
  • Resolution D-756
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-756 PDF

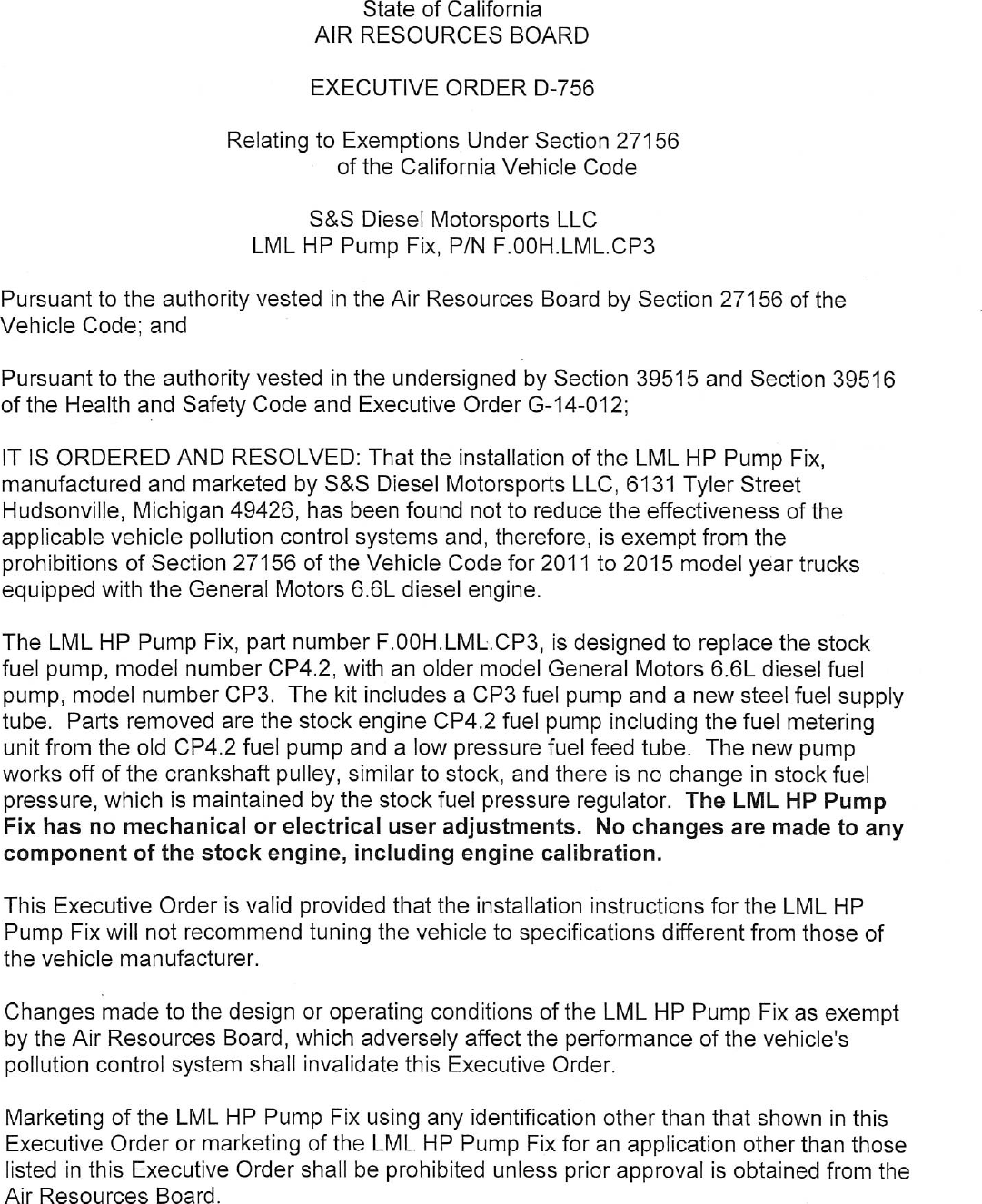

D-756 Document:



                                   State of California
                               AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—756

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                             S&S Diesel Motorsports LLC
                         LML HP Pump Fix, P/N F.00H.LML.CP3

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the LML HP Pump Fix,
manufactured and marketed by S&S Diesel Motorsports LLC, 6131 Tyler Street
Hudsonville, Michigan 49426, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 2011 to 2015 model year trucks
equipped with the General Motors 6.6L diesel engine.

The LML HP Pump Fix, part number F.00H.LML.CP3, is designed to replace the stock
fuel pump, model number CP4.2, with an older model General Motors 6.6L diesel fuel
pump, model number CP3. The kit includes a CP3 fuel pump and a new steel fuel supply
tube. Parts removed are the stock engine CP4.2 fuel pump including the fuel metering
unit from the old CP4.2 fuel pump and a low pressure fuel feed tube. The new pump
works off of the crankshaft pulley, similar to stock, and there is no change in stock fuel
pressure, which is maintained by the stock fuel pressure regulator. The LML HP Pump
Fix has no mechanical or electrical user adjustments. No changes are made to any
component of the stock engine, including engine calibration.

This Executive Order is valid provided that the installation instructions for the LML HP
Pump Fix will not recommend tuning the vehicle to specifications different from those of
the vehicle manufacturer.

Changes made to the design or operating conditions of the LML HP Pump Fix as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of the LML HP Pump Fix using any identification other than that shown in this
Executive Order or marketing of the LML HP Pump Fix for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board.


This exemption is issued based on submitted emissions test data, from Ecologic Engine
Testing Laboratory of Fullerton, California, on a 2015 model year Chevrolet 2500 certified
to the Low Emission Vehicle II Ultra Low Emission Vehicle standards and tested using the
Federal Test Procedure (FTP) and Highway Fuel Economy Drive Schedule (HFEDS)
exhaust emission standards:
                                      CVS—75 FTP
                                   NMOG    CO    NOx                 HCHO         PM

   Standards UL                    0.143       6.4     0.2           0.016        0.06
   Device Test w/df                0.074       111     0.2           0.000        0.01

                                  HFEDS
                                   NOx
   Standards UL                    0.40
   Device                          0.03

Test results showed that the LML HP Pump Fix when installed on the vehicle did not cause
exhaust emissions to exceed the applicable emission standards during the FTP and
HFEDS. This Executive Order is also based on the On—Board Diagnostic II (OBD 11) testing
conducted on the same test vehicle. The LML HP Pump Fix when installed on the test
vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
LML HP PUMP FIX.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

This Executive Order shall not apply to any Supercharger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this     25         day of November 2015.




                      Annette Hebert, Chief
                      Emissions Compliance, Automotive Regulations and Science Division

             S&S DIESEL MOTORSPORTS LLC — LML HP PUMP FIX — D—756



Document Created: 2016-05-02 16:03:13
Document Modified: 2016-05-02 16:03:13
