Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 16, 2017.
As of Tuesday, June 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2016 Ford: GFMXE06.8BWZERS Assembly, Gear Box Assembly, Hydraulic Pump/Motor, Accumulator Vessels, Manifold Assy, ECU, & Custom Brake Pedal

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-793
  • Executive Order 793 / D793
  • ARB # D-793
  • Executive Order No: D-793
  • C.A.R.B. No. D-793
  • Resolution D-793
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-793 PDF

D-793 Document:

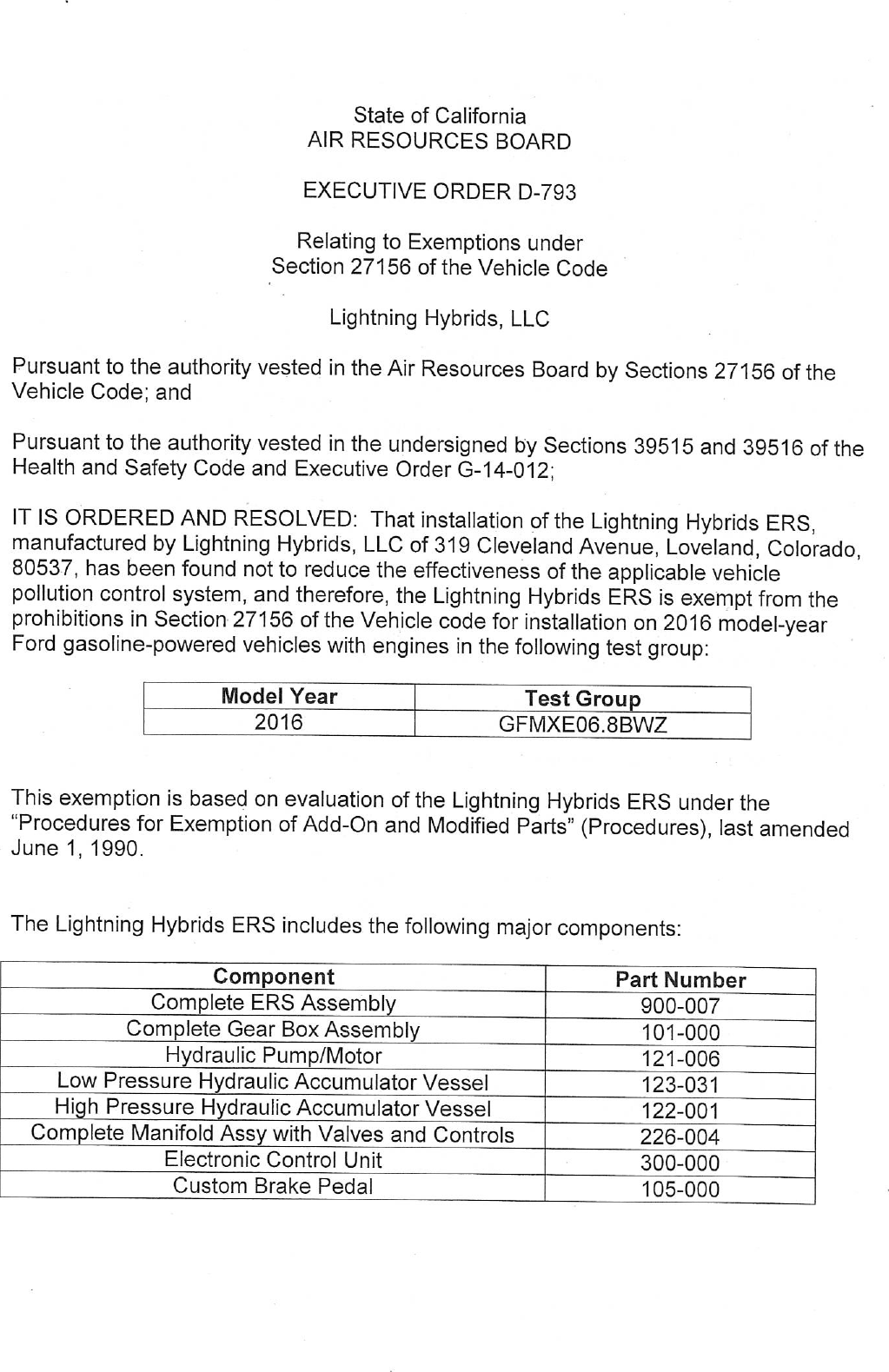

                                   State of California
                                AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—793

                             Relating to Exemptions under
                          Section 27156 of the Vehicle Code

                                 Lightning Hybrids, LLC

Pursuant to the authority vested in the Air Resources Board by Sections 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That installation of the Lightning Hybrids ERS,
manufactured by Lightning Hybrids, LLC of 319 Cleveland Avenue, Loveland, Colorado,
80537, has been found not to reduce the effectiveness of the applicable vehicle
pollution control system, and therefore, the Lightning Hybrids ERS is exempt from the
prohibitions in Section 27156 of the Vehicle code for installation on 2016 model—year
Ford gasoline—powered vehicles with engines in the following test group:

                     Model Year                          Test Group
                         2016                      GFMXEO6.8BW2Z


This exemption is based on evaluation of the Lightning Hybrids ERS under the
"Procedures for Exemption of Add—On and Modified Parts" (Procedures), last amended
June 1, 1990.


The Lightning Hybrids ERS includes the following major components:

                     Component                                   Part Number
             Complete ERS Assembly                                    900—007
           Complete Gear Box Assembly                                 101—000
              Hydraulic Pump/Motor                                    121—006
    Low Pressure Hydraulic Accumulator Vessel                         123—031
    High Pressure Hydraulic Accumulator Vessel                        122—001
  Complete Manifold Assy with Valves and Controls                     226—004
              Electronic Control Unit                                 300—000
                 Custom Brake Pedal                                   105—000


                                             12L

This Executive Order is based on emission testing Lightning Hybrids, LLC conducted
with the Lightning Hybrids ERS. The Air Resources Board reserves the right to conduct
additional emission tests in the future. If such test results demonstrate that the
Lightning Hybrids ERS adversely affects emissions, this Executive Order may be
rescinded. Further, if such test results or other evidence provides the Air Resources
Board with reasons to suspect that the Lightning Hybrids ERS will affect the durability of
the emission control system, Lightning Hybrids, LLC shall be required to submit
durability data to show that the durability of the vehicle emission control system is not, in
fact, affected and/or that the add—on or modified parts demonstrate adequate durability.

Lightning Hybrids LLC shall collect On—Board Diagnostic II (OBDII) mode $09 data upon
installation of the Lightning Hybrids ERS and again after approximately 6 months of
customer use for at least 5 vehicles from the 2016 model year to be provided within one
year of the first date of sale of the Hybrid System. If the mode $09 data demonstrate
that the Lightning Hybrids ERS does not comply with the minimum in—use monitor
performance rates specified in 13 CCR 1968.2, this Executive Order may be rescinded.

This Executive Order is valid provided that installation instructions for the
Lightning Hybrids ERS do not recommend tuning the vehicles to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Lightning Hybrids ERS, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s emission control system, shall invalidate this Executive Order.

Marketing of the Lightning Hybrids ERS using identification other than that shown in this
Executive Order or for an application other than that listed in this Executive Order shall
be prohibited unless prior approval is obtained from the Air Resources Board.

Exemption of the Lightning Hybrids ERS shall not be construed as exemption to sell,
offer for sale, or advertise any component of the system as an individual device.

This Executive Order shall not apply to any Lightning Hybrids ERS advertised, or
offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California code of Regulations, Title 13, Section 2222, et seq.




          LIGHTNING HYBRIDS, INC. — LIGHTNING HYBRIDS ERS — D—793


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOAORD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF LIGHTNING
HYBRIDS, INC.‘S LIGHTNING HYBRIDS ERS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.
                                           th
Executed at El Monte, California this _/ & ~~—    day of June 2017

                        be
                  _ IZVi_
        f*, x nnette Hebert, Chief
                    missions Compliance, Automotive Regulations and Science Division




           LIGHTNING HYBRIDS, INC. — LIGHTNING HYBRIDS ERS — D—793



Document Created: 2017-06-20 09:37:58
Document Modified: 2017-06-20 09:37:58
