Approved Parts

Part NumberModelsModification
3-00121982-1983 BMW 633i and 733i 1983 BMW 533i models with 195.9 CID6 cylinder enginesIncludes a fuel enrichment control module and delay valve on vacuum advance

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-97-16
  • Executive Order 97-16 / D97-16
  • ARB # D-97-16
  • Executive Order No: D-97-16
  • C.A.R.B. No. D-97-16
  • Resolution D-97-16
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-97-16 PDF

D-97-16 Document:

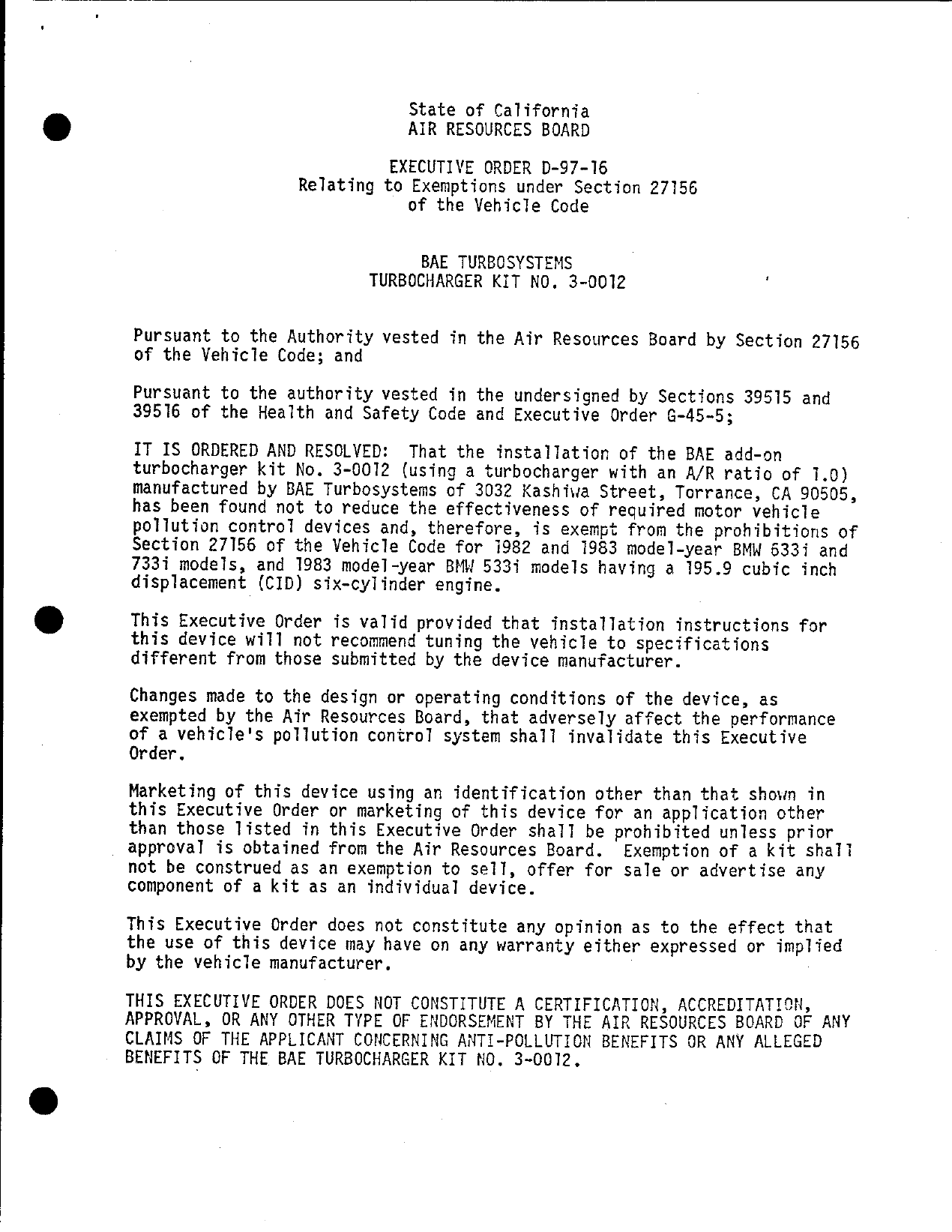

                               State of California
                               AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—97—16
                 Relating to Exenptions under Section 27156
                             of the Vehicle Code

                               BAE TURBOSYSTEMS
                         TURBOCHARGER KIT NO. 3—0012                 ©


Pursuant to the Authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED: That the installation of the BAE add—on
turbocharger kit No. 3—0012 (using a turbocharger with an A/R ratio of 1.0)
manufactured by BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505,
has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for 1982 and 1983 model—year BMW 6331 and
7331 models, and 1983 model—year BMW 5331 models having a 195.9 cubic inch
displacement (CID) six—cylinder engine.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application cther
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.     Exemption of a kit shall
not be construed as an exemption to sell, offer for sale or advertise any
component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATIOH,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE BAE TURBOCHARGER KIT NO. 3—0012.


   BAE TURBOSYSTEMS                                  EXECUTIVE ORDER D—97—16
                                                      (Page 2 of 2)


   No claim of any kind, such as "Approved by Air Resources Board" may be made
   with respect to the action taken herein in any advertising or other oral or
—_ written communication

  Section 17500 of the Business and Professions Code makes untrue or
  misleading advertising unlawful, and Section 17534 makes violation
  punishable as a misdemeanor.

   Section 43644 of the Health and Safety Code provides as follows:

       "43644.   (a)   No person shall install, sell, offer for sale, or
       advertise, or, except in an application to the state board for
      certification of a device, represent, any device as a motor vehicle
      pollution control device for use on any used motor vehicle unless that
      device has been certified by the state board. No person shall sell,
      offer for sale, advertise, or represent any motor vehicle pollution
      control device as a certified device which, in fact, is not a certified
      device. Any violation of this subdivision is a misdemeanor."

  Any apparent violation of the conditions of this Executive Order will be
  sgbmit;ed to the Attorney General of California for such action as he deems
  advisable.

  Executive Order No. D—97—12, dated February 25, 1982, is superseded and of
  no further force and effect.
                                                1       .
  Executed at El Monte, California, this      2242    day        uary, 1983.


                                           Wflw
                                              D. Drachand, Chief
                                           Mobile Source Control Division


           STATE OF CALIFORNIA
           AIR RESOURCES BOARD




  EVALUATION OF THE BAE TURBOCHARGER KIT
     NO. 3—0012 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156
  IN ACCORDANCE WITH SECTION 2222, TITLE
 13 OF THE CALIFORNIA ADMINISTRATIVE CODE




             January 4, 1983


                                                       January 4, 1983




                 EVALUATION OF THE BAE TURBOCHARGER KIT
                    NO. 3—0012 FOR EXEMPTION FROM THE
               PROKIBITIONS IN VEHICLE CODE SECTION 27156
                 IN ACCORDANCE WITH SECTION 2222, TITLE
                13 OF THE CALIFORNIA ADMINISTRATIVE CODE




                                   by
                           State of California
                           Air Resources Board
                           9528 Telstar Avenue
                          E1 Monte, California
                                  91731




(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication. Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                 SUMMARY



      BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested by letter dated December 14, 1982, an update to the existing

Air Resources Board‘s Executive Order (E.0.) No. D—97—12.     The applicant

requested that their add—on turbocharger kit No. 3—0012 be also exempted

from the prohibitions in Vehicle Code (V.C.) Section 27156 for the 1983

model—year BMW 5331, 633i, and 7331 model vehicles powered by a 195.9

cubic inch displacement (CID) six—cylinder gasoline engine.

      Based on the previous comparative exhaust emissions tests performed
on 1981 and 1982 model—year BMW 633i models and the fact that the engines

used in the 1983 model—year BMW 5331, 633i, and 733i model vehicles are

carry—overs (identical engine design} from the 1981 and 1982 models, the
staff concludes that the kit will not adversely affect exhaust emissions

from the 1983 BMW 533i, 6331, and 7331 models.

      The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 model—year BMW 5331, 633i, and 7331 model

vehicles in the exemption of their add—on turbocharger kit No. 3—0012.

The staff recommends that Executive Order No. D—97—16 be adopted.


                                 CONTENTS




                                                    Page Number


sumary                                                    i
CONTENTS                                                 i1

I.     INTRODUCTION                                       1

II.    CONCLUSION                                         1

III.   RECOMMENDATION                                     1

IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION         2

V.     D1SCUSSION                                        4




                                    11.


EVALUATION OF THE BAE TURBOCHARGER KIT NO. 3—0012 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION
2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE.



I.     INTRODUCTION

       BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested by letter dated December 14, 1982, an update to the existing

Air Resources Board‘s Executive Order (E.0.) No. D—97—12.     The applicant

requested that their add—on turbocharger kit No. 3—0012 be also exempted

from the prohibitions in Vehicle Code (¥.C.) Section 27156 for the 1983
model—year BMW 533i, 633i, and 7331 model vehicles powered by a 195.9

cubic inch displacement (CID) six—cylinder gasoline engine.

II.    CONCLUSION

       Based on the previous comparative exhaust emissions tests performed
on 1981 and 1982 model—year BMW 633i models and the fact that the engines

used in the 1983 model—year BMW 533i, 633i, and 7331 model vehicles are

carry—overs {identical engine design) from the 1981 and 1982 models, the
staff concludes that the kit will not adversely affect exhaust emissions

from the 1983 BMW 533i, 6331, and 733i models.

III.   RECOMMENDATION

       The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 model—year BMW 533i, 6331i, and 7331 model

vehicles in the exemption of their add—on turbocharger kit No. 3—0012.

The staff recommends that Executive Order No. D—97—16 be adopted.


IV.     TURBOCHARGER KIT DESCRIPTION AND OPERATION
        The purpose of turbocharging is to increase the volumetric

efficiency of an engine by forcing more air into an engine than it would

take in under naturally aspirated conditions.

        The major components of the BAE turbocharger kit No. 3—0012 are a

turbocharger {with an A/R ratio of 1.0), a replacement BAE exhaust

manifold, a pressure control wastegate, a fuel enrichment control, and a

boost pressure controlled fuel regulator.     The components are packaged

with installation hardware and installation instructions and sold as a

kit.

        The original equipment manufacturer (OEM) exhaust manifold is
replaced by a BAE manifold.     The turbine inlet mounts directly to the

replacement manifold.    The turbine, driven by exhaust gases, is Tinked

to the compressor by a solid shaft.     Intake air from the air box, of

the L—Jectronic fue!l injection system, is routed to the compressor.

Compressed air is then piped to the intake plenum through the discharge
pipe.

        The lubrication of the turbocharger is provided by a steel—braided

lTine from the oil filter adapter located at the engine block to the

turbocharger bearing housing.     Oil from the turbocharger is returned to

the engine block.

        Maximum positive manifold pressure (boost) is Timited to 7 psig by

a wastegate mounted on the exhaust manifold.    The wastegate is preset to

dump excess exhaust gases when intake manifold pressure reaches 7 psig.


      The kit also contains a fuel enrichment control.     The control has a
vacuum line which tees to the left side of the intake plenum for sensing

positive boost conditions.     Also attached to the control are three sets
of wire which Tink to the oxygen sensor, temperature sensor, and throttle

valve switch.   When 2 psig is sensed by the control, the throttle vaive

opens allowing more intake air and fuel into the combustion chamber.
Upon sensing 3.5 psig of boost pressure, the oxygen and temperature

sensors are deactivated to signal the computer (in the car)} to run in the

rich mode as in cold—start/warm—up conditions.
      Additional fue! enrichment is provided by the BAE boost pressure

controlled fue! regulator during high boost pressures.     The regulator
is positioned in the fuel return line between the OEM fuel pressure

regulator and the fuel tank.    During high boost conditions, the BAE

regulator blocks the return Tine and increases the pressure differential
across the injectors, thus forcing more fuel to be injected.

      A vacuum delay valve is used to control NOx emissions and to

suppress detonation.   The valve is installed in the vacuum line prior to

the vacuum retard mechanism of the distributor.
      No modifications to the OEM tune—up specifications are required

when the turbocharger kit is installed.    AlTI OEM emission controls are
left intact.

      BAE recommends that premium non—leaded fuel be used with the

turbocharger kit, but regular non—leaded fuel is compatible.


V.      DISCUSSION

        BAE turbocharger kit No. 3—0000W1 applicable to 1980 and 1981 model.
year BMW 6331 and 733i model vehicles powered by a 195.9 CID six—cylinder

gasoline engine was granted an exemption (E.0. No. D—97—7) on October 7,

1981.     The exemption was granted on the basis that the effectiveness
of the vehicle‘s pollution control system was not reduced.     Evaluation

consisted of comparative (without and with the kit installed on a test

vehicle) chassis dynamometer CVS—75 and HFET tests at normal and multiple

dynamometer road loading.

        Turbocharger kit No. 3—0000W1 was modified to accommodate the

engines in the 1982 models.     The modified kit, kit No. 3—0012, has

identical components, except for the discharge pipe (pipe for routing

intake air from the turbocharger compressor outlet into the intake
plenum).    Although the discharger pipes are bent differently, the kits

are identical in operation and performance.

        The 1982 model—year BMW 6331 and 7331 model vehicles have a

higher nominal compression ratio (8.8:1 compared to 8.0:1).     In order

for the applicant to demonstrate that the kit will not adversely affect

the exhaust emissions from the 1982 BMW models, the applicant performed

comparative exhaust emisstons tests on a 1982 model.    Since the

comparative tests indicated that the exhaust emissions from the 1982

mode! was not adversely affected by the installation of the add—on

turbocharger kit, an exemption was granted for kit No. 3—0012.
        The applicant is making available kit No. 3—0012 for the 1983

models.    The applicant has requested that the exemption be updated to

include the 1983 models.


      In response to the request, the staff compared the engine design of

both 1982 and 1983 modelT—years.     Since the engines in the 1983 models are

identically designed as the 1982 engines, the staff is of the opinton

that the 1983 vehicles will have the same degree of performance/emissions
impact as in the 1982 models.      Because the test data on a 1982 test

vehicle showed that the vehicle‘s emissions were not adversely affected

when the turbocharger kit was installed, the kit will have no adverse

effect on the 1983 models either.     No additional testing was required or

performed.



Document Created: 2005-09-01 12:39:49
Document Modified: 2005-09-01 12:39:49

Previous E.O. D-97-15 | Previous E.O. D-96 | Next E.O. D-97-17 | Next E.O. D-98
