Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 7, 1983.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
2-0000-11980-1983 BMW 320i with 4 cylinder enginesDisconnect and plug vacuum advance at throttle body.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-97-17
  • Executive Order 97-17 / D97-17
  • ARB # D-97-17
  • Executive Order No: D-97-17
  • C.A.R.B. No. D-97-17
  • Resolution D-97-17
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-97-17 PDF

D-97-17 Document:

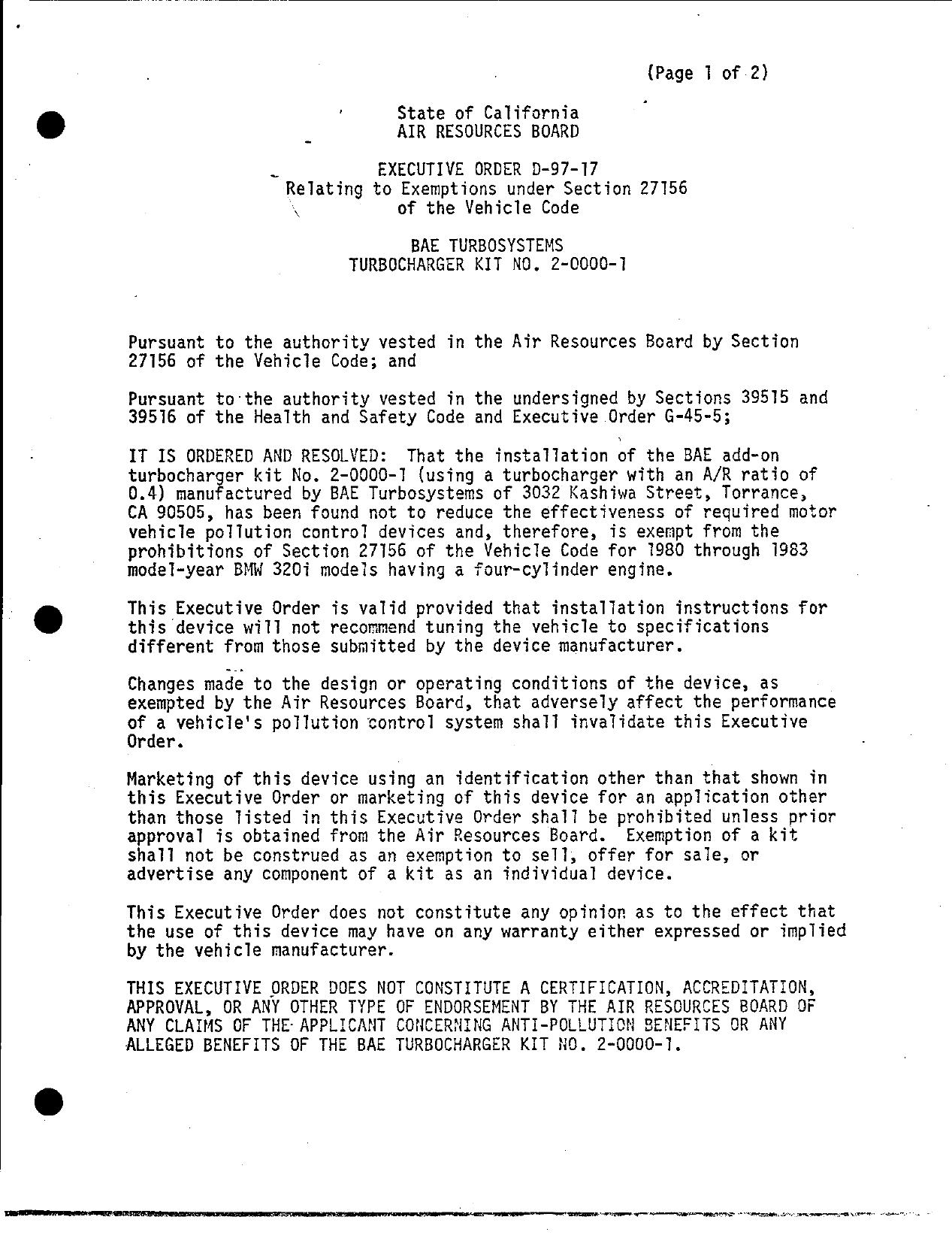

                                                         {Page 1 of 2)

                               State of California
                               AIR RESOURCES BOARD

                         EXECUTIVE ORDER D—97—17
               Re]atlng to Exemptions under Section 27156
                 \         of the Vehicle Code
                              BAE TURBOSYSTEMS
                       TURBOCHARGER KIT NO. 2—0000—1



Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLYED: That the installation of the BAE add—on
turbocharger kit No. 2—0000—1 {using a turbocharger with an A/R ratio of
0.4) manufactured by BAE Turbosystems of 3032 Kashiwa Street, Torrance,
CA 90505, has been found not to reduce the effectiveness of required motor
vehicle po]lution control devices and, therefore, is exeript from the
prohibitions of Section 27156 of the Vehicle Code for 1980 through 1983
model—year BMW 3201 models having a four—cylinder engine.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device us1ng an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those Tisted in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.     Exemption of a kit
shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTICN SENEFITS OR ANY
ALLEGED BENEFITS OF THE BAE TURBOCHARGER KIT NO. 2—0000—1.


BAE TURBOSYSTEMS                                    EXECUTIVE ORDER D—97—17
                                                        — (Page 2 of 2)



No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makés untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board. No person shall sell, .
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.
Executive Order No. D—97—9, dated December 3, 1981, is superseded and of no
further force and effect.

                                           7'147“
Executed at E1 Monte, California, this              day of Febpuary, 1983.



                                          & D. Drachand, Chief
                                         Mobile Source Control Division


           STATE OF CALIFORNIA
           AIR RESOURCES BOARD




  EVALUATION OF THE BAE TURBOCHARGER KIT
    NO. 2—0000—1 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156
  IN ACCORDANCE WITH SECTION 2222, TITLE
 13 OF THE CALIFORNIA ADMINISTRATIVE CODE




            February 3, 1983


                                                   February 3, 1983




                 EVALUATION OF THE BAE TURBOCHARGER KIT
                   NO. 2—0000—1 FOR EXEMPTION FROM THE
               PROHIBITIONS IN VEKHICLE CODE SECTION 27156
                 IN ACCORDANCE WITH SECTION 2222, TITLE
                13 OF THE CALIFORNIA ADMINISTRATIVE CODE




                                   by

                           State of California
                           Air Resources Board
                           9528 Telstar Avenue
                           E1 Monte, CA 91731



(This report has been reviewed by the staff of the California Air
Resources Board and approved for publTication. Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                  summay



      BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested an update to the existing Air Resources Board‘s Executive Order

{(E.0.) No. D—97—9.   The applicant requested that their add—on

turbocharger kit No. 2—0000—1 be also exempted from the prohibitions in

Vehicle Code (V.C.) Section 27156 for the 1983 model—year BMW 3201 model

vehicles powered by a four—cylTinder gasoline engine.

      Based on the previous comparative exhaust emissions tests performed

on a 1981 model—year BMW 3201 model and the fact that the engines used in

the 1983 model—year BMW 3201 mode] vehicles are carry—overs {identical

engine design) from the 1981 and 1982 models, the staff concludes that

the kit will not adversely affect exhaust emissions from the 1983 BMW

3201 models.

      The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 modeT—year BMW 3201 vehicles in the exemption

of their add—on turbocharger kit No. 2—0000—1.   The staff recommends that

Executive Order No. D—97—17 be adopted.


                                 CONTENTS




                                                    Number


SUMMARY                                                 i
CONTENTS                                              i1
I.     INTRODUCTION                                     1
II.    CONCLUSION                                       1
III.   RECOMMENDATION                                   1
IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION




                                                       No
V.     DISCUSSION




                                                       t
APPENDIX



                                                       Jeo




                                    11


EVALUATION OF THE BAE TURBOCHARGER KIT NO. 2—0000—1 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE.



I.     INTRODUCTION

       BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested an update to the existing Air Resources Board‘s Executive Order

(E.0.) No. D—97—9.      The applicant requested that their add—on

turbocharger kit No. 2—0000—1 be also exempted from the prohibitions in

Vehicle Code (¥.C.) Section 27156 for the 1983 model—year BMW 3201 model
vehicles powered by a four—cylinder gasoline engine.

II.    CONCLUSION

       Based on the previous comparative exhaust emissions tests performed

on a 1981 model—year BMW 3201 model and the fact that the engines used in

the 1983 model—year BMW 3201 model vehicles are carry—overs {identical

engine design) from the 1981 and 1982 models, the staff concludes that

the kit will not adversely affect exhaust emissions from the 1983 BMW
3201 models.

III.   RECOMMENDATION

       The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 model—year BMW 3201 model vehicles in the

exemption of their add—on turbocharger kit No. 2—0000—1.     The staff

recommends that Executive Order No. D—97—17 be adopted.


IV.   TURBOCHARGER KIT DESCRIPTION AND OPERATION

      The purpose of turbocharging is to increase the volumetric

efficiency of an engine.   The major components of the BAE turbocharger

kit are a RaJay turbocharger model 300F with an A/R ratio of 0.4, a

replacement exhaust manifold, a replacement intake plenum, an intake and

a discharge pipe, and a positive manifold pressure control wastegate.

The components are packaged with installation hardware and instructions

and sold as a kit (see Figure in appendix}.
      The original equipment manufacturer (OEM) exhaust manifold is

replaced by a BAE manifold.     The turbine inlet mounts directly to the

replacement exhaust manifold.    The turbine, driven by exhaust gases, is

linked to the compressor by a solid shaft.     Intake air from the air box,

of the K—Jetronic System, is routed through the intake pipe to the

compressor.   Compressed air is then piped to the BAE replacement intake

plenum through the discharge pipe.
      The lubrication of the turbocharger is provided by a steel braided

lTine from the filtered engine oil galley to the turbocharger bearing
housing.   Oil from the turbocharger is returned to the oi pan.

      Maximum positive manifold pressure (boost) is lTimited to 5 psig by

a wastegate mounted on the exhaust manifold.    The wastegate is preset to

dump excess exhaust gases when intake manifold pressure reaches 5 psig,

thus bypassing the turbine.


       No modifications to the OEM tune—up specifications are required

when the turbocharger kit is installed except for disconnecting the

ignition distributor vacuum advance unit and plugging it at the throttle

body with a plug supplied by BAE.    All other OEM emission controls remain

~intact.
V.     DISCUSSION

       BAE turbocharger kit No. 2—0000—1 applicable to 1980 through 1982

model—year BMW 3201 mode?! vehicles powered by a four—cylinder gasoline

engine was granted an exemption (E.0. No. D—97—9) on December 3, 1981.

The exemption was granted on the basis that the effectiveness of the

vehicle‘s pollution control system was not reduced.    Evaluation consisted

of comparative ({without and with the kit installed on a test vehicle)

chassis dynamometer CYS—75 and HFET tests at normal dynamometer road

Toading.

       The applicant is making available kit No. 2—0000—1 for the 1983

models also.   The applicant has requested that the exemption be updated

to include the 1983 models.
       In response to the request, the staff compared the engine design of

1981, 1982, and 1983 model—years.    Since the engines in the 1983 models

are identically designed as the 1981 and 1982 engines, the staff is of

the opinion that the 1983 vehicles will have the same degree of

performance/emissions impact as in the 1981 and 1982 models.    Because the

test data on a 1981 test vehicle showed that the vehicle‘s emissions were

not adversely affected when the turbocharger kit was installed, the kit

will have no adverse effect on the 1983 models efther.    No additional

testing was required or performed.


APPENDIX


APPWIX
                         FIG.   : BAE QBOLHARGER KIT MODEL NO. 2—0000—1




                                                                          INTAKE
                                                                          PIPE




         VASTEGATE
                     >




                                                                          BAE
                                                                          EXHAUST
                                                                          MANILFOL




                                                     RAJAY TURBOCHARGER
