Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 20, 1983.
As of Thursday, December 26th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
32-0000-11981-1983 VW Rabbit, Dasher, Jetta, and P/U powered by a 97 CID 4 cylinder diesel engine

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-97-18
  • Executive Order 97-18 / D97-18
  • ARB # D-97-18
  • Executive Order No: D-97-18
  • C.A.R.B. No. D-97-18
  • Resolution D-97-18
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-97-18 PDF

D-97-18 Document:


CARB_D-97-18

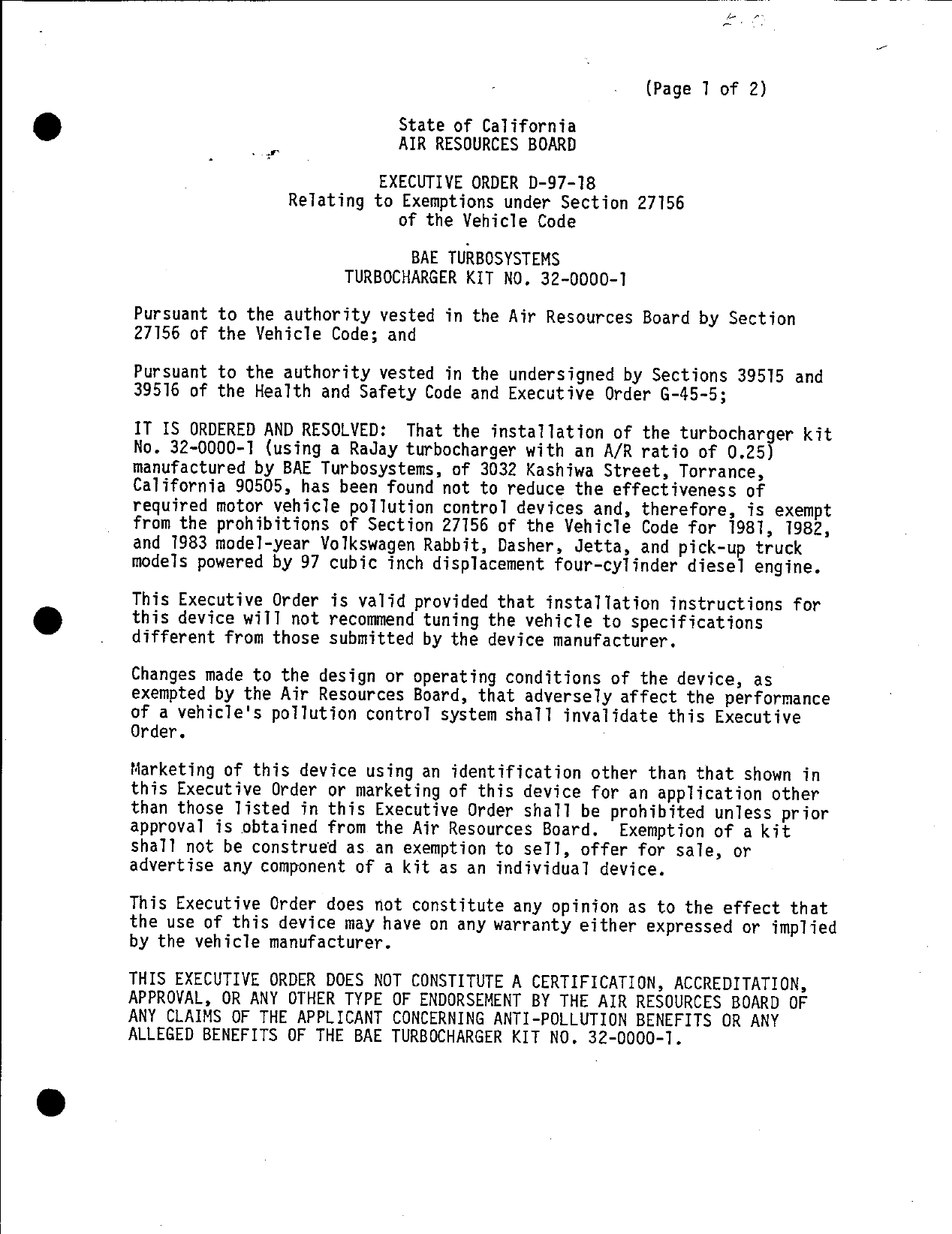

                                                          (Page 1 of 2)
                              State of California
            Caue              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D—97—18
                   Relating to Exemptions under Section 27156
                               of the Vehicle Code

                                BAE TURBOSYSTEMS
                         TURBOCHARGER KIT NO. 32—0000—1
Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the turbocharger kit
No. 32—0000—1 (using a RaJay turbocharger with an A/R ratio of 0.25?
manufactured by BAE Turbosystems, of 3032 Kashiwa Street, Torrance,
California 90505, has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt
from the prohibitions of Section 27156 of the Vehicle Code for 1981, 1982,
and 1983 model—year Volkswagen Rabbit, Dasher, Jetta, and pick—up truck
models powered by 97 cubic inch displacement four—cylinder diesel engine.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those lTisted in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of a kit
shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.

This Executive Order does rnot constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE BAE TURBOCHARGER KIT NO. 32—0000—1.


BAE TURBOSYSTEMS       *              EXECUTLME ORDER D—97—18
TURBOCHARGER KIT                          (Page 2 of 2)
MODEL NO. 32—0000—1




No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644. (a) No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board. No person shall sell,
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—97—11, dated December 9, 1981, is superseded and of
no further force and effect.


Executed at El Monte, California, this day of May, 1983.



                                      %//M
                                      D Drachand, Chief
                                      Mob11e Source Contro] Division


           STATE OF CALIFORNIA
           AIR RESOURCES BOARD




  EVALUATION OF THE BAE TURBOCHARGER KIT
   NO. 32—0000—1 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156
  IN ACCORDANCE WITH SECTION 2222, TITLE
 13 OF THE CALIFORNIA ADMINISTRATIVE CODE




               May 9, 1983


                                                        May 9, 1983




                 EVALUATION OF THE BAE TURBOCHARGER KIT
                  NO. 32—0000—1 FOR EXEMPTION FROM THE
               PROHIBITIONS IN VEHICLE CODE SECTION 27156
                 IN ACCORDANCE WITH SECTION 2222, TITLE
                13 OF THE CALIFORNIA ADMINISTRATIVE CODE




                                   by

                           State of California
                          Air Resources Board
                          9528 Telstar Avenue
                          E1 Monte, CA 91731



(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication. Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                    SUMMARY




      BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested an update to the existing Air Resources Board‘s Executive Order

(E.0.) No. D—97—11.     The applicant requested that their add—on
turbocharger kit No. 32—0000—1 be also exempted from the prohibitions in

Vehicle Code (V.C.) Section 27156 for the 1983 model—year YVolkswagen
Rabbtt, Dasher, Jetta, and pick—up truck models powered by a 97 cubic

inch displacement (CID) four—cylinder diesel engine.

      Based on the previous comparative exhaust emisston tests performed

on a 1981 model—year Volkswagen pick—up truck and the fact that the
engines used in the 1983 Volkswagen Rabbit, Dasher, Jetta, and pick—up

truck models are carry—overs {identical engine design) from the 1981 and

1982 models, the staff concludes that the kit will not adversely affect

exhaust emissions from the 1983 VoTkswagen Rabbit, Dasher, Jetta, and

pick—up truck mode!s.

      The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 model—year Volkswagen Rabbit, Dasher, Jetta,

and pick—up truck models in the exemption of their add—on turbocharger
kit No. 32—0000—1.    The staff recommends that Executive Order No. D—97—18

be adopted.


                                 CONTENTS




                                                    Page Number




SUMMARY                                                   i

CONTENTS                                                 11

I.     INTRODUCTION                                       1

II.    CONCLUSION                                         1

III.      RECOMMENDATIONS                                 1

IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION        2

¥.     BISCUSSI ON                                        3




                                    1i


EVALUATION OF THE BAE TURBOCHARGER KIT NO. 32—0000—1 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE.



I.     INTRODUCTION

       BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested an update to the existing Air Resources Board‘s Executive Order

{(E.0.) No. D—97—11.     The applicant requested that their add—on

turbocharger kit No. 32—0000—1 be also exempted from the prohibitions in

Vehicle Code {V.C.) Section 27156 for the 1983 model—year Volkswagen
Rabbit, Dasher, Jetta, and pick—up truck models powered by a 97 CID

four—cylinder diesel engine.

II.    CONCLUSION
       Based on the previous comparative exhaust emission tests performed

on a 1981 model—year Volkswagen pick—up truck and the fact that the

engines used in the 1983 Volkswagen Rabbit, Dasher, Jetta, and pick—up

truck mode?ls are carry—overs (identical engine design) from the 1981 and

1982 models, the staff concludes that the kit will not adversely affect

exhaust emissions from the 1983 Volkswagen Rabbit, Dasher, Jetta, and

pick—up truck models.

III.   RECOMMENDATIONS

       The staff recommends that BAE Turbosystems be granted their update

request to include the 1983 model—year Volkswagen Rabbit, Dasher, Jetta,

and pick—up truck models in the exemption of their add—on turbocharger
kit No. 32—0000—1.     The staff recommends that Executive Order No. D—97—18

be adopted.


IV.     TURBOCHARGER KIT DESCRIPTION AND OPERATION

        The purpose of turbocharging ts to increase the volumetric

efficiency of an engine.    The major components of the BAE kit are a RaJay

turbocharger with an A/R ratio of 0.25, replacement intake and exhaust

manifolds, and an air filter.     The components are packaged with

installation hardware and instructions and sold as a kit.

        The original equipment manufacturer (OEM) exhaust manifold is

replaced by a BAE manifold.     The turbine inlet of the turbocharger mounts

directly under the replacement exhaust manifold.     The turbine, driven by

exhaust gases, is Tinked to the compressor by a solid shaft.     Intake air

is drawn through the BAE canister—type air filter and compressed by the

compressor.    Compressed air is then routed to the BAE replacement intake
manifold.

        Maxtmum posttive manifold pressure (boost) is lTimited to 7 psig by

the size of (and exhaust flow through) the turbine housing.     No wastegate
or other active boost limiting device is used.

        The coo]fng of the turbocharger is achieved by ram air, by forced

air flow from a cooling fan, and by Tubricating ofl passing through the

unft.    The ofl is delivered from a hole tapped at the oil filter adaptor

to the turbocharger bearing housing through a stainless steel braided

line and then returned to the engine of1 pan.

        Optional accessories that can be connected to the kit include

exhaust pyrometer to measure engine exhaust temperature at the turbine

inlet and an intake manifold pressure (boost) gauge.

        No modifications to the OEM tune—up specifications are required or

permitted when the turbocharger kit is installed.


V.    DI SCUSSION

      BAE turbocharger kit No. 32—0000—1 applicable to 1981 and 1982

model—year Volkswagen Rabbit, Dasher, Jetta, and pick—up truck models

powered by a 97 CID four—cylinder diesel engine was granted an exemnption

(E.0. No. D—97—11) on December 9, 1981.    The exemptton was granted on the

basis that the effectiveness of the vehicle‘s pollution control system

was not reduced.    Evaluation consisted of comparative ({without and with

the kit installed on a test vehicle) chassis dynamometer CVS—75 and

Highway Fuel Economy tests at normal dynamometer road loading.

      The applicant is making available kit No. 32—0000—1 for the 1983

models also.   The applicant has requested that the exemption be updated

to include the 1983 models.

      In response to the request, the staff compared the engine design of

1981, 1982, and 1983 model—years.    Since the engines in the 1983 models

are identically designed as the 1981 and 1982 engines, the staff is of

the opinion that the 1983 models will have the same degree of
performance/emissions impact as in the 1981 and 1982 models.     Because the

test data on a 1981 test vehicle showed that the vehicle‘s emissions were
not adversely affected when the turbocharger kit was installed, the kit

will have no adverse effect on the 1983 models either.     No additional

testing was required or performed.



Document Created: 2005-09-01 12:40:10
Document Modified: 2005-09-01 12:40:10

Previous E.O. D-97-17 | Previous E.O. D-96 | Next E.O. D-97-19 | Next E.O. D-98
