Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 9, 1983.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
T04B M21981-1983 Airstream motorhome powered by a California certified Isuzu Motors, LTD 6 cylinder heavy-duty diesel engine

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-97-21
  • Executive Order 97-21 / D97-21
  • ARB # D-97-21
  • Executive Order No: D-97-21
  • C.A.R.B. No. D-97-21
  • Resolution D-97-21
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-97-21 PDF

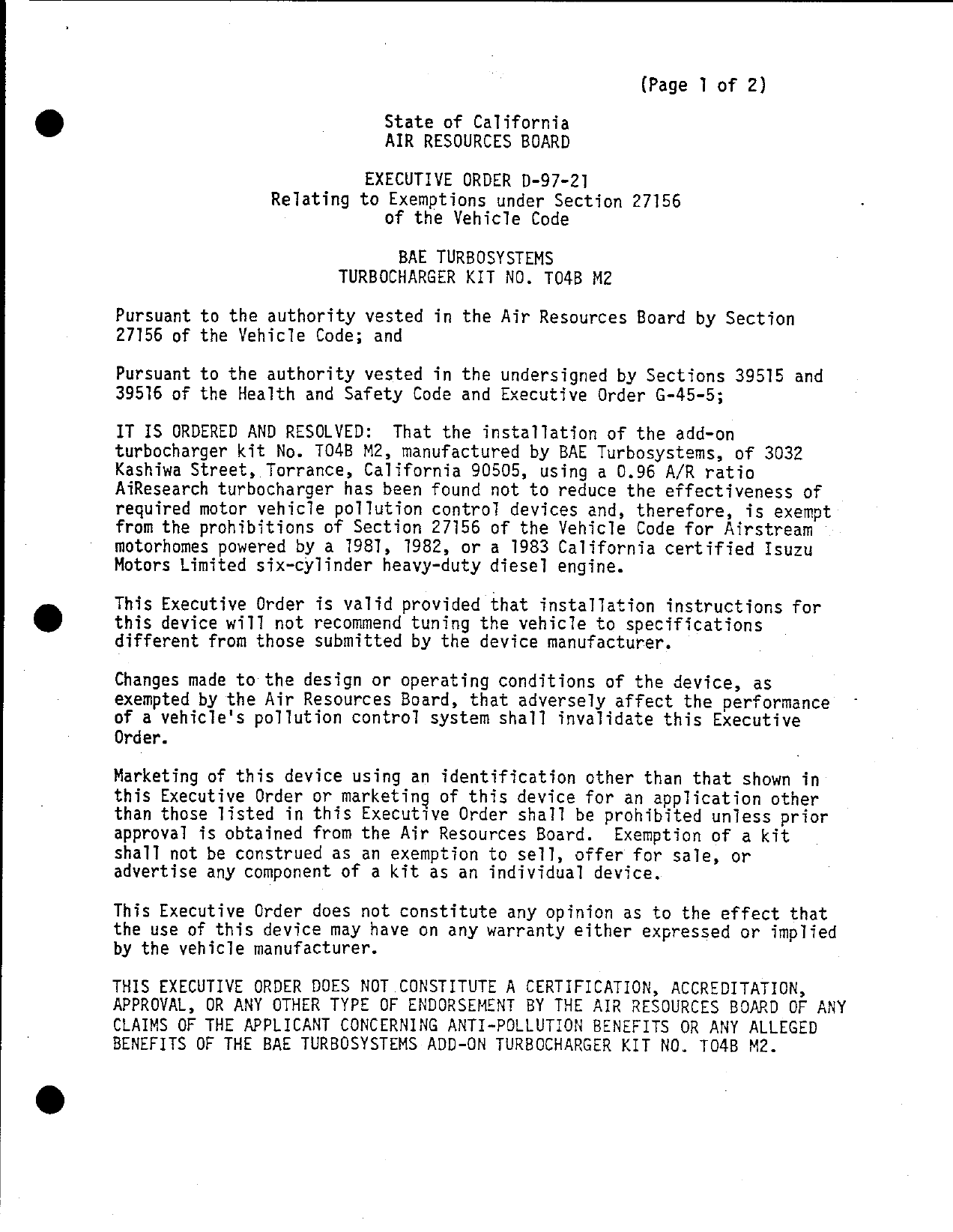

D-97-21 Document:



                                                        (Page 1 of 2)

                               State of California
                               AIR RESOURCES BOARD

                          EXECUTIVE ORDER D—97—21
                Relating to Exemptions under Section 27156
                            of the Vehicle Code

                             BAE TURBOSYSTEMS
                       TURBOCHARGER KIT NO. TO4B MZ

Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Yehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the add—on
turbocharger kit No. TO4B MZ2, manufactured by BAE Turbosystems, of 3032
Kashiwa Street, Torrance, California 90505, using a 0.96 A/R ratio
AiResearch turbocharger has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt
from the prohibitions of Section 27156 of the Vehicle Code for Airstream
motorhomes powered by a 1981, 1982, or a 1983 California certified Isuzu
Motors Limited six=cylinder heavy—duty diesel engine.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those lTisted in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.    Exemption of a kit
shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE BAE TURBOSYSTEMS ADD—ON TURBOCHARGER KIT NO. TO4B M2.


BAE TURBOSYSTEMS                                    EXECUTIVE ORDER D—97—21
TURBOCHARGER KIT NO. TO4B M2                        (Page 2 of 2?)




No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.
Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or
    advertise, or, except injan application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board.     No person shall sell,
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executive Order No. D—97—15 dated August 16, 1982, is superseded and—of ns
further force and effect.


Executed at El Monte, California, this ?fi-day
                                           of Au                 1983.




                                          . D. Drachand, Chief
                                         Mobile Source Control Division


           STATE OF CALIFORNIA
           AIR RESOURCES BOARD




  EVALUATION OF THE BAE TURBOCHARGER KIT
    NO. TO4B M2 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEKHICLE CODE SECTION 27156
  IN ACCORDANCE WITH SECTION 2222, TITLE
 13 OF THE CALIFORNIA ADMINISTRATIVE CODE




              August 2, 1983


                                                          August 2, 1983




                 EVALUATION OF THE BAE TURBOCHARGER KIT
                   NO. TO4B M2 FOR EXEMPTION FROM THE
               PROHIBITIONS IN VEHICLE CODE SECTION 27156
                 IN ACCORDANCE WITH SECTION 2222, TITLE
                13 OF THE CALIFORNIA ADMINISTRATIVE CODE




                                   by

                           State of California
                           Air Resources Board
                           9528 Telstar Avenue
                           E1 Monte, CA 91731



(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication.    Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                  summMary



      BAE Turbosystems, of 3032 Kashiwa Street, Torrance, CA 90505, has

requested an update to the existing Air Resources Board‘s Executive Order

{(E.0.) No. D—97—15.   The applicant requested that their add—on
turbocharger kit No. TO4B MZ2 be also exempted from the prohibitions in
Vehicle Code (V.C.} Section 27156 for the 1984 model—year Airstream

motorhomes powered by a 1983 California certified Isuzu six=cylinder

heavy—duty diesel engine.

      Based on:   1) the previous comparative exhaust emission tests

performed on a 1981 Airstream motorhome powered by a 1981 Isuzu
heavy—duty diesel engine for granting E.0. D—97—5; and 2) the fact that
the 1984 Airstream motorhomes are powered by a 1983 Isuzu heavy—duty

diese1 engine that is a carry—over engine from 1981 and 1982, the staff

concludes that the kit will not adversely affect exhaust emissions from
the motorhomes for which update is requested.

      The staff recommends that BAE Turbosystems be granted their update

request to include the 1984 model—year Airstream motorhomes powered by a

1983 California certified Isuzu six—cylinder heavy—duty diesel engine and

that Executive Order No. D—97—21 be granted.


                                 CONTENTS




                                                    Page Number




summary                                                   p
CONTENTS                                                 11

I.     INTRODUCT ION                                      1

II.    CONCLUSION                                         1

III.   RECOMMENDATIONS                                    1

IV.    TURBOCHARGER KIT DESCRIPTION AND OPERATION         2

V.     TURBOCHARGER KIT EVALUATION                        2

VI.    DISCUSSION                                         3




                                     11


EVALUATION OF THE BAE TURBOCHARGER KIT NO. TO4B M2 FOR EXEMPTION FROM THE
PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE.



I.     INTRODUCTION

       BAE Turbosystems of 3032 Kashiwa Street, Torrance, CA 90505, has

requested by letter dated July 18 1983, an update to the existing Air

Resources Board‘s Executive Order (E.0.) No. D—97—15.
       The applicant requested that the exemption from the prohibitions in the

Vehicle Code (V.C.) Section 27156 for their add—on turbocharger kit No. TO4B

M2 be updated to include the 1984 modeT—year Airstream motorhomes which are

powered by a 1983 California certified Isuzu Motors Limited six—cylinder

heavy—duty diesel engine.

II.    CONCLUSION
       Based on:    1) the previous comparative exhaust emission tests performed

on a 1981 Airstream motorhome powered by a 1981 Isuzu heavy—duty diesel engine

for granting E.0. D=97—5; and 2) the fact that the 1984 Airstream motorhomes

are powered by a 1983 Isuzu heavy—duty diesel engine that is a carry—over

engine from 1981 and 1982, the staff concludes that the kit will not adversely

affect exhaust emissions from the motorhomes for which update is requested.
III.   RECOMMENDATIONS

       The staff recommends that BAE Turbosystems be granted their update

request to include the 1984 model—year Airstream motorhomes powered by a 1983

California certified Isuzu six—=cylinder heavy—duty diesel engine and that

Executive Order No. D—97—21 be granted.


IV.   TURBOCHARGER KIT DESCRIPTION

      The purpose of turbocharging an engine is to increase the volumetric

efficiency of an engine by forcing more air into an engine than it would take

in under naturally aspirated conditions.

      The major components of the BAE Turbosystems turbocharger kit are a 0.96

A/R ratio AiResearch turbocharger model No. TO4B M2, an exhaust manifold to

turbocharger adaptor, and an intake pipe.    The components are packaged with
installation hardware and instructions to complete the kit.
      The exhaust manifold to turbocharger adaptor is installed on the OEM

exhaust manifold located on the driver‘s side of the engine.     The turbine
inlet of the turbocharger mounts directly to the adaptor.     The turbine, driven

by exhaust gases, is Tinked to the compressor by a solid shaft.     Compressed

incoming air is routed to the intake manifold through the BAE Turbosystems
intake pipe mounted transversely over the engine.

      Maximum positive manifold pressure (boost) is lTimited to 13 psig by the

size of (and exhaust flow through) the turbine housing.     No wastegate or other

active boost lTimiting device is used.

      The cooling of the turbocharger is achieved by direct fan air from the

engine and Tubricating oi1 passing through the unit.   The oil is piped from

the filtered main oil galley to the turbocharger bearing housing.     Qi1 from

the turbocharger is returned to the oi1 pan.
      No modifications to the OEM tune—up specifications are required when the

turbocharger kit is installed.

V.    TURBOCHARGER KIT EVALUATION

      The detafled description of the Air Resources Board‘s evaluation of the

kit is included in the ARB Staff Report titled "Evaluation of the BAE

Turbocharger Kit No. TO4B M2 for Compliance with the Requirements of Section

27156 of the Vehicle Code," dated June 5, 1981.
                                     — 2 —


 VI.    DISCUSSION

        E.0. No. D—97—15 was granted for 1981, 1982 and 1983 model—year
 Airstream motorhomes powered by a 1981 or 1982 California certified Isuzu

 Motors Limited six—cylinder heavy—duty diesel engine.

        The applicant now intends to use its turbocharger kit No. TO4B M2, using

 the same 0.96 A/R ratio AfResearch turbocharger, for the 1984 model—year

 Airstream motorhomes powered by a 1983 California certified Isuzu Motors

 Limited six—cylinder heavy—duty diesel engine and equipped with automatic

 transmissions.      The applicant, therefore, is requesting that the exemption for

 this turbocharger kit be updated to include these 1984 model—year motorhomes

\ as well.

        In response to the request, the staff compared the design of 1981, 1982,
 and 1983 model—year Isuzu heavy—duty diesel engines.      In particular, the

 effects the turbocharger kit might have on the vehicle‘s emissions were

 evaluated.   Since the 1983 model—year California certified Isuzu heavy—duty
 diesel engine (used for the 1984 model—year motorhomes) are carry—over

 {identical engine design) from the 1981 and 1982 model—year California

 certified Isuzu engines used in the 1982 and 1983 model—year motorhomes,

 respectively, the staff is of the opinion that the turbocharger kit will have

 the same degree of performance/emissions impact on the motorhomes for which an

 update is requested.     Since the test data on a 1981 model—year Isuzu engine

 show that the exhaust emissions were not adversely affected when the

 turbocharger kit was installed, the staff is of the opinion that the kit will

 have no adverse emission effect on the 1984 modeT—year motorhomes for which an

 update is requested.
                                         —3 —



Document Created: 2005-09-01 12:40:30
Document Modified: 2005-09-01 12:40:30

Previous E.O. D-97-20 | Previous E.O. D-96 | Next E.O. D-97-22 | Next E.O. D-98
