Approved Parts

Part NumberModels
310051981-1982 Allen Coach Works Limo powered by a Ford 302 CID engine

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-97-22
  • Executive Order 97-22 / D97-22
  • ARB # D-97-22
  • Executive Order No: D-97-22
  • C.A.R.B. No. D-97-22
  • Resolution D-97-22
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-97-22 PDF

D-97-22 Document:

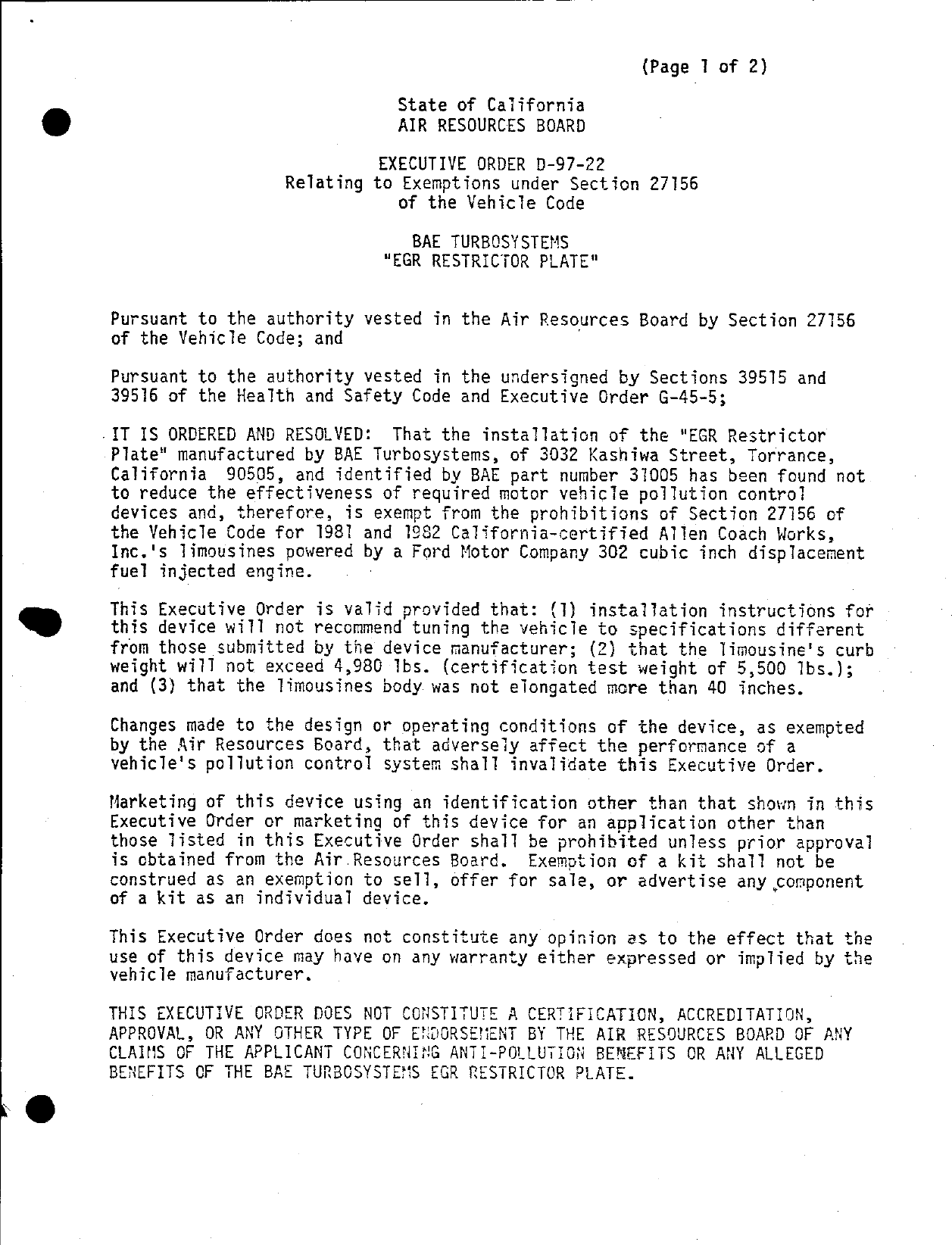

                                                          (Page 1 of 2)

                                 State of California
                                 AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—97—22
                   Relating to Exemptions under Section 27156
                               of the Vehicle Code

                                   BAE _TURBOSYSTEMS
                                "EGR RESTRICTOR PLATE"


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

—IT IS ORDERED AND RESQOLVED:    That the installation of the "EGR Restrictor
Plate" manufactured by BAE Turbosystems, of 3032 Kashiwa Street, Torrance,
California   90505, and identified by BAE part number 31005 has been found not
to reduce the effectiveness of required motor vehicle pollution control
devices and, therefore, is exempt from the prohibitions of Section 27156 of
the YVehicle Code for 1981 and 1982 California—certified Allen Coach Works,
Inc.‘s limousines powered by a Ford Motor Company 302 cubic inch displacement
fuel injected engine.

This Executive Order is valid provided that: {1) installation instructions for
this device will not recommend tuning the vehicle to specifications different
from those submitted by the device manufacturer; (2) that the limousine‘s curb
weight will not exceed 4,980 Ibs. (certification test weight of 5,500 lbs.);
and (3) that the Timousines body was not elongated more than 40 inches.

 Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
 Executive Order or marketing of this device for an application other than
 those listed in this Executive Order shall be prohibited unless prior approval
 is obtained from the Air.Resources Board. Exemption of a kit shall not be
 construed as an exemption to sell, offer for sale, or advertise any component
 of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
 vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAINS OF THE APPLICANT CONCERNING ANTI—POLLUTION BEMEFITS OR ANY ALLEGED
BENEFITS CF THE BAE TURBOSYSTEMS EGR RESTRICTOR PLATE.


ns

    BAE TURBOSYSTENS                                   EXECUTIVE ORDER D—97—22
                  .                                    (Page 2 of 2)



    No claim of any kind, such as "Approved by Air Resources Board" may be made
    with respect to the action taken herein in any advertising or other oral or
    written communication.

    Section 17500 of the Business and Professions Code makes untrue or misleading
    advertising unlawful, and Section 17534 makes violation punishable as a
    misdemeanor.
    Section 43644 of the Health and Safety Code provides as follows:

        "43644.   (a)   No person shall install, sell, offer for sale, or advertise,
        or, except in an application to the state board for certification of a
        device, represent, any device as a motor vehicle pollution control device
        for use on any used motor vehicle unless that device has been certified by
        the state board.   No person shall sell, offer for sale, advertise, or
        represent any motor vehicle pollution control device as a certified device
        which, in fact, is not a certified device.   Any violation of this
        subdivision is a misdemeanor."    ‘

    Any apparent violation of the conditions of this Executive Order will be
    submitted to the Attorney General of California for such action as he deems
    advisable.


.   Executed at El Monte, California, this    /Zf day of November, 1983.



                                             TWt
                                             K. D. Drachand, Chie
                                             Mobile Source Division


                           State of California
                           AIR RESOURCES BOARD




EVALUATION OF BAE TURBOSYSTEMS‘ EGR RESTRICTOR PLATE FOR EXEMPTION FROM
THE PROHIBITIONS IN VEKICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION
2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                           November 15, 1983


                                            Issue Date:    November 15, 1983




EVALUATION OF BAE TURBOSYSTEMS‘ EGR RESTRICTOR PLATE FOR EXEMPTION FROM
THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION
2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE




                                    by
                          Mobile Source Division

                           State of California
                           Air Resources Board
                           9528 Telstar Avenue
                           El Monte, CA 91731



(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication.    Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommedation for use.)


                                    summary

      BAE Turbosystems has applied for exemption from the prohibitions in

Vehicle Code Section 27156 for an EGR restrictor plate.    The restrictor plate,

BAE part number 31005, has been approved for installation on 1983 model—year

Executive Coach Builders, Inc.‘s Lincoln Town Car 21" Limousine powered by a

Ford Motor Company 302 cubic inch displacement fuel injected engine under Air

Resources Board‘s Executive Order A—248.   BAE requested that the restrictor

plate also be approved for installation on 1981 and 1982 California—certified

Allen Coach Works, Inc.‘s Lincoin Timousines powered by a Ford Motor Company

302 cubic inch displacement fuel injected engine, provided that the

limousine‘s curb weight will not exceed 4,980 Tbs. (certification test weight

of 5,500 Tbs.) and that the lTimousine‘s body was not elongated more than 40

inches.

      BAE has submitted data from cold—start CVS—75 emission tests.    The tests

were performed on a 1983 Lincolin Town Car limousine.   Comparative tests

consisted of baseline with the Timousine in the stock configuration (no EGR

restrictor plate), and modification (with the EGR restrictor plate installed).
      Emission test results submitted by BAE indicate that the restrictor

plate, as designed and installed on the test vehicle, will not have an adversé

effect on exhaust emissions from vehicles for which exemption is requested.
      Based on the above, the staff recommends that BAE Turbosystems be

granted an exemption as requested and the Executive Order D—97—22 be issued.


                                      CONTENTS



                                                            Page Number




    summaRy                                                       i
    CONTENTS                                                     i1

    I.     INTRODUCTION                          ‘                1

    II.    CONCLUSI ON                                            1

    III.    RECOMMENDATIONS                                       1

    IV.    EGR RESTRICTOR PLATE DESCRIPTION AND OPERATION         2

    V.     EVALUATION                                             2

    VI.    DISCUSSI ON                                            3

    APPENDICES                                                   4

.          DRAWING AND ILLUSTRATION                               5

           TEST RESULTS                                          6




                                        11


EVALUATION OF BAE TURBOSYSTEMS‘ EGR RESTRICTOR PLATE FOR EXEMPTION FROM THE
PROHIBITIONS IN VEKICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE



I.     INTRODUCTION

       BAE Turbosystems, of 3032 Kashiwa Street, Torrance, California 90505,

has applied for exemption from the prohibitions in Vehicle Code Section 27156

for an EGR restrictor plate.   The restrictor plate, BAE part number 31005, has

been approved under Air Resources Board Executive Order A—248 for installation
on 1983 model—year Executive Coach Builders, Inc.‘s Lincoin Town Car 21"

Timousine with a curb weight of 4,980 1bs. and powered by a Ford Motor Company

302 cubic inch displacement fuel injected engine.   BAE requested that the

restrictor plate also be approved for installation on 1981 and 1982

California—certified Lincoln limousines manufact´Čüred by Allen Coach Works, Inc.

       BAE has submitted data from cold—start CVS—75 emission tests.   The tests

were performed by Fairway Environmental Engineering in Torrance, California,

on a 1983 Lincoln Town Car Timousine.   Testing consisted of baseline with the

limousine in the stock configuration ({no EGR restrictor plate), and

modification (with the EGR restrictor plate installed).

II.    CONCLUSION

       Emission test results submitted by BAE indicate that the EGR restrictor

plate, as designed and installed on the test vehicle, will not have an adverse

effect on exhaust emissions from vehicles for which exemption is requested.

III.   RECOMMENDATIONS

       Based on the above conclusion, the staff recommends that BAE

Turbosystems be granted an exemption as requested and that Executive Order

D—97—22 be issued.


IV.      EGR RESTRICTOR PLATE DESCRIPTION AND OPERATION

         BAE‘s EGR restrictor plate is designed to be inserted between the

original equipment manufacturer (OEM) EGR valve base and intake manifold.

The restrictor plate is manufactured of 1/4 inch steel stock and contains

four holes:     two for mounting screws and two for exhaust gas flow.   The

diameter of the intake hole on the plate (for flowing gases into the EGR

valve) is of identical size as the EGR valve (3/4 inch), however, the
effective outlet diameter of the EGR valve body for exhaust gas

recirculation is reduced from 3/4 inch to 3/8 inch (50%) by the restrictor
plate.     The effective outlet flow area is reduced from 0.44 square inch

to O.11 square inch (75%) by the smaller diameter exhaust hole.

         The restrictor plate, according to BAE, will reduce EGR flow rate
at any valve opening and vacuum signal to the valve compared to the OEM

design of the vaIve.     This reduction in EGR flow is needed, according to

BAE, in order not to increase CO emissions due to vehicle body eTongation

and increase in vehicle weight when converting the sedan vehicle into a

limousine.
V.       EVALUATION

         A 1983 California—certified limousine converted by Executive Coach

Builders, Inc. and powered by a Ford Motor Company 302 CID fuel injected

engine was used for the evaluation of the restrictor plate.     The

certification dynamometer test parameters of 5,500 Tbs. and 14.5 hp were
used.    Comparative tests were run with the Timousine in the stock (no EGR

restrictor plate}), and in the modified ({with the EGR restrictor plate
installed) configurations.    A summary of the test results is tabulated in

the Appendices.


VI.   DISCUSSION

      The test results indicate that HC and CO emissions are reduced with the

installation of the EGR restrictor plate, while NOx emissions remain

unchanged.   This reduction in HC and CO emissions can be attributed to reduced

throttle angle required with the EGR restrictor plate, in order to maintain

any speed, compared to the vehicle without the restrictor plate; thus leaning

the fuel charge and reducing HC and CO emissions.

      Since the engines, manufactured by Ford Motor Company, used in the 1983

Executive Coach Builders, Inc.‘s limousines are carry—overs {identical engine

designs) as the ones used in the 1981 and 1982 Allen Coach Works, Inc.‘s

limousines, the staff is of the opinion that the BAE EGR restrictor plate will
have the same degree of performance/emissions impact on the 1981 and 1982

Allen Coach Works, Inc.‘s limousines as on the 1983 Executive Coach Builders,

Inc.‘s Timousines.


APPENDICES


          DIAGRAM OF EGR SPACER PLATE

                  (actual size)
                        5/16 x 1/2" ————
                        3/8" ——
          3/4" ——4
5/] 6"




                                            [———}"
                   <€
                   «.

                              O




                                            <-—Ilz/[
                        4 5/]6"




         INSTALLATION OF EGR SPACER PLATE


                                    Table

                    BAE‘s Exhaust Emission Test Data
                Evaluation of BAE‘s EGR Restrictor Plate
                1983 Executive Coach Builders‘ Limousine


                                                             Fue1
                             Exhaust Emissions {gm/mi)     Economy
___Test                     HC              CO    Nx       __{mpg)
Base]in?                     0.38           9.2   0.5       12.96
Device (2)                   0.22           5.3   0.5       12.90
Emission Standard            0.41           7.0   0.7         —


(1)   total hydrocarbon measurements
(     average of two tests



Document Created: 2005-09-01 12:42:13
Document Modified: 2005-09-01 12:42:13

Previous E.O. D-97-21 | Previous E.O. D-96 | Next E.O. D-97-23 | Next E.O. D-98
