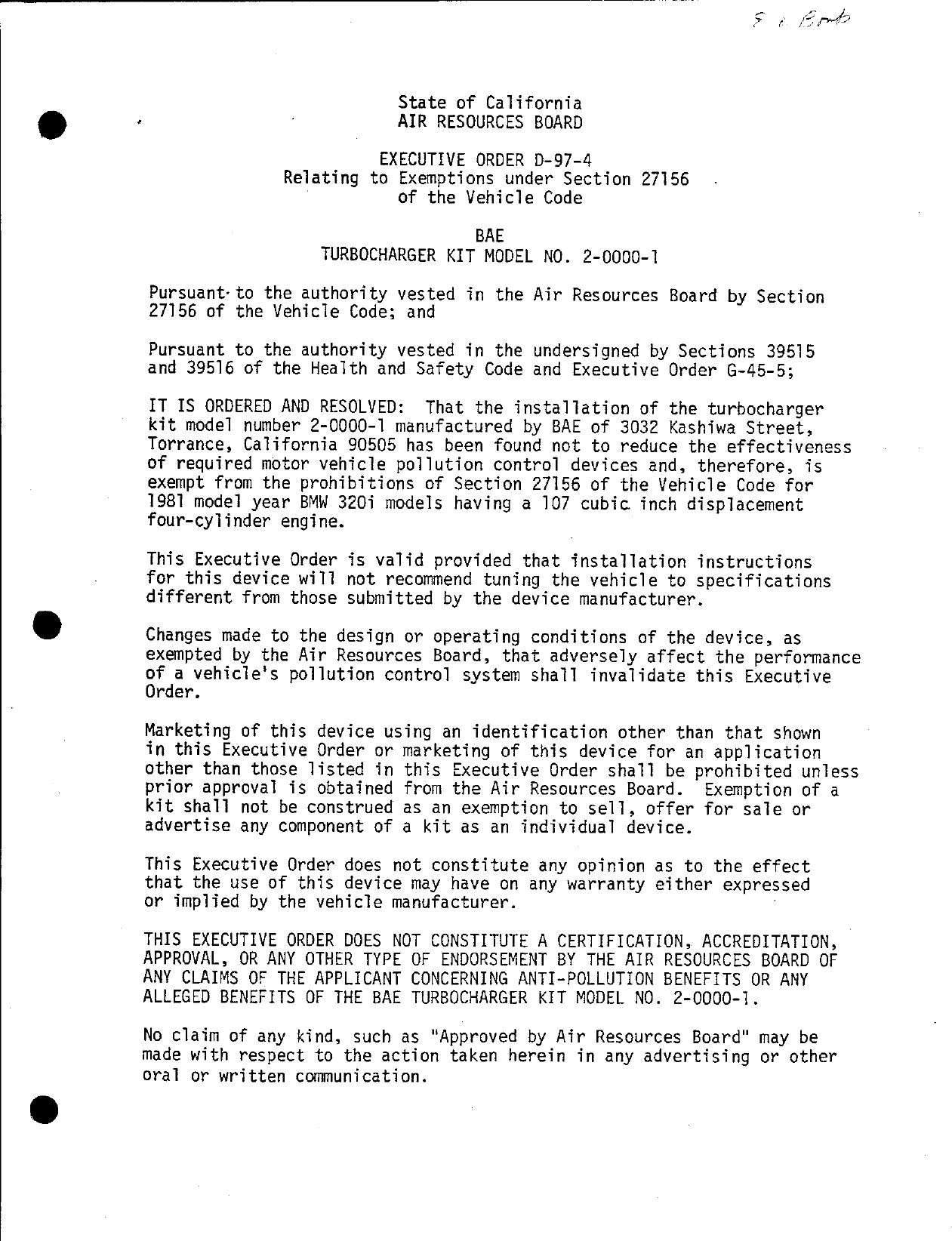

                          State of California
                          AIR RESOURCES BOARD

                        EXECUTIVE ORDER D—97—4
              Relating to Exemptions under Section 27156
                          of the Vehicle Code

                                  BAE
                  TURBOCHARGER KIT MODEL NO. 2—0000—1

Pursuant: to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515
and 39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:   That the installation of the turbocharger
kit model number 2—0000—1 manufactured by BAE of 3032 Kashiwa Street,
Torrance, California 90505 has been found not to reduce the effectiveness
of required motor vehicle pollution control devices and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for
1981 model year BMW 3201 models having a 107 cubic inch displacement
four—cylinder engine.

This Executive Order is valid provided that installation instructions
for this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown
in this Executive Order or marketing of this device for an application
other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board. Exemption of a
kit shall not be construed as an exemption to sell, offer for sale or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect
that the use of this device may have on any warranty either expressed
or implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE BAE TURBOCHARGER KIT MODEL NO. 2—0000—1.

No claim of any kind, such as "Approved by Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.


Sectiom T7500of the Bustness and Professtons Code makes untrue or
misleadtng advertisitng unlawful, and Section 172534makes vialation
pumishable as & misdemeanor.

Sectiion 43644— of the Healithand Safety Code provides as follows:

     "4I6A4.   (a) No pnersom shall tnstall, sell, affer for sale, or
     advertise, or, except tn an appltcatton to the state board for
     certification of a device, represent, any device as a motor vehicle
     pellutton control device for use on any used motor vehicle unless
     that device has been certiffed by the state board. No person shall
     sell, offer for sale, advertise, or represent any motor vehicle
     pallutian control device as a certffied device which, in fact, is
     not a certiffed device.   Any vtalatton of this subdivision is a
     misdemeanor."

Any apparent violatton of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he
deems advisable.

                                               &
Executed at El Monte, California, this    &9       day of July, 1981.



                                     . B. Drachand, Chief
                                    Mobile Source Control Division


                           State of California
                           AIR RESOURCES BOARD

                              Staff Report

                              July 1, 1981

Evaluation of the BAE Turbocharger Kit Model No. 2—0000—1 for Compliance
With the Requirements of Section 27156 of the Vehicle Code.



I.    INTRODUCTION
      BAE of 3032 Kashiwa Street, Torrance, California 90505 has applied

for exemption of a turbocharger kit from the prohibitions of Section

27156 of the California Vehicle Code (V.C.).     The kit, turbocharger kit

model number 2—0000—1, is intended for 1981 model year BMW 3201 modeis

having a 107 CID four—cylinder engine.

      BAE has submitted comparative emissions data from back—to—back

cold—start CVS—75, hot—start HFET, and steady state exhaust emissions

tests on a 1981 BMW 3201 model with 5—speed manual transmission conducted

at Olson Engineering, Inc. in Huntington Beach, California.

      Confirmatory tests were conducted on the same vehicle at the Air

Resources Board (ARB) laboratory in El Monte, California.     The ARB

testing consisted of cold—start CVS—75 and hot—start HFET exhaust emissions

tests at normal road load horsepower.

II.   TURBOCHARGER KIT DESCRIPTION

      The purpose of turbocharging is to increase the volumetric efficiency

of an engine.   The major components of the BAE turbocharger kit are a

RaJay turbocharger model 300F, a replacement exhaust manifold, a

replacement intake plenum, an intake and a discharge pipe, and a positive

manifold pressure control wastegate.     The components are packaged with

installation hardware and instructions and sold as a kit (see Figure 1).


       The original equipment manufacturer (OEM) exhaust manifold is

replaced by a BAE manifold.     The turbine inlet mounts directly to the

replacement exhaust manifold.    The turbine, driven by exhaust gases, is

linked to the compressor by a solid shaft.     Intake air from the air box,

of the K—Jetronic System, is routed through the intake pipe to the

compressor.    Compressed air is then piped to the BAE replacement intake

plenum through the discharge pipe.

       The lubrication of the turbocharger is provided by a steel braided

line from the filtered engine oil galley to the turbocharger bearing

housing.    QOil from {he turbocharger is veturned to the oil pan.

       Maximum positive manifold pressure (boost) is limited to 5 psig

by a wastegate mounted on the exhaust manifold.    The wastegate is

preset to dump excess exhaust gases when intake manifold pressure reaches

5 psig, thus bypassing the turbine.

       No modifications to the OEM tune—up specifications are required when

the turbocharger kit is installed except for disconnecting the ignition

distributor vacuum advance unit and plugging it at the throttle body with

a plug supplied by BAE.    All other OEM emission controls remain intact.

111. TEST PROGRAM
       A 1981 BMW 320i model with a four—cylinder engine and 5—speed manual

transmission was used for testing.    The certification test weight is 2750

Ibs.    The road load horsepower (RLHP) used in the testing was 11.5

horsepower at 50 mph.

       Testing by the applicant consisted of cold start CVS—75, hot start

HFET and steady—state at normal RLHP to determine exhaust emissions of

the unmodified (baseline) and turbocharged (device) configurations for

comparison.    Confirmatory tests at the ARB laboratory consisted of cold

start CVS—75 and hot start HFET tests at normal RLHP.


IV.    APPLICANT‘S TEST DATA

       The applicant‘s emissions test data in Tables 1 & 2 were generated

at Olson Engineering, Inc.

                                      Table 1

                      Applicant‘s Emissions Test Data

                                                                                 Fuel
                                    Exhaust Emissions (g/mi)                     Economy
Test                  Load          HC               co            NOx           (mpg)
Baseline CVS—75       1XRL          0. 38            3.14          0. 30         21.4
Device   CVS—75       1XRL          0. 37            2.76          0.48          22.6

Baseline HFET         1XRL          0.06             0. 68         0. 30         28.3
Device   HFET         1XRL          0.06             0.73          0.30          31.9




                                      Table 2

                      Applicant‘s Emissions Test Data

                                            Exhaust Emissions (ppm)
Mode                         Load           HC               cCO           Nox
Baseline Idle                1XRL           60               350
Device Idle                  1XRL           41               100

Baseline 40 mph/4*           1XRL           60            2350             125
Device 40 mph/4              1XRL           34            2100              66

Baseline 40 mph/5**          1XRL           «60           1955             100
Device 40 mph/5              IXRL           42            1860

Baseline 50 mph/4*           1XRL           60            2200             160
Device 50 mph/4              1XRL           34            1400             150

Baseline 50 mph/5**          1XRL           60            1600             135
Device 50 mph/5              1XRL           44            1320             120

Baseline 55 mph/5**          1XRL           60    £i3,
                                                  go7     1400             190
Device 55 mph/5              1XRL           45            1050             175



 *in 4th gear
**in 5th gear


_


Y.     ARB‘s TEST DATA

       The ARB‘s confirmatory emissions test data is shown in Table 3.

                                        Table 3

                                ARB Emissions Test Data

                                                                         Fuel
                                      Exhaust Emissions (g/mi)           Economy
Test                     Load        HC            CO      NOx            (mpg)

Baseline   CVS—75        1XRL        ’0.4]         3.14    0.39          21.3
Device     CVS—75*       IXRL         0. 78        5.74    0.33          22.9
Device     CYS—75**      1XRL         0. 93        7. 42   0.27          23.3
Device     CVS—75        1XRL         0.47         3.37    0.19          22.9



Baseline HFET            IXRL         0.15         1.12    0.53          27.6
Device   HFET            TXRL         0.11         1.66    0.28          30.7

 *Data invalid — oxygen sensor wire disconnected.
**Data invalid — cracked BAE replacement exhaust manifold.

VI.    DISCUSSION

       Results of the steady state tests indicate that there are no increases

in pollutants with the turbocharged vehicle over the baseline during all

modes of testing.

       The two (2) sets of valid CVS—75 and HFET comparative emissions tests

(Tables 1 and 3) show that the emissions of the test vehicle are slightly

changed due to the installation of the turbocharger kit.          The differences,

however, are considered to be within test variability and insignificant.

VII. CONCLUSION AND RECOMMENDATION

       Comparative emissions tests indicate that the BAE turbocharger kit

model number 2—0000—1 will not significantly affect emissions when installed

in accordance with the manufacturer‘s instructions.          The staff recommends

that BAE be granted an exemption from the prohibitions of V.C. Section 27156

for this kit for 1981 model year BMW 3201 models having a 107 CID four—cylinder

engine.    The staff recommends that Executive Order No. D—97—4 be adopted.


                                              4.


.                      FIG. 1: BAE .E’r:}xmmx KIT MODEL NO. 2—0000—1       .




       INTAKE PLERUN

                                                                                 1
                                                                               INTAKE
                                                                               PIPE




                                                               DISCHARGE

    UASTEGATE                                                  PIPE




                                                                               BAE
                                                             (®,
                                                                               EXHAUST
                                                                               MANIFOLD
