Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 17, 2010.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
151682005-2010 4.6L Ford Mustang w/ manual transmission

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-99-6
  • Executive Order 99-6 / D99-6
  • ARB # D-99-6
  • Executive Order No: D-99-6
  • C.A.R.B. No. D-99-6
  • Resolution D-99-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-99-6 PDF

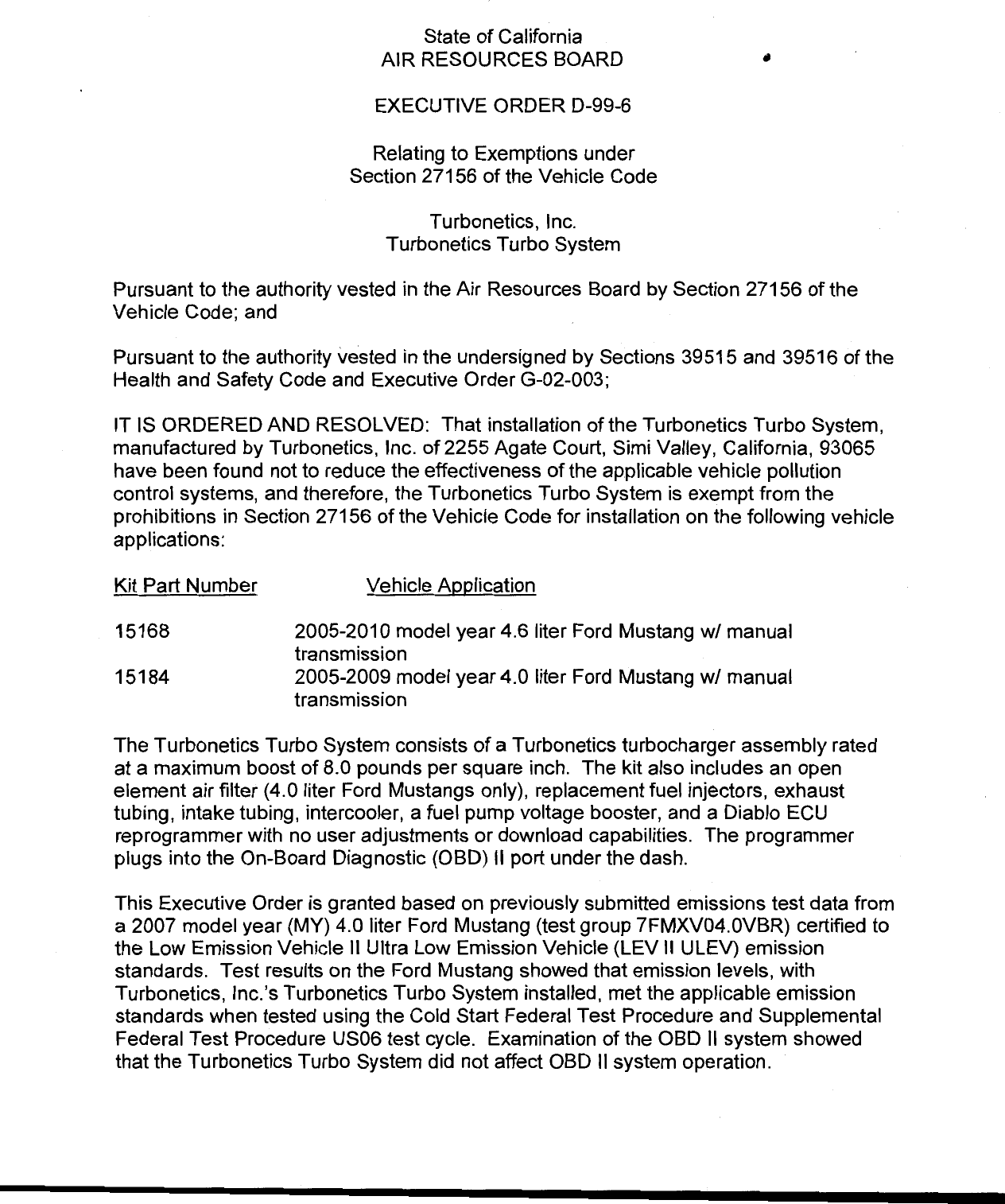

D-99-6 Document:


CARB_D-99-6

                                    State of California
                               AIR RESOURCES BOARD                         o

                              EXECUTIVE ORDER D—99—6

                              Relating to Exemptions under
                           Section 27156 of the Vehicie Code

                                    Turbonetics, Inc.
                               Turbonetics Turbo System

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That installation of the Turbonetics Turbo System,
manufactured by Turbonetics, Inc. of 2255 Agate Court, Simi Valley, California, 93065
have been found not to reduce the effectiveness of the applicable vehicle pollution
control systems, and therefore, the Turbonetics Turbo System is exempt from the
prohibitions in Section 27156 of the Vehicle Code for installation on the following vehicle
applications:

Kit Part Number              Vehicle Application

15168                2005—2010 model year 4.6 liter Ford Mustang w/ manual
                     transmission
15184                2005—2009 model year 4.0 liter Ford Mustang w/ manual
                     transmission

The Turbonetics Turbo System consists of a Turbonetics turbocharger assembly rated
at a maximum boost of 8.0 pounds per square inch. The kit also includes an open
element air filter (4.0 liter Ford Mustangs only), replacement fuel injectors, exhaust
tubing, intake tubing, intercooler, a fue! pump voltage booster, and a Diablo ECU
reprogrammer with no user adjustments or download capabilities. The programmer
plugs into the On—Board Diagnostic (OBD) II port under the dash.

This Executive Order is granted based on previously submitted emissions test data from
a 2007 model year (MY) 4.0 liter Ford Mustang (test group 7FMXVO4.0VBR) certified to
the Low Emission Vehicle I1 Ultra Low Emission Vehicle (LEV II ULEV) emission
standards. Test results on the Ford Mustang showed that emission levels, with
Turbonetics, Inc.‘s Turbonetics Turbo System installed, met the applicable emission
standards when tested using the Cold Start Federal Test Procedure and Supplemental
Federal Test Procedure USO6 test cycle. Examination of the OBD II system showed
that the Turbonetics Turbo System did not affect OBD II system operation.


                                              .9


The 2007 MY 4.0 liter Ford Mustang emission test results are shown below (in grams
per mile with déterioration factors applied):

                                       FTP
                          NMOG       CO      NOx      HCHO
Standards, 5OK            0.040      1.7     0.05     0.008
Emission results          0.033      0.40    0.03     0.0005

Standards, 120K           0.055      2.1     0.07     0.011
Emission results          0.041      0.6     0.05     0.0005

                                    USO6

                          NMHC+NOx           CO
Standards, 4K        —_     014              8.0
Emission results            0.043            6.02

If evidence provides the Air Resources Board with reasons to suspect that the
Turbonetics Turbo System will affect the durability of the emission control system,
Turbonetics, Inc. shall be required to submit durability data to show that the durability of
the vehicle emission control system is not, in fact, affected and/or that the add—on or
modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the Turbonetics
Turbo System do not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Turbonetics Turbo System,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicles‘ emission control system, shall invalidate this Executive Order.

Marketing of the Turbonetics Turbo System using identification other than that shown in
this Executive Order or for an application other than that listed in this Executive Order
shall be prohibited unless prior approval is obtained from the Air Resources Board.

This Executive Order shall not apply to any Turbonetics Turbo System advertised,
offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.                                          '

This Executive Order does not constitute any opinion as to the effect the use of the
Turbonetics Turbo System may have on any warranty either expressed or implied by
the vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

          TURBONETICS INC. — TURBONETICS TURBO SYSTEM — D—99—6


                                            o3


In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF TURBONETICS,
INC.‘S TURBONETICS TURBO SYSTEM.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     _ _/ 7 #4 day of May 2010.
                                                 5                        .
                                          ZATrtrrenee
                                         nnette Hebert, Chief
                                         obile Source Operations Division




          TURBONETICS INC. — TURBONETICS TURBO SYSTEM — D—99—6



Document Created: 2010-05-19 10:52:21
Document Modified: 2010-05-19 10:52:21
