Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 6, 1983.
As of Wednesday, October 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1983 and older model year vehicle, EXCEPT: (1) Diesel powered vehicles (2) GM variable displacement 8-6-4, (3) Vehicles which are not normally equipped with an air injection pump, (4) Vehicles with closed-loop feedback carburetors

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-129
  • Executive Order 129 / D129
  • ARB # D-129
  • Executive Order No: D-129
  • C.A.R.B. No. D-129
  • Resolution D-129
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-129 PDF

D-129 Document:

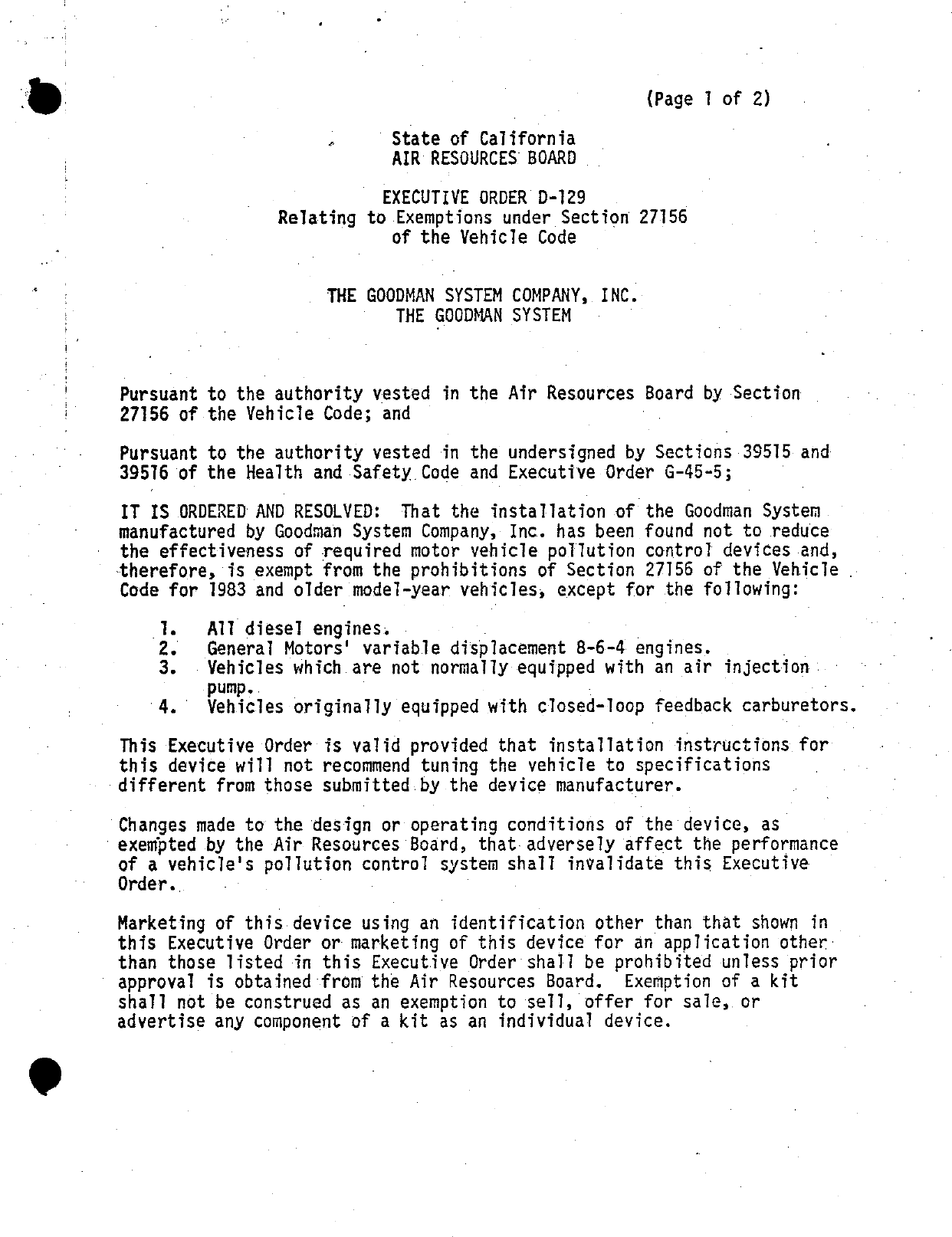

                                                        (Page 1 of 2)
                     —      State of California
                            AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—129
                Relating to Exemptions under Section 27156
                            of the Vehicle Code


                     THE GOODMAN SYSTEM COMPANY, INC.
                            THE GOODMAN SYSTEM



Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the Goodman System
manufactured by Goodman System Company, Inc. has been found not to reduce
the effectiveness of required motor vehicle pollution control devices and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
Code for 1983 and older model—year vehicles, except for the following:

    1.   All diese! engines.
    2.    General Motors‘ variable displacement 8—6—4 engines.
    3.    Vehicles which are not normally equipped with an air injection
         pump.
    4.   Vehicles originally equipped with closed—loop feedback carburetors.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted. by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of a kit
shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.


          /




 THE GOODMAN SYSTEM COMPANY, INC.                     EXECUTIVE ORDER D—129
                                                           (page 2 of 2)


 This Executive Order does not constitute any opinion as to the effect that
 the use—of this device may have on any warranty either expressed or implied
 by the vehicle manufacturer.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
  ANY CLAIMS OF THE APPLICANT CONCERKNING ANTI—POLLUTION BENEFITS OR ANY
© ALLEGED BENEFITS OF THE GOODMAN SYSTEM.

 No claim of any kind, such as "Approved by Air Resources Board" may be made
 with respect to the action taken herein in any advertising or other oral or
 written communication.

 Section 17500 of the Business and Professions Code makes untrue or
 misleading advertising unlawful, and Section 17534 makes violation
 punishable as a misdemeanor.

 Section 43644 of the Health and Safety Code provides as follows:

     "43644.   (a)   No person shall install, sell, offer for sale, or
     advertise, or, except in an application to the state board for
     certification of a device, represent, any device as a motor vehicle
     pollution control device for use on any used motor vehicle unless that
     device has been certified by the state board.>     No person shall sell,
     offer for sale, advertise, or represent any motor vehicle pollution
     control device as a certified device which, in fact, is not a certified
     device. <Any violation of this subdivision is a misdemeanor."

 Any apparent violatfton of the conditions of this Executive Order will be
 submitted to the Attorney General of California for such action as he deems
 advisable.




                                          Witlnen®_
 Executed at E1 Monte, California, this   — éz    day of May, 1983.




                                           & D. Drachand, Chief
                                          MobilTe Source Control Division


               State of California
               AIR RESOURCES BOARD




 EVALUATION OF THE GOODMAN SYSTEM COMPANY, INC.‘S
   "GOODMAN SYSTEM" WATER INJECTOR FOR EXEMPTION
FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156




                   April, 1983


                             State of CalTifornia
                             AIR RESOURCES BOARD




EVALUATION OF THE GOODMAN SYSTEM COMPANY, INC.‘S "GOODMAN SYSTEM" WATER
INJECTOR FOR EXEMPTION FROM THE PROKIBITIONS OF VEKHICLE CODE SECTION 27156




                                      by
                        Mobile Source Control Division
                              State of California
                              Air Resources Board
                              9528 Telstar Avenue
                              E1 Monte, CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                    SUMMARY




      The Goodman System Company, Inc. has requested exemption from the

prohibitions of Vehicle Code Section 27156 for the Goodman System, a water

injector device.   Two previous applications were denied because of increased

emissions from test vehicles with the use of the device.   The manufacturer
then modified the design of the device twice.   The device in its present

configuration has shown, through comparative emission testing, no effect on

the operation and the performance of OEM emission controls.   The test data
also show no effect on fuel economy with the use of the device.

      The staff, therefore, recommends adoption of Executive Order D—129 since
no adverse emissions impact was found.


                               TABLE OF CONTENTS




                                                   Page Number



SUMMARY                                                  i
TABLE OF CONTENTS     >                                 11

I.     INTRODUCTION                                      1

II.    CONCLUSIONS                                       1
III.   RECOMMENDATION




                                                        Nn
IV.    SYSTEM DESCRIPTION AND EVALUATION




                                                        Nn
V.     DISCUSSION




                                                        o
VI.       FIGURE 1




                                                        o_




                                       11


                                State of California
                                AIR RESOURCES BOARD

EVALUATION OF THE GOODMAN SYSTEM COMPANY, INC.‘S "GOODMAN SYSTEM" WATER
INJECTOR FOR EXEMPTION FROM THE PROHIBITIONS OF VEKHICLE CODE SECTION 27156

I.    INTRODUCTION

      The Goodman System Company, Inc. of New York, NY 10022 has applied for

an exemption from the prohibitions of Vehicle Code Section 27156 for an add—on
water injector device known as the "Goodman System".     Exemption is sought for

1983 and older model—year vehicles, except for the following:

          i} All diesel engines.

          ii} General Motors‘ variable displacement 8—6—4 engines.

      iiij Vehicles which are not normally equipped with an air injection pump.

          iv) Vehicles originally equipped with closed—1oop feedback carburetors.
      The Goodman System uses compressed air from the air injection pump

("smog pump") to spray water through a nozzle into the carburetor‘s air horn.
      Two early Goodman System models, the first and the second generation

model, caused adverse emission problems, and the exemption applications were
denied.    The current application for the third generation model was

accompanied with data from comparative exhaust emission tests of two 1983

model—year vehicles.

II.   CONCLUSIONS

      The submitted comparative exhaust emission data from the two 1983

model—year vehicles fllustrate no adverse emissions impact with the use of the

third generation Goodman System.    The data also shows that the fuel economy of

the test vehicles was not affected with the use of the device.


I1I.   RECOMMENDATION
       Since the device does not show an adverse emission effect, the staff
recommends that the third generation Goodman System be exenpted from the
prohibitions of Vehicle Code Section 27156 for the vehicles as requested.      The

staff recommends the adoption of Executive Order D—129.

IV.    SYSTEM DESCRIPTION AND EVALUATION

       A.     SYSTEM DESCRIPTION
              The "Goodman System" consists of a spray nozzle, a load sensor, an

air pump tap, a check vaive, a temperature switch, a water reservoir bag, and

connective tubings (See Figure 1.)
       The metal spray nozzle is connected to the air supply and water

reservoir.     It is installed in the air cleaner housing.   The crifice sizes of
the nozzle vary from 0.012" to 0.022" for use on different sizes of engines.

The load sensor is basically a bypass valve.     It directs air flow from the air

pump to the nozzle.     During high manifold vacuum engine operating modes, the
diaphragm in the valve is pulled down by the vacuum force allowing air to

escape to the atmosphere.     The load sensor is pre—adjusted (and sealed) by the

manufacturer to prevent excessive water injection during high vacuum modes.

The air pump tap i§ a plastic tee with a hose fitting protruding from its

center at a right angle.     It is simply installed by removing a small section

of the rubber pressure hose in the secondary air injection system and

inserting the tap in its place.     The tap is then secured by two screw clamps.

The temperature sensor/switch is installed in the air cleaner housing and

prevents the device from functioning until the underhood air temperature is

above 60°F.


      The third generation Goodman System includes a modification to the

device‘s air pump tap to reduce the delivery pressure and, therefore, the

amount of air to the load sensor.   The amount of water injection is expected

to be proportionally reduced.    The modification involved the removal of a
restriction in the tap so that the designed secondary air supply to the engine

will not be markedly changed.

      In operation, air, under pressure from the air pump, is supplied through
the load sensor to the spray nozzle located in the air cleaner housing

directly over the carburetor‘s air hbrn.    The flow of air creates a Tow

pressure area at the nozzle orifice allowing water to be drawn from the
reservoir.    As the water enters the air stream, it is atomized and the

air/water mixture is drawn into the carburetor and, subsequently, along with

the air/fuel mixture into the engine cylinders.    The load sensor is preset to

cut off the air supply {venting to atmosphere) to the nozzle during high

vacuum engine operation periods, thereby preventing water from being drawn

from the reservoir.

      The applicant claims that the system will deliver 10—12 percent water
{in the air/fuel mixture) during accelerations (Tow manifold vacuum), 3—5

percent water during cruise conditions (moderate manifold vacuum), and no
water during idle and decelerations (high manifold vacuum).

      B.     SYSTEM EVALUATION

             In order for the applicant to demonstrate compliance of the third

generation device with the "no emission increase" requirements, two vehicles

were selected for testing.


         The applicant delivered the vehicles to the Southern California

Automobile Club‘s emission laboratory for comparative CVS—75 exhaust emissions

tests.     The test vehicles are described in Table 1, and the comparative

emission test results are shown in Table 2.
                                          Table 1

                       Applicant‘s Test Vehicle/Descriptions

Description                       Vehicle 1                     Vehicle 2

Year                              1983                          1983

Make                              Ford                          Mercury

Mode1                             Escort                        Zephyr

Engine Size                       1.6L, I—4                     3.3L, 1—6

Emission Control                  AIR, EGR, TWC                 AIR, EGR, TWC

Carburetor Type                   2¥                            V

Odometer Mileage                  2. 9K                         4. 8K


                                          Table 2
                  Applicant‘s Comparative CVS—75 Emission Results


                       Exhaust Emissions (gm/mi)           Fuel Mileage (MPG)
VYehicle                HC         C8       NOx            Urban & Highway Combined

#1 BaseTine             0.6        9.9         0.9                  25.2
#1 Device               0.6       10.6         0.8                  24.3

#2 Baseline             0.6        4.1         0.5                  19.5
#2 Device               0.5        3.2         0.6                  19.1

1983 Std.               0.41       7.0         0.7


         The Air Resources Board did not perform confirmatory testing of the
third generation Goodman System.

V.       D1SCUSSION

     ‘   The applicant‘s comparative emission data were reviewed by the staff.
The differences in HC and NOx emission values between the paired

baseline/device tests were considered to be within the lTimits of test

variability; there were no measurable changes in HC and NOx emissions from the

baseline levels due to the use of the device.        The CO emissions changed

slightly; there was an increase for test vehicle No. 1 and there was a

decrease for test vehicle No. 2.        The increase for test vehicle No. 1 was

insignificant.

         It should be noted that both test vehicles exceeded at least one of the
applicable exhaust emission standards.        However, no obvious defects were found.
         Each of the vehicles tested has emission controls, which are sensitive

to any changes in engine operating parameters caused by the installation/use

of the device.        It is evident from the test resulTts that the device did not
affect the operation and the performance of these emission contfols.

         The applicant also performed testing with only the air pump tap

installed to demonstrate—that the amount of reduction in the secondary air

supply to the engine would not affect exhaust emissions.        The test data was

reviewed by staff, and no emissions changes were found.



Document Created: 2005-09-01 12:44:54
Document Modified: 2005-09-01 12:44:54

| Previous E.O. D-128 | Next E.O. D-129-1 | Next E.O. D-130
