D-133-11 Document:


CARB_D-133-11

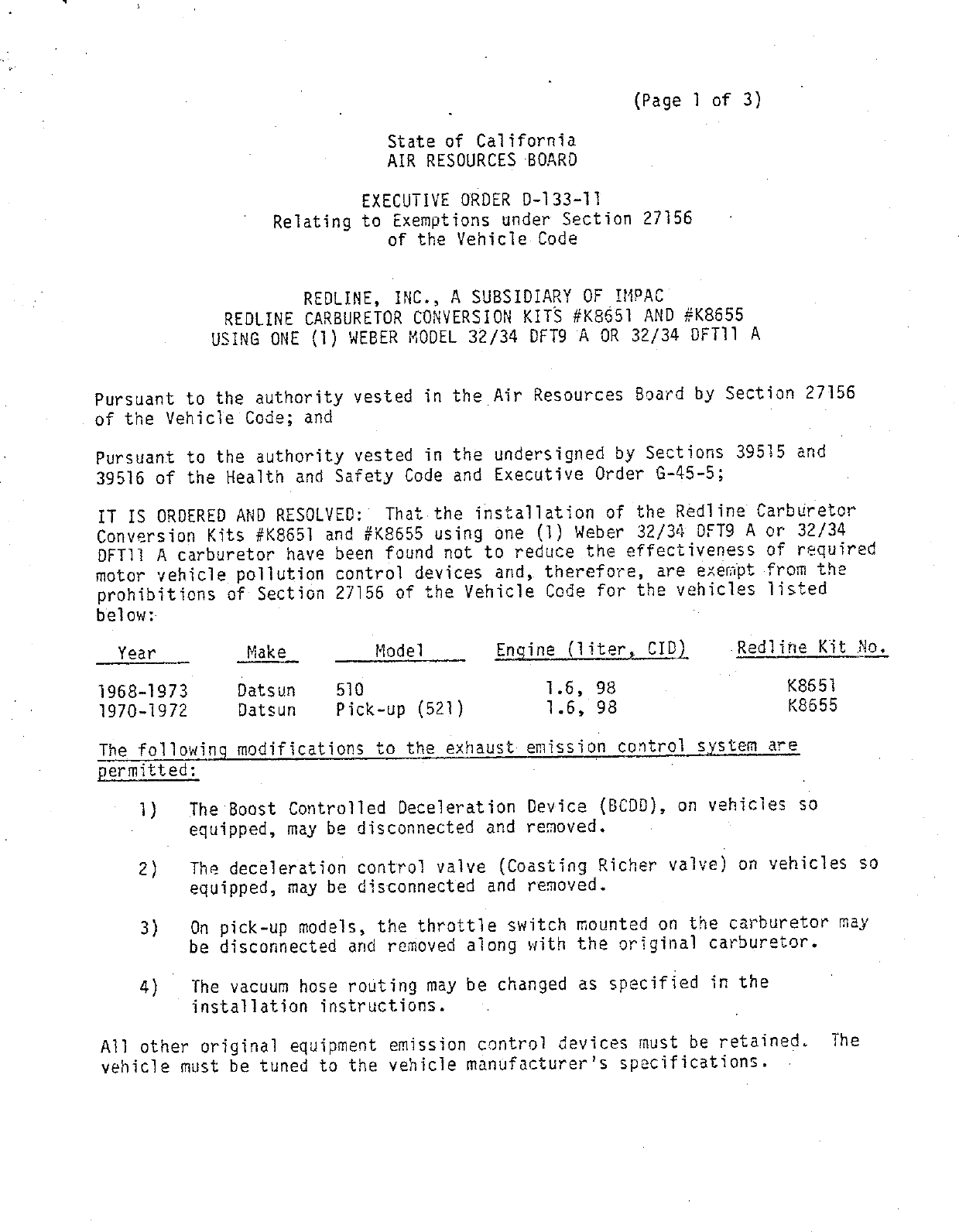

                                                               (Page 1 of 3)

                                     State of California
                                     AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—133—11
                       Relating to Exemptions under Section 27156
                                   of the Vehicle Code


                         REDLINE, INC., A SUBSIDIARY OF IMHPAC
                 REDLINE CARBURETOR CONVERSION KITS #K8651 AND #K8655
                USING ONE {1) WEBER MODEL 32/34 DFTY A OR 32/34 DFT1l A


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—4§5—5;

IT IS ORDERED AND RESOLVED:~ That the installation of the Redline Carburetor
Conversion Kits #K8651 and #K8655 using one (1) Weber 32/34 OFT9 A or 32/34
DFTI1 A carburetor have been found not to reduce the effectiveness of required
motor vehicle pollution control devices and, therefore, are exempt from the
prohibitions of Section 27156 of the Vehicle Code for the vehicles listed
below:

  Year              Make           Model        Engine {liter, C1D)      Redline Kit No.

1968—1973          Datsun    510                     1.5, 98                   K8551
1970—1972          Datsun   Pick—up (521)            1.6, 98                   K8655

The following modifications to the exhaust emission control system are
permitted:

       1)     The Boost Controlled Deceleration Devica (BCDD), on vehicles so
   >          equipped, may be disconnected and removed.

       2)     The deceleration control valve (Coasting Richer va]vej on vehicles so
              equipped, may be disconnected and removed.

       3)     On pick—up models, the throttle switch mounted on the carburetor may
              be disconnected and removed along with the original carburetor.

       4) _   The vacuum hose routing may be changed as specified in the
              installation instructions.

All other original equipment emission control deavices must be retained.           The
vehicle must be tuned to the vehicle manufacturer‘s specifications.


REDLINE, INC.                          .           EXECUTIVE ORDER d—13%—11
                                                   (Page 2 of 3)



This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vghic]e's pollution control system shall   invalidate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESQURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE REDLINE CARBURETOR CONVERSION KITS #K8651 AND #k8655.

No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or misleading
advertising unlawful, and Section 17534 makes violation punishable as a
misdemeanor .

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a) No person shall install, sell, offer for sale, or advertise,
    or, except in an application to the state board for certification of a
    device, represent, any device as a motor vehicle pollution control device
    for use on any used motor vehicle unless that device has been certified by
    the state board. No person shall sell, offer for sale, advertise, or
    represent any motor vehicle pollution control device as a certified device
    which, in fact, is not a certified device. Any violation of this
    subdivision is a misdemeanor." ©


REDLINE, INC.                       .                   EXECUTIVE ORDER D—133—11
                                                        (Page 3 of 3)



Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

                |             ols 47
Executed at El Monte, California, this           day of August, 1986.



                                           WMM@;
                                         K. D. Drachand, Chief
                                         Mobile Source Division


                       State of California
                       AIR RESOURCES BOARD




        EVALUATION OF THE REDLINE CARBURETOR CONVERSION KITS
NO. K8651 AND NO. K8655 USING ONE (1) 32/34 DFT9 A OR 32/34 DFTI1 A
               WEBER CARBURETOR FOR EXEMPTION FROM THE
             PROHIBITIONS OF VEHICLE CODE SECTION 27156
              IN ACCORDANCE WITH SECTION 2222, TITLE 13
                OF THE CALIFORNIA ADMINISTRATIVE CODE




                              JULY, 1986


               EVALUATION OF THE REDLINE CARBURETOR CONVERSION
KITS NO. K8651 AND NO. K8655 USING ONE (1) MODEL 32/34 DFT9 A OR 32/34 DFTII A
                    WEBER CARBURETOR FOR EXEMPTION FROM THE
                  PROHIBITIONS OF VEHICLE CODE SECTION 27156
                   IN ACCORDANCE WITH SECTION 2222, TITLE 13
                     OF THE CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Division
                             State of California
                             AIR RESOURCES BOARD
                             9528 Telstar Avenue
                              E1 Monte, CA   91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                       SUMMARY



       Redline, Inc., a distributor of Italian made Weber carburetors, has

 applied for exemption from the prohibitions of Vehicle Code Section 27156 for

 the Redline Carburetor Conversion Kits No. K8651 and No. K8655 using.one (1)

 Weber model 32/34 DFT9 A or 32/34 DFTII A carburetor.

       These Redline Carburetor Conversion Kits are designed to replace the

— Hitachi carburetors found on 1968—1973 Datsun 510 and 1970—1972 Datsun pick—up

 trucks with 1.6 liter engines.

       Redine has previously demonstrated that the Weber 32/34 DFT9 A and 32/34

 DFTII A carburetors do not cause an increase in emissions when used to replace

 the original equipment manufacturer (OEM) Hitachi carburetors found on

 1972—1980 Datsun vehicles with 1.8 and 2.0 liter engines.         Executive Orders

 D—133 and D—133—1 were issued granting Redline exemptions for those Datsun

 vehicles.    The Datsun 1.6, 1.8 and 2.0 liter engines are of the same design

 and utilize very similar systems for emission control.        The 1.6 liter engines

 found in the early model 510 and pick—up trucks utilize the most simple

 emission control systems of all these Datsun vehicles.        Becausebof the

previous     demonstration of the Weber‘s ability to perform, with respect to

 emissions, on newer model—year Datsun vehicles with engines of the same design

 and with more complex emission control systems, the staff recommends that the

 exemption be granted as requested for the following vehicle applications:



    Year        Make       Mode?             Engine (liter, CID}    Redline Kit. No.

 1968—1973      Datsun    .« 510                   1.6, 98                K8651
 1970—1972      Datsun       Pick—up (521)         1.6, 98                K8655


                                      CONTENTS



                                                    Page Number



SUMMARY

CONTENTS

I.     INTRODUCTION

II.    CONCLUSION

I1I.      RECOMMENDATION

IV.    DEVICE DESCRIPTION

¥.     DEVICE_EVALUATION

VI.    DISCUSSION



APPENDIX

       OEM Carburetor Diagrams                           A—1

       Weber 32/34 DFT

       Installation Instructions:    K8651, K8655        A—3
       Identification Labels:    K86§51, K8655          A—4




                                         ii.


EVALUATION OF THE REDLINE CARBURETOR CONVERSION KITS NO. K8651 AND NO. K8655
USING ONE (1) MODEL 32/34 DFT9 A OR 32/34 DFT11 A WEBER CARBURETOR FOR
EXEMPTION FROM THE PROKIBITIONS OF VEKICLE CODE SECTION 27156 IN ACCORDANCE
WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE



I.       INTRODUCTION

         Redline, Inc., of Compton, California, a subsidiary of Imported Parts

and Accessories Corporation (IMPAC), is a distributor of Italian made Weber

carburetors.     The company has applied for exemption from the prohibitions of

Vehicle Code Section 27156 for two Carburetor Conversion Kits designated as

Redline Kits No. K8651 and No. K8655 using one (1) Weber model 32/34 DFT9 A or

32/34 DFTII A carburetor to replace the original equipment manufacturer (OEM)

Hitachi two—barrel carburetors found on the following vehicles:



      Year       Make      Model       Engine (liter, CID)     Redline Kit No.


1968—1973        Datsun    510               1.6, 98                 K8651
1970—1972        Datsun    Pick—up (§21)     1.6, 98                 K8655


         This report describes the evaluation of the Redline Carburetor

Conversion Kits and the findings.

II.      CONCLUSION

         Based on a previous demonstration that the Weber 32/34 DFT9 A and 32/34

DFTI1 A do not cause an increase in emissions when used to replace the OEM

carburetors on later model—year Datsun vehicles with more complex emission

control systems, the staff concludes that the installation of the Weber 32/34

DFT9 A or 32/34 DFTIHI A carburetor will not have an adverse effect on

emissions when installed on the vehicles described above.


III.   RECOMMENDATION

       The staff recommends that Redline, Inc. be granted exemption from the

prohibitions of Vehicle Code Section 27156 for the Redline Carburetor

Conversion Kits No. K8651 and No. K8655 for use on the vehicles described

above and that Executive Order No. D—133—11 be issued.

IV.    DEVICE DESCRIPTION

       The Redline Carburetor Conversion Kits No. K8651 and No. K8655 are

similar in design.      Each kit uses one (1) model 32/34 DFT9 A   or 32/34 DFTIl A

Weber carburetor as an economical replacement for the OEM carburetors found on

the 1968—1973 Datsun 510 passenger cars and pick—up trucks described

previously.   The model 32/34 DFT9 A (9 A) and model 32/34 DFTII A (11 A) Weber

carburetors have the same calibration and can be used interchangeably.       The

only difference between the two models is that the 9 A is built in the Weber

factory with an EGR port and the 11 A is not.      For applications which require

an EGR port the 9 A can be used "as is" and an EGR port can be added to the

11 A by Redline, at their facility, making the two models equivalent.       For

applications which do not require an EGR port the 11 A can be used "as is" and

the EGR port on the 9 A can be plugged.

       The Datsun 510 passenger cars and pick—up trucks described previously

are equipped with a Hitachi carburetor.     The Hitachi carburetor is of the

progressive two—barrel design (See Appendix 1).

       The Weber 32/34 DFT is a progressive two—barrel carburetor which is

similar in basic design to the OEM carburetors (See Appendix 2).       The Weber

32/34 DFT is a slightly different version of the Weber DFT (Ford 740)

carburetors used as original equipment on some Ford imports orignally sold in

California.   It has provisions for vacuum operated emission control systems,


including distributor vacuum advance/retard units, EGR and air injection

control systems.

      A variety of emission control devices are used on these vehicles.      Some

are integral to the OEM carburetor and others are external devices which

either control specific functions of the OEM carburetor or are activated by

movement of the throttle.   The installation of the Weber carburetor retains

most of these devices or duplicates the functions of the devices in a

different manner, however, some devices cannot be retained.   These devices and

their disposition after the installation of the Weber carburetor are:

      1}    The Boost Controlled Deceleration Device (BCDD), on vehicles so
            equipped, is disconnected and removed.

      2)    The deceleration control valve (Coasting Richer valve) on veicles
            so equipped, is disconnected and removed.

      3)    On pick—up models, the throttle switch mounted on the carburetor is

            disconnected and removed along with the original carburetor.

      The Redline Kits No. K8651 and No. K8655 come complete with a Weber DFT

carburetor, an air cleaner adaptor and all the hoses, gaskets and hardware

necessary to install the Weber carburetor on the Datsun 510 or pick—up

vehicles.   Installation instructions, which are included in every kit, show

the kit installer how to properly install the Weber carburetor.   Vacuum port

diagrams, contained in the instructions, show the proper vacuum hose

connections to the Weber carburetor (see Appendix 3).   Facsimilies of the

identification labels are shown in Appendix 4.


V.    DEVICE EVALUATION

      The evaluation of the Redline carburetor conversion kits K8651 and K§655
is based on an engineering evaluation and comparative exhaust emissions

testing performed previously on similar Datsun vehicles during the evaluation

of similar Redline kits which led to the issue of Executive Orders D—133 and

D—133—1.

      Two of the disconnections associated with kits K86§51 and K8655, the

coasting richer valve and the BCDD are very similar.   The coasting richer

valve is used on 1970 and 1971 Datsun vehicles and BCDD is used on 1972 and

later Datsun vehicles for the control of hydrocarbon emissions during

deceleration.   The coasting richer valve is an electrically activated solenoid

which allows additional air—fuel mixture to by—pass the throttle plate of the

carburetor during deceleration which provides enough mixture to the engine to

maintain combustion thereby reducing hydrocarbon emissions.     It is activated

through a series of switches which can detect a decelerating condition.

      The BCDD performs the same by—passing function, but, it is activated by

high intake manifold vacuum which occurs during deceleration.    The

disconnection of the BCDD was evaluated on two Datsun test vehicles; a 1976

Datsun 710 and a 1980 Datsun Pick-up.   Both of these test vehicles had their

BCDD device disconnected when the Weber carburetor was installed.      The results

of the comparative exhaust emissions tests performed at Import Certification

Laboratories of Anaheim, California, are shown in Table 1 and Table 2.


                                        Table 1

                          Test Results: 1976 Datsun 710
                       Test Procedure: Back—To—Back CVS—75

                            Exhaust Emissions gm/mi                 Fuel Economy mi/gal
  Condition                 HC          cCO          NOx                   City
Baseline                  0.8        4.6             2.2                  18.8

Production Weber          0.9        4.8              1.8                 19.4


                                        Table 2

                        Test Results:         1980 Datsun Pick—Up
                        Test Procedure:       Back—To—Back CVS—75

                            Exhaust Emissions gm/mi                 Fuel Economy mi/ga]
  Condition                 HC          CG           NOx                   City
Baseiine                  0.2        4.1              1.1                 22.0

Production Weber           0.2       2.7              1.0                 22.2

      The results of these tests show that while the installation of the Weber

carburetor requires the removal of the BCDD no adverse emissions impact

occurs.    Because these tests demonstrated the ability of the Weber carburetor

to control emissions during deceleration without the use of any external

devices the staff has determined that the disconnection of the coasting richer

valve will not cause an adverse emissions impact either.

      The only other disconnection required for the installation of kits K8651

and K8655 is the disconnection and removal of the throttle valve switch which

is mounted on the original Hitachi carburetor used on the 1970—1972 Datsun

Pick—ups only.     The disconnection of this switch alters the function of the

original equipment dual point distributor system.           The function of this system

is to retard the ignition timing, when the vehicle is under light load in

third gear and warm.     It does this via a second set of points which are seven

crankshaft degrees out of phase in the retarded direction.             The disconnection


of this switch prevents this retarding action from occuring under the proper

conditions.    The staff evaluated the CVS—75 test cycle and determined that the

retarded points would only be activated nine percent of the entire test cycle

on a bag weighted basis.    Therefore, the staff has determined that the

disconnection of this system would have little effect on emissions.       It should

be noted that Nissan dropped the use of the dual point distributor system in

1974 and later years and did not replace it with any equivalent system and

were still able to meet certification requirements.

VI.    DISCUSSION

       The evaluation of the Redline carburetor conversion kits No. K86§51 and

No. K8655 is based on an engineering evaluation.     Kits No. K8651 and No. K8655

are very similar to Kits No. K8660, No. K8650, No. K8640, and No. K8666, which

were previously exempted, with the significant differences being in throttle

lTinkage.    The engines used in the Datsun 510 and pick—up vehicles are of the

same design as the engines used in the newer model—year Datsun vehicles for

which exemptions have already been granted, with the significant differences

being in displacement and the complexity of the emission control systems, with

the Datsun 510 and pick—up vehicles being less complex.     As shown by the

comparative exhaust emission tests previously performed the disconnection of

the BCDD or similar devices does not have a significantly adverse effect on

emissions.    The effect of removing the throttle vaive switch has been

determined to be negligible.

      Therefore, the staff recommends that the requirement for comparative

emissions tests on Kits No. K8651 and No. K8655 be substituted by this

engineering evaluation and that Redline, Inc. be granted an exemption for

these kits.


                                                                                                     Accelerator Pump
                                                          Accelerator Pump                            Operating Lever
                                                              Assembly
                             Fual inlet      &
                          Needle & Seat      &




                                   .                                                                 Accelerator_Pump
                                                                                                         loas
                      Accelarator Pump                                                              n Actuating Rod
                     Check Ball & Weight                                                                .
                                         A
                                 Power Valve   Stow




               PAs
             Slow Air Bleed
                oasting .—*"
                               higs ze                                       t6
              Air Bleed      §
             Coosting Jet                                                    \              Choke Connacting Rod
                                                                         \'@ las
                                                                                  BJ      n.         Anti—Dieseling Solencid
                                                          Choke Unloader Lever                 \
                                                              (Counter Lever)          %(          \@         ‘

                                         Idle Mixture Scraw"‘?
                                                              &          Fast Idile Cam
                                                                                       *
                                                          &
                                                        f fi@         Idle Speed Adjusting Scraw             (f:?




Secondary Throtile
   Diaphragm




                                                                                                                   4DA06

                                               — carsurETORr ExPLODED view                                                 +   E


                                                                                                               Numero 0: ordinazione WEBER ) FORD
                                                                                                               22670.002 / B1SF 9510 AA
                                                           *FORD                                               Nells ordinaziont indicare:
                                                                                                               numero di matricola del particolare
                                                            ;ERIKA 1600                                        richieato a it numero a tipo dl carburatare

                                                            cambio meccanico                                                        # n

                                                                 32| 34 DFT 4




 Fig.   Gth    Denominazione                                  Matricols         Fig.      Ggé Denominazione                                          Matricoln

  1      1     Coperchic carburatore                           31716.751            t      2    Portagetto del minimo                                $2570.004
  2      i     Rosetta                                         §5510.107            2#   . 1    Gatto minimo primario                                T4403.050°
  3      3     Vite fissaggio dispositive aiamento             64700.004            21     1    Getto minimo secondario                              74403.060"
  4      1     Dispositivo swiamenio compieto di.              $7804.400            2      1    Getto principale primario                            73405.112°
  §      1     — Molla awlamento                               47605.042            20    i     Gette principale secondario                          73405.126°
  6      1     — Guamiziong                                    41565.008            2     3     Rosetta df fermo plastring telion                    §5510.087
  T      _1    — Membrana                                      47407.150            24    _3    Gyamizione tenuta aibarini                           41575.010
  &      1     — Moila per membrana                            47600.141            25     7    Boccola di ritegnoguarnizione alberino               12750.005
  #      _1    — Coperchio per membrana                        32384.041            26    _1    Valvola a farfalla secondaria                        64005.018
 10      __i   —— Vite registro membrana                       64505.022            27    _i    Alberino principale secondario                       10016.311
 11     3      — Vite fissaggio coperchio membrana             64560.004            28    3     Piastrina supporto albaring                          62130.010
 12     3      Vite fissagglo plastrina                        64815.004            24    1     Vite registro farfaila secondaria                    §4505.013
 13     _1     Piastrina bloccaggio scatola termostatica       §2135.029            30    __2   Rosetta rasamento alberino primario                  $5555.018
 14     1      Scatois con spirale termostatica     _          §7804.428            31    1     Leva comando vaivols a farfaila completa‘di:         45041.165
‘5      1      Guamizione tenuta calore                        41640.058 _          a     _1    —— Vite registro minime veloce                   °_ 64595.026
 18     1      Guarnizione coperchic carburatore               41705.057        —33       1     — Dado                      —                        34715.018
 17__1         Gallegglante                                    41030.012            3     2     Rosetta di sicurezza            —                    55520.002
 18     1      Getto aria di freno primario                    77501.180°           35    _2    Dado fisaaggle alberino primario                     34715.014
 18     1      Getio aria di freno secondario                  77501.150"           as    _1    Boccola per ieva allentata                           12775.053
 19     _1     Tubstto emuisionatore primario       ;‘         61450.229°           37    _1    Leva allentata                                       45060.015
                        imyisionat            rig   *          61450.220°           38    1     Molla richiamo leva alientata                        47810.002
 Pubbilcarione                                             Weber Carburatori                                  40134 Bologna — Via Timavo, 33
 Matr. 95.0747.00                                          Assistenza Tecnica                                 Telefoni: 051 / 417995—434205—437403
                                                           Pubblicazioni Tecniche                             Telex: 510119 WEB BO—4


                                                        A—3            -——V
                           Instruction Supplement for Redline Inc.                            younl
                                      Kit Nos. K8651 and K8655


                                  DATSUN                      510 & 521
 weBer TECHLINE                              1968 To 1973
                de Califernie
 wWEBER CA Insi
 (e323722 )
ewesenus o«sdec=""""__                ; 46 Engine, All Transmissions
                j       itornia                   &                       &    &




              This supplement is to be used in conjuntion with instruction sheet
    Part No. 444—8650 IN for Redline Inc. Kit Nos. K8640/8650. All instructions
    for Kit Nos. K8640/8650 remain in effect, except as noted below.


    General Note:            Certain vehicles may not have all of the devices, hoses,
    wires, etc. listed in these instructions, or they may be in a slightly
    different location than shown here. DO NOT PANIC.  Variations are common.

    Instruction No.

       74.       Omit this step.

       17.      521 Only — Install throttle cable bracket supplied on carburetor
                mounting studs then secure carburetor with flange nuts and washers
                supplied in the kit.

       18.      510 Only — Remove original throttle lever from stock carburetor
                and place on Weber carburetor.                Use the flat washer supplied to space
                lever out if needed.

       19.      Connect the wire kit supplied from carburetor to any 12 volt source
                that is hot with ignition on.

       21.      If vehicle was equipped with a steel vacuum advance tube, slide
                compression fitting on carburetor side back far enough to slide hose
                on then connect to port nearest front of vehicle.

       22.      Omit this step.

                This kit is a replacement conversion.                   The   information pertaining
                to C.A.R.B. E.0. No. D133 does not apply.


   Replacement carburetors meet original equipment performance levels and are
   offered as direct replacements.   When properly installed, they are legal for
   use on Public Highways in California.

                                                                                      444—8651—IN



   REDLINE INC.                   The Weber Importers


    CARBURETOR
  _xm_u_u_zml<<mwmm
   wm\wh DET 9A/IIA
     KmmmA _

CARB E.O. No. D133—X


  CARBURETOR
REDLINE—WEBER:
 32/34 DET AJIIA
   K sead >


                                 INSTALLATION INSTRUCTIONS
                                                                                      *VC
                                                                                      VIEBE
                                                                                      carsurtrons



   READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE
   BEGINNING THIS INSTALLATION. AFTER UNPACKING, EXAMINE THE
   CARBURETOR AND OTHER COMPONENTS FOR SHIPPING DAMAGE.


               DATSUN 61 0, 620, AND 710
                      1972 To 1976
                                L18 and L20B Engines, All Transmissions
                               For Kit Nos. K 8640 and 52—50514 (Pickup)
                                      K8650 and 52—50512 (Sedan)

   TOOLS AND EQUIPMENT NEEDED                                    PARTS SUPPLIED WITH
                                                                  INSTALLATION KIT:

  Combination,       Box   or    Open—End Wrenches           1   Weber 32/34 DFT CArburetor
  (metric)                 '
  Socket Set with 12mm Socket                                1.— Air Filter Adaptor
  Screwdrivers (regular and Phillips)
  Pliers                                                     1   Fuel Line
  Gasket —Scraper
  Wiping Rags .                                              1   Hardware Kit
  Cleaning Solvent                                       -
  Knife    .
  Gasket Sealer

                                      TUNE—UP SPECIFICATIONS
  All tune—up specifications for the Weber Carburetor remain the same as those ‘specified
  by the Datsun Factory for the original unit, Emissions tune—up should be carried out
  by a suitably qualified Dealer or Independent garage, using infrared gas analyzing equip—
  ment.

°_ NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum
 : lines and electrical connections in their fuel systems. It is essential when dismantling,
   that disconnected lines be identified with a corresponding number tag or label system.
   To establish function, locate and identify the source of each line.




          This kit is sold under the provisions of California Air Resources Board
          Executive Order No. D—133 (C.A.R.B.     E.O. No. D—133).  Products with
          C.A.R.B. E.0. numbers are exempt from the prohibitions of Section 27156
          of the— California Vehicle Code. Performance kits so noted are legal for
          use on public highways in California.

          C.A.R.B.     ~E.0. No._D—133 is valid for Datsun: 610, 620, 710 (72—76) fitted
          with L18, or L20B engines.




 WEBER U.S.                                          ’                                         Page 1


  PREPARATION FOR KIT INSTALLATION.
                                                                         CAM COVER
                                                                                                 HOT AIR TUBE


  1.    Remove the vehicle gas cap.

  2,   Raise the hood                  and   disconnect        the
  vehicle battery.

  3.    Remove the fuel line and clamps.

  4.   Remove the two air filter bracket
  bolts at the front of the air filter.

  5.  Disconnect the following lines                         from
  the air filter. ldentify removed                           lines
                                                                      GULP VALVE                        AIR PUMP
  to    aid      in    reassembly.           See     figure     1.
                                                                             EVAPORATIVE
                                                                             CANISTER

        a.    Gulp Valve                                                              MANTFOLD VACUUM
        b.    Cam Cover
        c.    Hot Air Tube
        d.    Air Pump                                                                Figure 1
        e.    Manifold Vacuum
        f.    Evaporative Canister
                                                                     EGR VACUUM                     BCDD VACUUM




  6.   Remove              the   air     filter      from      the
  vehicle.

  7.   Disconnect the following carburetor:
  lines and wires. Identify removed lines
  and wires to     aid in reassembly. See
  figure 2.

        a. EGR (Exhaust Gas Recirculation)
           Vacuum
        b. BCDD (Boost Control                           Deceler—
           ation Device) Vacuum
              Red Anti—Dieseling,                 Idle    Cutoff
       9




              Solenoid Wire
              Blue Choke Wire
       mp q




                                                                             HIGH ALT. VAC. LINES
              White BCDD Wire
              Vacuum Advance                 to     Distributor                     WHITE BCDD WIRE
                                                                     VACUUM ADVANCE            BLUE WIRE
  NOTE: Some vehicles have altitude com—                             TO DISTRIBUTOR          '       RED WIRE
  pensation devices which have two (2)
  vacuum lines connecting the carburetor
                                                                                      Figure 2
  with a unit mounted on the left inner
  fender, behind the BCDD unit. These
.ines         may     be    discarded.       See     figures    2    8.  Remove cotter pin, spring, and wash—
  and 3. The BCDD electrical wire will                               er  from the carburetor linkage arm.
  not be used on the Weber Carburetor                                On vehicles with cable throttle linkage,
  and should be disconnected and discarded.                          remove the cable from the throttle quad—
                                                                     rant.



Page    2


9.   Remove carburetor flange nuts and
lift carburétor and flange gasket from
the intake manifold.

10. Remove the four            flange   studs    from
the intake manifold.

NOTE: Flange studs are removed with
a stud removal/installation tool or by
a double—nut procedure. (Two nuts are
threaded on stud to be removed and
locked tightly together. The stud can
then be unscrewed        from      the manifold).
11.‘ After the flange studs are removed,
clean the manifold face.

KIT INSTALLATION,

12. Use  stud removal/installation tool
or the double—nut procedure and: install
the   new     flange   studs    supplied    in    the
kit, in the manifold flange.

13. Install the smaller of the two gaskets
supplied on the manifold flange.

14. Install the plastic insulator block,
supplied in kit, on the manifold. Place
the remaining gasket on the insulator
block.


NOTE: The insulator block has a tapered
hole which must match the original man—
ifold at the bottom, and the carburetor
at the top.

15. Remove one—way air valve and hose.
Fit spacer and threaded adaptor as shown
in figure 4. Shorten the air hose 1—1/2
inches. ~Refit hose and valve assembly
as shown,. If necessary, reposition   air
valve for clearance with choke solenoid.

16. Install Weber carburetor on manifold
with choke assembly toward the front
of the vehicle, See figure 5.

17. Secure carburetor with flange                nuts        SPACER   ONE—WAY AIR VALVE
and washers supplied in the kit.
                                                        NOTE: THIS ILLUSTRATION SHOWS THE
                                                              WEBER CARBURETOR INSTALLED.
18. Reconnect throttle arm with cotter
pin, spring, and washer removed in step
No. 8. On vehicles with cable throttle                                Figure 4
linkage, connect cable to throttle quad—
rant on Weber carburetor.:


                                                                                          Page 3


  19. Reconnect blue electric choke wire
    d red idle cutoff solenoid wire to
     responding units on the Weber carb—
  uretor. See figure 6.

 20. Connect the fuel hose supplied in
 the kit from the stock Datsun fuel outlet
 to fuel inlet on the Weber carburetor.
 Secure hose with clamps supplied. See
 figure 6.                '

 21. Connect the EGR and Vacuum Ad—
 vance lines with the EGR line . nearest
 the firewall and the Vacuum Advance
 line toward the front of the vehicle.
 See figure 6.

 22. Install the black and gold vacuum
 delay ‘valve supplied in the kit in the
 vacuum     line that  connects   the: EGR                                        Figure 5
 valve to the thermal switch. Install the
 vacuum delay valve by cutting a 1/2—
                                                               IDLE CUTOFF SOLENOID              CHOKE
 inch piece out of the vacuum line and
 installing the delay valve in the line.
 Install the delay valve with the black
 side toward the. thermal switch and the
 gold side toward the EGR valve,.

 ' Reconnect            the    lines     removed         in
 steps Sa through        5f to the air cleaner.
 See figure 1.


 24. Install   the     air    cleaner        adaptor    and    FUEL
 air cleaner with the two oval air filter.                     INLET
 spacers supplied and the two air filter                                                                  vacuum
 bracket bolts removed in step 4.                                  FUEL HOSE                              ADVANCE
                                                                                                          LINE
 25, Tighten the two             bracket        bolts    to                                  STOCK
 secure the air filter.                                                      EGR LINE        FUEL
                                                                                            OUTLET
 26. Reconnect the vehicle battery.
                                                                                 Figure 6
 27. Depress   the   throttle  fully,   then
 release to initiate the cold—start device.

 28. START THE          ENGINE.        After warmup           at Weber      factory, Refer           to       Tune—Up
 check   for   leaks     around        the     carburetor     Specifications on page 1.
 mounting base and ‘correct as necessary.
 With engine idling, use a spray can of                       30. CHECK FOR  ADEQUATE HOOD
 carburetor cleaner with hose attachment                      CLEARANCE BEFORE CLOSING THE
 to isolate a leak,. Spray cleaner around                     HOOD. _
    buretor    mounting base.   If any of
      spray is entering the induction sys—                    NOTE:    If    difficulties    arise    during      kit
 tem, the idle speed will change.                             installation     WEBERU.S.              will>     make
                                                              every effort to provide needed assistance.
 29. Check idle speed and adjust as nec—                      Contact    our   technical   liaison   through
 essary to 750 rpm. Idle mixture is preset                    your   distributor   for   this     assistance.


                                                                WEBER U.S.                                445.8650.IN
Page 4



Document Created: 2005-09-01 12:41:59
Document Modified: 2005-09-01 12:41:59

Previous E.O. D-133-10 | Previous E.O. D-132 | Next E.O. D-133-12 | Next E.O. D-134
