This Executive Order approved the specified parts on on March 11, 1985.
As of Thursday, December 26th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
32/36 DGAV 33B11975-1977 Toyota Celica, Corona and 2WD & 4 WD P/U (Kit K8746) 1978-1980 Toyota Celica, Corona and 2WD & 4 WD P/U (Kit K8747)

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-133-2
  • Executive Order 133-2 / D133-2
  • ARB # D-133-2
  • Executive Order No: D-133-2
  • C.A.R.B. No. D-133-2
  • Resolution D-133-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-133-2 PDF

D-133-2 Document:

CARB_D-133-2

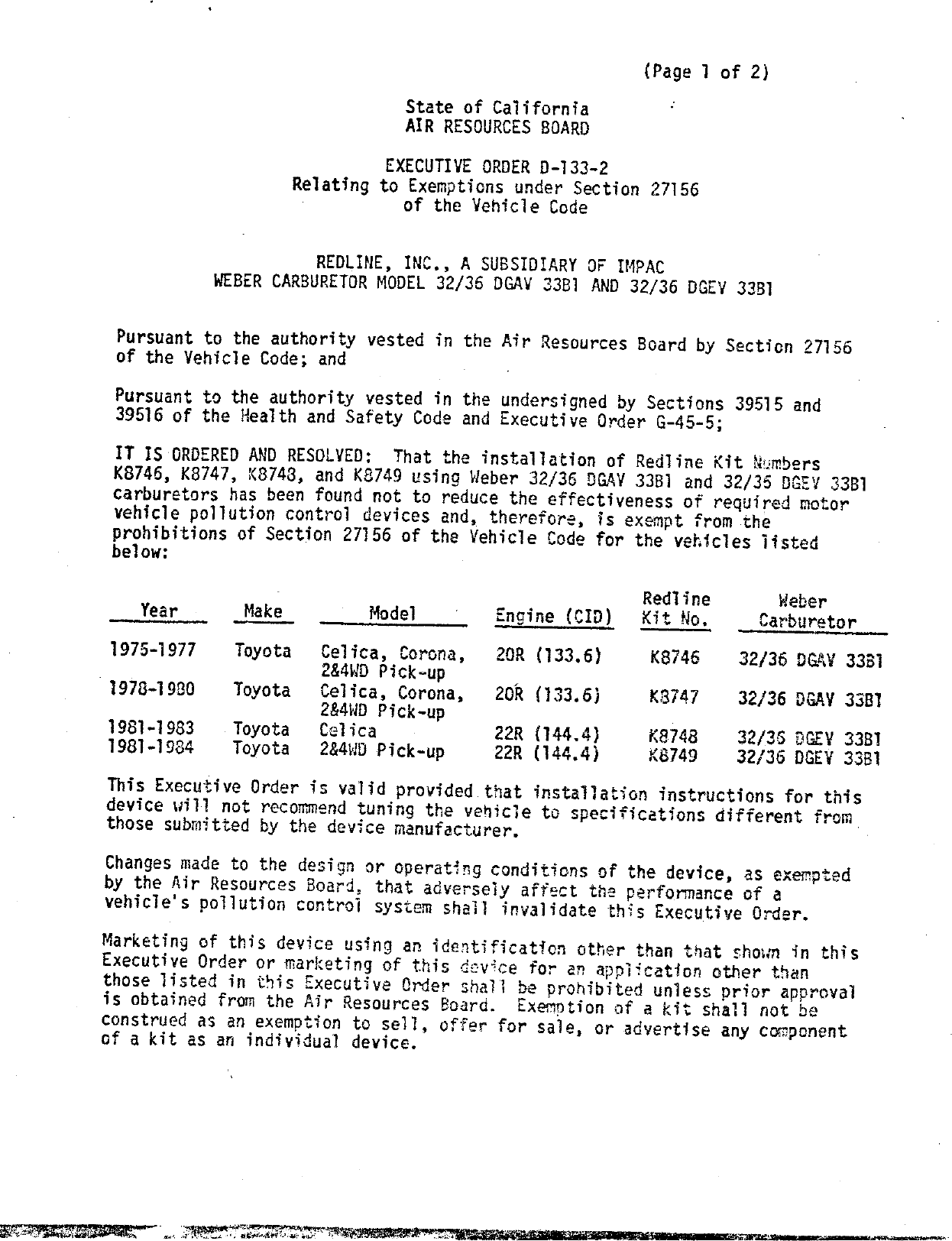

{Page 1 of 2) State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—133—2 Relating to Exemptions under Section 27156 of the Yehicle Code REDLINE, INC., A SUBSIDIARY OF IMPAC WEBER CARBURETOR MODEL 32/36 DGAY 33B1 AND 32/36 DGEY 3381 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and Safety Code and Executive Order G—45—5; IT IS ORDERED AND RESOLYED: That the installation of Redline Kit Numbers K8746, K8747, K8748, and K8749 using Weber 32/36 DGAV 33B1 and 32/35 DSEY 3381 carburstors has been found not to reduce the effectiveness of required motor vehicle pollution control devices and, therefore, is exempt from the prohibitions of Section 27156 of the Yehicle Code for the vehicles listed below: — Redline Veber Year Make Model ' Engine (CI0D) Kit No. Carburetor 1975—1977 Toyota Celica, Corona, 20R (133.6) K8746 32/36 DGAY 3381 2AAWD Pick—up L 1978—1 980 Toyota Celica, Corona, 20R (133.6) K3747 32/36 DGAY 35B1 244WD Pick—up 1981—1983 Toyota Celica 22R (144.4) K8748 32/35 DCEY 33B1 1981—1984 Toyota 24440 Pick—up 22R (144.4) K8749 32/36 DGEY 3381 This Executive Order is valid provided that instaliation instructions for this device will not recommend tuning the vehicle to specifications different from those submitted by the device manufacturer. Changes made to the design or operating conditions of the device, as exempted by the Air Resources Board, that adversely affect the performance of a vehicle‘s pollution control system shalil invalidate this Executive Ordor. Marketing of this device using an identification other than that shown in this Executive Order or marketing of this device for an application other than those listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air Resources Board. Exemption of a kit shall not be construed as an exemption to sell, offer for sale, or advertise any component of a kit as an individual device.

REDLINE, INC. EXECUTIVE ORDER D—133—2 (Page 2 of 2) This Executive Order does not constitute any opinion as to the effect that the use of this device may have on any warranty either expressed or implied by the vehicle manufacturer. THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE WEBER 32/36 DGAY 3381 OR 32/36 DCGEV 3381 CARBURETORS. No claim of any kind, such as "Approved by Air Resources Board" may be made with respect to the action taken herein in any advertising or other oral or written communication. Section 17500 of the Business and Professions Code makes untrue or misleading advertising unlawful, and Section 17534 makes violation punishable as a misdemeanor. Section 43644 of the Health and Safety Code provides as follows: "43644. {a)}) No person shall install, sell, offer for sale, or advertise, or, except in an application to the state board for certification of a device, represent, any device as a motor vehicle pollution control device for use on any used motor vehicle unless that device has been certified by the state board. No person shall sell, offer for sale, advertise, or represent any motor vehicle pollution controi device as a certified device which, in fact, is not a certified device. Any violation of this subdivision is a misdemeanor." Any apparent violation of the conditions of this Executive Order will be submitted to the Attorney General of California for such action as he deems advisable. . Executed at El Monte, California, this , ¥4 day /’ of March, 1985. ZMatwirP K. D. Drachand, Chief Mobile Source Division

APPENDIX A AISAN 2—BARREL Te OQuter Vent * Control Vaive . Metering Needie Euet Union F~% — hes boCct : © $ o. g i ~(Q\ / ho Air Hom : 22no* m:) Metenn% i ~~. 1 Needie Guide (AAP) Auxhary Secondary Accelerator Pump Main Jet Cover Power Piston > U and Jet Valve é\ ind Needle Valve « Czzy _E Primary Main Jet Choke Opener & Ne & &* A Fast idle Cam T i o \&j idle—Up Diaphragm Solenaid Valve L2 i a B7 T0 f" : 1—® a ige Mixture Adjusting Screw C Idle—Up Adjusting Screw Fast Idle Adjusting Screw

sssp10duy 19gam 041 ‘*NI FNHMGIH d A3/AYDQ 98/Z€ MIIA 7TYOIdAL

APPENDIX B CARBURETOR VACUUM SIGNAL ATR INJECTION CUT PORT =CCOjI e / 1 EGR PORT A_ ; H [ — 1 U | 1 p ‘ U 1 _ SPEED EGR "R" PORT VACUUM ADVANCE PORT ——————— STOCK WEBER

STATE OF CALIFORNIA AIR RESOURCES BOARD EVALUATION OF THE MODEL 32/36 DGAY 33B1 AND 32/36 DGEV 33B1 WEBER CARBURETORS FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE MARCH, 1985

STATE OF CALIFORNIA AIR RESOURCES BOARD EVALUATION OF THE MODEL 32/36 DGAV 33B1 AND 32/36 DGEV 33B1 WEBER CARBURETORS FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE by Mobile Source Division State of California AIR RESOURCES BOARD 9528 Telstar Avenue El Monte, CA 91731 (This report has been reviewed by the staff of the California Air Resources Board and approved for publication. Approval does not signify that the contents necessarily reflect the views and policies of the Air Resources Board, nor does mention of trade names or commerical products constitute endorsement or recommendation for use.)

SUMMARY Redline, Inc., a distributor of ltalian made Weber carburetors, has applied for exemption from the prohibitions of Vehicle Code Section 27156 for their Redline kit numbers K8746, K8747, K8748, and K8749 using Weber 32/36 DGAY 33B1 and 32/36 DGEY 33B1 carburetors. Comparative exhaust emission tests demonstrate that the aftermarket Redline kits using Weber carburetor model 32/36 DGAV 33B1 or 32/36 DGEV 3381 do not adversely affect emissions. Based on the results of the tests and the Board‘s evaluation of the Redline kits, the staff recommends that the exemption be granted for the vehicles as requested.

CONTENTS Page Number SUMMARY i CONTENTS 11 I. INTRODUCTION 1 II. CONCLUSIONS 1 III. RECOMMENDATIONS 2 IV. DEVICE DESCRIPTION 2 V. EVALUATION PROGRAM 3 VI. DISCUSSION 5 APPENDICES A. Carburetor Diagram A—1 B. Emission Control Signal Maps B—1 11.

EVALUATION OF THE MODEL 32/36 DGAY 33B1 AND 32/36 DGEV 33B1 WEBER CARBURETORS FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE I. INTRODUCTION Redline, Inc. of Torrance, California, a subsidiary of Imported Parts and Accessories Corporation {IMPAC), is a distributor of Italian—made Weber carburetors and has applied for exemption from the prohibitions of Vehicle Code Section 27156 for aftermarket carburetor kits designated as the kit numbers K8746, K8747, K8748 and K8749 using Weber 32/36 DGAV 33B1 and 32/36 DGEY 33B1 carburetors. Exemption is sought as an exchange carburetor for the original equipment Aisan 21100 carburetor as found on limited 1975—1984 Toyota vehicles equipped with the 20R and 22R engines. This report describes the evaluation of the Redline kits using Weber 32/36 DGAV 33B1 and 32/36 DGEY 33B1 carburetors and the findings. I1. CONCLUSIONS Comparative exhaust emission data submitted by the applicant demonstrated that the Weber model 32/36 DGAV 33B1 and 32/36 DGEV 33B1 carburetors have similar emission characteristics as that of an Aisan 21100 carburetor. The applicant also submitted carburetor flow curves, and EGR and spark advance signal curves of the model 32/36 DGEV 33B1 to demonstrate that the Weber aftermarket carburetor functions in a like manner as to similar Aisan counterparts. Weber 32/36 DGAV 33B1 and 32/36 DGEY 33B] carburetors simply exchange the existing carburetor with only linkage and adaptor modifications and the stock air cleaner housing is retained. The idle mixture screw has a limiting adjustment cap to prevent tampering. Confirmatory testing at the ARB Haagen~—Smit Laboratory indicated reduced hydrocarbon and carbon monoxide emissions and only a slight increase (0.05 gm/mi) in oxides of nitrogen.

111. RECOMMENDATIONS Based on the submitted comparative data of the Weber carburetors, the staff recommends that Redline, Inc. be granted exemption from the prohibitions of Vehicle Code Section 27156 for the Weber aftermarket carburetor models 32/36 DGAVYV 33B1 and 32/36 DGEV 33B1 for the years, make, and models of vehicles listed below: Year Make Model Engine Carburetor 1975—1980 Toyota Celica 20R (133.6 CID) 32/36 DGAY 33B1 1975—1980 Toyota Corona 20R (133.6 CID) 32/36 DGAV 33B1 1975—1980 Toyota 2WD and 4WD Pick—Up 20R (133.6 CID) 32/36 DGAV 33B1 1981 —1983 Toyota Celica 22R (144.4 CID) 32/36 DGEY 3381 1981 —1984 Toyota 2WD and 4WD Pick—Up 22R (144.4 CID) 32/36 DGEV 33B1 IV. DEVICE DESCRIPTION Both the Weber 32/36 DGAV 33B1 and 32/36 DGEV 33B1 (32/36 DGAV/EY 33B1) and Aisan 21100 carburetors are progressive two—barrel down draft designs. Appendix A shows typical views of the Aisan and Weber carburetors. The main differences between the carburetors are the manner in which the secondary throttle is activated, jet sizes, and certain ancillary features. The Weber carburetors use a manually—operated secondary which starts to open after a primary throttle opens aeg:zs{zfte1y 68 percent. The Aisan carburetor uses a vacuum operated secondany(Ftarts to open after 50° of primary throttle opening. The secondary fuel cut system and the auxiliary accelerator pump features of the Aisan carburetors are not utilized in the Weber. The Weber carburetor uses an internal choke pull down rather than the external system of the Aisan. The DGAY carburetor utilizes engine coolant to activate the choke and the DGEV carburetor choke is electrically activated. Page A—2 of Appendix A indicates the differences in choke actuation mechanism. Part numbers 45—48

show the choke used on the DGAY carburetor and part number 99 is used on the DGEY carburetor. The Redline kits use electrically actuated chokes for vehicles in which the original equipment choke is electrically actuated (on later model—year Toyotas) and coolant actuated chokes for vehicles in which the original equipment choke is coolant actuated (on older model—year Toyotas}. With the exceptions noted in Table 1 and the choke actuation mechanism, the carburetors are identical for all vehicles for which the Vehicle Code Section 27156 exemption is requested. Three Weber carburetor configurations are used in the four kits utiized to cover the vehicles for which exemption was requested. Each kit contains appropriate linkage, and carburetor and air cleaner adaptors. Internal carburetor differences are given in Table 1. Table 1 Kit Number K8746, K8747 K8748 K8749 VYehicle Model Celica, Corona Celica 4X4 Trucks All1 Trucks 2X4 Trucks Engine 20R 22R 22R Model! Years 75—80 81—83/84 81—84 Jet Size {mm) Main 1.40/1.40 1.45/1.40 1.47/1.40 Air Corrector 1.60/1 .60 1.55/1.60 1.60/1.60 Idie 0.57/0.50 0.60/0.50 0. 60/0. 50 Accel. Pump 0.50 0.40 0.40 Accel. Pump Delivery (cm3} 8.5 — 13.0 B.5 — 10.0 8.5 — 10.0 Choke Settings {mm) Fast Idle 1.0 ~ 1.1 1.2 — 1.4 .2 — 1.4 Pull Down 4—6 6—8 .5 6.5 V. EVALUATION PROGRAM The applicant performed comparative CVS—~—75 exhaust emission tests at Import Certification Laboratories in Anaheim, California. A 1982 Toyota Celica equipped with a 22R (2366 cc) engine and automatic transmission, and a

1983 Toyota 4X4 pick—up truck equipped with a 22R (2366 cc) engine and manual 5—speed transmission, were used for the tests. During the evaluation, testing was performed onlllrepresentative production carburetors to show that the exhaust emission levels would not be adversely affected by the use of the Weber 32/36 DGEV 33B1 carburetor. Baseline tests with the Aisan carburetors were performed to show that the stock vehicles were in proper working order and that emissions of the vehicle were within the applicable state standards. The comparative exhaust emission and derived fuel economy data are given in Table 2. Table 2 Comparative Test Data 1982 Toyota Celica Condition Exhaust Emissions gm/mi Fuel Economy mi/gal x Heo c0D AOx City Baseline 0. 34 3.7 0.16 20.9 Weber Carburetor 0. 22 3.0 0.11 20. 7 1982 Passenger Car Std. 0.39 7.0 0. 7 — 1983 Toyota 4X4 Pick—Up Exhaust Emissions gm/mi Fuel Economy mi/gal Condition HC Co NOx City Baseline 0. 31 3.3 0.39 18.1 Weber Carburetor 0.31 3.3 0.39 18.1 1983 Light—Duty Truck Std. 0.39 9.0 1.0 — Confirmatory testing of the Weber 32/36 DGEV 33B1 carburetor was conducted at the ARB Haagen—Smit Laboratory. The 1982 Toyota Celica was used for these tests. The tests results are contained in Table 3.

Table 3 1982 Toyota Celica Exhaust Emissions gm/mi Fuel Economy mi/gal Condition HC_ cCO_ NOx City Basetine 0.19 3.0 0.20 23.8 Weber Carburetor 0.14 2.5 0.25 23.0 1982 Passenger Car Std. 0.39 7.0 0.7 — VI. DISCUSSION The applicant‘s submitted comparative emission and bench test data is generally acceptable. The submitted emission test data showed no significant increase in emissions. The ARB confirmatory tests indicated no significant increase in emissions. Although there are some differences in the operation of the Aisan and Weber carburetors, as described in Section IV of this report, the Weber 32/36 DGEV 33B1 does not adversely affect exhaust emissions. The two 1982 and 1983 model—year vehiclies selected for testing use the electrically actuated choke. There were no significant emission differences between the baseline and Redline kit tests for carburetors using the electric choke. No testing was conducted on vehicles using the coolant actuated choke. Redline kit chokes are designed to have similar choke opening times as the original equipment chokes. Therefore, it is to be expected that the Redline kits with coolant actuated choke systems will exhibit similar emission characteristics as the original equipment Aisan carburetors with hydraulic choke systems and will have no significant effect on emissions. Driveability was not evaluated during the testing of the Weber 32/36 DGAV/EV 33B1 carburetors. However, if driveability was adversely impaired, emissions would have more than likely increased.

Although the test data of the Weber 32/36 DGEV 33B1 carburetors reveals them to be functionally similar with regard to emissions to the later models of the Aisan carburetors, they cannot be classified as an Aftermarket Replacement Part as differences are found in the bench air flow data, emission controls vacuum signals, and the carburetor choke and power circuits. The Weber 32/36 DGAY 33B1 and 32/36 DGEV 33B1 carburetors are packaged in four separate kits identified as kits K8746, K8747, K8748, and K8749. The same carburetor is used in each kit except the connective throttle arrangements differ to facilitate various configurations found on the vehicle models, and various jet and choke parameters vary among the carburetors.

INSTALLATION INSTRUCTIONS . Cansure rons READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE BEGINNING THIS INSTALLATION. After unpacking, examine the carburetor and other components for shipping damage. If any damage is found, notify shipper/supplier immediately. TOYOTA 20R ENGINES (1975—1977) For Kit Nos. K8746 and 52—51502 Using Weber 32/36 DGAV 33 B TOOLS AND EQUIPMENT NEEDED: PARTS SUPPLIED WITH — INSTALLATION KIT: Combination, box or open end wrenches (metric) 1 — 32/36 DGAV 33B Weber Carburetor Socket set with 12 mm socket 1 — Carburetor Adaptor Screwdriver (regular and Phillips) 1 — Linkage Kit Pliers 2+ Tubes Thread Locking Compound Gasket Scraper Rags Cleaning Solvent Knife Gasket Sealer TUNE—UP SPECIFICATIONS All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory for the original unit. Emissions tune—up should be carried out by a suitably qualified Deaier or Independent garage, using infrared gas analyzing equipment. N TE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and electrical connections in their fuel systems. It is essential when dismantling, that disconnected lines be identified with a corresponding number tag or label system. To establish function, locate and identify the source of each line. N TE: This kit is particularly complex. It is imperative that you familiarize yourself with the glossary of abbreviations and the schematics of vacuum lines and emissions control components included with these instructions BEFORE you begin the instaliation. 1. Disconnect battery. 6. Remove fuel inlet line and fuel return line from the original carburetor. The inlet is the line 2. Drain approximately 1 quart of water from the closer to the fender and the return is the line cooling system (on original equipment water closer to the vaive cover. Some Toyota vehicles choke only). CAUTION: Hot Water May Be have the fuel return on the fuel pump and onty Present. the fuel inlet hose will have to be removed from the carburetor. 3. Remove gas cap. 7. Disconnect the throttle linkage from O.E. 4. Remove Factory air filter assembly and all carburetor. Save the linkage clip for use with attaching hardware and hoses. Use a cor— the Weber carburetor. responding number system to identify hoses . for reinstallation. 8. Remove water choke hoses from O.E. car— buretor. The water choke hose closer to the 5. Refer to the vacuum—line diagram applicable to valve cover is removed from the vehicle and your year/modelto identify and labelthe vacuum will be replaced with the hose supplied in the lines that are to be removed from the original Kit. carburetor. 9. Disconnectthe idle cutoff wire(s) by separating the wires at the connector to the electrical source. This is sold under the provisions of Calffornia Air Resources Board Executive Order No. D—133—2 (C.A.R.8. E.0. No. D—133—2 Products with C.AR.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the California Vehicle Code. Performance kits so noted are legai for use on public highways in California. WEBER U.S.

FUEL—LINE SYSTEM SCHEMATIC 1975—1979 1980 Restricted Orifice FuelInlet Fuel Inlet Tee Fitting ( % Weber Carb % Weber Carb % To Fuel Return Fuel Supply Fuel Supply

Advancer Port (6) I—*E:,Z'J O/ VACUUM LINE ROUTING 1976 Cars & Trucks With Weber Carb. / ' Weber Carb Base ’ EGRPor(!!) 1976 ARS & TRUCKS .|...+__l w Inspection Connector 7 EGR Vaive (10) N_ TVSV ABV Manzrorp for TCS 01) Roxr () (7)

Al Cut Port (2) VACUUM LINE ROUTING Advancer Port (3) 1977 Trucks With Weber Carb. EGR Port (1} 1977 TRUCKS (Gray) — A/T except for Calif. (Viotet) — Others


INSTALLATION INSTRUCTIONS Mv' * cansumeroms .————— READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE BEGINNING THIS INSTALLATION. After unpacking, examine the carburetor and other components for shipping damage. If any damage is found, notify shipper/supplier immediately. TOYOTA 20 R ENGINES (1978—1980) For Kit Nos. K8747 and 52—51505 Using Weber 32/36 DGAV 33 B TOOLS AND EQUIPMENT NEEDED: PARTS SUPPLIED WITH INSTALLATION KIT: Combination, box or open end wrenches (metric) 1 — 32/36 DGAV 33 B Weber Carburetor Socket set with 12 mm socket 1 — Linkage Kit Screwdriver (regular and Phillips) 1 — Tube Thread Locking Compound _ Pliers 1 — Carburetor Adapter 4 Gasket Scraper 2# Rags Cleaning Soivent Knife Gasket Sealer TUNE—UP SPECIFICATIONS "x m T All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory for the ?* = original unit. Emissions tune—up should be carried out by a suitably qualiified Dealer or Independent garage, . 4E using infrared gas analyzing equipment. NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and electrical connections in their fuel systems. It is essential when dismantling, that disconnected lines be identified with a . corresponding number tag or label system. To establish function, locate and identify the source of each line. — NOTE: This kit is particularly complex. it is imperative that you familiarize yourself with the glossary of :— abbreviations and the schematics of vacuum lines and emissions control components included with these _ %® instructions BEFORE you begin the installation. | mt % 1. Disconnect battery. 6. Remove fuel iniet line and fuel return line from = P the original carburetor. The inlet is the line g 7 2. Drain approximately 1 quart of water from the closer to the fender and the returri is the line CS : cooling system (on original equipment water closer to the vaive cover. Some Toyotavehicles § = choke only). CAUTION: Hof Water May Be have the fuel return on the fuel pump and only & g‘% Present. the fuel inlet hose will have to be removed from : % the carburetor. 3 % 3. Remove gas cap. % 7. Disconnect the throttle linkage from the 4. Remove Factory air filter assembly and all original carburetor. Save the linkage clip for # attaching hardware and hoses. Use a cor— use with the Weber carburetor. f responding number system to identify hoses s for reinstallation. 8. Remove water choke hoses from original # carburetor, The water choke hose closer to 5. Refer to the vacuum line diagram applicable to the valve cover is removed from the vehicle ## your year & model to identify and label the and will be replaced with the hose supplied in ® vacuum lines that are to be removed from the the kit. original carburetor. 9. Disconnect the idie cut—off wire(s) by separating the wires at the connector to the electrical source. This is sold under the provisions of California Air Resources Board Executive Order No. D—133—2 (C.AR.B. E.0. No. D—133—2 Products with C.AR.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the California Vehicle Code. Performance kits so noted are legal for use on public highways in California. WEBER DISTRIBUTION maee *

TOYOTA 20R PCV ROUTING (1975—1980) PCV Here \ To Power Brake Servo To PCV Intake Valve Manifofd To Air Filter

FUEL—LINE SYSTEM SCHEMATIC 1975—1979 1980 Restricted Orifice Fuel Inlet Fuel Intat Tee Fitting C m Weber Carb “ Weber Carb % To Fue! Return Fuel Supply Fuel Supply

VACUUM LINE ROUTING 1978 Cars With Weber Carb. Al Control Port (3) Advancer Port (4) EGR Vacuum Modulator /*O 6 O/ (7) p for A/T EGR Port (1) Weber Carb Base VCV for M/T C & Spark Control Port 1978 CARS s p (|6> $ Z" use un + m(ii- | "E':\ EGR Valve _f/ /A i. a,..UD TVSV «[ wb 3 **~ (1) Pet Te ‘a, | (( 5 t; Distributor (3) QrnBs , C Bf cas Fawen \//; % ‘2:/-"');’1 , <>eJ (® u * Outer Vent [ _¥ Control Valve{Ex. ‘:\\.TL/‘ o. 4A * t ( Charcoal 4 s§c§’ . SveyYrv (®) };fijll:;w_) m/_l'\_/T Canisteq,; ‘@f\@/s 2}/\ >) ’ fi¢ An OB Mz m (12) vsv : ;@; ASV .)E\!‘\‘—";' vTV ~ J \/ (Yellow) 4 (\7/)CV vVTV (Light Blue)

EMISS! NCONTR LCOMP NENT SCHEMATIC 1978 Cars With Weber Carb. 9 Outer Vent ______ _ VCVforM/T Control Vaive (Ex. Canada) 1G S/W Awen e VTV {Yellow) 1G ez {EGR() iVacuum ;Modulator Snd P _],- Fuel Cut Solenoid (¥ valve 1p 8IIVSV IIONII T & 'OFF" Charcoali l Canister | =—— (i) Distributar(3) TVSV('—IO} VTVE (Yellow) — A/T Al Control Port G aD Speed 1 (Blue) — M/T +T Ti Sensor (0 EGR Port Advancer Port H)

VACUUM LINE ORIGIN/TERMINUS CHART For Toyota 20 R Engines 1978 Trucks STOCK With WEBER "033 B" NOTE ORIGIN TERMINUS ORIGIN TERMINUS/DISPOSITION (Goes From) (Goes To) {Goes From) {Goes To) EGR Port (1) BVSV (6) EGR Port (1) NO CHANGE A.I. Control Port (3) Port "Y" on VSV (7) A.1. Control Port (3) NO CHANGE Advancer Port (4) Distributor Advance (9) Advancer Port (4) NO CHANGE Fuel Cut Port (5) Vacuum Switch (10) Fuel Cut Port (5) is Vacuum Switch (10) is removed w/orig. carb. removed from vehicle VSV (12) (large hose) Charcoal Canister (16) VSV (12) (large hose) NO CHANGE VSY (12) (small hose) Port "K" on TVSY (11) VSV (12) (small hose) Port "K" on TVSV (11). + TP (13) TP (13) is removed w/orig. Plug open TP (13) vacuum carb. line . Port "L" on TVSV (11) AAP (14) Plug Port "L" on TVSV (11) AAP (14) is removed w/orig. (top) (top) carb. Port "J" on TVSV (11) Gas Filter (15) NO CHANGE NO CHANGE (middle) Port "K" on TVSV ({11) vSV (12) NO CHANGE NO CHANGE (bottom)

VACUUM LIQ ORTGIN/TERMINUS@EHART For Toyota 20 R Engines 1979 Cars & Trucks, Con‘t. STOCK With WEBER "033 B" NOTE ORIGIN TERMINUS ORIGIN TERMINUS/DISPOSITION (Goes From) (Goes To) {Goes From) (Goes To) vSV (12A) Gas Filter (28), via VSV (12A) is removed Plug Tee fitting in line Tee fitting from vehicle from Gas Filter (28) A/C vSV (128B) Gas Filter (28), via VSY (12B) is removed Plug Tee fitting in line Tee fitt ing from vehicle from Gas Filter (28) Port "L" on TVSV (11) AAP (14) Plug Port "L" on TVSV (11) AAP (14) is removed {top) (top) w/orig. carb. Port "J" on TVSV (11) Manifold Vacuum NO CHANGE NO CHANGE {middle) Source {22) Port "K" on TVSY (11) Part "3" on VSY (12) NO CHANGE NO CHANGE (bottom) A/T Port "Q" on EGR Vacuum Modulaotr (17) EGR Valve (29) NO CHANGE NO CHANGE Port "P" on EGR Vacuum Modulator (17) BVSV (25) NO CHANGE NO CHANGE M/T Port "Q" on EGR Vacuum Modulator (17) EGR Valve (29) NO CHANGE NO CHANGE Port "P" on EGR Vacuum BVSY (25) NO CHANGE NO CHANGE Modulator (17) + VCY for M/T (18) M/T VCV (18) Port "P" on EGR NO CHANGE NO CHANGE (firewall side) Vacuum Modulaotr (17) yCV (18) Carb Air Inlet VCY (18) ({radiator side) Port "M" on TVSY (21) {radiator side)

VACUUM LINE ORIGIN/TERMINUS CHART For Toyota 20 R Engines 1979 Cars & Trucks STOCK With WEBER "033 B" NOTE ORIGIN TERMINUS ORIGIN TERMINUS/DISPOSITION (Goes From) (Goes To) (Goes From) (Goes To) Choke Opener Port (1) BVSV (26) Choke Opener Port is BVSV (26) is removed removed w/orig. carb. w/orig. carb. Fuel Cut Port (2) Vacuum Switch (10) Fuel Cut Port is removed Vacuum Switch (10) is w/orig. carb. removed from vehicle Spark Control Port (3) Port "K" on TVSY (20) Spark Control Port (3) is NO CHANGE (bottom) removed w/orig. carb, Tee line into EGR Port (4) lTine EGR Port (4) BVSV (25) EGR Port (4) NO CHANGE A.1. Control Port (5) Port "Y" on VCV (7) A.1. Control Port (5) NO CHANGE Advancer Port (6) Port "J" on TVSV (20) Advancer Port (6) NO CHANGE (2nd from bottom) vsV (12) Port "*" Charcoal Canister (16) NO CHANGE NO CHANGE Port "3" Port "K" on TVSV (11) NO CHANGE NO CHANGE Port "1" Choke Breaker (19) Plug Port "1" w/cap Choke Breaker (19) is suppl ied . removed w/orig. carb. Port "6" Port "L" on TVSV (21) Plug Port "6" w/cap Plug open end of Tee + Port "5" on VSV {12) supplied fitting in line from Port "5" on VSV (12) Port "5" Port "L" on TVSV (21) Port "5" NO CHANGE Port "4" ASV (27) NO CHANGE NO CHANGE

1980 Can Trucks, Con‘t. STOCK With WEBER "033 B" NOTE ORIGIN TERMINUS ORIGIN TERMINUS/DISPOSITION (Goes From) (Goes To) (Goes From) (Goes To) A/C bottom port VSY for A/C (12) Plug bottom port of VSV VSV for A/C (12) is re— for TP (7) moved from vehicle, the TP (13) is removed w/orig. carb. VSV for EVAP (10): VSV for EVAP (10): top port FICB (20) top port Bottom Port of TVSV (11). + Bottom Port on TVSV (11) FICB (20) + CB (19) are + Choke Breaker removed w/orig. carb. Plug open vacuum lines from these. bottom port Charcoal Canister (16) NO CHANGE NO CHANGE AC VSY for A/C (12): top (double Manifold Vacuum Tee (26) Plug bottom port of VSYV VSV for A/C is removed port end) for TP (7) from vehicle. Plug Manifold Vacuum Tee (26) bottom (double TP (13) Removed Removed port end) single port end Bottom Portion VSV for £ EVAP (10) Removed Removed xc. A/T Truck VSY for EGR (18) VSV for EGR (18) {double end): (double end): top port EGR Port "R" (3) top Advancer Port (5) bottom port Port "R" on EGR Vacuum Modulator (17) NO CHANGE NO CHANGE VSV for EGR (18) {single end) Air Filter (24) NO CHANGE NO CHANGE TVSY (11): TVSY (11): AAP (14) is removed w/orig. carb. top port AAP (14) Plug top port of TVSV (11? w/cap supplied middle port Manifold Vacuum Source (25) NO CHANGE NO CHANGE bottom port Choke Breaker (19) bottom port Top Port of VSV (10). + FICB (20) FICB (20) and (BC 19) + VSV (10) (top port) are removed w/orig. carb. Plug open vacuum lines

VACUUM LINE ORIGIN/TERMINUS CHART For Toyota 20 R Engines 1980 Cars & Trucks STOCK With WEBER "033 B" NOTE ORIGIN TERMINUS ORIGIN TERMINUS/DISPOSITION (Goes From) {Goes To) (Goes From) (Goes To) Fuel Cut Port (1) Vacuum Switch (21) Fuel Cut Port (1) is Vacuum Switch (21) is removed w/orig. carb. removed from vehicle A.I. Port (2) VSV For A.L. (6) A.L. Port (2) is removed NO CHANGE w/orig. carb., Tee into Manifold Vacuum Source (25) Exc. . A/T Truck EGR Port "R" (3) VSV for EGR (18) (top EGR Port "R" (3) is re— NO CHANGE port on double end) moved w/orig. carb., Tee into Vacuum Advance Port (5) A/T Truck EGR Port "R" (3) . Port "R" on EGR Vacuum EGR Port "R" (3) is re— NO CHANGE Modulator (17) moved w/orig. carb., Tee into Vacuum Advance Port (5) EGR Port (4) Port "P" on EGR Vacuum EGR Port (4) NO CHANGE Modulator (17) Advancer Port (5) Distributor Advance (9) Advancer Port (5) NO CHANGE VSV for A.I. (6): VSV for A.I. (6): top A.I. Port (2) top Manifold Vacuum Source (25) bottom ACV (22) bottom NO CHANGE VSV for TP (7): top port Gas Filter Plug top port of VSY for Remove vacuum line to TP (7) Gas Filter (22) bottom port TP (13) Plug bottom port of VSV TP (13) is removed for TP (7) w/orig. carb.

EMISSION CONTR L COMPONENT SCHEMATIC 1980 Cars & Trucks With Weber Carb. Fuet Cut s cargurn S/W L‘"‘G mter Solenoid HA HAi Diaphragm i Compu im CCo 13 Sensor Thermo Vaive { 8 [| EGB Vacuum I Modulator (”) a} Tnz«mo $ W [ 7 Oistrbutor L ¢ © U C r—es>—3 Spred Sensor [--——4"7;—». O L E&R Porr Thermo Swagh Check Valve 2 \ 13 EGR Cooler To 1G S \ C¥ CCo Thermo 4 g Sensor MC Vaive (M/T Only) To 0 | 1G 5/W CCa Aur ir Pumnp Purms ACV (1‘_) ~ Vacuun Switch (® AV TV VSV for EGA S/w tEx. AN w/ AIT} N \ Outer Vent VSV tor Al TQ To 1G Siw Control Valve §, ho io S w Crarcoal VSV for EVAP Camister To Furt Tark

NOTES THIS PAGE PROVIDED FOR YOUR CONVENIENCE

W INSTALLATION INSTRUCTIONS yous conmunerons READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE BEGINNING THIS INSTALLATION. After unpacking, examine the carburetor and other components for shipping damage. If any damage is found, notify shipper/supplier immediately. TOYOTA CARBURETED 22R ENGINES (1981—1984) For Kit Nos. K8748, K8749, 52—51506 and 52—51510 Using Weber 32/36 DGEV 33B TOOLS AND EQUIPMENT NEEDED: PARTS SUPPLIED WITH INSTALLATION KIT: Combination, box or open end wrenches (metric) Socket set with 12 mm socket 1 — 32/36 DGEV 33B Weber Carburetor Screwdriver (regular and Phillips) 1 — Air Cleaner Adaptor Pliers 1 — Hardware Kit & Hoses Gasket Scraper Rags NOTE: Itis recommended to obtain Cleaning Sotvent a new fuel filter and install it Knife when instailing this kit. Gasket Sealer TUNE—UP SPECIFICATIONS All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory for the original unit. Emissions tune—up should be carried out by a suitably qualified Dealer or Independent garage, using infrared gas analyzing equipment. NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and electrical connections in their fuel systems. it is essential when dismantling, that disconnected lines be identified with a number tag or label system. To establish function, locate and identify the source of each line. NOTE: it is imperative that you familiarize yourself with the glossary of abbreviations and the schematics of vacuum lines and emissions control components included with these instructions BEFORE you begin the ~ installation. 1. Remove vehicie‘s gas cap. use with the Weber carburetor. 2. Disconnect the battery. Disconnect the idle cutoff and choke wire(s) by separating the wire(s) at the connector to the 3. Remove factory air filter assembly and electrical source. attached components. Tag hoses for proper identification during reassembly. Disconnect the PCV hose from base of the original carburetor. 4. Disconnect the fuel line from the carbure— tor and plug off to prevent dirt from enter— Loosen the four mounting nuts and remove ing the system. > carburetor along with the plastic heat spacer and retain hardware for later use. 5. Using either the map inside your engine compartment, or a factory service manual 10. Insert a clean rag in the intake manifold for your year/model vehicle; tag each ports to prevent dirt and loose gasket mate— vacuum line attached to the original carbu— rial from entering the engine. Clean the retor with its proper identification. carburetor mounting surface with a gasket scraper. Remove the rag when the surface 6. Disconnect the throttle linkage from the is clean. original carburetor. Save the linkage clip for This is sold under the provisions of California Air Resources Board Executive Order No. D—133—2 (C.A.R.8. E.0. No. D—133—2 Products with C.AR.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the California Vehicte Code. Pertormance kits so noted are legal for use on public highways in California. WEBER DISTRIBUTION

AéBREVIATIONS System AAP Auxiliary Acceleration Pump Al Air injection AS Air Suction CB Choke Breaker CCo Catalytic Converter EGR Exhaust Gas Recirculation EVAP Evaporative (Emission Control) HAC High Altitude Compensation HAL Hot Air intake MC Mixture Control PCV Positive Crankcase Ventilation SC Spark Controi TP Throttle Positioner Parts ABV Air By—pass Vaive ASV Air Switching Valve AS Vaive Air Suction Vaive A/T Automatic Transmission BVSV Bi—metal Vacuum Switching Valve CCo Catalytic Converter EACV Electronic Air Control Vaive EX. Exhaust (Manifold, Valve) FICB Fast Idle Cam Breaker HAC Valve High Altitude Compensating Vaive LB Intake (Manifold, Valve) M/T Manuai Transmission PTC Thermistor Positive Temperature Coefficient Thermistor S/W Switch T/M Transmission TVSV Thermostatic Vacuum Switching Valve TVTV Thermostatic Vacuum Transmitting Valve vCs Vacuum Control Switch vev Vacuum Control Valve VSV Vacuum Switching Vaive vTV Vacuum Transmitting Vaive Others BTC or BTDC Before Top Dead Center c&c Cab & Chassis Ex. Except 1G ignition OE Original Equipment W/ With w/o Without Chemical Symbo! C Carbon co Carbon Monoxide COr Carbon Dioxide H Hydrogen — RC Hydrocarbon HzO Water N Nitrogen NOx Nitrogen Oxides 0 Oxygen Page 3

1983 Pickup (4x2) & 4x4 Truck & C lica Stock Configuration 1984 4x4 Truck EGR Valve EGR Vacuum Modulator CaP Thermo S/W (1) Thermo S/W (2) BVSV {for EGR) x istributor z ® "}; 5 Check Valve _ 3M (C&C only) P \® / Eevosale zlrem Outer Vent -(c”‘”” CSX¥ Control Valvg ‘\ BVSV C Vacuum SW {for SC) Air Pump FIG. 1 EACV Charcoal Canister (for C&C and RN 4x4} NOTE: ALL 1981—84 MODEL 4x 4 TRUCKS WILL HAVE THE DISTRIBUTOR ADVANCE AND EGR VACUUM HOSES IN REVERSE ORDER FROM THIS ILLUSTRATION (VACUUM ADVANCE CONNECTS TO LARGE FITTING ON CARB. EGR CONNECTS TO SMALL FITTING). Weber Configuration HAl EGR vaive. MC Valve _ Thermo Vaive EGR Vacuum Modulator Thermo S/W (1) Thermo S/W (2) BVSV (for EGR) — /\//-?@: Distributor s Check Valve < {C&C only} Dist. Vacuum Delay (Gold Side to Dist.) vsv \ 9 \\\.:\\\\.\\\‘\\\ (for SC) FIG. 2 Air Pump EACV Charcoal Canister (for C&C and RN 4x4) Page 5

1982 Pickup (4x2) & Cab & Chassis Stock Configuration . MC Vaive Thermo Vat VSV (EGAR) Charcoal Canister (M/T only} vTv ve HAl P EGR Vacuum M o Restrictor (Jet) Modulator 44 /4;—,‘ Restrictor {Jet) (Black) To o Fuel Fue EGR Vaive_ ifi 3 “‘ {vellow)> s TysV) vsyv (at_ 3} ChoreNA 1 “?‘@ "J CA teAa AAP Opener, «l gy_ C O> Ceg ‘ , O Te Distributor Restrictor (Jet) (Yellow) VSV {Al 2) vsV (EvaAP) & \" t Geeh)" j evsy vSV (Al 11— B y . ’ Thermo Switch 4j § p 6 Check Vaive C T NC 5 y Thermo Switch (2) Outer Vent Cleaner Control Valve it Pump Air P BVSV Fig.s Weber Configuration . MC Valve Thermo Vailve VSV (EGB) Charcoal Canister {M/T onty VTV _ HAl wY \e EGR Vacuum Th C Restrictor (Jet} Modulator " /‘\(;—; (Black) — To Fuei«\ 4 {m\ $ fank M EGR Vaive_ W//ap Vellow! vev (a1 3) 270 4 Distributor Restrictor (Jet) (Yellow) Dist. Vacuum Delay (Gold Side to Dist.) VSV {Al 2) BVSV VSV (EVAP) ‘Thermo Switch (1) Thermo Switch (2) Cleaner F1G. 6 Air Pump BVSV Page 7

1982 C lica Stock Contfiguration r \ MC Vaive EGA {M/T only) (Yeliow} v alve Thermo erm Valalve vsv HAl vsy (al 3) EGA Vacuum vTV wem vev iA1 2 Modulator CB Jet ) (Green—Fed.M/T} vev (Al 1) TVsV O get \FO’ v (EVAP * Brown—Calit _\ Purple—Others \a 4 YSV EYAP) choke Opener FipSe Fro . Distributor B To Fuel h og Tank _@ © S _A We \ ©&—. ® {Check Vaive Check Valve vev (w/ HAC only} i ©A Chatcoal m ptzt ;}i E.0 6 j Canyste anjster 6 . ( / | C BVSV i 0 // | Vacuum $ Thermo S/W {1} , |f Jet INtw/o HAC only¥$ c acvye & j Thermo SW (2) | Fed. only OPT, [ ! VCV (w/HAC only} Outer Vent Control Vaive To Air | Cleaner Acv agyv Air Pump Bvsv FIG. 9 Weber Configuration MC Valve Ean (M/T only) *T uL Valve Thermo hn Vaive Val vev vsy (At 3) EGA Vacuum vTV igGR) Modulator VSV (Al 2) . Jet (Green—Fed.M/T) vBV (Al 1 Jet 727 . vSV {EVAP) Brown—Calif ) Distributor Purple—Others 6 7i :‘1' Dist. Vacuum Delay Check Vaive (Gold Side to Dist.) BVSV Thermo S/W (1) \J Thermo S/W (2) f VCV tw/HAC onlv)% l Fig. 10 m To Air * wcv asy Ysmeh L05 Bvsv Page 9

1981 All Trucks {except Cab & Chassis) Stock Configuration MC Vaive Thermo Vaive 1 (M/T only) viy {Yellow) HAl | vsy (EGR) | To Fue! Tank L * |I G@ i Gey) | To Fue! Tank | C GaP) Jet (Black) | Chicn —— I vsV (Al 3) M un pos | Jet (Yellow) s S NJ en in ——Distributor | ! HAC Valve : (Por BME Check Vaive | (For AN 4x4) | VSV (AF 2) I vev (EvaP) f~ > | vsy (Al 1) )/ avsv l Check Valve hn £. } i.\ =~= , A 4 J Therme Switeh (1) 1 Thermo Switch (2) }| OQuter Vent Jet Control Valve Charcoal Canister (AN ass a FiG. 13 I NOTE: ALL 1981—84 MODEL 4x 4 TRUCKS WILL HAVE THE DISTRIBUTOR ADVANCE AND EGR VACUUM HOSES IN REVERSE ORDER FROM THIS ILLUSTRATION (VACUUM ADVANCE CONNECTS TO LARGE FITTING ON CARB. EGR CONNECTS TO SMALL FITTING). Weber Configuration MC Valve Thermo Vaive {M/T only) vty (Yellow) HAl vsy (EGR) To Fuei Tank EGR 2 To Fuel Tank Jet (Black} (@ Objrcn vsV (Al 3) TJM io N\ Jet (Yellow} n Distributor h+ Dist. Vacuum Delay (Gold Side to Dist.) @ .‘.. f Check Vaive 394% T 0. (For RN 4x4) vBV (Al 2) i AC VSV {EVAP)——— S T); . vey (al 1)—.«@R :‘\‘ tg BR B )/ evsv t',( ‘ i Check Vaive 4 C C $ Thermo Switch (1) Thermo Switch {2) Jet Air Pump FIG. 14 Charcoal Canister (RN 4x4 Page 11
