Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 19, 1983.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
30295131975-7976 w/ Engine Family: 092, CPL: ' 217

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-142-1
  • Executive Order 142-1 / D142-1
  • ARB # D-142-1
  • Executive Order No: D-142-1
  • C.A.R.B. No. D-142-1
  • Resolution D-142-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-142-1 PDF

D-142-1 Document:

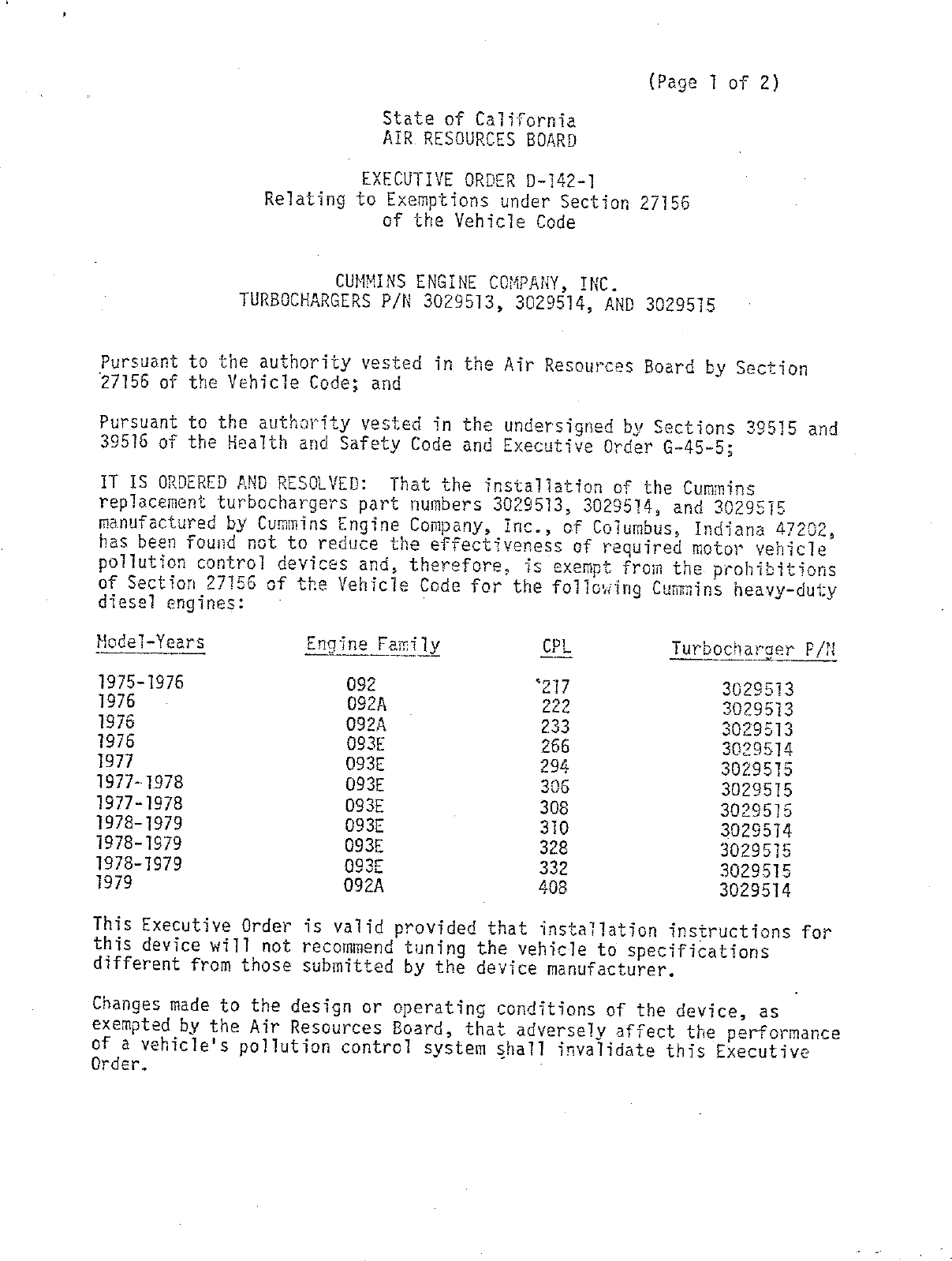

                                                        (Page 1 of 2)

                             State of California
                             AIR RESOURCES BOARD

                           EXECUTIVE ORDER D—142—1
                  Relating to Exemptions under Section 27156
                              of the Vehicle Code


                        CUMMINS ENGINE COMPANY, INC.
              TURBOCHARGERS P/N 3029513, 3029514, AND 3029515


Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
3951§ of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the Cummins
replacement turbochargers part numbers 3029513, 3029514, and 3029515
manufactured by Cummins Engine Company, Inc., of Columbus, Indiana 47202,
has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitfons
of Section 27156 of the Vehicle Code for the following Cummins heavy—duty
diesel engines:                   '

Model—Years           Engine Faxmily         CPL          Turbocharger P/N

1975—1976                 092                *217               3029513
1976                      092A                222               3029513
1976                      032A                233               3029513
1976                      093E                266               3029514
1977                      093E                294               3029515
1977—1978                 093E                306               3029515
1977—1978                 093E                306               3029515
1978— 1979                093E                310               3029514
1978—1979                 093E                328               3029515
1978—1979                 093E                332               3029515
1979                      082A                408               3029514

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or cperating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.                                        '


CUMMINS ENGINE COMPANY, INC.                       EXECUTIVE ORDER D—142—1
TURBOCHARGERS P/N 3029513, 3029514,                (Page 2 of 2)
AND 3029515



Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those Tisted in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of a kit
shall not be construed as an exemption to sell, offer for sale, or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROYAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE CUMMINS ENGINE COMPANY, INC. REPLACEMENT
TURBOCHARGERS PART NUMBERS 3029513, 3029§14, AND 3029515.

No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business arnd Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.   (a)   No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board. No person shall sell,
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device. Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.


Executed at El Monte, California, this     /ffi   day   _Dggggber,   1983.


                                                         %
                                         ///)777%%/{
                                         K. D. Drachand, Chief
                                         Mobile Source Division .


                           STATE OF CALIFORNIA

                           AIR RESOURCES BOARD




EVALUATION OF CUMMINS ENGINE COMPANY, INC.‘S REPLACEMENT TURBOCHARGERS
P/N 3029513, 3029514, AND 3029515 FOR EXEMPTION FROM THE PROHIBITIONS IN
VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
THE CALIFORNIA ADMINISTRATIVE CODE




                           DECEMBER 16, 1983


                                  Issue Date:     December 16, 1983




 EVALUATION OF CUMMINS ENGINE COMPANY, INC.‘S REPLACEMENT TURBOCHARGERS
 P/N 3029513, 3029574, AND 3029515 FOR EXEMPTION FROM THE PROHIBITIONS IN
_VERICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
 THE CALIFORNIA ADMINISTRATIVE CODE




                                    by
                         MOBILE SOURCE DIVISION
                           State of California
                           AIR RESOURCES BOARD
                           9528 Telstar Avenue
                           El Monte, CA   91731

(This report has been reviewed by the staff of the California Air
Resources Board and approved for publication.     Approval does not signify
that the contents necessarily reflect the views and policies of the Air
Resources Board, nor does mention of trade names or commercial products
constitute endorsement or recommendation for use.)


                                   SUMMARY



     Cummins Engine Company, Inc., of Columbus, Indiana 47202, has

requested an exemption from the prohibitions in California Yehicle Code

Section 27156 for their three new turbochargers part numbers 3029513,

3029514, and 3029515.   They have requested that these new turbochargers,

which are presently utiTized on Timited 49—state certified 1983 and 1984
engines, be allowed to be installed on some 1975 through 1979 California

certified vehicles as Tisted in Table 1 of the Appendices.   The purpose

of installing the newer turbochargers, according to Cummins, is to

increase fuel economy, improve Tow speed performance, reduce smoke, and

improve turbocharger durability.

     Since the new turbochargers are allowed by EPA to be utilized on

lTimited 49—state certified 1983 and 1984 engines, and since the

comparative (OEM versus replacement] exhaust emissfons data from 13—mode

procedures indicate that the newer turbochargers do not adversely affect

emissions, the staff concludes that Cummins complies with the

requirements for the exemption.

     Based on the above conclusions, the staff recommends that Cummins

Engine Company, Inc. be granted an exemption as requested, and that

Executive Order D—142—1 be issued.


                                   CONTENTS

                                              Page Number

 SUMMARY                                          1

 CONTENTS                                        11
‘I.    INTRODUCTION

 I1.   CONCLUSIONS

 III. RECOMMENDATIONS

 IV.    CUMMINS REPLACEMENT TURBOCHARGERS

 V.    EVALUATION

 VI.   DISCUSSION

 VII. APPENDICES

       TURBOCHARGER APPLICATIONS

       TEST_RESULTS




                                      1i


EVALUATION OF CUMMINS ENGINE COMPANY, INC.‘S REPLACEMENT TURBOCHARGERS P/N

3029513, 3029514, AND 3029515 FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE

CODE SECTION 27156, IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE

CALIFORNIA ADMINISTRATIVE CODE



I.    INTRODUCTION

      Cummins Engine Company, Inc., of Columbus, Indiana 47202, has requested

an exemption from the prohibitions in California Vehicle Code Section 27156

for their three new turbochargers part numbers 3029513, 3029514, and 3029515.

They have requested that these new turbochargers, which are presently utilized

on limited 49—state certified 1983 and 1984 engines, be allowed to be

installed on some 1975 through 1979 California certified vehicles as listed in
Table 1 of the Appendices.   The purpose of installing the newer turbochargers,
according to Cummins, is to increase fuel economy, improve low speed

performance, reduce smoke, and improve turbocharger durability.
II.    CONCLUSION

      Since the new turbochargers are allowed by the Environmental Protection

Agency to be utilized on limited 49—state certified 1983 and 1984 engines, and

since the comparative (OEM versus replacement) exhaust emissions data from

13—mode procedures indicate that the newer turbochargers do not adversely

affect emissions, the staff concludes that Cummins complies with the

requirements for the exemption.

III. RECOMMENDATIONY

      Based on the above conclusions, the staff recommends that Cummins Engine

Company, Inc. be granted an exemption as requested, and that Executive Order

D—142—1 be issued.


 IV.    CUMMINS TURBOCHARGERS P/N 3029513, 3029514, AND 3029515

       The three new Cummins turbochargers, part numbers 3029513, 3029514, and

 3029515, are intended to replace the old turbochargers on lTimited 1975 through

 1979 model—year Cummins heavy—duty diesels during engine rebuild or

 turbocharger replacement.   The replacement turbochargers are physically

 identical to the OEM turbochargers.    However, the newer turbochargers are

k designed with a newer compressor wheel which, according to Cummins, improves
 both tfirbocharger efficiency and flow range.    This newer design will increase

 fue! economy, reduce smoke, and improve low speed performance and turbocharger

 durability.

 V.    EVALUATION

       Evaluation of the replacement Cummins turbochargers consisted of

 comparative (OEM versus replacement) exhaust emission tests utilizing the

 13—mode heavy—duty diesel engine certification test procedures.    A summary of

 the data is shown in the Appendices.   The comparative data show that the

 differences in the paired emission values are within the laboratory test

 variability range and that the use of the replacement turbochargers will not
 adversely affect exhaust emissions.

 VI.   DISCUSSION

       Cummins has complied with the Air Resources Board (ARB) engine change

 policy (ARB Mail Out No. 81—040) pertaining to heavy—duty vehicles for the

 exemption as requested.


APPENDICES


                              Table 1

               REPLACEMENT TURBOCHARGERS APPLICATIONS


Mode1l—Years      Engine Family          cPl            Turbocharger P/N

1975—1976             092                 217                3029513
1976                  092A                222                3029513
1976                  092A                233                3029513
1976                  093E                266                3029514
1977                  093E                294                3029515
1977—1978             093E                306                3029515
1977—1978             093E                308                3029515
1978—1979             093E                310                3029514
1978—1979             093E                328                3029515
1978—1979             093E                332                3029515
1979                  092A                408                3029514


                                     Table 2

                        Comparative Exhaust Emissions
                Composite 13—mode Heavy—Duty Diesel Procedures


                              Engine Family             Engine Family
                                   093E                          092A
                            BaseTine    3029514         BaseTine        3029513

Rated:
  Speed (RPM)                 2100        2100            1900            1900
  Horsepower                   407         401             290             292
  Fuel Rate (1b/hr)            150         146             109             108
Peak Torque:
  Speed (RPM)                 1500        1500            1300            1300
  Horsepower                  1186        1187             952             949
  Fuel Rate (Ib/hr)            122         119              86              88

Emissions (gm/bhp—hr)
  HC                                                       0.34            0.31
  CO                                                       1.60            1.71
  NOx                                                     10.02           10.13



Document Created: 2005-09-01 12:40:53
Document Modified: 2005-09-01 12:40:53

Previous E.O. D-142 | Previous E.O. D-141 | Next E.O. D-142-2 | Next E.O. D-143
