Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 31, 1986.
As of Thursday, December 26th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
No. ATS 6.9L/7.3L1983-1987 model-year Ford Motor Company heavy-duty vehicles powered by a 6.9L Navistar International heavy-duty diesel engine and 1988 model-year Ford Motor Company heavy-duty vehicles powered by a 7.3L Navistar International heavy-duty diesel engine.Modifications to the OEM emission-related parts due to the installation of the turbocharger include replacement of air cleaner assembly, replacement of the OEM exhaust system with a 3" diameter exhaust system, and replacement of the OEM crankcase depression regulator with parts included in the kit.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-171-2
  • Executive Order 171-2 / D171-2
  • ARB # D-171-2
  • Executive Order No: D-171-2
  • C.A.R.B. No. D-171-2
  • Resolution D-171-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-171-2 PDF

D-171-2 Document:

CARB_D-171-2

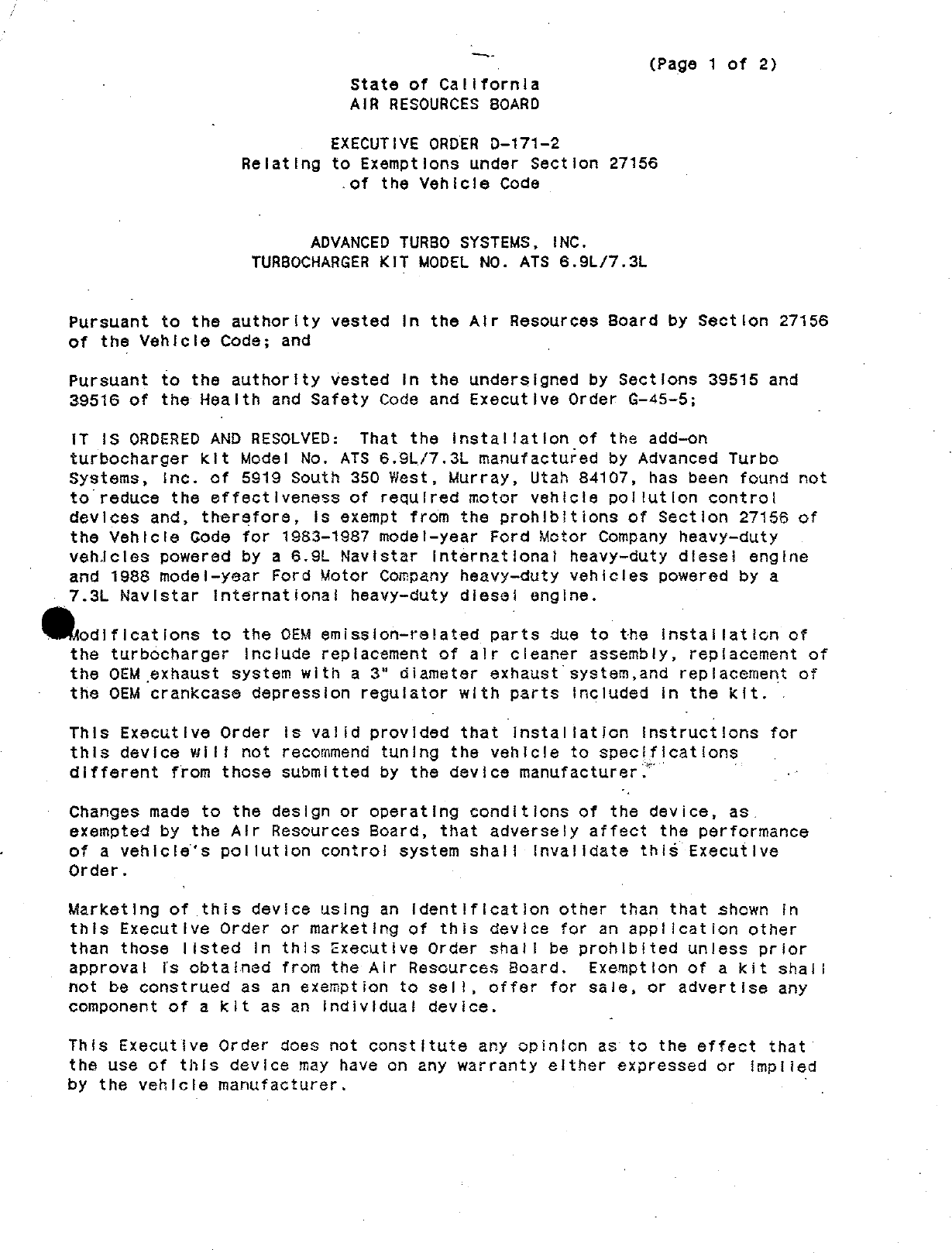

~—— (Page 1 of 2) State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—171—2 Relating to Exemptions under Section 27156 .of the Vehicle Code ADVANCED TURBO SYSTEMS, INC. TURBOCHARGER KIT MODEL NO. ATS 6.9L/7.3L Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and Safety Code and Executive Order G—45—5; IT iS ORDERED AND RESOLVED: That the installation of the add—on turbocharger kit Model No. ATS 6.9L/7.3L manufactured by Advanced Turbo Systems, inc. of 5919 South 350 West, Murray, Utah 84107, has been found not to reduce the effectiveness of required motor vehicle pollution control devices and, thersfore, is exempt from the prohiblitions of Section 27156 of the Vehicle Gode for 1983—1987 model—year Ford Motor Company heavy—duty vehicles powered by a §.9L Navistar International heavy—duty diessi engine and 1988 model—year Ford Motor Company heavy—duty vehicles powered by a 7.3L Navistar International heavy—duty diesei engine. .Aodlflcatlons to the OEM emission—related parts due to the installation of the turbocharger include replacement of alr cleaner assembly, replacement of the OEM exhaust system with a 3" diameter exhaust system,and replacement of the OEM crankcase depression regulator with parts Included in the kit. This Executive Order is valld provided that'instaltatlon Instrucflons for this device will not recommend tuning the vehlcle to spactflcatlons different from those submitted by the device manufacturer. Changes made to the design or operating conditions of the device, as . exempted by the Alr Resources Board, that adversely affect the performance of a vehicle‘s pollution control system shall Invalidate this Executive Order . Marketing of this device using an [dentification other than that shown in this Executive Order or marketing of this device for an application other than those listed in this Executive Order shall be prohlblited unless prior approval is obtained from the Air Resources Board. Exemption of a kit shall not be construed as an exemption to sell, offer for sale, or advertise any component of a kit as an individual device. This Executive Order does not constitute any opinion as to the effect that the use of this device may have on any warranty either expressed or implled by the vehicle manufacturer.

ADVANCED TURBO systTEMS, inc. EXECUTIVE ORDER D—171—2 (Page 2 of 2) THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE ADVANCED TURBO SYSTEMS, INC. TURBOCHARGER KIT MODEL NO. ATS 6.91./7.3L. No clalm of any kind, such as "Approved by Alr Resources Board" may be made with respect to the action taken herein in any advertising or other oral or written communication. Section 17500 of the Business and Professions Code makes untrue or misleading advertising unlawful, and Section 17534 makes violation punishable as a misdemeanor. Section 43644 of the Health and Safety Code provides as follows: "43644. (a) No person shall Iinstall, sell, offer for sale, or advertise, or, except In an application to the state board for certificatlon of a device, represent, any device as a motor vehicle pollution control device for use on any used motor vehlicle unless that device has been certified by the state board. No person shall seil, offer for sale, advertise, or represent any motor vehlicis pollution control device as a certifled device which, In fact, is not a certified device. Any violation of this subdivision is a misdemeanor." o tss uies on etniien ssm n mt Any apparent violation of the condlitions of this Executive Ordef‘wlll bé submltted to the Attorney General of California for such action as he deems advisable. c — ' Executive Order D—171—1, dated December 17, 1988, is superseded and of no further force and effect. > Executed at E! Monte, California, this _:ié£2£;day of March, 1988. . 0. Drachand, Chief Moblle Source Division

State of California AIR RESOURCES BOARD EVALUATION OF ADVANCED TURBO SYSTEMS, INC. ADD—ON TURBOCHARGER KiT MODEL NO. ATS 6.9L/7.3L FOR INSTALLATION IN 1983—1987 MODEL—YEAR FORD MOTOR COMPANY HEAYY—DUTY VEHICLES POWERED BY A 6.9 LITER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE AND 1988 MODEL—YEAR FORD MOTOR COMPANY HEAVY—DUTY VEHICLES POWERED BY A 7.3 LITER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE March 1988

EVALUATION OF ADVANCED TURBO SYSTEMS, INC. ADD—ON TURBOCHARGER KIT MODEL NO. ATS 6.9L/7.3L FOR INSTALLATION IN 1983—1987 MODEL—YEAR FORD MOTOR COMPANY HEAVY—DUTY VEHICLES POWERED BY A 6.9 L[TER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE AND 1988 MODEL—YEAR FORD MOTOR COMPANY HEAVY—DUTY VEHICLES POWERED BY A 7.3 LITER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE cope by Mobile Source Division State of California AIR RESOURCES BOARD 9528 Telstar Avenue El Monte, CA 91731 (This report has been reviewed by the staff of the California Air Resources Board and approved for publication. Approval does not signify that the contents necessarily reflect the views and policies of the Air Resources Board, nor does mention of trade names or commercial products constitute endorsement or recommendation for use.)

RGER T P PERATION APPEND 1 X 1NSTALLAT ION INSTRUCT IONS

Advanced Turbo Systems, Inc. (ATS) has requested an update to Executive Order D—171—1, which exempts their turbocharger kit mode! No. ATS 6.9L for 1983—1987 model—year Ford Motor Company heavy—duty vehicles powered by a 6.9 liter Navistar International heavy—duty diesel! engine. They have requested that the exemption be updated to include the 1988 model—year Ford Motor Company heavy—duty vehicles powered by a 7.3 [iter Navistar International heavy—duty diesel engine. Based on the following: (1) the fact that the kit appiicable to 1988 model—year 7.3 liter Navistar Internationa i heavy—duty diesel engine is identical to the exempted kit; (2) the fact that the 1988 7.3 liter Navistar International heavy—duty diese! engine is a replacement engine for the 1987 6.9 |iter Navistar International heavy—duty diese! engine and that both engines have similar designs; (3) the test data from previous comparative exhaust emisslon tests and back—to—back crankcase pressure tests performed for exempting the kit; and (4) that the engine design complies with the carryover criteria as outlined in EPA‘s Advisory Circulars 17F and 208, the staff believes that the add—on turbocharger kit will have no adverse effect on the engines for whicnféiemption update is requested. The staff recommends that ATS be granted an update as requested, and a4 the Executive Order D—171—2 be issued.

APPEND lX INSTALLAT ION INSTRUCT IONS

EVALUATION OF ADVANCED TURBO SYSTEMS, INC. ADD—ON TURBOCHARGER KIT MODEL NO. ATS 6.9L/7.3L FOR INSTALLATION IN 1983—1987 MODEL—YEAR FORD MOTOR COMPANY HEAVY—DUTY VEHICLES POWERED BY A 6.9 LITER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE AND 1988 MODEL—YEAR FORD MOTOR COMPANY HEAVY—DUTY VEHICLES POWERED BY A 7.3 LITER NAVISTAR INTERNATIONAL HEAVY—DUTY DIESEL ENGINE FOR EXEMPTION FROM THE PROHIBITIONS IN VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA ADMINISTRATIVE CODE J . 1NTRODUCT Advanced Turbo Systems, Inc. of 5919 South 350 West, Murray, UT 84107, has requested an update to the existing Air Resources Board Executive Order (E.0.) D—171—1 dated December 17, 1988. E.0. D—171—1 exempted the ATS turbocharger kit mode! No. ATS 6.9L from the prohlbitions in Vehicle Code Section 27156 for 1983—1987 model—year Ford Motor Company heavy—duty vehicles powered by a 6.9 liter Navistar international heavy—duty diesel engine. The applicant has requested that the exemption be updated to include the 1988 model—year Ford Motor Company heavy—duty vehicles powered by a 7.3 liter Navistar International heavy—duty diese! engine. 11. conckusion v Based on the following: (1) the fact that the kit applicable to 1988 model—year 7.3 liter Navistar International heavy—duty diesel engine is identical to the exempted kit; (2) the fact that the 1988 7.3 liter Navistar International heavy—duty diesel engine is a replacement engine for the 1987 6.9 liter Navistar International heavy—duty diesel engine and that both engines have similar designs; (3) the test data from previous comparative exhaust emission tests and back—to—back crankcase pressure tests performed for exempting the kit; and (4) that the engine design complies with the carriéver criteria as outlined in EPA‘s Advisory Circulars 17F and 208B, the staff believes that the add—on turbocharger kit will have no adverse effect d L on the engines for whlcq«exemption update is requested.

111. RECOMMENDATIONS The staff recommends that ATS be granted an update as requested, and L that Executive Order D—171—2 be Issued. 1v. TURBOCHARGERKITDESCRIPTIONANDOPERATION The purpose of the ATS turbocharger kit is to increase the power output of the engine by Increasing its volumetric efficiency. This is accomplished by compressing the intake charge to pressures above that of the atmosphere. The increased pressure allows a greater charge density to enter the combustion chamber providing more oxygen for combustion. The maximum fuel delivery is slightly Increased in order to maintain proper air—fue! ratios with the increased air flow from the turbocharger when It is providing positive manifold pressure (boost}. ‘ The major components of the kit include a 0.96 A/R ratio Rotomaster (AiResearch) mode! No. TO4B, custom intake and exhaust tubing, air cleaner assembly, brackets, hoses and the hardware necessary to complete the Installation. The OEM crankcase depression reguiator is removed and replaced with tubing, flttings with a 0.375" orifice suppiied in the kit. A complete air cleaner assembly is supplled with the system to replace the stock alr cleaner assembly. No other emission—related components are removed or disconnected when the turbocharger kit is Iinstalled. Maximum positive manifold pressure is [imited to 12 psi by the size ‘of the turbine and the compressor. The maximum engine speed is regulated by the OEM fue! injection governor which is not modified by the instailation of the kit. Therefore, by controlling maximum engine speed, maximum turbine speed and corresponding boost pressures are also controlled. D1SCUSS!ON ATS add—on turbocharger kit mode! No. ATS 6.9L is designed for _2~

installation on 1983—1987 model—year Ford Motor Company vehicles powered by a 6.9 liter Navistar International heavy—duty diese! engine. The exemption was granted on the basis that the effectiveness of the vehicle‘s poliution control system was not reduced. Evaluation consisted of comparative (baseline versus turbocharged) steady state tests and back—to—back crankcase —pressure tests. The applicant is making available the add—on turbocharger kit mode! No. ATS 6.9L/7.3L for the 1988 model—year Ford Motor Company vehicles powered by a 7.3 liter Navistar International heavy—duty diesel engine. The applicant claims that no modifications to the kit are needed In order to be compatible with the 1988 mode!s. They have requested that the exemption be updated to include these 1988 model—year vehicles. In response to the applicant‘s request, the staff compared the engine design of 1987 and 1988 model—year Ford Motor Company vehiclies powered by a 6.9 or a 7.3 liter Navistar international heavy—duty diesel engine. Certification documents and correspondence from Navistar international to the ARB indicated that the 1988 model—year 7.3 liter engine is the replacement engine for the 1987 model—year 6.9 liter engine. The staff also noted that the engine designs of both 1?87 and 1988 engines are similar. Because the data on a 1986 6.9L ;fi;zflvehlcle showed that the emissions were not adversely affected when the turbocharger kit was Installed;%}; back—to—back crankcase pressure tests on five vehicles did not show significant effect on crankcase pressure and that the engine design complies with the carr&iover criteria as outlined in EPA‘s Advisory circulars 17F and 20B, the add—on turbocharger kit will have no adverse effect on the 1988 model—year Ford Motor Company heavy—duty vehicles powered by a 7.3C/M:;}star International heavy—duty diese! engine. No additional testing was required or performed for updating the exemption as requested. —3—

APPENDLIX ADVANCED TURHO SYSTEMS 6,.9/7.3 LITER DIESEL INSTALLATION cx2CZDURE CONGRAN LATIONS! You have ivst purchased the finest turbo system available for the 6.9 and 7.3 liter diesel engine. The following information will assist you, in the installation of your ATS turbo system. INPORTAJIT: It is very iuportanc to read oll the instructions curc{ully prior ro any iiostallation of your turbe systcml Nommal mechanical and salety provwedures should be followed. 1. Disconnect both batteries at the negative tenninals. 2. Remeve air cleaner and air cleaner canister. 3. Remove 1/2" nut holding wire lume clamp to rear engine lifting bracket. 4. . Reove rear ono“ne lifting bracket. Instsll shorter cap serews (ite. #30) prudeeci in kit. * Note: Steps 5—7 on‘ly need to be followed, if your vehicle is a 1983 or . 1994model. Romove the funl resurn line which was previously held in position with the rear e Mting brac bolit. Remove this line enly fran the passuger side rear injector. 6. Cut an 1/8" out of the retum line, bet. +a the t}urc ind fourth injector or the right bank ‘passenger side). Install the "T" firting (itea #27) upplied in tue kil. Connect the fuol retur.s wine whicu was rencued from reat injector to this "T" fitting in such s mamer that the fuel lime wiil lHie on the intake manifold directly beaind the air intake. 7.. Install fuel returm cap (item #28) suppiled in the kit, on the rear injeecer whore the fuel return line was previousl« locared. 8. Vehnicles with a sound insuleting blanket covermg the firewall, must out and remove one half or approxtmately 14" of the passenger sice sound insulating blanket. 9. Uiing an 1/8" drill bit, relocate the vacuimm block on the firewall above the right bank valve cover (nassenger sico), three inches rore to the pas » nger side and three inches higher than the original location. Using a prybar or a picce of 2" pipe, bend &« 1iip on th« irewall arword directly behird the right hank (pas x , where the heat shield is riviced ro the ‘)uuy

—. 11. On vehicles with automatic transmission, remove the 1/2" cap screw holding dipstick tube and vacuum line to bell housirlg. Remove dipstick tube. Move vacuum line to drivers side and secure with 1/2" cap screw on drivers side. Reinstall 1/2" cap scerew on passenger side. 12. Remove the anti—depression valve from the rear of the intake manifold. 13. On 1987 and newer model vehicles, tie wrap wire lime near passenger side rear injector to large yellow wires on senso located behind intake manifold. 14. Lubricate and install O—ring seals (item #19 & 23 in oil drain casting (item #10) 15. Using 5/16" X 1 1/4" USS cap scerews (item #30) and lock washers (item #40) supplied in kit. Install oil drain casting in valley pan grommet and bolt to back of intske menifold, where the anti—depression valve was previously located. 16. Route throttle and cruise control cables under automatic transmission kick—down linkage and route cables behind oil drain casting and in front of control relay box bolted to rear of intake manifold. Remove drivers side valve cover. Using an 1 1/4" hole saw, cut a hole in the center of the rear most flat round portion of the valve cover. 2iIfil_ Instali molded vent hose (item #14) into valve cover and reinstallgvalve cover on engine. Install heat shield (item £9), using 5/16" X 1/2" USS cap screw (item #32) and washer (item £40). At this time, check to make sure a 1/8" pipe plug (item £29) or a manifold pressure adapter is tightened into the pressure chamber (item #4). Install 90 degree adapter fitting (itemf25) in the female pipe threaded portion of the turbo bearing housing (item #1). When tight, fitting should be facing the radiator. 22. Lubricate and install the 2" I.D. O—ring seal (item #21) and install into pressure chamber. With O—ring seal lubricated, push pressure chamber over turbo compressor housing discharge. 23. Lubricate and install large O—ring seal (item #22) over cleaned intake manifold. . 24. Install turbo assembly onto oil drain casting , using 3/8" SAE nuts (item #37) and lock washers (item #39). With turbo assembly tightened into position, install 3/8" X 2 1/2" USS cap serew with seal washer (item #30,42) into pressure chamber and tighten into intake manifold.

Iustall oil supply line (item #13) to turbo oil fitting (item #25) and righten. Route oil supply line through the clearance area between the compressor discharge and the oil drain casting and route oil line down back side of engine on drivers side. Renove and save 5/16" X 1/2" cap screws which secure the throttle linkage bracket to the front of intake manifold. Install 5/16" X 1 1/4" studs (itermr #34) into manifold where cap screws were just removed. Inscall air filter support bracket (item #11) in front of throttle S s linkange bracket with long portion of filter support bracket running horizontal from front of intake manifold towards radiator. 28. Remove stock hose from anti—depression valve and secure valve to air filter base casting (item #4), using 5/16" X 1/2" cap serews which previously held throttle bracket to intake manifold. Note: Be sure to use original rubber sealing gasket between valve and air filter base casting. 29. Install 5/16" X 1" studs (item #35) in air filter base casting. 30. Install air filter restriction indicator (item £18) in air filter base casting using 1/8" NPT coupler (item #34) supplied in kit. 31. Lubricate and install O—ring seal (item #20) in air filter base casting. With O—ring seal lubricated, push air filter base casting assembly over turbo compressor inlet and locate air filter base against angle support bracket. Sccure air filter base to angle support bracket, using 5/16" SAE hex lock nuts (item #41) supplied in kit. Install air filter element (item #$17) into air filter cover casting (item #6) and clip onto air filter base casting. Install fresh air inlet hose to air filter cover and grill fixture. Note; 19884 and newer year models have the fresh air inlet fixture iccated above the grill, just under the hood. Vehicles having this arrangement should remove the fresh air inlet fixture and hose and install the older type, part number E3TA—9C675—BE and hose E3TA—98676—BB. This will prevent drawing the hood insulation into the air filter element. Remove entire exhaust system, retaining stock exhaust hangers. 35. Remove 1/8" pipe plug from engine block (oil galley). Location is directly behind drivers side exhaust manifold flange and in line with transmission mounting bolt. 36. Install 1/8" oil adapter elbow (item #26) into oil galley where plug was removed and tighten elbow to 1:00 O‘clock position. 37. Connect turbo oil supply line to elbow and tighten.

38. On automatic transmissions, it is neeessary to cut off michined locating boss, located above the starter well, between the two transmission bolts. Cut flush with transmission adapter plate. @ Note: This is most easily done with a power hacksaw. Install optional automatic transmission dipstick tube (item #12) using transnission mounting bolt to secure dipstick tube. Note: Lubricate original O—ring seal before installing dipstick tube. 40. Ou vehicles with five speced manual transmission, it may be necessary to cut locating boss at an angle to give clearance for the final exhaust pipe (item #8). 41. Remove exhaust flange studs from right bank (passenger side) exhaust manifold. Install these studs into ‘Y‘ collector casting (item #3). 42. Install 7/16" X 2 1/2" USS studs (item #33) in right bank (passenger side)— exhaust manifold where original studs were removed. 43. Install ‘Y¥‘ collector casting over studs in right bank (passenger side) exhaust manifold. Secure ‘Y‘ collector casting using flst washers (item #38) and 7/16" nuts (item #36) supplied in kit. Note: Tighten nuts evenly to maintain flange semetry. Install crossover feed pipe assembly (item #7) using original nuts, and 2 1/4" saddle clamp (item #44) supplied in kit. 45. Iustall 3" final exhaust pipe using spring (item #43) to secure pipe into position. 46. Install optional 3" mandrel bent exhaust system at this time. Note: If the ATS optional exhaust system is not used, then a free flowing 3" exhaust with a Walker muffler part number 21468 or equivelent should be used. To realize the full benefit from turbocharging your diesel engine, the injection pump maximum fuel delivery should be increased. This should be done at this time. For instructions as to increase the fuel delivery, read INJECTION PUMP FUEL SETTING PROCEDURE. . Reconncet both battery cables. Start ougine and check for any exhuust leaks, oil leaks, or air leaks. CAUTION: Never rev engine until oil pressure is obtained at the turbo. Install prometer kit (item #15) supplied in turbo kit. s

INJECTION PUMP FUEL SETTING PROCEDURE To realize the benefit from turbocharging your diesel engine, the injection pump maximum fuel delivery should be increased. This is done by removing the timing cover on the passenger side of the injection pump. Remove the top capscrew of the timing cover by using a 4" wrench. Loosen the bottom capscrew and let the timing cover plate rotate to the bottom with the rubber gasket. Now rotate the engine using a 15/16" socket and ratchet on the alternator belt pulley nut until the allen head leaf spring screw is centered in the opening. Using a 5/32" allen wrench, turn the allen head screw inward (clockwise) 4 9f a turn. The injection pump output will determine maximum exhaust temperature. CAUTION: Never exceed 1150 degrees exhaust temperature. MAINTENANCE .SIVE YOUR ENGINE A GOOD WARM—UP PERIOD BEFORE YOU WORK YOUR ENGINE HARD. 2. GIVE YOUR ENGINE A COOL—DOWN PERIOD AFTER WORKING THE ENGINE. LET iT COOL TO AT LEAST 300 DEGREES FAHRENHEIT 3. CHANGE OfL AT INTERVALS OF NOT MORE THAN 2,500 MILES. CHANGE OIL FILTER WITH EACH OIL CHANGE. 4. KEEP AIR FILTER ELEMENTS CLEAN. WHEN THE ELEMENT GETS DIRTY, CHANGE IT! A DIRTY AIR CLEANER ELEMENT WILL CAUSE EXCESSIVE EXHAUST TEMPERATURE AND EXCESSIVE OIL CONSUMPTION. 5. KEEP FUEL FILTERS CLEAN. DRAIN WATER FROM FUEL REGULARLY. CLEAN DIESEL FUEL WILL ASSURE LONG TROUBLE—FREE INJECTION PUMP AND INJECTOR LIFE. 6. NEVER REV YOUR ENGINE UNTIL OIL PRESSURE IS OBTAINED! . NEVER SHUT OFF YOUR ENGINE AFTER WORKING IT HARD WITHOUT GIVING YOUR ENGINE A COOL—DOWN PERIOD!
