Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 5, 1989.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
DF20021973-1978 model year GM 1/2 to 1 ton trucks all engines

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-191
  • Executive Order 191 / D191
  • ARB # D-191
  • Executive Order No: D-191
  • C.A.R.B. No. D-191
  • Resolution D-191
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-191 PDF

D-191 Document:

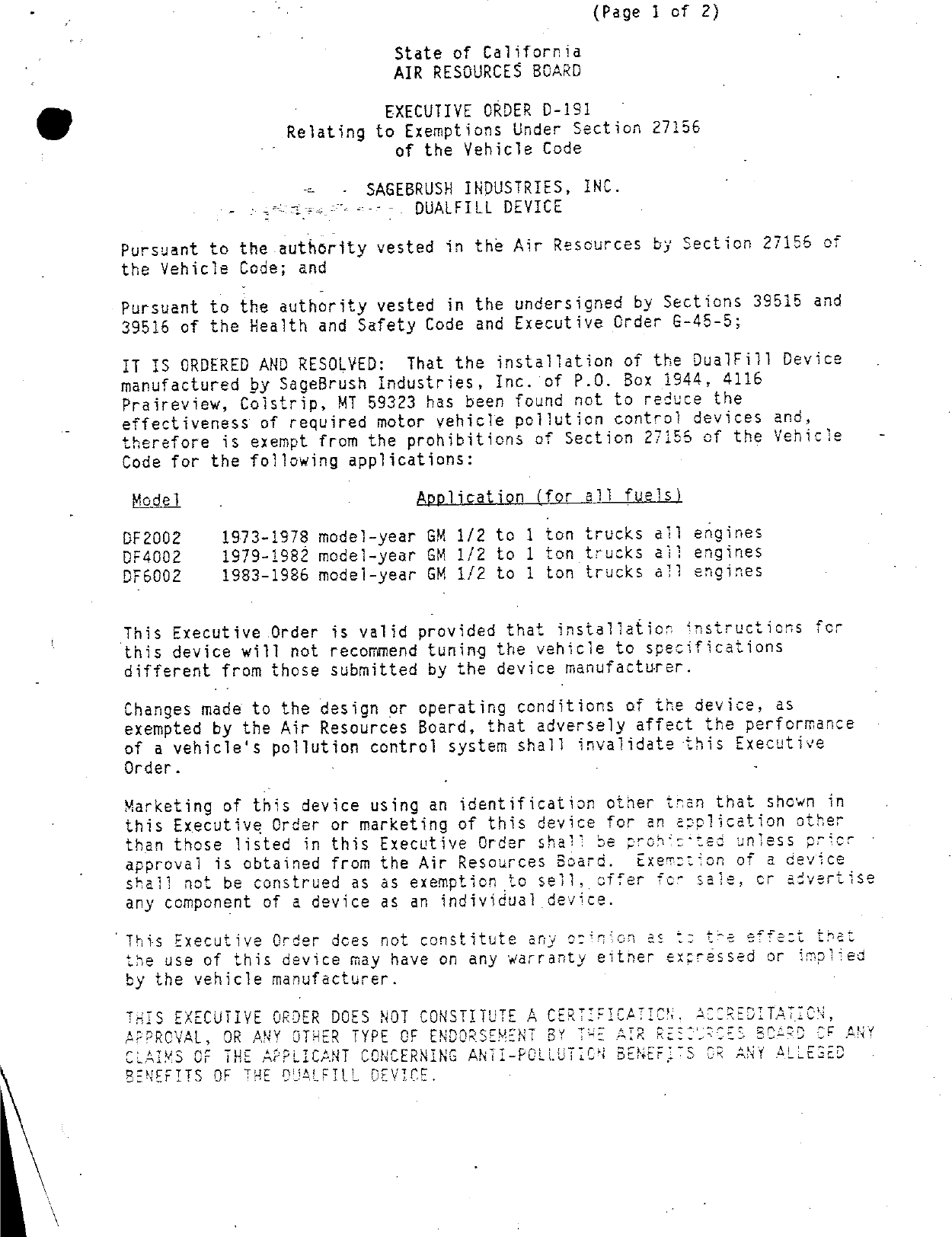

                                                                   (Page 1 of 2)

                                           State of California
                                           AIR RESCURCES BOARD

                                          EXECUTIVE ORDER D—1i91
                                Relating to Exemptions Under Section 27156
                              '            of the ¥ehicle Code

                                   «_   — SAGEBRUSH INDUSTRIES, INC.
                     se     on qiA ue so e—> —. DUALFILL DEVICE

 Pursuant to the autho?ity vested in the Air Resources by Section 27156 of
 the Vehicle Code; and

 Pursuant to the authérity vested in the undersigned by Sections 39515 and
 39516 of the Health and Safety Code and Executive Order G—45—5;

 IT IS ORDERED AND RESOLYED:                That the installation of the DualFill Device
 manufactured by SageBrush Industries, Inc. of P.0. Box 1944, 4116
 Praireview, Colstrip, MT 59323 has been found not to reduce the
 effectiveness of required motor vehicle pollution control devices and,
 therefore is exempt from the prohibitions of Section 27156 of the Vehicle
 Code for the following applications:

  Model1             .                       Application (for all fuels)

 DF2002                  1973—1978 model—year GM 1/2 to 1 ton trucks all engines
 DF4002                  1979—1982 model—year GM 1/2 to 1 ton trucks all engines
 DF6002                  1983—1986 model—year GM 1/2 to 1 tomn trucks all engines


 This Executive Order is valid provided that installation instructions for
 this device will not recommend tuning the vehicle to specifications
 different from those submitted by the device manufacturer.

 Changes made to the design or operating conditions of the device, as
 exempted by the Air Resources Board, that adversely affect the performance
 of a vehicle‘s po11ut10n control system shall invalidate this Executive
 Order .

 Marketing of this device using an identification other                      n that shown in
                                                                              1ins
 this Executive Order or marketing of this device for an                         f]gn   other
                                                                                        sthner
 than those listed in this Executive Order shall be proh
 approval            is obtained from the Air Resources Board.         Exe
 shall not be construed as as exemption to sell, offer fo
 any component of a device as an individual device.

\This Executive Order does not constitute any snimion as ic
                                                                             c




 the use of this device may have on any warranty either expres
 by the vehicle manufccturer

            ECUTIVE WQD‘R DOES NOT CONSTITUTE A CE
           w O m m




               OR ANY OTHER TVPE OF ENDORSEMEN
             "me




               THE APPLICANT CONCERNING ARkTI
              OF THE DUALFTLL DEVICE.


         SAGEBRUSH TNDUSTRIES, INC.                    EXECUTIVE ORDER D—i91
              (Page 2 of 2?)                                  >




boc      No claim of any kind, such as "Approved by the Air Resources Board" may be
         made with respect to the action taken herein in any advertising or other
      .— oral or written communication.

 blos. Séction 17500 of the Business and Professions Code makes untrue or
    _9 ; —misleading advertising unlawful, and Section 17534 makes violation
          punishable as a misdemeanor.

         Section 43644 of the Health and Safety Code provides as follows:

                "43644,   (a)   No person shall install, sell, offer for sale, or
            —   advertise, or, except in an application to the state board for
                certification of a device, represent, any device as a motor vehicle
                pollution control device for use on any used motor vehicle unless that
                device has been certified by the state board.    No person shall sell,
                offer for sale, advertise, or represent any motor vehicle pollution
                control device as a certified device which, in fact, is not a certified
                device. Any violation of this subdivision is a misdemeanor."

         Any apparent violation of the conditions of this Executive Order will be
         submitted to the Attorney General of California for such action as he deems
         advisable.


.        Executed at E1 Monte, California, this    S      day of May, 1989.


                                                   Nh
                                                  K. D. Drachand, Chief
                                                  Mobile Source Division


                            State of California
                            AIR RESOURCES BOARD




          EVALUATION OF SAGEBRUSH INDUSTRIES, INC. DUALFILL DEVICE
 MODEL NOS. DF2002, DF4002, AND DF6002 FOR EXEMPTION FROM THE PROHIBITIONS
OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                     THE CALIFORNIA ADMINISTRATIVE CODE




                                 May 1989


                            State of California
                            AIR RESOURCES BOARD




          EVALUATION OF SAGEBRUSH INDUSTRIES, INC. DUALFILL DEVICE
 MODEL NOS. DF2002, DF4002, AND DF60O2 FOR EXEMPTION FROM THE PROHIBITIONS
OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                     THE CALIFORNIA ADMINISTRATIVE CODE




                                     by
                           Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                            E1 Monte, CA   91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                   SUMMARY



       SageBrush Industries, Inc. has requested an exemption from the

prohibitions of Vehicle Code Section 27156 for their DualFill device.   The

DualFill device is used to connect the two fuel tanks on 1973—1986 General

Motors 1/2 to 1 ton trucks so that both tanks may be filled from one side of

the truck.   The DualFill device is available for use on all engines and fuels

in the following model year categories of GM 1/2 to 1 ton trucks: (1) model

#DF2002 for 1973—1978, (2) model #DF4002 for 1979—1982, and (3) model #DF6002

for 1982—1986.
       Based on the fact that (1) there are no modifications to the fuel tank

vent lines, to the fuel supply lines and to the fuel return lines, (2) the

materials used for the DualFill device are compatible with commonly used fuels

and (3) there is no significant evaporative loss from the connection points of

the DualFill device, the staff believes that the DualFil]l device will have no

adverse emissions effect on the vehicles for which the exemption is requested.

       The staff recommends that SageBrush Industries, Inc. be granted an

exemption from Vehicle Code Section 27156 as requested and that Executive Order

D—191 be issued.


                                 TAB    F_CONTENT



                                                     Page Number



SUMMARY                                                    i
CONTENTS                                                  i1
I.        TNTRODUCTION                                     1
II.       CONCLUSION                                       1
III.      RECOMMENDATION                                   1
IV.       DESCRIPTION AND OPERATION                        2
v.        DISCUSSION                                       2
          APPENDIX A.    INSTALLATION INSTRUCTIONS         4
          APPENDIX B.    DEVICE LABEL                      5
          APPENDIX C.    DEVICE SCHEMATICS                 6




                                             11


           EVALUATION OF SAGEBRUSH INDUSTRIES, INC. DUALFILL DEVICE
   MODEL NOS. DF2002, DF4002, AND DF6002 FOR EXEMPTION FROM THE PROHIBITIONS
 OF VEKICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                      THE CALIFORNIA ADMINISTRATIVE CODE


I.       TRODUCTIO!

       SageBrush Industries, Inc. of P.0. Box 1944, 4116 Praireview, Colstrip,

MT 59323, has requested an exemption from the prohibitions of Vehicle Code

Section 27156 for their DualFill device.   The DualFill device is used to

connect the two fuel tanks on 1973—1986 General Motors 1/2 to 1 ton tricks so

that both tanks may be filled from one side of the truck.   The DualFill device

is available for use on all engines and fuels in the following model year

categories of GM 1/2 to 1 ton trucks: (1) model #DF2002 for 1973—1978, (2)

model! #DF4002 for 1979—1982, and (3) model #DF6002 for 1982—1986.



II.    CONC        S

       Based on the fact that (1) there are no modifications to the fuel tank

vent lines, to the fuel supply lines and to the fuel return lTines, (2) the

materials used for the DualFill device are compatible with commonly used fuels

and {3) there is no significant evaporative loss from the connection points of

the DuaiFill device, the staff believes that the DualFill device will have no

adverse emissions effect on the vehicles for which the exemption is requested.



III.   RECOMMENDATION

       The staff recommends that SageBrush Industries, Inc. be granted an

exemption from Vehicle Code Section 27156 as requested and that Executive Order

D—191 be issued.


IV.    DESCRIPT     AND_OPERATION

       The DualFill device consists of a cross tube and a vent tube made of 16

gauge steel and 18 gauge steel respectively.   The exterior of the tubing is

plated with .002" of pure zinc with a clear chromate coating.

       The cross tube is used to connect the two fuel tanks at the fill neck so

that both tanks may be filled from one side (refer to Appendix C, page 7).       The

cross tube has a 2" outer diameter (O.D.) and is 58" in length.   At 5" from

both ends there is a 1 1/2" vertical tube of 1 1/2" 0.D.   Each of these tubes

is connected to a fuel tank.

       In order to maintain proper venting, the vent lines from the fill necks

to the tanks are connected by a 56" in length vent tube of 5/8" O.D.       At either

end of the vent tube there is a vertical tube of 1 1/2" which clamps to the

vent line from each tank.



V.     BISCUSSTON

       The DualFill device is designed to connect the two independent fue!

tanks on GM 1/2 to 1 ton trucks so that both tanks may be filled from one side

of the truck.   Basically, two modifications are made: (1) the filler hoses

which connect the filler necks to the gas tanks are removed from both tanks and

replaced with steel tubing thus connecting both fuel tanks and (2) the vent

lTines are similarly connected through a vent tube.

       No emissions—related concerns were raised regarding the fuel system

since there were no modifications to the fuel tank vent lines, to the fue!l

supply lines or the fuel return lines.

       The DualFill device is designed for all commonly used fuels.    A

statement has been provided by the vendor indicating that the DualFill device


is made of 16 and 18 gauge steel with .002" of pure zinc on the exterior of the

tubing with a clear chromate coating.   This material is acceptable for all

commonly used fuels.

       According to the vendor, no fill problems have been encountered.      The

existing filler necks and gas caps are used with the device.   Appropriate

warnings have been placed in the installation instructions for replacement of a

malfunctioning gas cap.   Hose clamps are used to secure the device to the fill

neck, gas tank and vent lines.   There are no significant evaporative losses

from the connections if the clamps are properly used as described in the

installation instructions.

       Based on these facts, staff believes that no testing is needed for

granting the exemption.


                                                           APPENDIX A
                  E—Z INSTALLATION INSTRUCTIONS FOR DF2004

Dualfill solves the frustration of two fuel tanks on General Motors
Trucks, DUALFILL allows both tanks to fill simultaneously from either
side of the vehicle.

Tools Required:
        Screwdriver, or 5/16 nut driver
       10mm socket and ratchet
       Enife

{1)    Remove existing vent and filler hoses from both fuel tanks.

(2)    Remove right filler neck from truck box.

(3) Insert vent tube under truck box through filler door, install with
red end toward left side (drivers side). Tube should lay between frame
and truck box.

(4) Slide 5/8" hose onto the vertical vent stubs with a #10 clamp on
top and bottom of each short hose.

(5) Slide the short pieces of 2" tubing over both ends of the cross—
tube, insert the crosstube into the truck body through the filler hole.
The crosspipe should"fit between the frame and the bottom of the truck
box to the rear of the vent tube.

(6) —~Slide the 14$" x .3" hoses onto the vertical stubs on the crosstube.
Slip two #24 clamps over the hose on each side, insert the short hose
onto the tank neck.

(7)    Install two #36 clamps on each end of the crosstube, slide the
2" hose outward onto the right filler neck. Reinstall the left filler
neck and slide the 2" hose over it.

 (8)   Install the 5/8" X 8" hose with two clamps on the left side, make
sure you run the vent hose over the crosstube.

 (9)   Connect 5/8" X 6" hose to the right filler neck with two #10 clamps
to the vent tube.

 (10) Tighten all clamps carefully, do not over tighten, fill with fuel,
check for leaks, if you find leaks tighten clamps. Check gas cap on
the opposite side of the truck for leaks, if so replace the cap with
the non vented type. Remember that DualFill works on the gravity flow
principle so always fill the tank that is on the high side if parked
on unlevel ground.

NOTE: On 1979—1982 GM Trucks to increase fill rate try drilling two
new holes in the filler neck mounting plate in the truck box and raise
the filler neck 4".

                SATEISFACITON GUARANTEED OR YOUR MCONEY BACK


                                 wlfi


                                             APPENDIX B
                                             DEVICE LABEL




SAGEBRUSH INDUSTRIES INC.

P.0.    Box   1944

Colstrip,     Mt.    59323




RE:    DualFill Identification Label




                                 DAULFTLL
                     Model # DFOO0O CARB E.O.# D—000

                     SageBrush Ind. Inc. (406)748—4444


                           i—— TRuck                      BODY




    Cl cessn e cccce
                       \       A
                                                                              .         cross   TuBe      .
                           \       Sz       FiLLEA Zmnxmmx\mfl\z&
                                        N




                                             i—


                                                      4
                                        ‘ a* N         \nyent     \\ TRuUCK FAAME           vEeNT flcwmk
                                FILL                 HOSE CLAMP

                               WEAERGINE                          t




                                             FUEL




  Rosocllzckckcel~
                                            TA N K
                                                                                                               ~~ ~
                                                                                                              ~




                                                                             PAMT No.     DF 1005
                                                                                                              BDEVICE




—6—)
                                                                                                              APPENDIX C
                                                                                                              SCHEMATICS


                                       | l <————p—N_
                                                   i‘            | ¢lz—1k‘0.b. 16 aa.

                                                   85q _2 L16
                                PARTNo. dF400 28                        ms BEAD (rye)
                                CROsSs TuBE._

                           _\                                                 |
                      ()
                   snss
                                                              C3
                                                             secriow " p—D"
                   sEcCTiION "s— a"     sEcriow "c—€"
sEcTiON "A—a"                ’




                                                                    |—
o   uy   <              PART NO.      DF400   2B        .          =                    ho ut
L   1        {f»           VENT 'rn)l?u:4 248               op    T      ie scacesk"=/


                                                                                            1

                                                                                 TMO3—044
                                                                                 071482




      N*T REemoves orm Rtlered




      Removed 4
       Replacad




                                 .                   .             Tmos.044" .
               1979—84 "CK{03.43)" FUEL TANK/BASE& AUXILIARY—NL2 .
                                       ~g."              e
_—«—~—_____._..‘@ 1988 GENEHAL'MOT‘ORS SERVICE PARTS OPERATIONS—LT TRUCK—52A
3.000—GROUP              .                   32                j    '



Document Created: 2005-09-01 12:45:18
Document Modified: 2005-09-01 12:45:18

| Previous E.O. D-190 | Next E.O. D-191-1 | Next E.O. D-192
