Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 9, 1992.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
NOT LEGAL FOR SALE OR INSTALLATION AFTER 12/31/08

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-193-8
  • Executive Order 193-8 / D193-8
  • ARB # D-193-8
  • Executive Order No: D-193-8
  • C.A.R.B. No. D-193-8
  • Resolution D-193-8
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-193-8 PDF

D-193-8 Document:


CARB_D-193-8

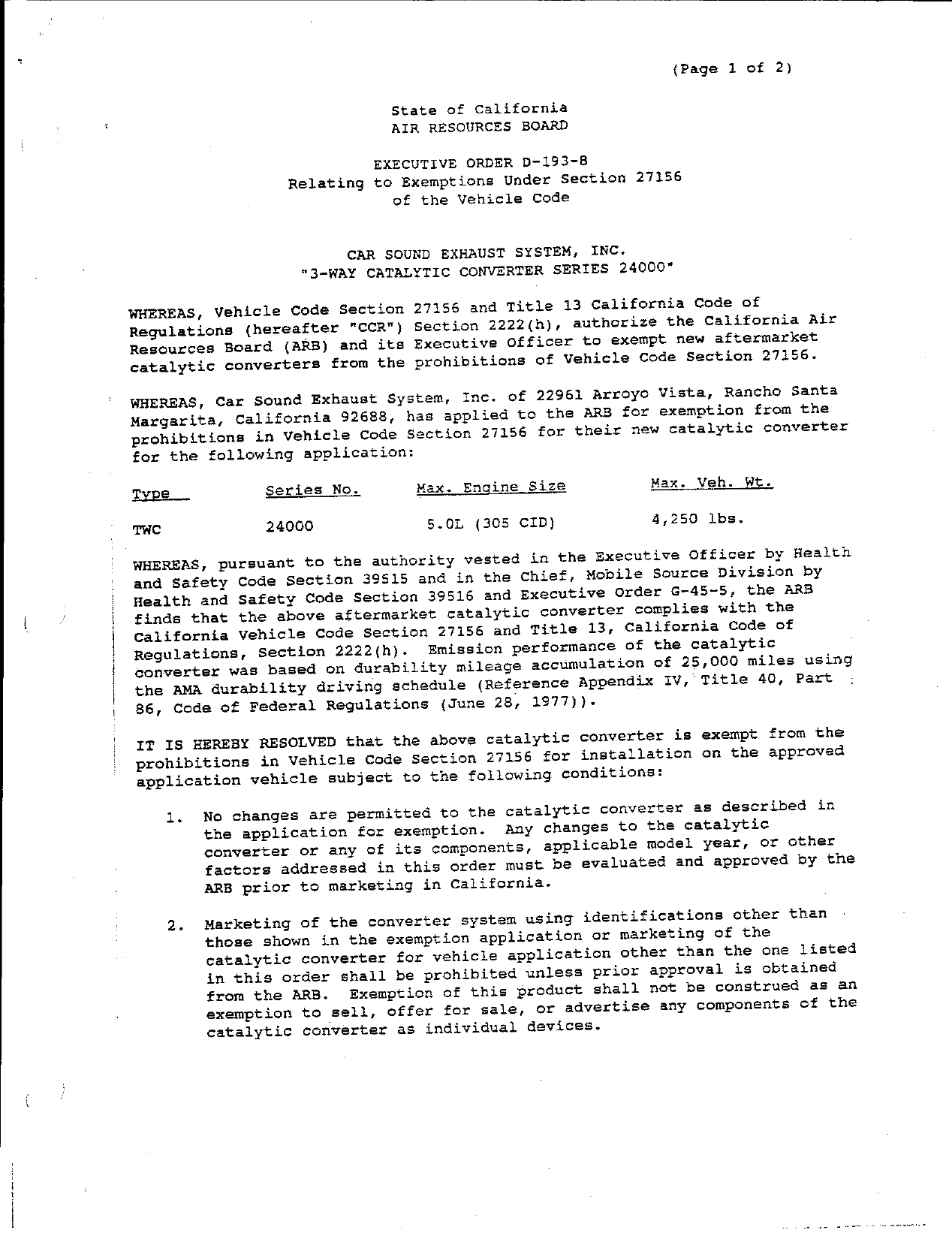

                                                                    (Page 1 of 2)

                                 State of California
                                 AIR RESOURCES BOARD


                               EXECUTIVE ORDER D—193—8
                     Relating to Exemptions Under Section 27156
                                of the Vehicle Code


                           CAR SOUND EXHAUST SYSTEM, INC.
                      "3—WAY CATALYTIC CONVERTER SERIES 24000"°

WHEREAS, Vehicle Code Section 27156 and Title 13 California Code of
Regulations (hereafter "CCR") Section 2222(h), authorize the California Air
Resources Board (ARB) and its Executive Officer to exempt new aftermarket
catalytic converters from the prohibitions of Vehicle Code Section 27156.

WHEREAS,     Car Sound Exhaust System,    Inc.    of 22961 Arroyo Vista, Rancho Santa
Margarita, California 92688, has applied to the ARB for exemption from the
prohibitions in Vehicle Code Section 27156 for their new catalytic converter
for the following application:

Type              Series No.       Max.   Engine Size            Max.   Veh.   Wt.

TWC               24000             5.0L (305 CID)               4,250 lbs.

WHEREAS, pursuant to the authority vested in the Executive Officer by Health
and Safety Code Section 39515 and in the Chief, Mobile Source Division by
Health and Safety Code Section 39516 and Executive Order G—45—5, the ARB
finds that the above aftermarket catalytic converter complies with the
California Vehicle Code Section 27156 and Title 13, California Code of
Regulations, Section 2222(h).  Emission performance of the catalytic
converter was based on durability mileage accumulation of 25,000 miles using
the AMA durability driving schedule (Reference Appendix IV, Title 40, Part
86, Code of Federal Regulations (June 28, 1977)).

IT IS HEREBY RESOLVED that the above catalytic converter is exempt from the
prohibitions in Vehicle Code Section 27156 for installation on the approved
application vehicle subject to the following conditions:

      1.   No changes are permitted to the catalytic converter as described in
           the application for exemption.        Any changes to the catalytic
           converter or any of its components, applicable model year, or other
           factors addressed in this order must be evaluated and approved by the
           ARB prior to marketing in California.

   2.      Marketing of the converter system using identifications other than
           those shown in the exemption application or marketing of the
           catalytic converter for vehicle application other than the one listed
           in this order shall be prohibited unless prior approval is obtained
           from the ARB.  Exemption of this product shall not be construed as an
           exemption to sell, offer for sale, or advertise any components of the
           catalytic converter as individual devices.


CAR SOUND EXHAUST SYSTEM, INC.                      EXECUTIVE ORDER D~193—3
"3—WAY CATALYTIC CONVERTER SERIES 24000°            (Page 2 of 2)




       Any oral or written references to this Executive Order or its content
       by Car Sound Exhaust System, Inc., its principals, agents, employees,
       distributors, dealers, or other representatives must include the
       disclaimer that the Executive Order or the exemption it provides is
       not an endorsement or approval of any emissions reduction claims for
       the catalytic converter and is only a finding that the catalytic
       converter is exempt from the prohibitions of Vehicle Code Section
       27156.

       Upon installation, the catalytic converter must carry a
       manufacturer‘s warranty for 25,000 miles on the substrates and 50,000
       miles or five years on the shell.

Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after ten day written notice of
intention to revoke it, during which period the holder of the order may
request in writing a hearing to contest the proposed revocation.  If a
hearing is requested, it shall be held within ten days of receipt of the
request, and the order may not be revoked until a determination is made,
after the hearing, that grounds for revocation exist.
                                           fiL
Executed at El Monte, California,   this        day of March,   1992.




                                           ummerfield
                                    AssiSstant Division Chief
                                    Mobile Source Division


                           State of California
                           AIR RESOURCES BOARD




EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 24000 SERIES
     3—WAY CATALYTIC CONVERTER FOR EXEMPTION FROM THE PROHIBITIONS IN
            VEHICLE CODE SECTION 27156 AND TITLE 13, CALIFORNIA
                   CODE OF REGULATIONS, SECTION 2222(h)




                              March, 1992


 EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 24000 SERIES
      3—WAY CATALYTIC CONVERTER FOR EXEMPTION FROM THE PROHIBITIONS IN
            VEHICLE CODE SECTION 27156 AND TITLE 13, CALIFORNIA
                    CODE OF RECULATIONS, SECTION 2222(h)




                                       by
                           Mobile Source Division

                            State of California
                            AIR RESOURCES BOARD
                            9528 Telstar Avenue
                          El Monte,   CA    91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY




        Car Sound Exhaust System, Inc.   (Car Sound) of 22961 Arroyo Vista,

Rancho Santa Margarita, California 92688, has applied for an exemption to

use their new 24000 (200HD) series aftermarket three—way plus oxidation (TWC

+ OC) catalytic converter for 3—way application under the California

regulations for new aftermarket catalytic converters.    Car Sound plans to

use the 24000 series catalytic converter on 3—way vehicles equipped with up

to 5.0 liter engine size and 4250 lbs. vehicle test weighf.

        Emissions data submitted by the applicant show that the catalytic

converter meets the requirements of Vehicle Code Section 27156 and Title 13,

California Code of Regulations, Section 2222(h)   for the stated application.

Based on the above, the staff recommends that the exemption be granted as

requested and that Executive Order D—193—8 be issued.


                                CONTENTS

                                           Page Number

                                                i
SUMMARY

                                               i1
CONTENTS

I.         INTERODUCTION

II.        CONCLUSION

III.       RECOMMENDATION

IV.        DEVICE DESCRIPTION

v.         DEVICE EVALUATION




                                    i1


 EVALUATION OF CAR SOUND EXHAUST SYSTEM, INC. NEW AFTERMARKET 24000 SERIES
    3—WAY CATALYTIC CONVERTER FOR EXEMPTION FROM THE PROHIBITIONS IN
            VEHICLE CODE SECTION 27156 AND TITLE 13, CALIFORNIA
                    CODE OF REGULATIONS, SECTION 2222(h)



I.         INTRODUCTION

           Car Sound Exhaust System,      Inc.   (Car Sofind)   of 22961 Arroyo Vista,

Rancho Santa Margarita, California 92688, has applied for an exemption

to use their new aftermarket three—way plus oxidation (TWC + OC) catalytic

converter series 24000 (200HD)         for 3—way (TWC) application in accordance

with California regulations on new aftermarket catalytic converters.                 The

intended application for the new aftermarket catalytic converter is shown

below:

Type                      Series No.      Max. Engine Size           Max. Veh. Wt.

TwC                       24000             5.0L (305 CID)             4250 lbs.

The catalyst was re—canned as 200HD series from two separately aged

converters using two reducing substrates and one oxidizing substrate in

order to meet California‘s more stringent minimum conversion efficiency for

NOx.     Car Sound has changed their part number system and the 200HD series is

now called the 24000 series.

II.       CONCLUSION

          The applicant has submitted all the required information and based

on the submitted exhaust emissions test data,          the staff concludes that the

catalytic converter meets the criteria set forth in Vehicle Code Section

27156 and Title 13, California Code of Regulations, Section 2222(h)                for the

stated application.

III.      RECOMMENDATION
          The staff recommends that the exemption be granted as requested and

that Executive Order No. D—193—8 be issued,          permitting the advertisement,

sale and installation of the new 3—way aftermarket catalytic converter.


IV.        DEVICE DESCRIPTION

           The substrates of Car Sound‘s three—way substrates are coated with

palladium and rhodium without air injection incorporated between the

reducing and oxidizing substrates as was the case with the three—way plus

oxidation application.     The 24000 series converter was assembled with two

reducing and one oxidizing substrates enclosed in an outer stainless steel

shell.     A heat shield of aluminum is welded to the converter shell to

protect the vehicle underbody from heat.       The catalytic converter is sold as

a unit with installation instructions and kits as shown in the application

catalog.     It is also sold with a warranty for 25,000 miles on the substrates

and five years or 50,000 miles on the container or shell.

v.         DEVICE EVALUATION

           Car Sound has submitted test data on the 24000 catalytic converter.

The tests were conducted by Automotive Testing and Development Services,

Inc.   (ATDS), Huntington Beach, California.    The two reducing substrates and

one oxidizing substrate used to build the 24000 series converter were

previously aged on a 1984 and a 1985 carbureted Chevrolet Caprice 5.0L

closed—loop vehicles.    CVS—75 emission tests for the 3—way application were

conducted on a 1991 TBI Chevrolet Caprice 5.0L,     alternatively with the

converter and exhaust backpressure simulator installed in order to determine

the conversion efficiencies for HC, CO, and NOx.      The vehicle test weight

for the 24000 converter was 4,250 lbs.     The exemption for the 3—way

application is limited to vehicles powered by engine size up to 5.0L and

4250 lbs. vehicle weight, in order to conform to the "worst case"

requirement of the California regulations.


Car Sound also submitted a temperature profile which was conducted at ATDS

to demonstrate that stress produced on the catalyst by a carbureted 1985

Chevrolet Caprice, 5.0L with closed—loop TWC + 0C is equal to the stress

produced by a 1991 TBI Chevrolet Caprice, 5.0L with closed—loop TWC system.

The equivalent test weight for both vehicles was 4250 1b.        The temperature

profile did not show a significant difference between the stress produced by

the 1985 Chevrolet Caprice and the 1991 version.        The test results and

conversion efficiencies for the converter are shown below:




                                 24000 Series TWC

            Simulator   Test l   Test 2   Average Conv. Eff.

HC (g/mi)      2.463    o.258    0.384          87.0%
co (g/mi)   12.917      2.036    2.695          81.6%
Nox(g/mi)      3.316    o.582    0.494          83.8%
All of the conversion efficiencies meet the requirements of the California

regulations.    The staff based the evaluation of the new aftermarket

catalytic converter on the information submitted by Car Sound, and test data

from Automotive Testing and Development Services, Inc.
