Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 27, 2006.
As of Tuesday, September 10th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1996 through 2007 Ford Vehicles, see pdfThe Whipple Charger for Ford vehicles consists of the following main components: Twin Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to replace the stock thermostat, new air cleaner housing with a high-flow element, fuel pump, reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may include an intercooler. The breather hose may be replaced with an SAE30R9 rated hose.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-25
  • Executive Order 231-25 / D231-25
  • ARB # D-231-25
  • Executive Order No: D-231-25
  • C.A.R.B. No. D-231-25
  • Resolution D-231-25
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-25 PDF

D-231-25 Document:


CARB_D-231-25

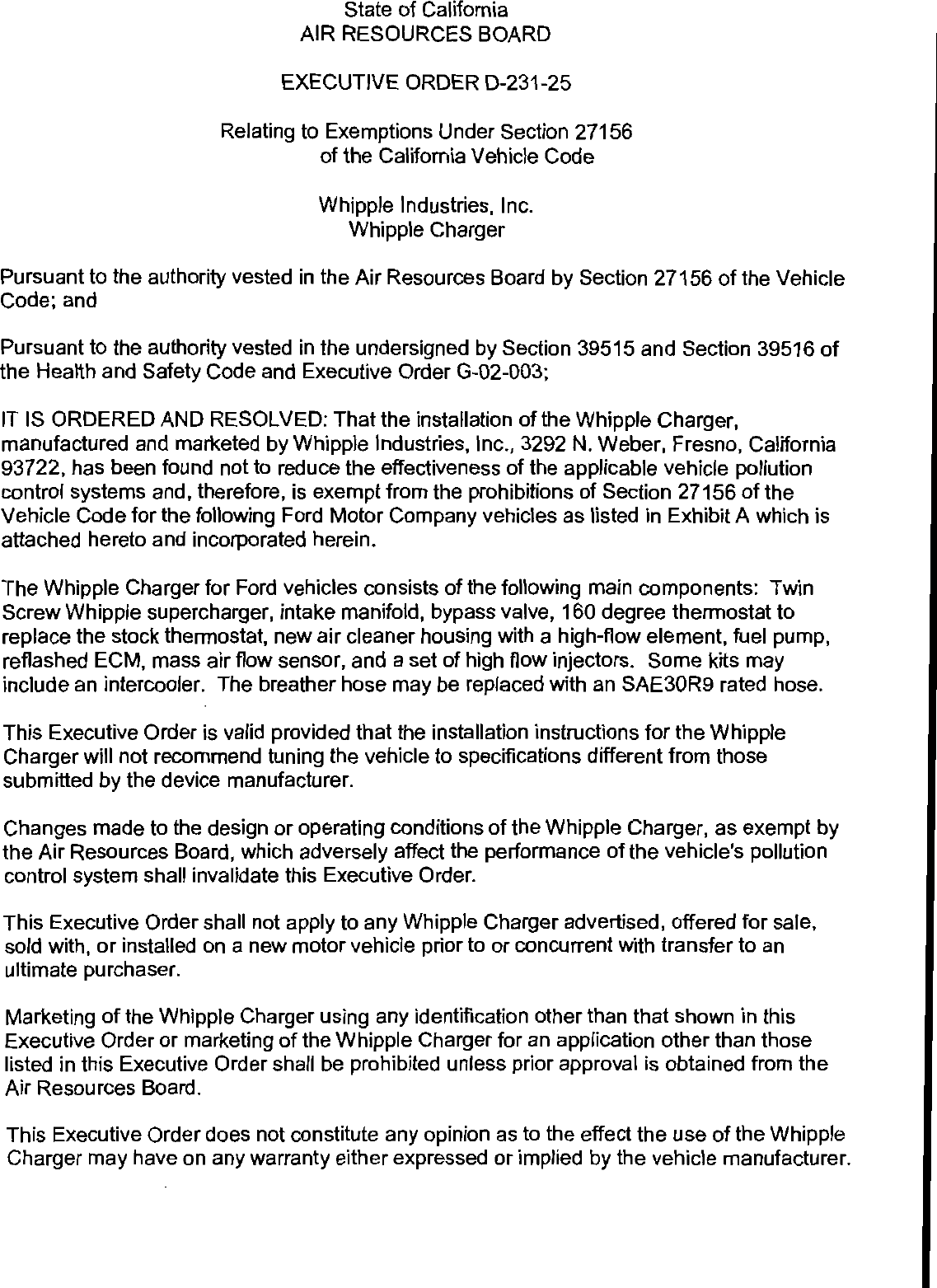

                                      State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—231—25

                        Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                   Whipple Industries, Inc.
                                      Whipple Charger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Whipple Charger,
manufactured and marketed by Whipple industries, Inc., 3292 N. Weber, Fresno, California
93722, has been found not to reduce the effectiveness of the applicable vehicle pollution
control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following Ford Motor Company vehicles as listed in Exhibit A which is
attached hereto and incorporated herein.

The Whipple Charger for Ford vehicles consists of the following main components: Twin
Screw Whipple supercharger, intake manifold, bypass valve, 160 degree thermostat to
replace the stock thermostat, new air cleaner housing with a high—flow element, fuel pump,
reflashed ECM, mass air flow sensor, and a set of high flow injectors. Some kits may
include an intercooler. The breather hose may be replaced with an SAE30RSY rated hose.

This Executive Orderis valid provided that the installation instructions for the Whipple
Charger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Whipple Charger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Charger advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the Whipple Charger using any identification other than that shown in this
Executive Order or marketing of the Whipple Charger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Whipple
Charger may have on any warranty either expressed or implied by the vehicle manufacturer.


This Executive Order is granted based on previously submitted emission test data
(D—231—23 and D—231—24) conducted on a 2005 model year Ford F—150 with a 5.4 liter engine
and a 2005 model year 4.6L Ford Mustang, both certified to the Low Emission Vehicle II Low
Emission Vehicle (LEV II LEV) emission standards. The emission test results on both vehicles,
in the modified configuration, were below the applicable certification standards. Examination of
the OBD II system showed no affect on the vehicle‘s OBD I! system operation.

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to
meet the standards and procedures of Title 13, California Code of Regulations, Section 2222,
et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES
BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS
OR ANY ALLEGED BENEFITS OF THE WHIPPLE CHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this   Z Z7       day of October 2006


                                ZeamwFons‘
                                 Annette Hebert, Chief
                                 Mobile Source Operations Divigion




               WHIPPLE INDUSTRIES, INC. — WHIPPLE CHARGER — D—231—25


                                                        Exhibit A
          |                                                                   MAX                    CRANK
  YEARS                      MAKE               WHIPPLE KT #        ENGINE    BOOST   COMPRESSOR—‘   PULLEY“   5C
                                                                    (LITER)    PSI        SIZE        SE     PULLEY
 1996—2004 |Ford Mustang                     WIK—4.6—2V              4.6L      10        2.3L        6.555      4.000
 1996—2004|Ford Mustang                      WIK—4.6—2V              4.6L      10        2.3L        6.555      4.250
(1996—2004(Ford Mustang                      WIK—4.6—20—1C           4.6L      10        2.3.        6.555      3.250
1996—2004 |Ford Mustang                      WIK—4.6—2V—1C           4.6L      10        23L         6.555      3.500
 1996—2004 |Ford Mustang                     WIK—4.6—2V—1C           4.6L      10        23L         6.555      3.625
 1996—2004 |Ford Mustanc                     WIK—4.6—2V—1C           4.6L      10        2.3L        6.555      3.750
 1996—2004 |Ford Mustang                     WIK—4.6—2v—1C           4.6L.     10        23.         6.555      3.875
 1996—2004 |Ford F150/F250/F350/Expedition   ___\WIK—5.4—2V—IC       54L       10        2.3t.       6.555      3.375
 1996—2004 |Ford F150/F250/F350/Expedition   |WIK—5.4—2V—4C          54L       10        2.3L.       6.555      3.500
 1996—2004 |Ford F150/F250/F350/Expedition   ___|WIK—5.4—2V—IC       5.4L      10        2.3L        6.555      3.625
 1996—2004 |Ford F150/F250/F350/Expedition   |WIK—5.4—2V—IC          5.4L      10        2.3L        6.555      3.750
 1996—2004 |Ford F150/F250/F350/Expedition   __|WIK—5.4—2V           5.4L      10        2.3L        6.555      3.875
 1996—2004 |Ford F150/F250/F350/Expedition   |WiK—5.4—2V             5.4L      10        2.3L.       6.555      4.000
 1996—2004 |Ford F15D/F25D/F350/Expedition   |WIK—5.4—2V             5.41      10        23L         5.555      4125
 1998—2001 |Ford Mustang Cobra               WIK—4.6—4V—IC           4.6L      10        23L         6.555      3.000
 1998—2001 [Ford Mustang Cobra               Wi—4.6—AV—4C            4.61      10        2.3         6.555      3125
 1998—2001 |Ford Mustang Cobra               WIK—4.6—4V—1C           4.6L      10        2.3L        6.555      3.250
 1998—2001 |Ford Mustang Cobra               WIK—4.6—4V—1C           4.6L      10        23L         6.555      3.385
 1998—2006|Ford F250/F350                    WIK—6.8L                6.8L      10        23L         7.500      3.485
{1998—2006 |Ford F250/F350                   WIC—6.81—IC             6.8L      10        2.3L        7.500      3.250
 1999—2004|Ford Lightning/HarleyTruck        WIK—5.41—2023           5.4L      15        2.3L.       7.500      2.750
 1999—2004 |Ford Lightning/Hariey Truck      WIK—5.41—2423           5.4L      15        23L         7.500      3.000
 1999—2004 |Ford Lightning/Harley Truck      WIK—5.41—2V23           5.4L      15        2.3L        7.500      3.250
 1999—2004|Ford Lightning/Harley Truck       WIik—5.41—2V33          5.4L      15        3.3L        7.500      4.500
 1999—2004]Ford Lightning/Harley Truck       WIK—5.41—2V33           5.4L      15        3.3.        7.500      4.750
 1999—2004|Ford Lightning/Harley Truck       WIK—5.41—2V33           54L       15        3.3         7.500      5.000
 2002—2004|Ford Cobra                        WIKC—4.6L—4V23          4.6L      15        2.3L        7.500      3.250
 2002—2004|Ford Cobra                        WIK—4.6L—4V23           4.6L      15        2.3L        7.500      3.500
 2002—2004 |Ford Cobra                       WIK—4.6L—4V33           4.6L      15        33L         7.500      4.250
 2002—2004|Ford Cobra                        WIKC—4.61—4V33          4.6L      15        3.3L        7.500      4.500
 2002—2004|Ford Cobra                        WIK—4.6L—4V33           4.61.     15         3.3L       7.500      4.750
 2002—2004 |Ford Cobra                       WIK—4.6L—4V33           4.6L      15         3.3L        7.500     5.000
 2002—2006 |Ford Ranger/Mazda B—Series       WIK—3.0L                3.0L      1          12L         5.830     2.750
 2002—2006 |Ford Ranger/Mazda B—Series       WIK—3.0L                 3.0L     11         1.2L        5.830     2.875
 2002—2006 |Ford Ranger/Mazda B—Series       WIK—3.0L                3.0L       11        1.2L        5.830      3.000
 2002—2006 |Ford Ranger/Mazda B—Series        WIK—3.0L                3.0L      11        1.2L        5.830 .    3.125
 2004—2007 |Ford F150/F250/F350/Expedition   |WIK—5.4L—3V—IC          5AL      10        2.3         6.500      3.250
 2004—2007Ford F150/F250/F350/Expedition     |WIK—5.4L—3V—IC          5.4L     10        23L         6.500      3.385
 2004—2007 |Ford F150/F250/F350/Expedition   |WIK—5.4L—3V—IC          5AL      10         23L         6.500      3.500
 2004—2007 |Ford F150/F250/F350/Expedition   WIK—5.4L—3V              5.4L      10        2.3L.       6.500      3.385
 2004—2007 |Ford F150/F250/F350/Expedition    |WIK—5.4L—3V            5.4L      10        23L         6.500      3,500
 2005—2007 |Ford F25D/F35D                    WIK—6.8L—3V—IC          6.8L      10        23L         6.500      3.000
  2005—2007 |Ford F250/F350                   WIK—6.8L—3V—IC          6.8L      10        2.3L        6.500      3.125
  2005—2007 |Ford F250/F350                   WIK—6.81—3V—1C          6.8L      10        2.3L.       6.500      3.250
  2005—2007 |Ford F250/F350                   WIK—6.8L—3V             6.8L      10        2.3L        6,500      3.125
  2005—2007 |Ford F250/F350                   WIK—6.8L—3V             6.8L      10        2.3L        6.500      3.250
  2005—2007 |Ford F25D/F350                   WIK—6.81.—3V            6.8L      10        23L         6.500      3.385
  2005—2007Ford Mustang                       WIK—5.41—3V             4.6L      12        2.3L        6.500      4.250
  2005—2007 |Ford Mustang                     WIK—5.41—3V             4.6L      12        2.3L.       6.500      4125
  2005—2007 |Ford Mustang                     WIKC—5.41—3V            4.6L.     12        2.3L        6.500      4.000
  2005—2007 |Ford Mustang                     WIKC5.4L—3V             4.6L      12        2.31.       6.500      3.875
  2005—2007 |Ford Mustang                     WIK—5.41—3V             4.6L      12        2.3L.       6.500      3.750
  2005—2007 |Ford Mustang                     WIK—5.41—3V             4.6L      12        2.3L        6.500      3.625
  2005—2007|Ford Mustang                      WIK—5.4L—3V             4.6L      12        2.3L        6.500      3.500
  2005—2007|Ford Mustang                      WIK—5.4L—3V             4.6L      12        23L         6.500      3.375
  2005—2007 |Ford Mustang                     Wik—5.4L—3V             4.GL.     12        2.3L.       6.500      3.250
  2005—2007 |Ford Mustang                     WIK—4.6L—3V—1C          4.6L      12        2.3L.       6.500      2.750
  2005—2007|Ford Mustang                      WIK—4.6L—3V—1C          4.6L.     12        2.3L.       6.500      2.875
  2005—2007 |Ford Mustang                     WIK—4.6L—3V—IC          4.6L      12        2.3L        6.500      3.000
  2005—2007 |Ford Mustang                     WIK—4.6L—3V—IC          4.6L      12        23L         6.500      3125
  2005—2007|Ford Mustang                      WIK—4.6L—3V—IC          4.6L      12        23L         6.500      3.250
  2005—2007 |Ford Mustang                     WIK—4.6L—3V—IC          4.GL      12        2.3L        6.500      3.385
  2005—2007 |Ford Mustang                     WIK—4.6L—3V—IC          4.6L      12        2.3L        6.500      3.500
 2005—2007]Ford    Mustang                   WIK—4.6L—3V—1C           4.6L      12        2.3L        6.500     3.625
 2005—2007 |Ford   Mustang                   WIK—4.6L—3V—IC           4.6L.     12        2.3L.       6.500     3.750
 2005—2007 |Ford   Mustang                   WIK—4.61—3V—IC           4.6L      12        2.3L        6.500     3.875
 2005—2007]Ford    Mustang                   WIK—4.6L—3V—IC           4.6L      12        2.3L        6.500     4.000

 IC = INTERCOOLED
