Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 16, 1998.
As of Tuesday, January 14th, 2025 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
29412, 29412S1994 GM S10/S15 4.3L, AutoExcluded: Any vehicle certified to a transitional low emission vehicle (TLEV) or low emission vehicle (LEV) emission standard.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-234-4
  • Executive Order 234-4 / D234-4
  • ARB # D-234-4
  • Executive Order No: D-234-4
  • C.A.R.B. No. D-234-4
  • Resolution D-234-4
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-234-4 PDF

D-234-4 Document:


CARB_D-234-4

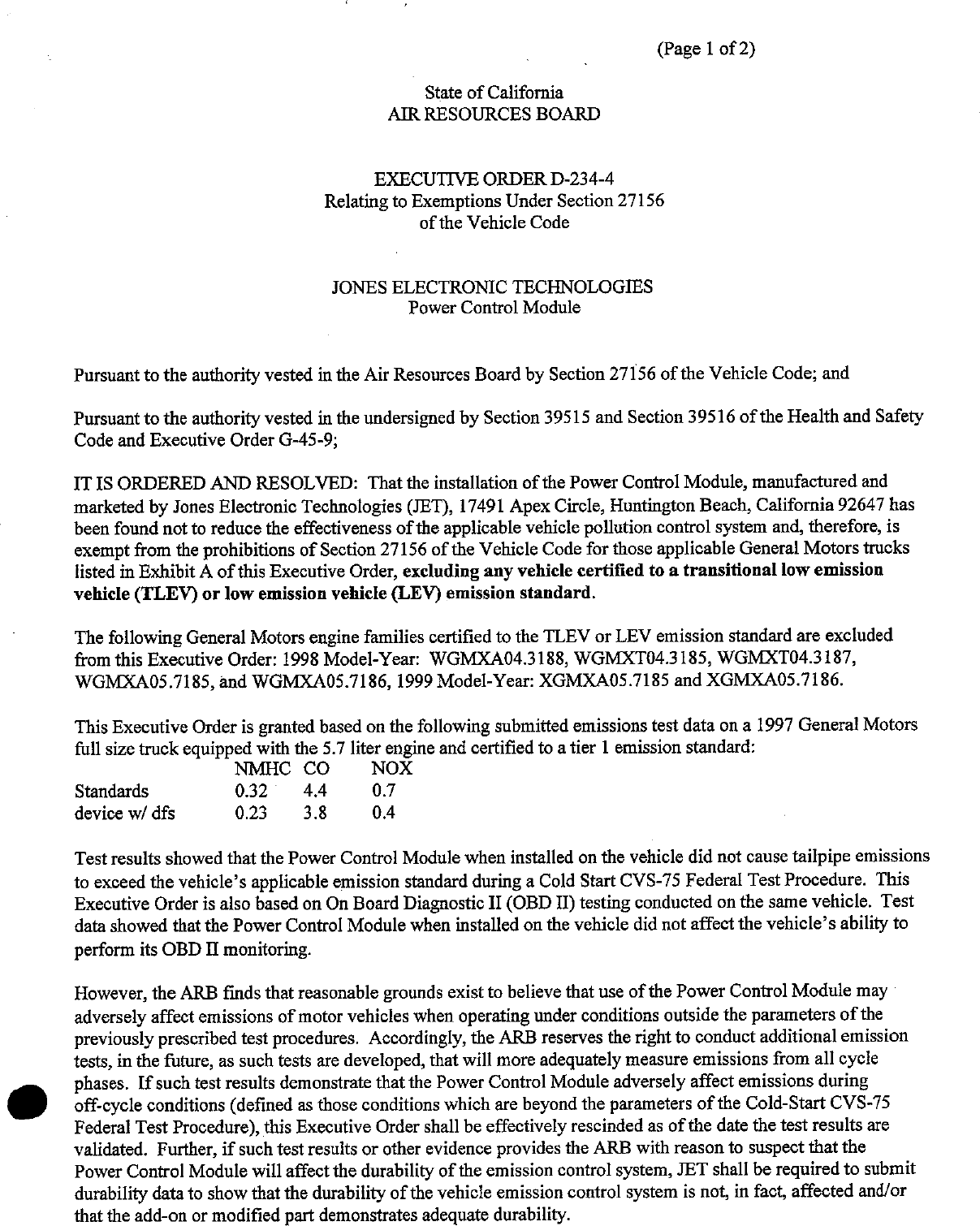

                                                                                 (Page 1 of 2)

                                                 State of California
                                            AIR RESOURCES BOARD


                                         EXECUTIVE ORDER D—234—4
                                   Relating to Exemptions Under Section 27156
                                                of the Vehicle Code


                                    JONES ELECTRONIC TECHNOLOGIES
                                           Power Control Module


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and Safety
Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Power Control Module, manufactured and
marketed by Jones Electronic Technologies (JET), 17491 Apex Circle, Huntington Beach, California 92647 has
been found not to reduce the effectiveness ofthe applicable vehicle pollution control system and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for those applicable General Motors trucks
listed in Exhibit A of this Executive Order, excluding any vehicle certified to a transitional low emission
vehicle (TLEV) or low emission vehicle (LEV) emission standard.

The following General Motors engine families certified to the TLEV or LEV emission standard are excluded
from this Executive Order: 1998 Model—Year: WGMXA04.3188, WGMXTO04.3185, WGMXT04.3187,
WGMXA05.7185, and WGMXA05S.7186, 1999 Model—Year: XGMXAQ0S.7185 and XGMXAO05.7186.

This Executive Order is granted based on the following submitted emissions test data on a 1997 General Motors
full size truck equipped with the 5.7 liter engine and certified to a tier 1 emission standard:
                      NMHC CO            NOX
Standards             0.32° 44           0.7
device w/ dfs         0.23  3.8          0.4

Test results showed that the Power Control Module when installed on the vehicle did not causetailpipe emissions
to exceed the vehicle‘s applicable emission standard during a Cold Start CVS—75 Federal Test Procedure. This
Executive Order is also based on On Board Diagnostic II (OBD II) testing conducted on the same vehicle. Test
data showed that the Power Control Module when installed on the vehicle did not affect the vehicle‘s ability to
perform its OBD II monitoring.

However, the ARB finds that reasonable grounds exist to believe that use of the Power Control Module may
adversely affect emissions of motor vehicles when operating under conditions outside the parameters of the
previously prescribed test procedures. Accordingly, the ARB reserves the right to conduct additional emission
tests, in the future, as such tests are developed, that will more adequately measure emissions from all cycle
phases. If such test results demonstrate that the Power Control Module adversely affect emissions during
off—cycle conditions (defined as those conditions which are beyond the parameters of the Cold—Start CVS—75
Federal Test Procedure), this Executive Order shall be effectively rescinded as of the date the test results are
validated. Further, if such test results or other evidence provides the ARB with reason to suspect that the
Power Control Module will affect the durability of the emission control system, JET shall be required to submit
durability data to show that the durability of the vehicle emission control system is not, in fact, affected and/or
that the add—on or modified part demonstrates adequate durability.


Tones Electronic Technologies                                 .       EXECUTIVE ORDER D—234—4
Power Control Module                                                  (Page 2 of 2)




This Executive Order is valid provided that the installation instructions for the Power Control Module will not
recommend tuning the vehicle to specifications different from those of the vehicle manufacturer.

Changes made to the design or operating conditions ofthe Power Control Module, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control system shall invalidate
this Executive Order.

Marketing of the Power Control Module using any identification other than that shown in this Executive Order or
marketing of the Power Control Module for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the Power Control
Module shall not be construed as exemption to sell, offer for sale, or advertise any component of the kit as an
individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Power Control Module may
have on any warranty either expressed or implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF JONES ELECTRONIC TECHNOLOGIES‘ POWER CONTROL MODULE.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the action
taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be revoked
only after a ten—day written notice ofintention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation. If a hearing is requested, it shall be held within
ten days of receipt of the request and the order may not be revoked until a determination after hearing that
grounds for revocation exist.
                                             yYa
Executed at E1 Monte, California, this I é      day of,     1998.




                                        R. B. Summerfield, Chief
                                        Mobile Source Operations Division


                            Exhibit A          Page 1 of 2

YEAR MODEL        ENGINE TRANSMISSION PART#S                 CALIFORNIA VEHICLE PART #8
 1994 S10/S15         4.3     Auto    29412, 204128
      $S10815         4.3     Man     29413, 294138
      $10S15          4.3     Auto    29420, 294208
      Astro/safar     4.3     Auto    29422, 204228
      Astro/Safari    4.3         Auto   29425, 294258
       CK15—25        4.3        Auto    29414, 294148
       CK15—25        4.3        Auto    29415, 294155
       CK 15—25       4.3         Man    29416, 294168
       CK 15—25      305         Auto    29403, 294038
       CK 15—25      305          Man    29401, 294018
       CK 15—25      350         Auto    294055, 2040555     29405,    294058
       CK 15—25      350         Auto    29430, 294308       29427,    294278
       CK 2500       350         Auto    29406, 29406§       29428,    204288
       CK 3500       350         Auto    29423, 204238        29429,   294295
       CK 15         360         Auto    29404, 294048
       CK 25—35      350          Man    29424, 294248
       CK 25—35      454          Man    29410, 294108
       CK 25—35      454         Auto    29417, 294178
      SS 454         454         Auto    29418, 294188
      CK 25—35       454          Man    29421, 294218
 1995 S10/815         4.3        Auto    29519, 295198       29512, 205128
      $10815          4.3         Man    29551, 295518        29551, 295518
      S10/815         4.3        Auto    29541, 295418       29541, 295418
      S10/815         4.3         Man    20542, 295428       29542, 2905428
      $10815          4.3        Auto    29522, 295228       29520, 295208
      Astro/safari    4.3        Auto    29525, 295258       29525, 295258
      CK15—25         4.3        Auto    29515, 295158        29514, 295148
      CK15—25         4.3        Auto    29521, 295218
      CK15—25         4.3        Man     29516, 295168
      C 15—25        305         Auto    29502, 295028        29504, 295048
      K 15—25        305         Auto    29510, 295108       29503, 295038
      CK 1500        305         Man     29526, 29526S
      C 1500         350         Auto    295055, 295055S     29505, 295058
      C 1500         350         Man     29518, 29518
      C 15—25        350         Auto    29509, 29509S        29507, 295075
      CK 2500        350         Auto    29501, 295018       29508, 29508S
      CK 25—35       350         Auto    29506, 29506S
      CK 25—35       350         Man     29524, 295248       29524, 295248
      CK 25—35       454         Auto    29517, 295178
      CK 25—35       454         Man     29512, 295128
 1996 S10/S15         4.3        Auto    29641, 296418
      $10815          4.3        Man     29642, 296428
      Astro/safari    4.3        Auto    29625, 29625S
      CK15—25         4.3        Auto    29615, 296158       29614, 296148
      CK15—25         4.3        Man     29616, 296168
      CK15—25        305         Auto    29602, 296028       29604, 206048
      CK 1500        305         Man     29626, 296268       29603, 296035
      C 1500         350         Man     29618, 296185


                           Exhibit A cont.         Page 2 of 2


YEAR MODEL       ENGINE TRANSMISSION PART#S                      CALIFORNIA VEHICLE PART #8
 1996 C 15—25        350     Auto    29609, 296098               29607, 296078
      CK 2500        350     Auto    29601, 296018               29608, 296085
      CK 2500        350     Auto    296055, 296055$             29605, 296058
      CK 25—35       350     Auto    29606, 29606S
      CK 25—35       350     Man     29624, 296248
      CK 25—35       454     Auto    29617, 296178
      CK 25—35       454     Man     29612, 296128
 1997 $10—515         4.3    Auto    29741, 297418
      $10—515         4.3    Man     29742, 297428
      Astro           4.3    Auto    29725, 297258
      CK 15—25        4.3    Auto    29715, 297158
      CK 15—25        4.3    Man     29716, 29716$
      CK 15—25       305     Auto    29702, 297028
      CK 15—25       305     Man     29726, 297268
      CK 1500        350     Auto    29705, 297058
      CK 15—25       350     Auto    29710, 297108
      CK 15—25       350     Auto    29709, 297098
      CK 1500        350     Man     29718, 29718S
      CK 25—35       350     Auto    29701, 297018
      CK 3500        350     Auto    29706, 297068
      CK 25—35       350     Man     29724, 297248
      CK 25—35       454     Auto    29717, 297178
      CK 25—35       454     Man     29721, 297218
 1998 S10—515         4.3    Auto    29841, 298418
      $10—515         4.3    Man     29842, 298428
      Astro          4.3        Auto         29825, 298258
      CK 15—25       4.3       Auto          29815, 298155
      CK 15—25       4.3       Man           29816, 298165
      CK 15—25      305        Auto          29802, 298028
      CK 15—25      305        Man           29826, 208268
      CK 1500       350        Auto          29805, 29805S$
      CK 15—25      350        Auto          29810, 298108
      CK 15—25      350        Auto          29809, 298098
      CK 1500       350        Man           29818, 298185
      CK 25—35      350        Auto          29801, 298018
      CK 3500       350        Auto          29806, 29806S
      CK 25—35      350        Man           29824, 298248
      CK 25—35      454        Auto          29817, 298178
      CK 25—35      454        Man           29821, 298218
 1999 Tahoe         350        Auto          29905, 29905S
      Suburban      350        Auto          29901, 299018
      Suburban      454        Auto          29917, 299178



Document Created: 2005-09-01 12:45:37
Document Modified: 2005-09-01 12:45:37
