Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 9, 1992.
As of Sunday, December 16th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
1412-16, 1416-161992 and older GM vehicles with 262-454 CID gasoline engines

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-279
  • Executive Order 279 / D279
  • ARB # D-279
  • Executive Order No: D-279
  • C.A.R.B. No. D-279
  • Resolution D-279
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-279 PDF

D-279 Document:

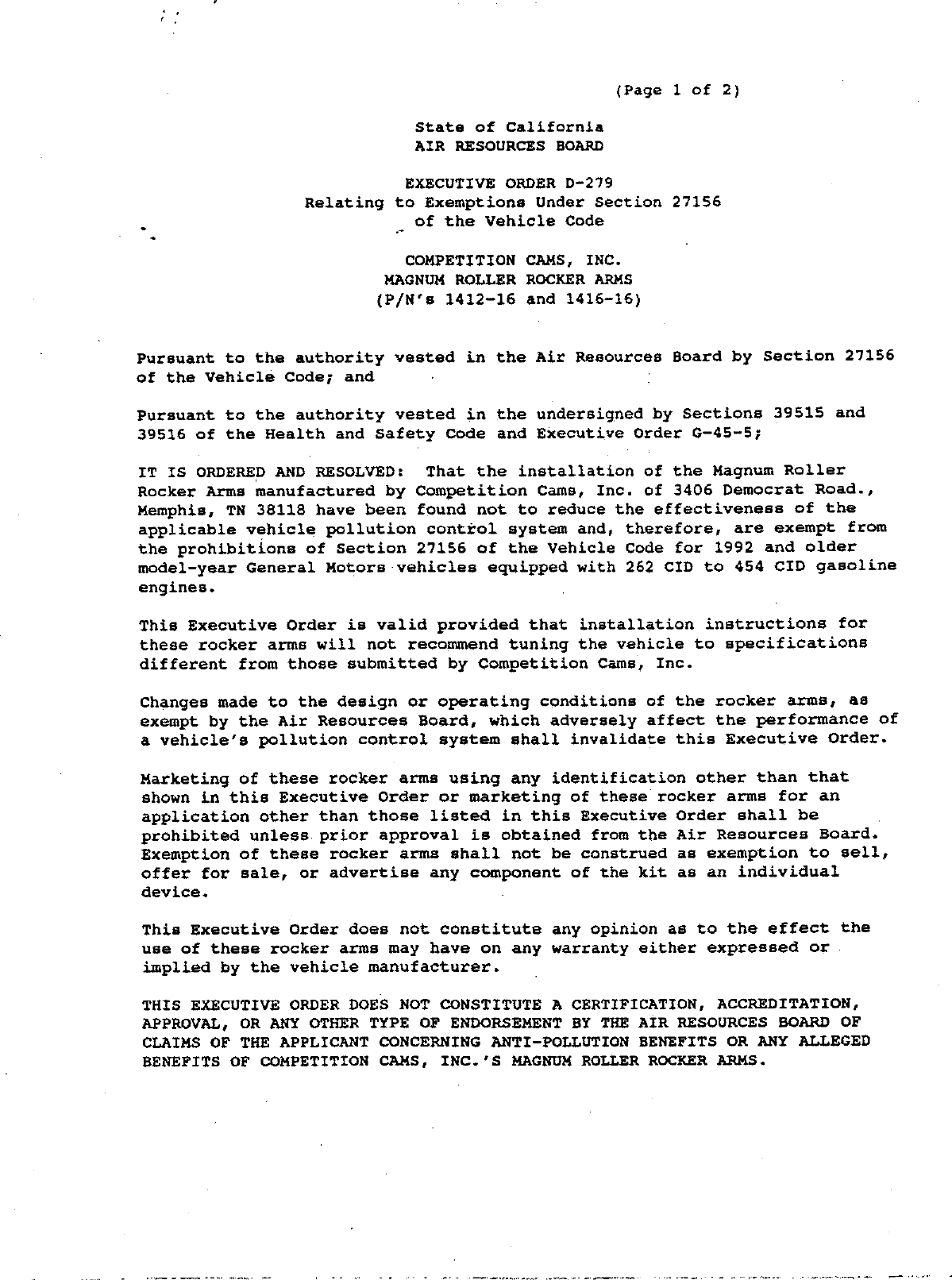

                                                    (Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                           EXECUTIVE ORDER D~279
                 Relating to Exemptions Under Section 27156
.                         _ of the Vehicle Code

                              COMPETITION CAMS, INC.
                            MAGNUM ROLLER ROCKER ARMS
                           (P/N‘s 1412—16 and 1416—16)


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and        —

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:  That the installation of the Magnum Roller
Rocker Arms manufactured by Competition Cams, Inc. of 3406 Democrat Road.,
Memphis, TN 38118 have been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, are exempt from
the prohibitions of Section 27156 of the Vehicle Code for 1992 and older
model—year General Motors vehicles equipped with 262 CID to 454 CID gasoline
engines.

This Executive Order is valid provided that installation instructions for
these rocker arms will not recommend tuning the vehicle to specifications
different from those submitted by Competition Cams, Inc.

Changes made to the design or operating conditions of the rocker arms, as
exempt by the Air Resources Board, which adversely affect the performance of
a vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of these rocker arms using any identification other than that
shown in this Executive Order or marketing of these rocker arms for an
application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of these rocker arms shall not be construed as exemption to sell,
offer for sale, or advertise any component of the kit as an individual
device.

This Executive Order does not constitute any opinion as to the effect the
use of these rocker arms may have on any warranty either expressed or
implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF COMPETITION CAMS, INC.‘S MAGNUM ROLLER ROCKER ARKS.


COMPETITION CAMS, INC.                           EXECUTIVE ORDER D—279
MAGNUM ROLLER ROCKER ARMS                        (Page 2 of 2)


No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Violation of any of the above conditions shall be grounds for
revocation of this order.  The order may be revoked only after ten day
written notice of intention to revoke the order, in which period the holder
of the order may request in writing a hearing to contest the proposed
revocation.  If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.

Executed at El Monte, California, this    3?   day of September, 1992.




                                           sistant Division Chief
                                         Mobile Source Division


                      State of California
                      AIR RESOURCES BOARD




EVALUATION OF COMPETITION CAMS, INC.‘S MAGNUM ROLLER ROCKER ARMS
        FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
   SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                THE CALIFORNIA CODE OF REGULATIONS




                         September 1992


                            State of California
                            AIR RESOURCES BOARD




      EVALUATION OF COMPETITION CAMS, INC.‘S MAGNUM ROLLER ROCKER ARMS
             FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
        SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                     THE CALIFORNIA CODE OF REGULATIONS




                                    by
                         Mobile Source Division
                           State of California
                           Air Resources Board
                           9528 Telstar Avenue
                         El Monte, CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                   summary

     Competition Cams,   Inc. has applied for an exemption from the

prohibitions of Vehicle Code Section‘27156 for their Magnum Roller Rocker

Arms, part numbers 1412—16 and 1416—16, for installation on 1992 and older

General Motors vehicles equipped with 262 CID (4.2L) to 454 (7.4L) CID V—8

gasoline engines.   Competition Cams has submitted a completed application

and all the required information, as well as exhaust emissions test data

performed at E. C. S. Laboratories, Inc.     The test data demonstrated that

the specified rocker arms do not have any adverse effect on the exhaust

emissions of the affected vehicles.

     Based on the submitted information and results of the emission tests

performed at E. C. S. Laboratories, Inc., the staff concludes that the

installation of Competition Cams Magnum Roller Rocker Arms will not

adversely affect exhaust emissions of the specified vehicles.

     The staff recommends Competition Cams, Inc. be granted an exemption as

requested and that Executive Order D—279 be issued.


                               TABLE OF CONTENTS




                                                        Page Number


SUMMARY

CONTENTS                                                     ii

I.         INTRODUCTION

II.        CONCLUSION

III.       RECOMMENDATION

IV.        ROCKER ARM DESCRIPTION

           DISCUSSION

           APPENDIX
           APPENDIX A:      INSTALLATION INSTRUCTIONS




                                        ii


       EVALUATION OF COMPETITION CAMS, INC. MAGNUM ROLLER ROCKER ARMS
 EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE
     WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




I.    INTRODUCTION

      Competition Cams, Inc. of 3406 Democrat Road, Memphis, Tennessee 38118,

has applied for an exemption from the prohibitions of Vehicle Code Section

27156 for their Magnum Roller Rocker Arms, part numbers 1412—16 and 1416—16,

for installation on 1992 and older General Motors vehicles equipped with 262

CID (4.2L) to 454 CID (7.4) gasoline engines.

      Competition Came has submitted a completed application and all the

required information, as well as exhaust emissions test data performed at

E. C. S. Laboratories, Inc.   The test data demonstrated that the specified

rocker arms do not have any adverse effect on the exhaust emissions of the

affected vehicles.




II.    CoNCLUsIONS
      Based on the submitted information and the results of the emission

tests performed at E. C. S. Laboratories, Inc., the staff concludes that the

Competition Cams, Inc.‘s Magnum Roller Rocker Arms will not adversely affect

exhaust emissions from vehicles for which the exemption is requested.



III. RECOMMENDATION

      The staff recommends that Competition Cams, Inc. be granted an

exemption as requested and that Executive Order D—279 be issued.


IV.   ROCKER ARMS DESCRIPTION

      The rocker arms are specifically designed for installation on 1992 and

older General Motors vehicles powered by 262 CID (4.2L) to 454 CID (7.4L)

V—8 gasoline engines.   The rocker arms operate in conjunction with the

original equipment manufacturer‘s (OEM)} emission control systems already

certified with the stock engines.   The purpose of using the modified rocker

arms is to increase the overallveflgine performance by increasing the lift of

the intake and exhaust valves without modifying valve timing.   The Magnum

Roller Rocker Arms operate the same as the stock rocker arms.   However, the

Magnum Roller Rocker Arms reduce valvetrain friction losses since a roller

bearing is used as the contact point between the valve and the rocker arm.

      The OEM rocker arm ratio is 1.5:1.   The rocker arm part number 1412—16

increases the rocker arm ratio to 1.52:1, thus increasing the intake lift by

1.1 percent and the exhaust lift by 1.3 percent,    The rocker arm part number

1416—16 increases the rocker arm ratio to 1.6:1, thus increasing the intake

and exhaust lift by 6.5 percent.    Appendix A contains a copy of the

installation instructions.




V.    DISCUSSION
      Competition Cams submitted emission testing conducted at E. C. S.

Laboratories, Inc. on the 1.6 ratio rocker arm (P/N 1416—16).    This rocker‘

arm part number 1416—16 had the gxeat?at lift increase, and was therefore,

determined as the worst case.   A 1987 Chevrolet Camaro powered by a 305 CID

engine was used as the test vehicle for the rocker arms.   The dynamometer

inertia weight and loading used during the testing were 3625 los. and 7.6

hp, respectively.


     Emission testing against the emission standards consisted of one

cold—start CVS—75 Federal Test Procedure in the modified configuration.         The

Air Resources Board did not conduct confirmatory tests.       The test results

for the rocker arms are shown in Table 1.


                                        Table 1

                              CVs—75 TEST RESULTS
                         (E. C. S,. Laboratories, Inc.})

     Test                       Exhaust Emissions (gm/mi)
     Mode                       HC                co            NOx
     1.6 rocker arms            0.144             1.472         0.415
     emission standard          0.39              7.0           0.7



     The CVS—75 emissions test reéults at E. C. S. Laboratories, Inc.

indicate that HC, CO and NOx emissions of the rocker arms were below the

emission standards for that vehicle.       This demonstrates that the

installation of the Magnum Roller Rocker Arms for all 1992 and older General

Motors 262 CID (4.2L) to 454 CID (7.4L) gasoline engines will not adversely

affect the exhaust emissions.

     Competition Cams has submitted all the required information and

fulfilled the requirements for an exemption.       The test results confirmed

that Competition Cams Magnum Roller Rocker Arms meet the requirements for

the exemption.


APPENDIX A


              _ MAGNUM R
                                                                                                       OLLFER
                     ._                         ROCKERARM
                                                          S
                                                                                              bececs


                                          INSTALLATION INSTRUCTIONS
                      Congratulations on your purchase of Competition Cams‘ Magnum Rocker Arms. Magaum Rocker Arms are the
                    strongest, most accurate replacement rocker arms on the market today. Magnum Rocker Arms not only improve
                    engine performance and efficiency, they also reduce friction—and guide wear to help your motor stay healthier longer.
                      To ensure maximum benefit from your Magnum Rockers, installation and valve adjustment should be done with
                    care. The following guide will assist you with the installation and adjustment of your new Magnum Rocker Arms,
                                          Read all the instructions thoroughly before beginning installation! _

                        n        Read the special instructions beginning on page 3

                        u       With the valve covers off, and old rocker arms removed, the first step will be to inspect the pushrods.
                              Competition Cams strongly suggests when installing new rocker arms (of any kind), that new Competition
                              Cams pushrods be incorporated to ensure that all mating surfaces are fresh to prevent any premature failures.
                              If you are using the old pushrods, examine the ends of all pushrods for any flaking or galling. Any imperfec—
                              tions on the ends of the pushrods will result in either rocker arm or lifter failure.
                                 Clean, and blow dry all pushrods. Also blow through the pushrod to remove any foreign matter such as
                              sludge. Remember, in any type of motor work, cleanliness is imperative!

                        .       Inspect rocker arm studs, pedestals, etc. for excessive wear. Check to see if the old rocker was cutting into the
                              side ofthe rocker arm stud. Also check the guide slots in the cylinder head or guide plates for excessive wear.
                              Wipe clean the tops of all the vaives and again inspect each one for wear or ‘mushrooming? of the valve stem.
                                Movement of metal or galling of the studs, pedestals or valve stems is a sign of excessive wear. Now is the
                              time to make whatever decisions are necessary. Installing new rocker arms on questionable studs or mush—
                              roomed valve stems is asking for trouble.                                e

                                 Remove the Magnum Rockers from the package and wash all balls, rockers and nuts thoroughly with soap
                              and hot water or denatured alcohol {Iacquer thinner.) Blow dry.

                        B       Install the pushrods into the motor. If pushrod has a long hardened tip, make sure it rides properly in guide
                             plate. If pushrod has arrow, install pointing up. We suggest that all the pushrods be pre—oiled through the
                             pushrod holes. Apply a small amount of Competition Cams assembly lube to valve stem tips and rocker arm
                             pushrod seat,

                       fl        Install rocker arm on rocker stud. Pay special attention to the pushrod and rocker arm positioning. Be sure
                             that the pushrods are seated in the lifter and rocker arm seats.
                                Apply a liberal coating of Competition Cams assemblylube to the rocker arm ball and position it on the
Prisced in U.S.A.




                             rocker stud, flat side up. Install adjusting nut, do not tighten the adjusting nut until you go through the proper
                             sequence oflifter adjustment.
                                Install the remainder ofrocker arms in this manner.


                    Not legalfor sale or use in CA on pollution—controlled motor vehicies.                                  ®             .
                                                                                                                                Vaive Trains Engineered
                       Pas # 250          © All rights reserved Competition Cams, Inc. 1991                                     For The Way You Drive!


          After carefully checking to be sure all pushrods are seated in the lifter and rocker arm, it is time for valve
        lash adjustment.



6
         By installing the crankshaft dampner bolt back into the snout ofthe cranikshaft, turn the engine over by
       hand in the direction ofits running rotation until the exhaust pushrod begins to move upward to open the
       valve. You can now adjust the intake valve of that same cylinder and be assured that you are on the ‘base
       circle‘ of the intake lobe.                                        .
           Hydraulic Lifter Cams: Tighten the adjusting nut until all the slack is taken outofthe rocker arm and
       pushrod. By lightly turning the pushrod with your fingers as you tighten the adjusting nut, you will discover
       or feel a point at which there will be a slight resxstance At that point, you have taken all the excess slack out
       ofthe pushrod. You are now at what we refer to as ‘zerolash.‘ Turn the adjusting nut one—half turn more. This
       will give you the ideal pre—load of the rocker arm, pushrod and lifter. Following this procedure,carefully
       adjust all intake valves.
          Solid Lifter Cams: Consult cam spec card or cam manufacturer for correct lash specs. Tighten adjusting
       nut while proper feeler gauge is between roller tip and valve to the point at which there is a slight drag when
       moving feeler guage. On solid lifter cams you may wish to use 4602—16(3/8") or 4603—16(7/16") polylocks.
           Following this procedure, carefully adjustall intake valves.

           Hydraulic Lifter Cams: To adjust the exhaust valves, turn the engine over until the intake pushrod
       movesall the way up. Rotate past maximum lift, approximately one—halfto two—thirds ofthe way back
       down. You are now on the base circle of the exhaust lobe and can adjust the exhaust valve.
          Rotate the exhaust pushrod with your fingers and begin to tighten the exhaust adjusting nut. When you feel
        resistance on the pushrod, you are at zero lash. Tighten the adjusting nut one—half turn more.
          Go through the exhaust valves and repeatthe procedure carefully. You now have all ofthe valves adjusted
        with the proper pre—load.
           Solid Lifter Cams: To adjust the exhaustvalves, turnthe engine overuntilthe intake pushrod movesall the way
        up. Rotate pastmaximum ift, approximately one—halftotwo—thirds ofthe way backdown.
           Tighten adjusting nut while proper feeler gauge is between roller tip and valve to the point at which there is
        a slight drag when moving feeler gauge. Following this procedure carefully adjust all exhaust valves. On
        solid lifter cams you may wish to use 4602—16(3/8") or 4603—16(7/16") polylocks.

           Before you re—install the valve covers, take your oil can and squirt oil down on the the rockerarm ball and
        on the roller tip ofthe rockers. This will be extra assurance thatthe rocker arms will have adequate lubrication
        until the oil travels up from the motor.




                                      BE SURE TO CHECK THE FOLLéWING
                                       BEFORE OPERATING THE ENGINE.
1. Old pushrods should not be used.

2. Immediately upon startup rocker arms must have adequate oil supply.

3. Check pushrod to cylinder head slot clearance.

4. Check rocker arm to valve spring retainer clearance.

5.   Check for valve spring coil bind. If this occurs, the correct spring must be installed.

     In most cases the maximum open spring pressure is 350 lbs.
$




7. Be sure to check for proper rocker geometry.
                                                                               If you have any questions
                                                                                  about your Magnum
                                                                                  Roller Rocker Arms,
                       @ Valve Trains Engineered                                     call Cam—Help       1‘8-00-999'0853
                         For The Way You Drivel_



Document Created: 2005-09-01 12:42:02
Document Modified: 2005-09-01 12:42:02

| Previous E.O. D-278 | Next E.O. D-279-1 | Next E.O. D-280
