Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 5, 1993.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
115820, 115850 115861, 115869 111987 and older model-year GM vehicles with 267-400 CID carbureted gasoline engines

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-289
  • Executive Order 289 / D289
  • ARB # D-289
  • Executive Order No: D-289
  • C.A.R.B. No. D-289
  • Resolution D-289
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-289 PDF

D-289 Document:

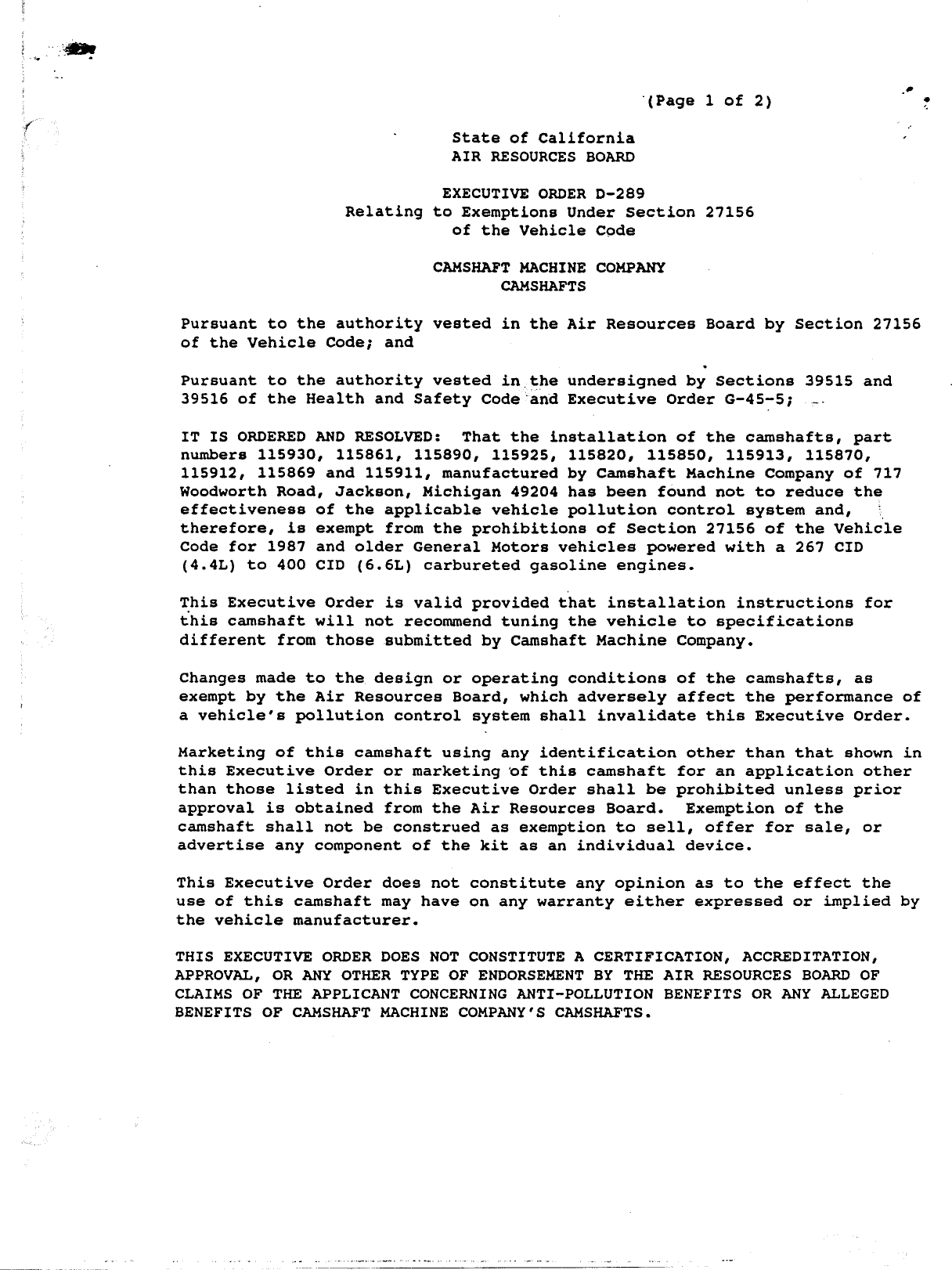

                                                   ‘(Page 1 of 2)               C   s

                             State of California
                             AIR RESOURCES BOARD


                            EXECUTIVE ORDER D—289
                 Relating to Exemptions Under Section 27156
                            of the Vehicle Code

                            CAMSHAFT MACHINE COMPANY
                                   CAMSHAFTS

Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code ‘and Executive Order G—45—5; ...

IT IS ORDERED AND RESOLVED:  That the installation of the camshafts, part
numbers 115930, 115861, 115890, 115925, 115820, 115850, 115913, 115870,
115912, 115869 and 115911, manufactured by Camshaft Machine Company of 717
Woodworth Road, Jackson, Michigan 49204 has been found not to reduce the
effectiveness of the applicable vehicle pollution control system and,   :
therefore, is exempt from the prohibitions of Section 27156 of the Vehiclie
Code for 1987 and older General Motors vehicles powered with a 267 CID
(4.4L) to 400 CID (6.6L) carbureted gasoline engines.

This Executive Order is valid provided that installation instructions for
this camshaft will not recommend tuning the vehicle to specifications
different from those submitted by Camshaft Machine Company.

Changes made to the design or operating conditions of the camshafts, as
exempt by the Air Resources Board, which adversely affect the performance of
a vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of this camshaft using any identification other than that shown in
this Executive Order or marketing ‘of this camshaft for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.   Exemption of the
camshaft shall not be construed as exemption to sell,    offer for sale,   or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the
use of this camshaft may have on any warranty either expressed or implied by
the vehicle manufacturer.

THIS EXBECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF CAMSHAFT MACHINE COMPANY‘S CAMSHAFTS.


                           . —+>




                                                                               t ucss
CAMSHAFT MACHINE COMPANY           >              EXECUTIVE ORDER D~289     +< _#
CAMSHAFPTS                                        (Page 2 of 2)           h091 s


No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Violation of any of the above conditions shall be grounds for
revocation of this order.  The order may be revoked only after ten day
written notice of intention to revoke the order, in which period the holder
of the order may request in writing a hearing to contest the proposed
revocation.  If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.

Executed at El Monte, California, tfiis ~:;'    day of January, 1993.




                                              . Summerfiefd
                                       Assistant Division Chief
                                       Mobile Source Division


                                   APPENDIX A
                EXECUTIVE ORDERS AND CORRESPONDING PART NUMBERS


Distributor               Executive Order          Part Numbers

Camshaft Machine Co.      D—=289                   115930, 115861, 115890,
                                                   115925, 115820, 115850,
                                                  115913, 115870, 415912,
                                                   115869, 115911
Edelbrock Corporation     D—215—5                  312102, 312103
Dana Corporation         D—290                     2291730, 2291987

Elgin Industries         D—291                    E919P, E923P, El1029P,
                                                  E1004P, E1005P, E1069P

Federal Mogul Corp.      D—292                    CS1138, CS981, CS984

Hi-Tech                  D—293                    101002, 101003, 275RV, 206

McQuay Norris            D—=294                   CMR6G, CMS5850, CMRGF

Melling Tool Company     D—295                    C7S, MTCIl, CCR13

Muskegon Products        D—296                    MC1730, MC2170, MC1987

Sealed Power Corp.       D—297                    CS1003R, CS1O14R, CS10O28R,
                                                  CS1002R

TRW r   Inc &            D—298                    TP187, TP231l, TP236, TP256,
                                                  TP257, TP258

Wolverine/Blue Racer     D=299                    wWG1l158,   WG1103, WG1138,
                                                  wWG1l127,   WG1128, WG1137,
                                                  w65042,     wG5043, wWGS5O044,
                                                  wG5071,     wWG5072


                        APPENDIX B (;>0

SMALL BLOCK CHEVROLET CAMSHAFPT INSTALLATION INSTRUCTIONS

1.  Prepare a clean work area and assemble the tools needed for the
camshaft installation.

2.  Disconnect the battery ground cable and remove the air cleaner
assembly.                         i
                                         1
                                         I
3.     Drain the radiator and engine oil.
                                         l


4.  Disconnect the upper radiator and heater hoses at the intake
manifold.

5.     Disconnect the crankcase ventilation hoses as required.

6.  Disconnect the fuel line, choke cable, accelerator?linkage, and
transmission downshift cable (on automatics) at the carburetor.

7.    Disconnect the vacuum hosesand electrical    connections at the
carburetor.                          j
                                     |

8.    BDBDisconnect the power brake hose at the carburetor or intake
manifold, if applicable.             |

9.    Disconnect the temperature sendlng switch and the coolant
temperature sensor wires.            |
                                     I

10. Remove the distributor cap and scrlbe the rotor position relative
to the distributor body.          :

11. Remove the distributor.

12. As required, remove the oil filler bracket, air cleaner bracket,
air conditioner compressor bracket, alternator bracket, and
accelerator bellcrank            1
                             —     1
13. Remove the manifold—to—head attaching bolts then remove the
manifold and carburetor as an assembly.

14.   If the manifold is to be replaced, transfer the carburetor (and
mounting studs) water outlet and thermostat (use a new gasket), heater
hose adapter, EGR valve (use new gasket) and, if applicable TVS switch
and choke coil .

15.   Remove the valve covers.

16. Loosen the rocker arm adjusting nut so the pushrod can be removed.

17.   Once the pushrods have been rémoved,   remove the valve lifters.

18 , Remove the fan, pulley, and belt. Remoave any power steering and/or
AIR pump drive belts.  Remove any braces for these pumps which will
interfere with cover removal and position the pumps out of the way.


19.   Remove the water pump.

20. Remove the crankshaft pulley and harmonic balancer.                                    This allows
access to the timing chain cover.          Do not attempt to pry or hammer t
damper off.

21. Rotate the retaining bolts,        and remove the timing cover.

22.   Clean the gasket surfaces on the block and front cover.

23. Use a sharp knife to trim any excess oil pan gasket material whi
protrudes from the oil pan—to—engine block junction.

24. Crank the engine until the zero marks punched on the timing gear
sprockets are closest to one another and in line between shaft
centers.                          [

25. Take out the three bolts that hold the camshaft gear to the
camshaft.  This gear is a light press fit and should come off easily
If it does not come off readily, tap the lower edge of the sprocket
lightly with a plastic mallet to dislodge it.  It is located by a
dowel .

26.   The chain comes off with thé oamshaft gear.

27. Remove the fuel pump and pump;pushrod.

28. Install two 7/16—18 X l4in. bolts in the cam bolt holes and pull
the cam from the block.

29. Inspect the old cam, lifters, timing components and distributor
gear for any signs of abnormal uear.  Replace all severly worn
components .

30.   Inspect the new camshaft. to make sure it was not damaged during
shipment.      Use a quality assembly lube to coat all the lobes and
distributor gear.      It is a good idea to coat the fuel pump lobe and
bearing surfaces as well.

31. Install the two 7/16—18 x l4id. bolts in the cam bolt holes and
carefully slide the camshaft into the block.  Take time so as not to
damage or dislodge the cam bearings in the block.

32. If your engine had a camshaft retaining plate,                     it should be
installed at this time..

33. Align the new camshaft so that the zero marks punched in the cam
and crankshaft gear sprockets are closest to one another and in line
between shaft centers.

34.   Place the cam sprocket, with ifs chain mounted over it,                                        in
position on the front of the camshaft and pull up the three bolts th
hold it to the camshaft.        After the gear is in flace,                       turn the engin
two   full   revolutiona   to mukA   cartain   that   the   timing mearks                         are          in




                                                             on ns ntemicnaithn s amemmant ven ie c ceumaneimmm nem ce t


correct alignment between the shaft centers.

35.    Install       the pushrods between the rockér arms and the lifters.
Make sure the pushrod is properly seated in the lifter and the rocker
arm.

36. With the timing marks closest to one another and aligned,                         the
engine is in the number six firing position.

37. At this point the following valves can be adjusted                           Exhaust Nos.
2,    5,   6,   7;   Intake Nos.    3,    4,   6,       8.            .

38. Adjust the valves by tightening the adjusting nut until no lash i
felt in the pushrod.              This is determined by checking push—rod end pla
while turning the adjusting nut.                         When all play has been removed,        tur
the adjusting nut          in 1    full    turn.                             *

39. Crank the engine one full revolution (one—half revolution of thé
camshaft).  The timing marks on the camshaft and crankshaft gear will
be aligned and furthest from one another.  At this point, the
remaining valves can be adjusted: Exhaust Nos. 1. 3. 4, 8; Intake Nos
1l    zl   5'   7’                                                                          '




40. Once the valves have been adjusted the camshaft 1nsta11atzon is
complete and the intake manifold and other components which have been
removed should be installed.

41. Apply a 1/8 in. bead of RTV Silicone sealer, G.M. 105236 or the
equivalent, to the joint of the oil pan and cylinder block.

42. Install the front cover—to—oil pan seal.  Lightly coat the bottom
of the seal with engine oil and position over the crankshaft end.

43.    Loosely install       the front cover upper attaching bolts.
                                                    7

44. Press downward on the cover so that the dowels in the block are
aligned with the holes in the cover.  While holding the cover in
position, tighten the upper attaching bolts alternately and evenly.

45.    Install       the remaining bolts and tighten the bolts to
specification.

46.    Install       the torsional damper and the water pump.

47.    For the other components reverse the removal procedure to install
