Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 25, 2008.
As of Friday, September 13th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
Series 310001996-2002 selected DaimlerChrysler LDT2 & MDVNoneConsult catalog, distributor, or manufacturer for specific vehicle application

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-353-20
  • Executive Order 353-20 / D353-20
  • ARB # D-353-20
  • Executive Order No: D-353-20
  • C.A.R.B. No. D-353-20
  • Resolution D-353-20
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-353-20 PDF

D-353-20 Document:


CARB_D-353-20

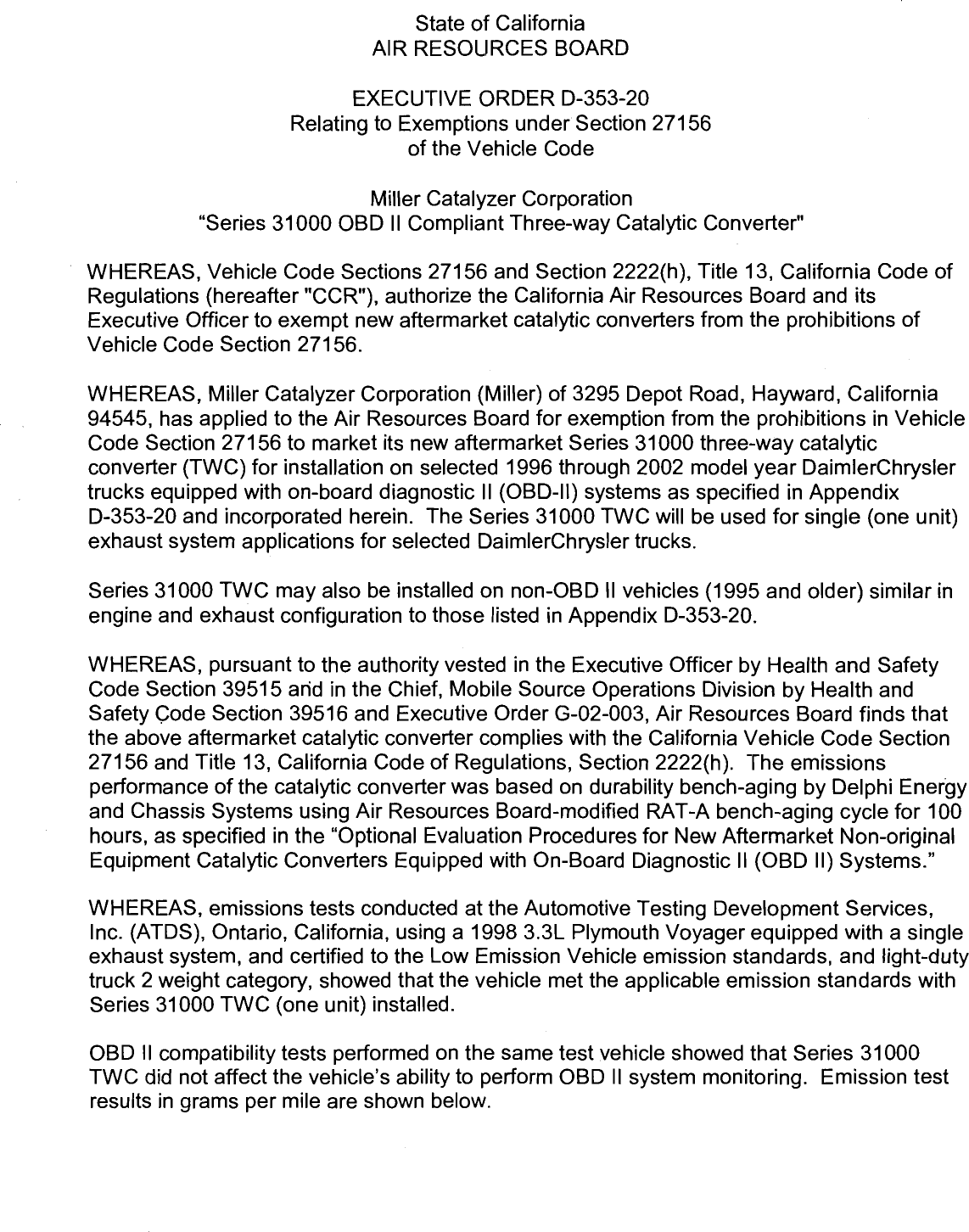

                                 State of California
                             AIR RESOLIRCES BOARD

                            EXECU-TIVE ORDER D-353-20
                     Relating to Exemptions under Section 27156
                                  of the Vehicle Code

                           Miller Catalyzer Corporation
           "Series 31000 OBD ll Compliant Three-way Catalytic Converter"

WHEREAS, Vehicle Code Sections 27156 and Section 2222(h), Title 13, California Code of
Regulations (hereafter "CCR"), authorize the California Air Resources Board and its
Executive Officer to exempt new aftermarket catalytic converters from the prohibitions of
Vehicle Code Section 27156.

WHEREAS, Miller Catalyzer Corporation (Miller) of 3295 Depot Road, Hayward, California
94545, has applied to the Air Resources Board for exemption from the prohibitions in Vehicle
Code Section 271 56 to market its new aftermarket Series 31000 three-way catalytic
converter (TWC) for installation on selected 1996 through 2002 model year DaimlerChrysler
trucks equipped with on-board diagnostic II (OBD-II) systems as specified in Appendix
D-353-20 and incorporated herein. The Series 31000 TWC will be used for single (one unit)
exhaust system applications for selected DaimlerChrysler trucks.

Series 31000 TWC may also be installed on non-OBD II vehicles (1995 and older) similar in
engine and exhaust configuration to those listed in Appendix D-353-20.

WHEREAS, pursuant to the authority vested in the Executive Officer by Heal,thand Safety
Code Section 39515 arid in the Chief, Mobile Source Operations Division by Health and
Safety Code Section 39516 and Executive Order G-02-003, Air Resources Board finds that
the above aftermarket catalytic converter complies with the California Vehicle Code Section
271 56 and Title 13, California Code of Regulations, Section 2222(h). The emissions
performance of the catalytic converter was based on durability bench-aging by Delphi Energy
and Chassis Systems using Air Resources Board-modified RAT-A bench-aging cycle for 100
hours, as specified in the "Optional Evaluation Procedures for New Aftermarket Non-original
Equipment Catalytic Converters Equipped with On-Board Diagnostic II (OBD II) Systems."

WHEREAS, emissions tests conducted at the Automotive Testing Development Services,
Inc. (ATDS), Ontario, California, using a 1998 3.3L Plymouth Voyager equipped with a single
exhaust system, and certified to the Low Emission Vehicle emission standards, and light-duty
truck 2 weight category, showed that the vehicle met the applicable emission standards with
Series 31000 TWC (one unit) installed.

OBD II compatibility tests performed on the same test vehicle showed that Series 31000
TWC did not affect the vehicle's ability to perform OBD II system monitoring. Emission test
results in grams per mile are shown below.


                               ATDS, Ontario, California
                              3.3L Plymouth Voyager Test
                          NMOG             CO            NOx                Remarks
100K Standard             0.1 30           5.5           0.5
Test 1                    0.1
                          -   13          -0.8           0.4                Pass
Test 2                    0.095            0.7           0.4 0
IT IS HEREBY RESOLVED that the above catalytic converter is exempt from the-prohibitions
in Vehicle Code Section 27156 for installation on the vehicles listed in Appendix D-353-20
subject to the following conditions:

      1      No changes are permitted to the catalytic converter as described in the
             application for exemption. Any changes to the catalytic co~iverteror any of its
             components, and other factors addressed in this order must be evaluated and
             approved by the Air Resources Board prior to marketing in California.

      2.     Marketing of the catalytic converter using identifications other than those shown
             in the exemption application, and in this Executive Order, or marketing of the
             catalytic converter for application other than the ones shown in this Executive
             Order shall be prohibited unless prior approval is obtained from the Air
             Resources Board. Exemption of these products shall not be construed as an
             exerr~ptionto sell, offer for sale, or advertise any components of the catalytic
             converter as individual devices.

      3.     Any oral or written references to this Executive Order or its content by Miller
             Catalyzer Corporation, its principals, agents, employees, distributors, dealers,
             or other representatives must include the disclaimer that the Executive Order or
             the exemption it provides is not an endorsement or approval of any emission
             reduction claims for the catalytic converter and is only a finding that the
             catalytic converter is exempt from the prohibitions of Vehicle Code Section
             27156.

      4.     Miller Catalyzer Corporation's installation instructions for the new catalytic
             converter must conform to requirements in Paragraphs I and X of the "Optional
             Evaluation Procedures for New Aftermarket Non-original Equipment Catalytic
             Converters Equipped with On-Board Diagnostic II (OBD II) Systems."

      5.     Upon installation, the catalytic converter must carry a manufacturer's warranty
             for 50,000 miles on the substrates and 50,000 miles or five years on the shell
             and end pipes.

      6.     Miller Catalyzer Corporation and its vendors may not advertise the new
             aftermarket catalytic converter as a "high or easy llow" catalytic converter or
             use any phrase that could make them appear to perform better than an OEM
             catalytic converter.



     MILLER CATALYZER CORPORATION           -   CATALYTIC CONVERTER - D-353-20


       7.     The new aftermarket catalytic converter substrate may not be sold or supplied
              to a third party by Miller, its associates, vendors, other businesses, and
              individuals associated with Miller, to be assembled in a different facility and
              marketed under this Executive Order.

       8.     Any marketing arrangement of the new aftermarket catalytic converter by a third
              party, which involves ,the use of packaging iden,tificationdifferent from the ones
              described in this Executive Order must be approved by Air Resources Board
              prior to shipment.

       9.     Miller must submit the required quality audit and production quantity reports for
              its aftermarket catalytic converter semi-annually, covering the periods
              January 1 through June 30, and July Ithrough December 31.

Executive Order D-353-13 dated June 22,2006, is hereby superseded and of no further
force and effect.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten day written notice of intention to revoke it, during which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request,
and the order may not be revoked until a determination is made, after the hearing, that


                                              +
grounds for revocation exist.

Executed at El Monte, California. this   -2        day of January 2008.




                              <@-      ette Hebert, Chief
                                    Mobile Source Operations Division




      MILLER CATALYZER CORPORATION             -   CATALYTIC CONVERTER        -   D-353-20


                APPENDIX D - 3 5 3 - 2 0


Vehicle Model


                                                                                     APPENDIX D—353—20

                              Miller Catalyzer Corporation, Catalytic Converter Series 31000, Dodge/Jeep/Chrysler/Plymouth, Up to 14,000 lbs. ALVW

No,    I\g(:l                    Vehicle Model                Egigzlge   Cl;i?figérs      Engine Family    Cel}fs:f1on   E),(rl;zl;st Cozs;aéers CO%;’;:er   Monitored Universal     Dgiet“


        1997    |Dakota 4WD long wh                             5.2L         8                                             S           1         TWC            1       31000       TBD
        1997    |Dakota 4WD short wh                            5.2L         8                                             S           1         TWC            1       31000       TBD
        1997    |Dakota 2WD                                     5.2L         8                                             S           1         TWC            1       31000       TBD
        1997    |Dakota 4WD long wb                             5.9L         8                                             8           1         TWC            1       31000       31045
17      1997    |Ram 1500/2500 2WD/4WD                          52L          8          VCR360H8GIEL         Tier I        S           1         TWC            1       31000       31045
        1997    |Ram 1500/2500 4WD                              5.2L         8                                             8           1         TWC            1       31000      31038C
        1997    |Ram 1500/2500                                  5.9L         8                                             S           1         TWC            1       31000       31045
        1997    |van B1500/B2500                                52L          8                                             S           1         TWC            1       31000       TBD
        1997    _}van B1500/B2500                               5.9L         8                                             S           1         TWC            1       31000       TBD
        1997    |Ram 1500/2500 4WD                              52L          8                    .           .            S           1         TWC            1       31000      31038C
!8      1997 |Ram 1500/250073500                                59L          g_—_|       VCRBe0I8GIEK        Tier1         5           1         TWC            1       31000       31045
        1997    |Ram 1500/2500 2WD                              5.2L         8                                             S           1         TWC            1       31000      31038C
19      1997    |Ram 1500/2500/3500                             5.9L         8           VCR360J8GIEL        Tier 1        8           I         TWC            1       31000      31038C
        1997    |Van B1500/B2500/B3500                          5.2L         8                                             S           1         TWC            1       31000       TBD
20      1997    |Ram 3500 LH/RH                                 8.0L         10         VCR488K8GIEK         Tier 1        S           1         TWC            1     31000         31040


21      1998    |Caravan/Voyager/Town&Country                   3.3L         6          WCRXA0201230         LEV           S           1         TWC            1       31000       31461
22      1998    |Ram 1500 , Dakota Pickup                       3.9L         6          WCRXAO239H11         Tier 1        S           1         TWC            1       31000      310430
23      1998    |Durango                                        3.9L         6          WCRXAO239H12         Tier 1        8           1         TWC            1       31000       TBD
        1998    |Dakota 4WD long wb                             5.2L         8                                             S           1         TWC            1       31000      31038C
24      1998    |Dakota 4WD short wb                            5.2L         8          WCRXAO318H11         Tier 1        8           1         TWC            1       31000      31038C
        1998    |Ram 1500                                       52L          8                                             S           1         TWC            1       31000      31038C
        1998    |Dakota 2WD                                     5.9L         8                                             S           1         TWC            1       31000       TBD
25      (~1998 |\Ram 1500                                       591.         g          WCRXA0360H31)        LEV           5           1         TWe            1       31000 31038C
        1998    |Durango 4WD                                    52L          8                                             8           1         TWC            1       31000      31035C
26      1998    |Durango 4WD                                    5.9L         8          wCRXA0360H32         LEy           S           1         TWC            1       31000      31035C
27       1998   |Van B1500/B2500, Ram 1500 Pickup               52L          8           WCRXA0O360OJ11      Tier 1        S           1         TWC            1       31000      31038C
        1998    |Ram 1500/2500 (A/T)                            5.9L         8                                             S           1         TWC            1       31000      31038C
28      1998    |Ram 1500/2500 (M/T)                            5.9L         8           WCRXAO0360J31       LEV           S           1         TWC            1       31000      31038C
        1998    |Van B1500/B2500                                5.9L         8                                             S           1         TWC            1       31000      31038C
29       1998   |Ram 2500/3500 LH/RH                            8.0L         10         WCRXA0O488K11        Tier 1        S           1         TWC            1       31000       TBD
30      1998    |Caravan/Voyager/Town&Country                   3.8L         6           WCRXTO232220       TLEV           S           1         TWC            1       31000       TBD
 31     1998    |Dakota Pickup                                  3.9L         6           WCRXTO239211        Tier 1        S           1         TWC            1       31000      31038C


      01/02/08                                                                                                                                                                    2 of 5


                                          APPENDIX D - 3 5 3 - 2 0




42   1999   CaravanlTown&Country   3.8L   6    XCRXT0232230          LEV      S   1   TWC   I   1   1   31000   1   TBD
43   1999   Dakota                 3.9L   6    XCRXT02392 11         Tier 1   S   1   TWC   I   1   1   31000   1   31429


                                                                         APPENDIX D - 3 5 3 - 2 0

             Additional Vehicles 1
                           Miller Catalyzer Corporation, Catalytic Converter Series 31000, DodgelJeep/Chrysler/Plymouth, Up to 14,000 Ibs. ALVW
      Model                                              Engine                        Weight Certification Exhaust     Total    Converter               Direct
No.                         Vehicle Model                             Engine Family                                                          Monitored
      Year                                                 Size                         class     Level       Type Converters      Type                   Fit
              Wrangler 4WD
44    lgg7                                                 4.OL     VCR24228G 1EK LDT2
              Cherokee 2WDl4WD
45    1998    Van B1500lB2500                           5.2Ll5.9L WCRXAO239.111
                                                                                       MDv3       Tier I
46    1999    VanB15001B250013500                       5.2L15.9L XCRXA0360Jll
47            Van B 1500, RAM 1500                         3.9L     YCRXA0239Hll
48            RAM 1500 PU                               5.2L15.9L YCRXAO36OHll
                                                                                       MDV2
              Durango 2WD, 4WD
49                                                      5.2Ll5.9L YCRXA0360H32                     LEV
-             Dakota 2WD, 4WD
              Van A1 500/B2500/3500
      2000    RAM 150012500                                5'2L
50                                                                  YCRXA0360Jll MDV3             Tier 1
              Van B 1500/B2500/3500
-             RAM 3500 (Code Z Engine)                     5.9L
51            Caravan, Voyager, Town&Country               3.3L     YCRXTO201230
                                                                                                   LEV
-
52            Caravan, Voyager, Town&Country               3.8L     YCRXT0232230       LDT2
53            Dakota PU                                    3.9L     YCRXT03.92Cl                  TLEV
              Van B 1500/B2500/3500
                                                           5.2L
              RAM 150012500
              RAM 2500 Pickup 2WDI4WD
              RAM 3500 Pickup 2WDl4WD                                                                           S         1        TWC           1       TBD
              RAM 3500 Van 2WD
54            RAM 2500 Cab Chassis 4WD                  5.2Ll5.9L lCRXA0360J11
              RAM 1500 Pickup 4WD                                                      MDV3
              RAM Van 1500/2500 2WD
              RAM Wagon 2500 2WD                                                                  Tier 1
              Van B 1500/B2500/3500
                                                           5.9L
- 2001        RAM 3500 4WD HDV (Code 5 Engine)
              RAM 150012500                                5'2L
55                                                                   lCRXA0360J18
-             RAM 3500 2WD HDV (Code 5 Engine)             5.9L
              Van Cab Chassis 3500 4WD HDV
              RAM 3500 Pickup 2WDt4WD
56                                                         5.9L     lCRXA0360Kll
              RAM Cab Chassis 4WD                                                      MDV4
-
57
              RAM Pickup 2WDl4WD
              Van Cab Chassis 3500 4WD                     5.9L     lCRXA0360K18
-
58            RAM 3500 Pickup 2WD                          8.OL      lCRXA0488Jl8 MDV3            Tier 1
2             RAM 3500 Pickup 2WD                          8.OL     lCRXA0488K18 MDV4
60.           Caravan, Voyager, Town&Count~y               2.4L      lCRXT02.42DO LDT2
61            Caravan, Voyager, Town&Countw                3.3L      ICRXT03.32DP      LDT2        LEV
62            Caravan. Vova~er.Town&Countrv                3.31.     I CRXT03.32DT     L.DT2


                                                                       APPENDIX D-353-20

                       Miller Catalyzer Corporation, Catalytic Converter Series 31000, DodgelJeeplCh1ysler/P1ymooth, Up to 14,000 Ibs. ALVW
    Model                                            Engine                        Weight   Certification Exhaust   Total    Converter                         Direct
No'                     Vehlcle Model                            Engine Family                                                           Monitored Universal
    year                                              Size                          ~ 1 % ~    Level       Type   Convelters   Type                             Fit
63        Caravan AWD, Voyager, Town&Country       3.3L13.8L 1CRXT03.82DO          LDT2        LEV
          RAM 1500 Pickup 2WD                         3.9L      1CRXT03.95B2
64
65
          Van B15001B2500
          RAM   1500 Pickup 2WD                       3.9L      lCRXT03.95B9
                                                                                   MDV2        Tier 1                                            -
          RAM Van 15001250013500 2WD               5.2Ll5.9L 2CRXA0360J10
66                                                                                 MDV3
-         RAM Wagon 250013500 2WD
67
          RAM Cab Chassis 3500 2WD14WD            - 5.9L 2CRXA0360K10 MDV4                                   S        1        TWC          1       3 1000     TBD
-         RAM Pickup 3500
68 2002 RAM 1500 Pickup                               3.7L      2CRXT03.75BO                   Tier 1
          RAMVan 15002WD
69                                                    3.9L      2CRXT03.95BO
-         RAM Wagon 1500 2WD                                                       MDV2
          RAM Van 1500 2WD
70                                                 5.2L15.9L 2CRXT05.95BO
          RAM Wagon 1500 2WD



Document Created: 2008-01-29 11:31:01
Document Modified: 2008-01-29 11:31:01

Previous E.O. D-353-19 | Previous E.O. D-352 | Next E.O. D-353-21 | Next E.O. D-354
