Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 13, 1995.
As of Saturday, June 15th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1990 and older model year heavy duty vehicles equipped with two stroke diesel-powered engines

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-384
  • Executive Order 384 / D384
  • ARB # D-384
  • Executive Order No: D-384
  • C.A.R.B. No. D-384
  • Resolution D-384
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-384 PDF

D-384 Document:

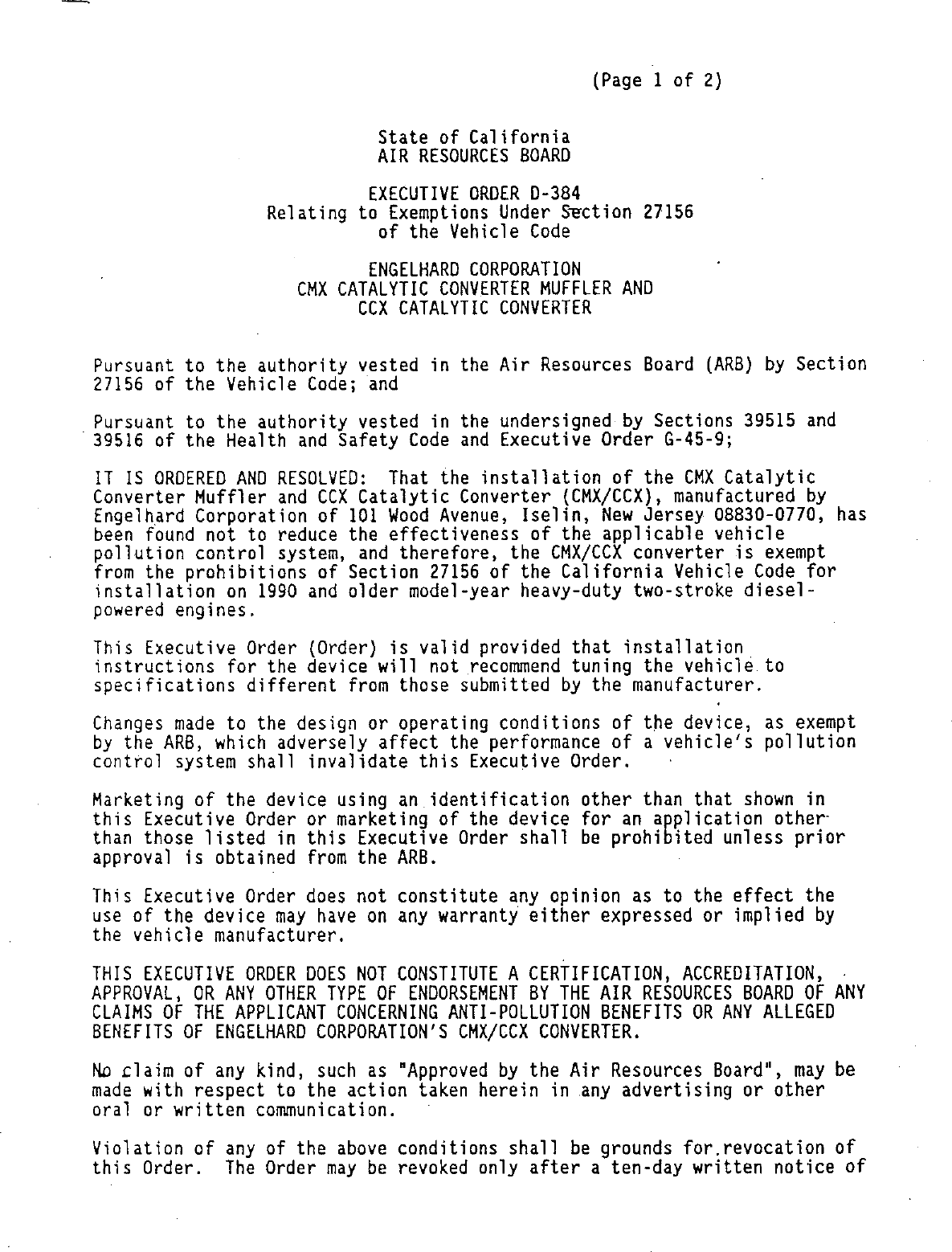

                                                    (Page 1 of 2)


                              State of California
                              AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—384
                   Relating to Exemptions Under Section 27156
                              of the Vehicle Code

                              ENGELHARD CORPORATION
                       CMX CATALYTIC CONVERTER MUFFLER AND
                             CCX CATALYTIC CONVERTER

Pursuant to the authority vested in the Air Resources Board (ARB) by Section
27156 of the Vehicle Code; and
Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the CMX Catalytic
Converter Mufflier and CCX Catalytic Converter (CMX/CCX)}, manufactured by
Engelhard Corporation of 101 Wood Avenue, Iselin, New Jersey 08830—0770, has
been found not to reduce the effectiveness of the applicable vehicle
pollution control system, and therefore, the CMX/CCX converter is exempt
from the prohibitions of Section 27156 of the California Vehicle Code for
installation on 1990 and older model—year heavy—duty two—stroke diesel—
powered engines.

This Executive Order (Order) is valid provided that installation
instructions for the device will not recommend tuning the vehicle to
specifications different from those submitted by the manufacturer.

Changes made to the design or operating conditions of the device, as exempt
by the ARB, which adversely affect the performance of a vehicle‘s pollution
control system shall    invalidate this Executive Order.

Marketing of the device using an identification other than that shown in
this Executive Order or marketing of the device for an application other
than those listed in this Executive Order shall be prohigited unless prior
approval is obtained from the ARB.

This Executive Order does not constitute any opinion as to the effect the
use of the device may have on any warranty either expressed or implied by
the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOYT CONSTITUTE A CERTIFICATION, ACCREDITATION, >
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF ENGELHARD CORPORATION‘S CMX/CCX CONVERTER.
No claim of any kind, such as "Approved by the Air Resources Board", may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Violation of any of the above conditions shall be grounds for.revocation of
this Order. The Order may be revoked only after a ten—day written notice of


ENGELHARD CORPORATION                                EXECUTIVE ORDER 0—384
CMX/CCX CONVERTER                                    (Page 2 of 2)


intention to revoke the Order, in which period the holder of the Order may
request   in writing a hearing to contest the proposed revocation. If a
hearing   is requested, it shall be held within ten days of receipt of the
request   and the Order may not be revoked until~a determination after the
hearing   that grounds for revocation exist. 71/\

Executed at El Monte, California, this ('5;    day       eptember 1995.




                                         MobMe Source Division:


                    State of California
                    AIR RESOURCES BOARD




            EVALUATION OF ENGELHARD CORPORATION‘S
             CMX CATALYTIC CONVERTER MUFFLER AND
                   CCX CATALYTIC CONVERTER
     FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
                CALIFORNIA CODE OF REGULATIONS




                       September 1995


                            State of California
                            AIR RESOURCES BOARD




                   EVALUATION OF ENGELHARD CORPORATION‘S
                    CMX CATALYTIC CONVERTER MUFFLER AND
                          CCX CATALYTIC CONVERTER
             FOR_EXEMPTION FROM THE PROHIBITIONS OF VEKHICLE CODE
       SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                     by
                           Mobile Source Division

                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          El Monte, CA 91731—2990



(This report has been reviewed by the staff of the California‘Air Resources
Board and approved for publication.. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY


          Engelhard Corporation (Engelhard) of 101 Wood Avenue, Iselin, New

Jersey 08830—0770 has applied for an exemption from the prohibitions of

Section 27156 of the California Vehicle Code for their CMX Catalytic
Converter Muffler and CCX Catalytic Converter (CMX/CCX).   The CMX/CCX

converter is designed for installation on 1990 and older model—year heavy—

duty two—stroke diesel—powered engines and has been certified by the United

States Environmental Protection Agency to meet their requirements for the

Urban Bus Retrofit and Rebuild Program.
          Emissions data obtained from heavy—duty transient Federal Test

Procedure show that the CMX/CCX converter meets the requirements of Section

27156 of the California Vehicle Code and Section 2222, Title 13 of the
California Code of Regulations and will not adversely affect the emissions

from those engines for which the exemption is requested.   The staff
recommends that Engelhard be granted an exemption as requested and that

Executive Order No. D—384 be issued.


                                   CONTENTS

                                              Page Number


SUMMARY

CONTENTS                                           1i

1.         INTRODUCT ION
II.        CONCLUS ION
III.       RECOMMENDAT ION
IV.        DEVICE DESCRIPTION AND OPERATION
V.         DEVICE EVALUATION AND DISCUSSION




                                     11—


                               State of California
                               AIR RESOURCES BOARD



  EVALUATION OF ENGELHARD CORPORATION‘S CMX CATALYTIC CONVERTER MUFFLER AND
 CCX CATALYTIC CONVERTER FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
        SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
                        CALIFORNIA CODE OF REGULATIONS .


  I.        INTRODUCTION
            Engelhard Corporation (Engelhard) of 101 Wood Avenue, Iselin, New
 Jersey 08830—0770 has applied for an exemption from the prohibitions of

 Section 27156 of the California Vehicle Code for their CMX Catalytic

 Converter Mufflier and CCX Catalytic Converter (CMX/CCX) for installation on

  1990 and older model—year heavy—duty two—stroke diesel—powered engines.

  Engethard has submitted the results from heavy—duty transient Federal Test

  Procedure conducted on a 1985 model—year Detroit Diesel Corporation (DDC)

 6V—92TA Mechanical Unit Injection (MUI) engine.



  I1.       CONCLUS ION
            Engelhard has submitted all the required information, and based on

  the submitted emissions test data, the staff concludes that CMX/CCX

  converter does not adversely affect the exhaust emissions from those
  engines for which the exemption is requested.



  III.      RECOMMENDATION .
            The staff recommends that Engelhard be granted an exemption as

  requested, permitting advertisement, sale and installation of their CMX/CCX

 converter on 1990 and older model—year heavy—duty two—stroke diesel—powered

= engines, and that Executive Order No. D—384 be issued.


 IV.          DEVICE DESCRIPTION AND OPERATION

              The CMX converter is an integrated catalytic converter muffler

designed to replace the originél equipment manufacturer muffler.         It

provides particulate matter emission reduction as well as exhaust noise

 attenuation.     The CCX converter is a converter—only add—on device.

 Centerbodies of both the CMX and CCX converters are identical.in their
 physical and chemical characteristics.     The CMX/CCX converter consists of

 ceramic monolithic substrates coated with platinum catalyst.     All CMX/CCX
 converter shells are made of 459 stainless steel with the exception of the

 aluminized steel shell used for the Flxible bus configuration.     The CMX/CCX

 converter shells measure from 9 to 12 inches in diameter and from 18 to 43

 inches in length.     Engelhard provides different installation kits with the

 CMX/CCX converters to fit the various two—stroke engines.



 .            DEVICE EVALUATION AND DISCUSSION
              Engelhard has submitted results of emissions testing conducted at

 Southwest Research Institute located in San Antonio, Texas.     The test engine

 was a federally—certified 1985 model—year DDC 6V—92TA MUI engine.        The V—6,

 two-stroke'diesel-powered engine had a 552 cubic inches displacement and has

 accumulated approximately 300,000 miles of service.     Emissions were measured

 over the heavy—duty transient Federal Test Procedure as set‘forth in Title

 40 Part 86, Subpart N of the Code of Federal Regulations.     One baseline

 transient emission test was cond´Čücted on the engine without the CMX/CCX

 converter.     A modified transient emission test was conducted with the
CMX/CCX converter installed.      The emission test results from the transient
 tests are shown below:


                   Heavy—Duty Transient Federal Test Procedure
                          Exhaust Emissions (g/bhp—hr)*


                                   HC         co            NOx           PM

Baseline:                                      .

Cold—Transtent                    1.929      3.111         9.629       ‘ 1.673
Hot—Transient                     1.079      2.449         9.540         0 .757
Composite**                       1.200      2.544         9.553         0 .888

Modified:

Cold—Transient                    1.345      2.232         9.804         1.221
Hot—Transient                     0.544      1.199         9.688         0.412
Composite**                       0.658      1.347         9.705         0 .528

Difference Between
Baseline and Modified:           —0.542     ~1.197        +0 .152       —0 .360
% Difference:                    ~45.2%     ~4]7 .1%       +1.6%        ~40.5%

* grams per brake—horsepower—hour
k* ?ne-§eventh of cold—transient level and six—seventh of hot—transient
    eve



             The differences between the modified and baseline test results
submitted by Engelhard were within the allowed limits of 10 percent

hydrocarbon (HC), 15 percent carbon monoxide (CO), 10 percent oxides of

nitrogen (NOx), and 15 percent particulate matter (PM) as specified in the

"Procedures for Exemption of Add—On and Modified Parts."            Since the test

engine used was federally—certified, the staff conducted an engineering

evaluation of the CMX/CCX converter to determine its emissions impact on

California—certified engines.

            The catalyst formulation submitted by Engethard indicates that NOx

emissions will not be affected by the catalytic reaction.           The emission test

results on the federally—certified engine show that HC, CO, and PM emission

tevels decrease with the use of the CMX/CCX converter while the NOx emission
level is unaffected (the slight increase in NOx emission level is attributed
to test—to—test variability).     The staff believes that similar effect on


emissions will be exhibited if the CMX/CCX converter is used on California—

certified engines.   Therefore, the staff concludes that the CMX/CCX

converter will not have any adverse effect on exhaust emissions of the

engines for which an exemption is requested.

          Engelhard has submitted all the required information and has

fulfilled the requirements for an exemption.
