Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 27, 2011.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
30-31112001-2010 Chevrolet Silverado HD, Kodiak, Express equipped with 6.6 liter diesel engineThe system includes a water tank and integral fluid level sensor, high pressure pump, check valve, injector assembly with nozzle, high pressure hose, injection controller, and mounting hardware. The exemption applies to a 5-gallon tank which cannot hold any fluid other than water and a red injection nozzle rated at 550 cubic centimeters per minute. No other changes, such as disconnection, relocation, or modification of original temperature sensors or fuel calibration, are allowed with the use of this system.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-392-35
  • Executive Order 392-35 / D392-35
  • ARB # D-392-35
  • Executive Order No: D-392-35
  • C.A.R.B. No. D-392-35
  • Resolution D-392-35
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-392-35 PDF

D-392-35 Document:

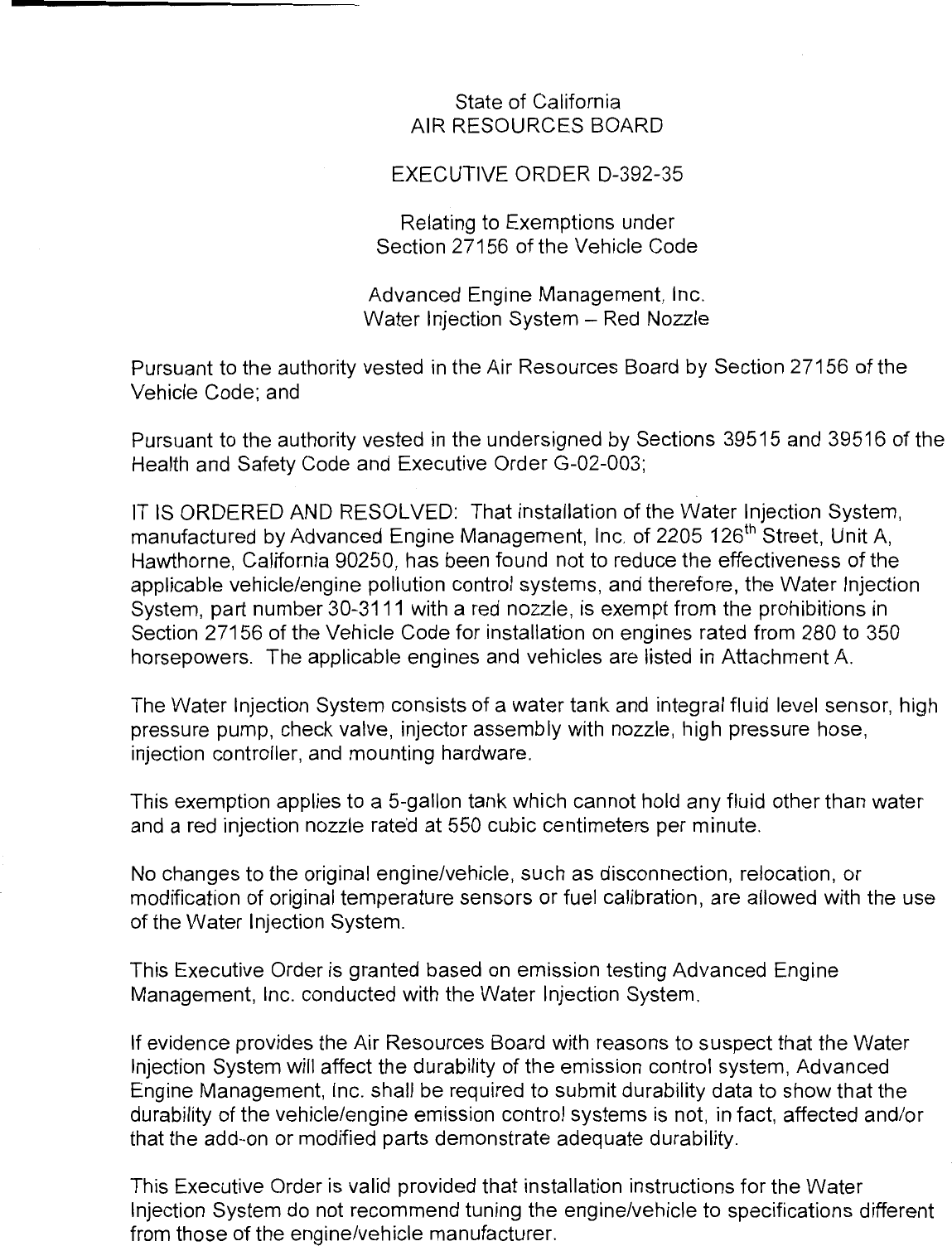

                                    State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—392—35

                               Relating to Exemptions under
                            Section 27156 of the Vehicle Code

                           Advanced Engine Management, Inc.
                          Water Injection System — Red Nozzle

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That installation of the Water Injection System,
manufactured by Advanced Engine Management, Inc. of 2205 126"" Street, Unit A,
Hawthorne, California 90250, has been found not to reduce the effectiveness of the
applicable vehicle/engine pollution control systems, and therefore, the Water Injection
System, part number 30—3111 with a red nozzle, is exempt from the prohibitions in
Section 27156 of the Vehicle Code for installation on engines rated from 280 to 350
horsepowers. The applicable engines and vehicles are listed in Attachment A.

The Water Injection System consists of a water tank and integral fluid level sensor, high
pressure pump, check valve, injector assembly with nozzle, high pressure hose,
injection controller, and mounting hardware.

This exemption applies to a 5—gallon tank which cannot hold any fluid other than water
and a red injection nozzle rated at 550 cubic centimeters per minute.

No changes to the original engine/vehicle, such as disconnection, relocation, or
modification of original temperature sensors or fuel calibration, are allowed with the use
of the Water Injection System.

This Executive Order is granted based on emission testing Advanced Engine
Management, Inc. conducted with the Water Injection System.

If evidence provides the Air Resources Board with reasons to suspect that the Water
Injection System will affect the durability of the emission control system, Advanced
Engine Management, Inc. shall be required to submit durability data to show that the
durability of the vehicle/engine emission control systems is not, in fact, affected and/or
that the add—on or modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the Water
Injection System do not recommend tuning the engine/vehicle to specifications different
from those of the engine/vehicle manufacturer.


                                             _7.

Changes made to the design or operating conditions of the Water Injection System, as
exempt by the Air Resources Board, which adversely affect the performance of the
engine/vehicle emission control system, shall invalidate this Executive Order.

Marketing of the Water Injection System using identification other than that shown in
this Executive Order or for an application other than that listed in this Executive Order
shall be prohibited unless prior approval is obtained from the Air Resources Board.

Exemption of the Water Injection System shall not be construed as exemption to sell,
offer for sale, or advertise any component of the system as an individual device.

This Executive Order shall not apply to any Water Injection System advertised, offered
for sale, sold with, or installed on an engine/vehicle prior to or concurrent with transfer to
an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Water Injection System may have on any warranty either expressed or implied by the
engine/vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ADVANCED
ENGINE MANAGEMENT, INC‘S WATER INJECTION SYSTEM.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this    27 day of September 2011.



                                      Annette Hebert, Chief
                                      Mobile Source Operations Division

                        ADVANCED ENGINE MANAGEMENT, INC.
                         WATER INJECTION SYSTEM — D—392—35


                                                  Attachment A


                                        Advanced Engine Management, Inc.

Water Injection
      System*        Model Year                         Model!                                 Engine

                                      Chevrolet Silverado HD, Kodiak, Express;
                     2001—2010           GMC Sierra HD, Topkick, Savanna;                6.6L Duramax diesel
                                                HUMMER H—1 Alpha

                     1994—2003      Ford F—series pickup, Excursion, E—series van      7.3L Powerstroke diesel


                     2003—2007             Ford F—series pickup, Excursion             6.0L Powerstroke diesel
      30—3111
(Red Nozzle)         2003—2010                    Ford E—series van                    6.0L Powerstroke diesel

                     2008—2010                   Ford F—series pickup                  6.4L Powerstroke diesel


                     2003—2007                   Dodge Ram pickup                        5.9L Cummins diesel

                     2008—2010                   Dodge Ram pickup                       6.7L Cummins diesel


  *     This exemption applies to Water Injection System using the following parts:
        1.    5—gallon tank holding water only
        2.      Red injection nozzle rated at 550 cubic centimeters per minute (35—4516—R)
        3.      Injection controller (35—4513E0O Rev A.hex)




       ADVANCED ENGINE MANAGEMENT, INC. — WATER INJECTION SYSTEM — D—392—35


                                    EVALUATION SUMMARY

Manufacturer Name: Advanced Engine Management, Inc.

Name of Device: Water Injection System, part number 30—3111

Background:
        Advanced Engine Management, Inc. (AEM) of 2205 126"" Street, Unit A, Hawthorne,
California 90250 has requested exemption from the prohibitions in Section 27156 of the
California Vehicle Code for its Water Injection System. It is designed for Dodge, Ford, and GM
medium—duty trucks equipped with 1999 through 2010 model—year Cummins, Navistar,
International, and General Motors diesel engines. The engines/vehicles are certified to
Tier—1/LEV/ULEV (engine) and LEV II LEV/ULEV (chassis) exhaust emission standards. The
vehicles are also subject to On—Board Diagnostic I! (OBD II) system regulations.

Recommendation:
       Grant exemption to AEM as requested and issue Executive Order D—392—35. The
covered parts, engines, and vehicles are listed in Attachment A.

Device Description:
        AEM‘s Water Injection System is designed to increase horsepower and torque by
increasing the charge air density. This is accomplished by introducing water mists into the
intake air charge after it has been compressed by the turbocharger, decreasing the intake air
temperature. The system consists of a 5—gallon water tank with integral fluid level sensor, high
pressure pump, check valve, injector assembly with nozzle, high pressure hose (nylon),
injection controller, and mounting hardware. Water injection is controlled by an electronic
control system that regulates the water pump speed in direct proportion to positive manifold
pressure or boost levels. Water injection calibration is not adjustable.
        The system uses a red nozzle rated at 550 cubic centimeters per minute (cc/min) and
injection controller calibration 35—4513EO Rev A.hex. Water injection starts at six pounds per
square inch (psi) of boost and progressively increases, peaking at 20 psi of boost. The injection
nozzle is placed in the charge pipe downstream of the intercooler outlet and mass air flow
sensor in a location that promotes best distribution of water mists to all cylinders. On engines
with exhaust gas recirculation systems, the nozzle is placed just upstream of the valve.
       The system includes a test button that is used to manually activate the pump and verify
system integrity. Water injection using the test button is only possible when the engine is turned
off. AEM recommends periodic injector nozzle cleaning. No changes to the original
engine/vehicle settings or emission control systems are allowed.

Discussion/Basis for the Recommendation:
        This exemption is based on exhaust emission testing AEM conducted with its Water
Injection System on a 2008 Ford F—350 medium—duty diesel truck. The Ford truck was selected
for exhaust emission testing after AEM provided intake manifold temperature data which
showed the greatest temperature change in the Ford truck. Exhaust emission test results are
presented below:


                     SFTP USO6 (grams/mile)
             NMHC         NOx      CO          PM      NMHC+NOx
 Baseline    0.005       1.881     0.0        0.0023     1.886
 Modified    0.005       1.689     0.0        0.0021     1.694

Notes:
Test laboratory — Automotive Testing and Development Services, Inc. in Ontario, California
Test engine — engine family 8NVXHO6.4AGC (on vehicle test group 8FMXAO06.4AGC); ~45,000 miles

Testing with the injection system turned off (baseline) and on (modified) showed no adverse
emission impact from using the Water Injection System. The system also had no adverse
impact on the vehicle‘s OBD I! system. Similar results are expected when the Water Injection
System is used on any of the engines/vehicles included in the exemption.



Document Created: 2011-10-31 13:20:19
Document Modified: 2011-10-31 13:20:19
