Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 16, 2012.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModificationRemarks
2002-2008 model-year 4-stroke diesel engines with displacements up to 16.1 liters and horsepower ratings from 100 to 630. Please see Attachment A for a complete list of engine families.This exemption excludes all engines originally equipped with an adtertreatment emission control system such as a diesel oxidation catalyst or a diesel particulate filter.This exemption is only valid provided the engines meet the following operating conditions: (1) the engine exhaust temperature is above 240 degrees Celsius for at least 40 percent of the typical duty cycle, (2) the engine is operated using ultra low sulfur diesel with a maximum sulfur content of 15 parts per million by weight or biodiesel blends containing no more than 20 percent biodiesel by volume and (3) the vehicle must have a manufacturerÔÇÖs Gross Vehicle Weight Rating of greater than 14,000 lbs.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-420-16
  • Executive Order 420-16 / D420-16
  • ARB # D-420-16
  • Executive Order No: D-420-16
  • C.A.R.B. No. D-420-16
  • Resolution D-420-16
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-420-16 PDF

D-420-16 Document:

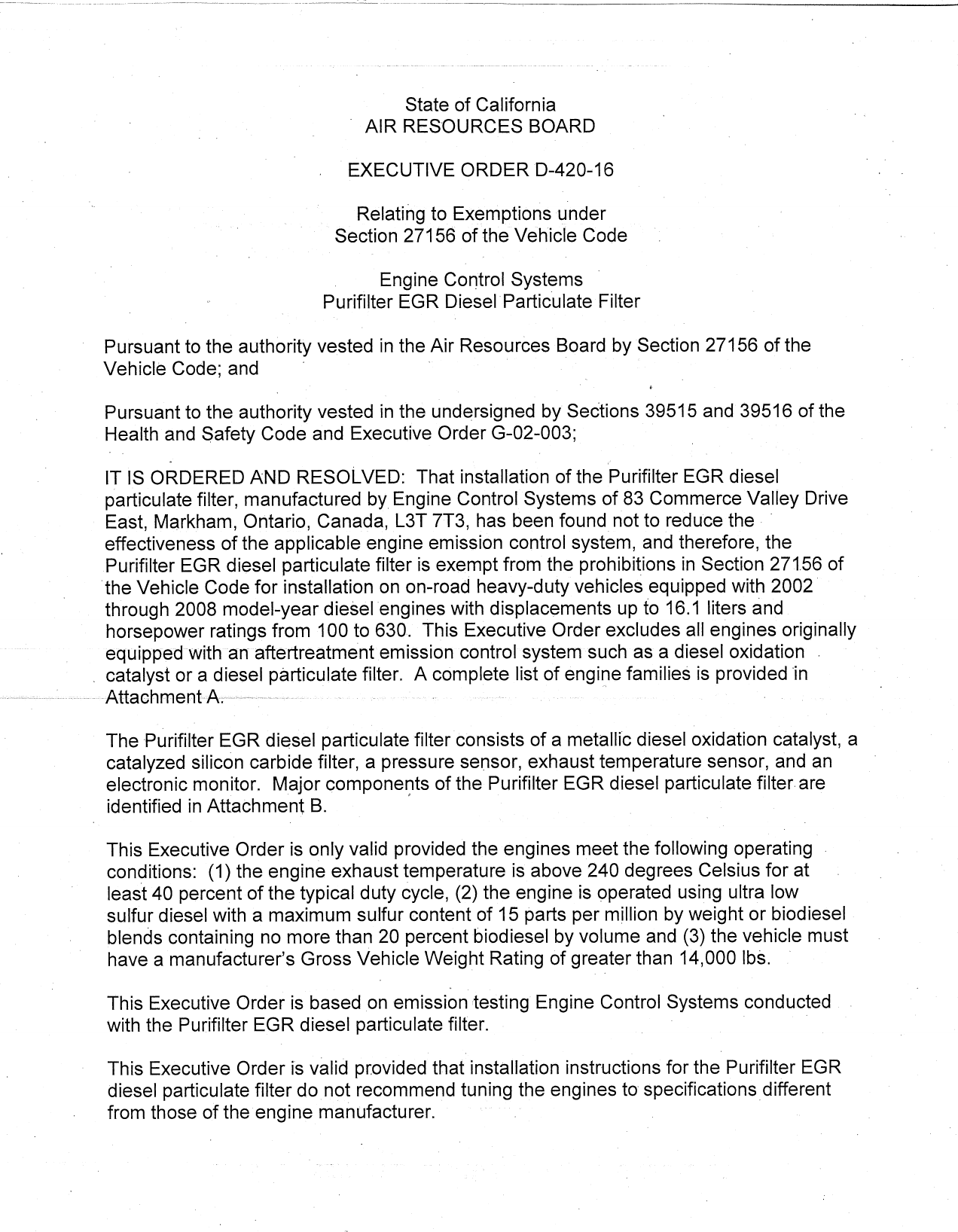

                                        State of California
                                  _ AIR RESOURCES BOARD _
                                 EXECUTIVE ORDER D—420—16
                                   Relating to Exemptlonsunder
                                Sectlon 27156 of the Vehicle Code

                                _—___ Engine Control Systems |
                             Purifilter EGR Diesel"ParticuIate Filter

 Pursuant to the authority vested in the Arr Resources Board by Sectlon 27156 of the
 Vehicle Code; and       |

  Pursuant to the authorlty vested in the undersrgned by Sectlons39515 and 39516 of the
  Health and Safety Code and Executive Order G—O2—003

 IT IS ORDERED AND RESOLVED: That installation of the Purifilter EGR diesel
 particulate filter, manufactured by Engine Control Systems of 83 Commerce Valley Drive
—East, Markham, Ontario, Canada, L3T 713, has been found not to reduce the _
 effectiveness of the applicable engine emission control system, and therefore, the
 Purifilter EGR diesel particulate filter is exempt from the prohibitions in Section 27156 of
 the Vehicle Code for installation on on—road heavy—duty vehicles equipped with 2002 _
_ through 2008 model—year diesel engines with displacements up to 16.1 liters and
  horsepower ratings from 100 to 630. This Executive Order excludes all engines originally
  equippedwith anaftertreatment emission control system such as a diesel oxidation .
. catalyst or adlesel partlculate
                                filter. A complete list ofenglne families is prowdedin


_ The Purifilter EGR diesel particulate filter consists of a metallic diesel oxidation catalyst, a _
  catalyzed silicon carbide filter, a pressure sensor, exhaust temperature sensor, and an
  electronic monitor. Major components of the Purlfllter EGR diesel particulate filterare
  identified in Attachment B.

  This Executive Order is only valid provided the englnes meet the followrng operatmg
  conditions: (1) the engine exhaust temperature is above 240 degrees Celsiusfor at
  least 40 percent of the typical duty cycle, (2) the engine is operated using ultra low
 sulfur diesel with a maximum sulfur content of 15 parts per million by weight or biodiesel
  blends containing no more than 20 percent biodiesel by volume and (3) the vehicle must
  have a manufacturer‘s Gross Vehicle Weight Rating of greater than 14,000 lb's.

  This Executive Orderis based on emission testrng Engine Control Systems conducted
  with the Purifilter EGR diesel particulate filter.

  This Executive Order is valid provrded thatinstallation instructions for the Purifilter EGR
  diesel particulate filter do not recommend tunrng the engines to specifications different
  from those of the englnemanufacturer. —


         Changes made to the design or operating conditions of the Purifilter EGR diesel
         particulate filter, as exempted by the Air Resources Board, which adversely affect the
_        performance of theenglnes pollution control system, shall mvalldate this Executive |
        _Order.—                                |                                4

         Marketing of the Purifilter EGR diesel particulate filter using identification other than that
         shown in this Executive Order or for an application other than that listed in this _ _
         Executive Order shall be prohlblted unless prlor approvalis obtained from the Air
        Resources Board.                                               .

         This Executive Order shall not apply to ahy Purifilter EGR diesel particulate filter
         advertised, offered for sale, sold with, or installed on a motor vehlcle or an englne prior
         to orConcurrent with transfer to an ultlmate purchaser.                     ,

         This Executlve Order does not constitute any opinion as to the effect the use of the —
         Purifilter EGR diesel particulate filter may have on any warranty eitherexpressed or
         lmplled by the englne manufacturer.

         No claim ofany klnd such as “Approved by the Air Resources Board may be made
         with respect to the action taken herein in any advertlsmg or other oral or written
    —communication.

         In addition to the foregoing, theAir Resources Board reserves the right in the future to —
         review this Executive Order and the exemption provided herein to assure that the
         exempted add—on or modified part continues to meet the standards and procedures of
         Californiau.fC.ofde,.of'Regulations »Title.13Section. 2222, et seq. _

 _ THIS EXECUTIVE ORDER DOES NOTCONSTITUTE A CERTIFICATION,
_ ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENTBY THE _
   AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING     |
  _ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ENGINE CONTROL
   SYSTEMS‘ PURIFILTER EGR DIESEL PARTICULATE FILTER.

         Violation of any ofthe above conditions shall be grounds for revocation of this Executive
    _    Order. The Executive Order may be revoked only after a ten—day written notice of
         intention to revoke the Executive Order, in which period the holder of the Executive
         Order may request in writing a hearing to contest the proposed revocation. If a hearing
         is requested, it shall be held within ten days of receipt of the request, and the Executive _
         Order may not be revoked until a determination is made after a hearing that grounds for
         revocatlon exist.                         .                        ‘,                   |

         Executedat El Monte, California, this _ Z be"/“L/day of November 2012.



                                            '       n nefte   Hebert, Chief
                                                fifi)bile Source Operations Division.

                                  ENGINE CONTROL SYSTEMS
                      PURIFILTER EGR DIESEL PARTICULATE FILTER — D—420— 16


                                            _Aftachment A _
                   Air Resources Board Certified Engine Families for the
             . Engine ControlSystems Purifilter EGR Dlesel Partlculate Filter

_Model Year                Manufacturer |                               Engine Famlly     Dlsplacement (L)
  ~2002_                         Gummins______| 2CEXHOYZXAG                               |_ _        14.9
   2002 0        >|~              Mack = _                              2MKXH11.9H64 |               11 9 _
   2003 _                        Cummins _                             3CEXHO359BAG |            e
   2003 —                       —Cummins                               3CEXHO359BAH                   5.9. 0_
   20035     _                  _—Cummins                              3CEXHOG661MAT                  10.8 —
   2003                          Cummins                   |           3CEXHO661MAU                   10.8 .
  2003                     _—    Cummins                           —3CEXHO912XAH                      14.9~
   2003 _           —Cummins        |      3CEXHO912XAJ                                               14.9
   2003      Detroit Diesel Corporatlon | —3DDXH12.7EGY                                               12.7
   2003_: |_Detroit Dlese| Corporation     3DDXH14.0ELY                                               14.0
   2003 _ _                       Mack                                 3MKXH11.9H64                   11.9
    2003                           Mack —                              3MKXH11.9H70                   11.9
    2003                          Volvo _                              3VTXH12.1508S                  12.1
    2004                         Cummins —     _                       4CEXHO359BAG                    5.9 u.
   2004                          Cummins _ _                           4CEXHO359BAH                   5.9
   2004 _                        Cummins                               4CEXHOSO5CAR |            8.3
   2004 _                        Cummins                       |       4CEXHO505CAS —                — 8.3
   2004                          CGummins                               4CEXHOS4O0LAE                 8.8 —
   2004 _ |  _    _ _Cummins                               _—| 4CEXHOG®61AMAT —                  —10.8 _
  2004 _ _| _ _ __Cummins—                                —]|] 4CEXHO®61MAU                        10.8 _
    2004                      — Cummins _          |                   4CEXHO912XAH | _            14.9 .
  _ 2004__                     _Cummins         —_|                    4CEXHO912XAJ _            L14.9
    2004 ~             Detroit Diesel Corporatlon                      4DDXH12.7EGY                12.7
    2004 _             Detroit DieselCorporation |                     4DDXH14.0ELY               ©14.0 —
    2004                          Isuzu                                 4SZXHO7.84RA                7.8
   2004 _                         Asguzu .                              45ZXHOT.84RW                   7.8 0 _>
   2004 ——                        _MaCk"*                               4MKXH11.9H64                  11.9
    2004_                          Mack                                 4AMKXH11.9H70                 11.9 _
    2004 _                         Mack    _                            4MKXH11.9H73                  11.9
    2004 _                       Mercedes                               4AMBXH4.25DJA _               4.3
    2004 —                      Mercedes ..                             AMBXH6.37DJA                  6.4 _
  2004                           Mercedes .        —~—_            |    4MBXH12.8DJA                 —12.8 _
    2004                        ~~_~Volvo _                             4VTXH12.1505 —               21 —
    2005                         Cummins _                              5CEXHO359BAF |               5.90
    2005                         Cummins                                 5CEXHO359BAG            _     5.9
    2005                        ~—Cummins . _                            5CEXHO359BAH                — 5.9 .
    2005 —                      _—Cummins                                5CEXHO505CAR                  8.3 _
    2005                         Cummins |                               5CEXHOBS4O0LAE                8.8
    2005                         Cummins                                 5CEXHOG661MAT                 10.8
    2005                         Cummins                               5CEXHO661MAU                    10.8
    2005                         Cummins                               | 5CEXH0661MAX                  10.8

                          _  ENGINE CONTROL SYSTEMS _
                 PURIFILTER EGR DiesEL PARTICULATE FILTER — D—420— 16


                                         Attachment A(continued)

     Model Year                  Manufacturer                         Engine Family    Displacement (L)
          2005     >               Cummins                            5CEXHO9Q12XAH          14.9
          2005         |           Cummins                            5CEXHO912XAJ           14.9
          2005         _Detroit Diesel Corporation                    5DDXH12.7EGY           12.7
          2005         _ Detroit Diesel Corporation | 5DDXH14.0ELY                          14.0
          2005                      Asuzu                             5SZXHO7.84RA |         7.8
          2005                      —Isuzu                            55SZXHOT7.84RB          7.8 >
          2005                    _— Isuzu                            5SZXHOT.84RW           7.8
          2005                        Mack                            5SMKXH11.9H70          11.9
          2005                        Mack                            5SMKXH11.9H73          11.9
         2005                    _ Mercedes _                        _5MBXHA4.25DJA          4.3
         2005                      Mercedes                           5SMBXHG6.37DJA         6.4
—_        2005                     Mercedes —                         5SMBXHT7.20DJA           7.2
         2005                      Mercedes                           5SMBXH12.8DJA           12.8
          2005                      . Volvo   _                       5BVTXH12.150S           12.1
         2006                      Cummins                            6CEXHO359BAF          _ 5.9 _
          2006                     Cummins _                          6CEXHO359BAG           5.9
          2006 —                  —Cummins                      |— 6CEXHO359BAH              5.9 _
          2006                  __Cummins                           6CEXHO359BAI           — b.9 .
          2006                   _ Cummins                         G6CEXHOB61MAT           —10.8
          2006                     Cummins                         6CEXHO661MAU            —10.8
          2006 ___|______CGummins                                    GCEXHOGS1MAX |____10.8_
         _ 2006 _.__|_______Cummins —____| 6CEXHOM2XAH                                       14.9
          2006                   _—Cummins        _        1|        —6CEXHO912XAJ           14.9
          2006 _ |         Detroit Diesel Corporation                GDDXH12.7EGY     _     12.7
          2006             Detroit Diesel Corporation                GDDXH14.0ELY _| _____ 14.0 _
          2006                       Isuzu            =_        |—    6§SZXHOT7.84RA         7.8
          2006                        Isuzu —                          6SZXHOT.84RW          1.8
          2006                        Mack                           _ 6BMKXH10.8H73         10.8
         2006                       — Mack                             GMKXH11.9H70          11.9
          2006                        Mack                             GSMKXH11.9H73         11.9
         2006                      Mercedes —                        —6BMBXH4.25DJA          4.3
         2006                      Mercedes                           GMBXHG.37DJA           6.4
          2006                     Mercedes                           BMBXHT7.20DJA          4.8
     _    2006                     Mercedes _                         SMBXHT7.20DJA          7.2
          2006                   _ Mercedes                          _BMBXH12.8DJA           12.8
          2006                       Volvo                            G6VTXH12.150S          12.1
          2006                       Volvo  _                         GVTXH16.1CO01          16.1
         2007                     —Cummins                           7CEXHOB661MAC           10.8
          2008                     Cummins _                         8CEXHOG®61MAC           10.8




                            _  ENGINE CONTROL sYSTEMS
                   PURIFILTER EGR DIESEL PARTICULATE FILTER — D—420—16


                                                          _ Attachment B




   1                  Purifiter EGR DPF assembly                                      1               A76|v|-

   2                       D iesSeIIIIICZ;’(;lljti(cij1Irabtgela:ilter       |         1        |     C19E—008_

  ~—3           —_         Diesel Oxidation Catalyst                                   1            | C1OM—OOO_

   4      _ jAD Backpressure Mdnitor_ |                                                10           . "A56'_QO___

   D       |.              — Backpressure Sensor                         _          o 10               J35—0355 _ |

  6                    _           Thermocouple                                        1            — J35—0351 >
Definition:

1. Purifiter EGR system
   ATZ6M—<configuration> where:
    Configuration:

   <~Configuration |                   DPF part number |                         DOC part number
     0001            to 0018                C19E—0082                               C 10M—0001
     0019            to 0045                C19E—0083                               C10M—0002
     0046            to 0063               .C19E—0084                               C 10M—0003
     0064            to 0081                C19E—0085                               C 10M—0004
    0082             to 0099                C19E—0086                               C10M—0005
  |__0100            to 0108                C19E—0083                               C 10M—0002
   0109              to 0114                C19E—0084                               C10M—0003
     0115            to 0120                C19E—0085                               C10M—0004 _
        0121 to 0126                         C19E—0086               _              C10M—0005
        0127 to 0132                      _ C19E—0082 _                            C10M—0001 _

2 Silicon Carbide Diesel Particulate Filter:
  C19E—008<size> where:
  Size:
  2 =9" x 12""
  3 =10.5" x 12"
  4 : 11.25" x 14"
  5 12" x 15"
  6 13.5"¢ x 15"


                            ENGINE CONTROL SYSTEMS
                PURIFILTER EGR DIESEL PARTICULATE FILTER —D—420 16


                                _ AftachmentB (continued) |

3. Diesel Oxidation Catalyst:
    C10M—000<size> where:
  _ Size: —
   1 =9"x6"
   2 =10.5" x 6"
   3 = 11.25" x 6"
   4 =12" x 6"
   5 = 13.5" x 6"
     Application __|   __DPF Size        DOC Size
      Up to 6.4L          9°x12"          9°x6"
     5.9L to 8.3L.        10.5"x12"      10.5"x6" _
    7.2L to 10.8L.       11.25"x14"__|  11.25"x6"
               |
    8.8L to 12.8L.         12"x15",
                         912"    (2)      12"x6",
                                         9x6"  (2)
    12.5L to 16. 1L      13.5"x15",      13.5"x6",
                        10.5"x12" (2)  10.5"x6" (2)
  _ 14.9L to 161L      11.25¢x14" (2) 11.25"x6" (2)
4. iAD Backpressure Monitor:
  A56—00<varies with configuration>




             o ENGINE CONTROL sYSTEMS                      |
        PURIFILTER EGR DIESEL PARTICULATE FILTER — D—420—16



Document Created: 2018-10-02 21:46:27
Document Modified: 2018-10-02 21:46:27

Previous E.O. D-420-15 | Previous E.O. D-419 | Next E.O. D-420-17 | Next E.O. D-421
