Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2002.
As of Sunday, September 15th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
92-02 CROWN VIC./ GRAND MARQ. / TOWN CAR 4.6L V8 or 92-02 CROWN VIC./ GRAND MARQ. / TOWN CAR 4.6L V8 92-02 CROWN VIC./ GRAND MARQ. / TOWN CAR 4.6L V8 02-03 EXPLORER / MOUNTAINEER 4.6L V8 or 02-03 EXPLORER / MOUNTAINEER 4.6L V8 97-03 F150 / EXPEDITION 4.6L V8 97-03 F150 / EXPEDITION 5.4L V8 97-03 F150 / EXPEDITION 4.6L V8 97-03 F150 / EXPEDITION 5.4L V8 98-03 F250 5.4L V8 98-03 F250 5.4L V8 98-03 F250 6.8L V10 98-03 F250 6.8L V10 98 NAVIGATOR 5.4L V8 98 NAVIGATOR 5.4L V8 00-03 EXCURSION 6.8L V10 00-03 EXCURSION 6.8L V10 00-03 EXCURSION 5.4L V8 00-03 EXCURSION 5.4L V8 97-03 ECONOLINE VAN E150 4.6L V8 97-03 ECONOLINE VAN E150 4.6L V8 97-03 ECONOLINE VAN 5.4L V8 97-03 ECONOLINE VAN 5.4L V8 97-03 ECONOLINE VAN 6.8L V10 97-03 ECONOLINE VAN 6.8L V10 97-03 CLUBWAGON 6.8L V10 97-03 CLUBWAGON 6.8L V10 96-98 MUSTANG 4.6L V8 96-98 MUSTANG 4.6L V8 99-03 MUSTANG 4.6L V8 99-03 MUSTANG 4.6L V8 2001 BULLITT MUSTANG 2001 BULLITT MUSTANG 94-95 T-BIRD / COUGAR 94-95 T-BIRD / COUGAR 96-97 T-BIRD / COUGAR 96-97 T-BIRD / COUGARThe Supercharger Kit includes a new intake manifold assembly that contains an Eaton supercharger and an intercooler, a set of 30 lbs/hr fuel injectors to replace the stock 19 lbs/hr fuel injectors, a voltage step up for the fuel pump, a replacement Ford mass air flow sensor, new aluminum fuel rails, and a new electronic control module (ECM). The stock air cleaner housing is retained. The new intake manifold also acts as a mount for the throttle body, EGR valve, idle air valve bypass, and thermostat. A 180 degree thermostat which replaces the stock 195 degree is included on 1999 through 2003 applications that includes an ECM as part of the supercharger kit

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-423-4
  • Executive Order 423-4 / D423-4
  • ARB # D-423-4
  • Executive Order No: D-423-4
  • C.A.R.B. No. D-423-4
  • Resolution D-423-4
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-423-4 PDF

D-423-4 Document:


CARB_D-423-4

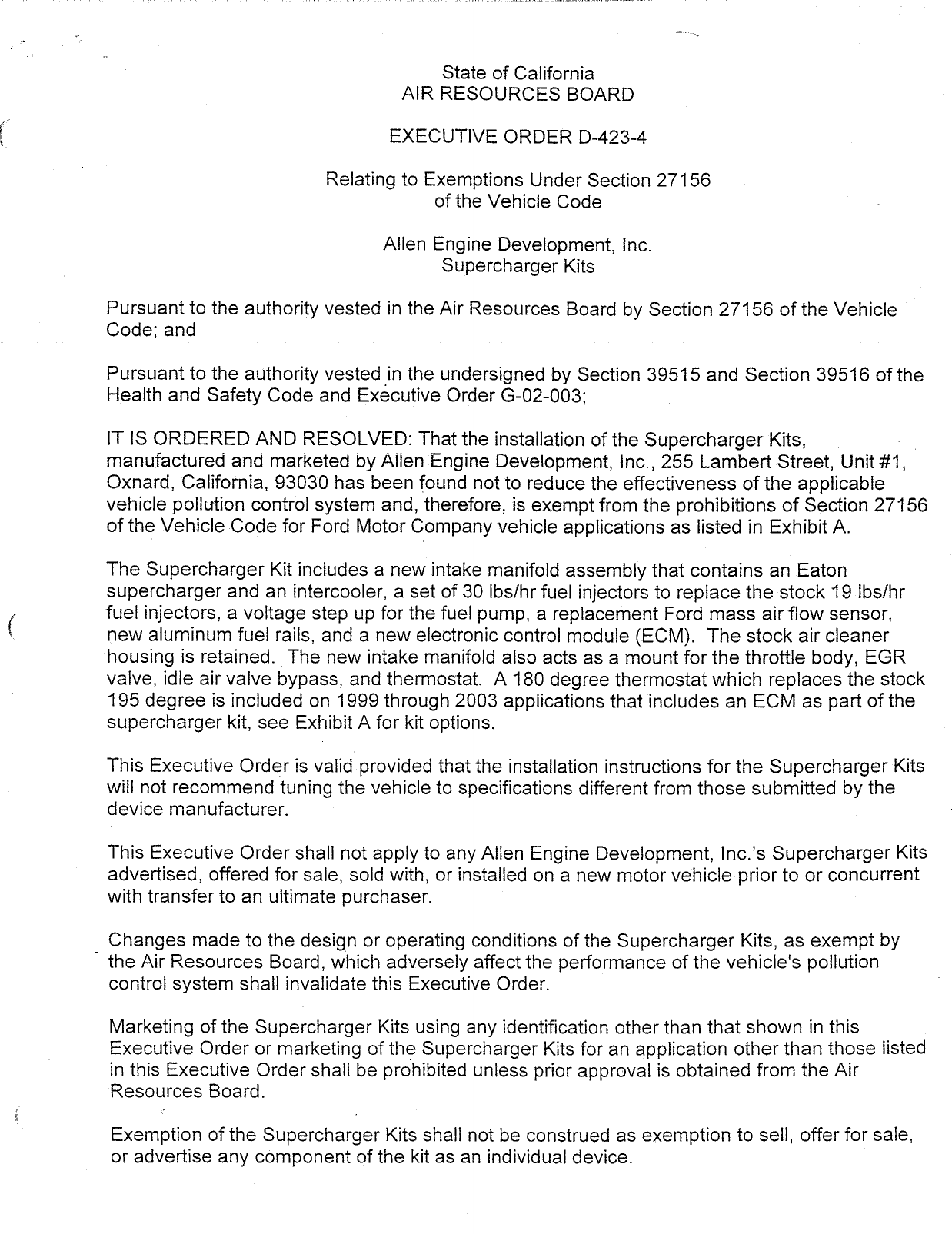

                                        State of California
                                    AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—423—4

                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code

                                  Alien Engine Development, Inc.
                                         Supercharger Kits

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle _
 Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
 Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kits,             —
 manufactured and marketed by Alien Engine Development, Inc., 255 Lambert Street, Unit #1,
 Oxnard, California, 93030 has been found not to reduce the effectxveness of the applicable
 vehicle pol!ution control system and, therefore, is exempt from the prohibitions of Section 27156
 of the Vehicle Code for Ford Motor Company vehicle applications as listed in Exhibit A.

 The Supercharger Kit includes a new intake manifold assembly that contains an Eaton
 supercharger and an intercooler, a set of 30 lbs/hr fuel injectors to replace the stock 19 Ibs/hr
 fuel injectors, a voltage step up for the fuel pump, a replacement Ford mass air flow sensor,
 new aluminum fuel rails, and a new electronic control module (ECM). The stock air cleaner
 housing is retained. The new intake manifold also acts as a mount for the throttle body, EGR
 valve, idle air valve bypass, and thermostat. A 180 degree thermostat which replaces the stock
 195 degree is included on 1999 through 2003 applications that includes an ECM as part of the
 supercharger kit, see Exhibit A for kit options.

 This Executive Order is valid provided that the installation instructions for the Supercharger Kits
 will not recommend tuning the vehicle to specifications different from those submitted by the
 device manufacturer.

 This Executive Order shall not apply to any Allen Engine Development, Inc.‘s Supercharger Kits
 advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent
 with transfer to an ultimate purchaser.

_ Changes made to the design or operating conditions of the Supercharger Kits, as exempt by
  the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
  control system shall invalidate this Executive Order.

 Marketing of the Supercharger Kits using any identification other than that shown in this
 Executive Order or marketing of the Supercharger Kits for an application other than those listed
 in this Executive Order shall be prohibited unless prior approval is obtained from the Air
 Resources Board.

 Exemption of the Supercharger Kits shall not be construed as exemption to sell, offer for sale,
 or advertise any component of the kit as an individual device.


                                                     _7.


This Executive Order does not constitute any opinion as to the effect the use of the
Supercharger Kits may have on any warranty either expressed or implied by the vehicle.

This Executive Order is granted based on emissions test data generated on a 2002 Ford Crown
Victoria certified to the Low—Emission Vehicle (LEV) emission standards. Emission levels of the
modified vehicle met the applicable emission standards over the Cold—Start CVS—75 Federal
Test Procedure (FTP) and the Supplemental Federal Test Procedure (USO6/SC03) test cycles.
Results are in grams per mile with deterioration factors added to CVS—75 results:

                               CVS—75                            USO6/SCO3

                   NMOG CO           NOx    HCHO           NMHC+NOx       CO
Standards          0.075    34     0.2       0.015         0.14/0.20      8.0/2.7
Device             0.058    0.7.    01—     0.001          0.03/0.02 .    0.21/0.4

Long Term Fuel Trim Values: Bank—1. 0.0, Bank—2 0.0

This Executive Order is also based on an On—Board Diagnostic II (OBD I!) test conducted on the
same test vehicle. Test data showed that the supercharger when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF ALLEN ENGINE DEVELOPMENT, INC.‘S SUPERCHARGER KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

Executed at El Monte, California, this 257 day of November 2002.




                                          AH% Lyons, Chief
                                          Mobile Source Operations Division




             ALLEN ENGINE DEVELOPMENT, INC.—SUPERCHARGER KITS—D—423—4


                                                                                                      yer>%



                                                                      ALLEN ENGINE DEVELOPMENT INC.
                                                                                              EXHIBIT A

                                A               |     B J             C                   D     {        E          e                                  H__      J                    |       .               J
 1                  VEHICLE MODEL               ENGINE | PSIMAX BLOWER     PULLEY ; MANIFOLD THR.BODY! MASS AIR | FUEL SYSTEMUPGRADE |INJECTORS
 2|    92—02 CROWN VIC./ GRAND MARQ. / TOWN CAR a.6LVv8 | epst ‘EATONMgOS:— 283       REV iI   stock |— stock _        SFPR + PUMP       19#
 3                              or              [               |           o.                    1
47|    92—02 CROWN VIC./ GRAND MARQ. / TOWN caAR | 4.6L V8  6 PSI ; EATON Mgos)|                        2.83      REVII         ; STOCK     STOCK |                          PUMP & COMPUTER               30#
5|     92—02 CROWN VIC./ GRAND MARQ. / TOWN CAR| 4.6Lv8 | 9Pst ‘ EATON Mgos!                            2.52      REV If        : STOCK 80mm FORD|                           PUMP & COMPUTER               30#
6            02—03 EXPLORER / MOUNTAINEER        ; 46LVv8 ; 5PSsi | EATONMgOS‘                          2.93      REVII         ; STOCK | _ STOCK |                            PUMP & SFPR                (19% _
7                               or              |                                .              .                               ;             :
 8            02—03 EXPLORER / MOUNTAINEER      | 46LVv8  orpsi                      EATONMgOS,          2.52      REV II    _|     STOCK      |80mm FORD|  PUMP & COMPUTER                                 30#
 9                 97—03 F150 / EXPEDITION      ; A.6Lvs8 aPpsi              ;       EatonN maos|      2.93        REVI      |      stOck       _ sTOCK       SFPR + PUMP                                   19%
10                 97—03 F150 / EXPEDITION      i 5A4LV8  5PSI               .       EATON M9oS |      2395      . REVI      |      STOCK     | STOCK         SFPR + PUMP                                   19#
11                 97—03 F150 / EXPEDITION      | a6Lvs | ops!t              |       EATONMQOS:        252      — REV!      !       STOCK     |80mm FORD| _ PUMP & COMPUTER                                30# _
12                 97—03 F150 / EXPEDITION      154LV8 | s PSI               [       EATONMgos:        225         REVI     _!      STOCK     |8Omm FORD| _ PUMP & COMPUTER                                30#
13                        98—03 F250            i 5ALV8   5PsI_              [       EATONMgos!         2.395      REVI     ;       STOCK     | STOCcK        SFPR + PUMP                                   19#
14                       98—03 F250             i 5A4LV8            8 PSI [ EATONM9OS ;                2.25       REVI      i       STOCK !_80mn] FORD|                 _ PUMP & COMPUTER _ |             _ 30# _
15                       98—03 F250             Ia.gLVi0|           spst_            EATONMgoS!         2.395     REVI      : STOCK                  STOCK          |          SFPR + PUMP       _        _ 19% _
16                       98—03 F250             |e.sLv10|           arst }; EATON Mmgos!                 2.25     REV!      |_ STOCK              |80mm FORD|                PUMP & COMPUTER                30#
17                     98 NAVIGATOR                 5ALVB           5PSI j EATONMgOS| 2395                        REV |             stock |        stock |                     sFPR+ PUMP _ _|_ 19#|
18                     98 NAVIGATOR               5ALV8    sPSI | EATONMgoS|                            2.25      REV 1        STOCK              8Omm FORD|                 PUMP &CcoMPUTER _|_           30#
19                   00—03 EXCURSION            Pe.sivio| spsi | eatonmit2}                            2.395      REV |        STOCK                STOCK               —_     SFPR+ puMp ____| _          19%)
20                   00—03 EXCURSION            pe.sLvio| & PSi ' EATONM112|                            2.25      REV I        STOCK              80mm FORD                  PUMP & COMPUTER _| _          30%
21                   00—03 EXCURSION              54LV8    &PSI |EATONMgOS|                            2.395      REV I        STOCK                STOCK                      SFPR + PUMP    oL _         19
22                   00—03 EXCURSION            | s4aLvs | arst |EATONMgOS|                             225       REV 1        STOCK              |8Omm FORD|                PUMP & COMPUTER               30#
23              97—03 ECONOLINE VAN E150          a6Lvs | spst : EATONMgos:|                           2.93       REV!      ; STOCK                 STOCK                      SFPR + PUMP  ______|__      19#
24              97—03 ECONOLINE VAN E150          4.8LV8   8 PSI / EATONMgos|                          2.52       REVI      _| STOCK              |80mm FORD|                PUMP & comMPUTER
25                  97—03 ECONOLINE VAN             5ALV8           5PSI |EATON MaoS| 2.395                       REV 1             syock           stock ~|            __ SFPR+pumMP _              _|
26                  97—03 ECONOLINE VAN             54Lvs           aPsSi : EATONMgoSs|                225 °      REV!      ; STOCK               |80mm FORD|                PUMP & COMPUTER               30#
27                  97—03 ECONOLINE VAN         | 68L v10           5 PSI    ; EATON M112              2.395      REV |     |       STOCK           STOCK                      SFPR + PUMP                 19#
28                  97—03 ECONOLINE VAN         ‘6.8LV10| 8 PSI              ; EATONMI12|              225| REVI |; STOCK |80mmFORD|             PUMP & COMPUTER      30#
76                    97—03 CLUBWAGON            68L Vv10 5 PSI                EATONM12|               2.395   REV |        STOCK    STOCK          SFPR + PUMP        19#
30                    97—03 CLUBWAGON            6.8LV10 & PSI               ; EATONM112|              2.25    REV |        STOCK 80mm FORD|     PUMP & COMPUTER      30#
31                     96—98 MUSTANG              46LV8    6PSI              [ EATONMSOS)              283   REVI&II        StOcK    STOCK         "SFPR + PUMP        19#
327                    96—98 MUSTANG              4.6LV8   9PSI                |EATONM9OS|             252   REVI&I         STOCK |8OmmFORD| _ PUMP & COMPUTER | — 30#
33                     99—03 MUSTANG              4.6LVv8 6PsI                 |EATONMgos|              2.83   REV i1    |_ STOCK__| STOCK_ |BAP or PUMP & COMPUTER| _30#
34                    ~99—03 MUSTANG             welvs     oPsit               |EATONMadS|             2.52  _REVII _| _ STOCK_ 80mmFORD | BAPorPUMP& COMPUTER|_ 30#
35 |              2001 BULLITT MUSTANG            A6LVs | 6PsSi              |EATONMaoSs|              283     REev it [?oMMFOR _ _ STOCK _ BAPorPUMP& COMPUTER| _30# _
36 |             ©2001 BULLITTMUSTANG             4.6LVvs  9rpsi               |Eatonmgos|              2.52  "REVII __|7O0MM FOR| 80mm FORD| BAP orPUMP& COMPUTER|_30#
37                 94—95 T—BIRD/ COUGAR          ‘w6LVvs s6ps!                 |EATONMgoOS|            283 | REVI | STOCK | STOCK               ~~~SFPR + PUMP         19#
38                 94—95T—BIRD / COUGAR           46LVv8   9Psi                |EATONMYOS|             252     REVI _| STOCK |8BOmmFORD|         PUMP & COMPUTER      30#
39              ~ g6—97 T—BIRD / COUGAR           4.6LVB   6PSi                |EATONMgos|              2.83   REV |        STOCK    STOCK          SFPR + PUMP        19#
40                96—97 T—BIRD / COUGAR           4.6Lv8   orsi                |EaATONMgoOS|           252 | REVI          STOCK_\ 8ommFORD| _ PUMP & COMPUTER_|_30#__
41 |[NOTES:                 _        .                                                                                                            e                                                          _
17 |BAP = KENNE—BELL BGOOST—A—PUMP OR EQUIVALENT
43 |SFPR = ALLEN ENGINE SUPPLEMENTAL FUEL PRESSURE REGULATOR                                                                              _1
44|      _      |                               |           |                |


                                      EVALUATION SUMMARY

Manufacturer Name: Allen Engine Development, Inc.

Name of Device: Supercharger Kit

Background:
       Allen Engine Development, Inc. of 255 Lambert Street, Unit #1, Oxnard, California, 93030,
has applied for an exemption from the prohibitions in Section 27156 of the California Vehicle Code
(VC) for the Allen Engine Development, Inc.‘s Supercharger Kits designed for applicable 1992
through 2003 Ford Motor Company vehicles equipped with a V8 or V10 engine as listed in
Exhibit A, which also includes ULEV MDV.

Recommendation:
      Grant exemption to Allen Engme Development, Inc. as requested and issue Executlve Order
D—423—4.

Device Description:
      The Supercharger Kit includes a new intake manifold assembly that contains an Eaton
supercharger and an intercooler, a set of 30 Ibs/hr fuel injectors to replace the stock injectors, a
voltage step up for the fuel pump, a replacement Ford mass air flow sensor, new aluminum fuel
rails, and a new electronic control module (ECM). The stock air cleaner housing is retained. A 180
degree thermostat which replaces the stock 195 degree is included on 1999 through 2003
applications that includes an ECM as part of the supercharger kit, see Exhibit A for kit options. The
ECM is programmed to turn on the cooling fan at 195 degrees, instead of 205 degrees.

Discussion/Basis for the Recommendation:
       This Executive Order is granted based on emissions test data generated on a 2002
Ford Crown Victoria certified to the Low—Emission Vehicle (LEV) emission standards.
Emission levels of the modified vehicle met the applicable emission standards over the
Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test
Procedure (USO6/S5C03) test cycles. Results are in grams per mile with deterioration
factors added to CVS—75 results:

                              CVS—75                             USO6/SCO3

                   NMOG CO         NOx     HCHO            NMHC+NOx        CO
Standards          0.075 3.4       0.2     0.015           0.14/0.20       8.0/2.7
Device             0.058 0.7       0.1     0.001           0.03/0.02       0.210.4

Long Term Fuel Trim Values: Bank—1 0.0, Bank2 0.0

Testing parameters used were: 4250 Ibs. and 6.4, 0.368, 0.0229 coefficients. Additive deterioration
factors were: NMOG 0.0098, CO 0.212, NOx 0.078, and HCHO 0.0004. The conversion factors
were: NMOG/NMHC=1.015 and HCHO/NMHC=0:003. NMHC was measured at 0.048. Boost
pressure was measured at 9 psi.

This Executive Order is also based on an On—Board Diagnostic II (OBD II) test conducted on the
same test vehicle. Test data showed that the supercharger when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.

Based on the emissions data and the OBD—II test results, the staff concludes that Allen Engine
Development, Inc.‘s Supercharger Kit meets the requirements for a VC 27156 exemption.



Document Created: 2005-09-01 12:44:41
Document Modified: 2005-09-01 12:44:41
