Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 21, 2007.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
407350IC2003 Nissan 3.5L 350ZStock crankshaft pulley, 2.2" diameter supercharger pulleyThe Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an upper intake manifold, a supercharger bypass valve, an add-on fuel injector that uses a metal fuel rail (5.6L applications use additional fuel injectors for even fuel distribution), an intercooler, and a stand alone fuel management unit. Installation of the supercharger kit requires the rerouting and replacement of the positive crankcase ventilation hose; the new hose has a SAE30R7 rating. All fuel lines added are manufactured out of metal. The kit retains the stock air cleaner housing.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-436-13
  • Executive Order 436-13 / D436-13
  • ARB # D-436-13
  • Executive Order No: D-436-13
  • C.A.R.B. No. D-436-13
  • Resolution D-436-13
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-436-13 PDF

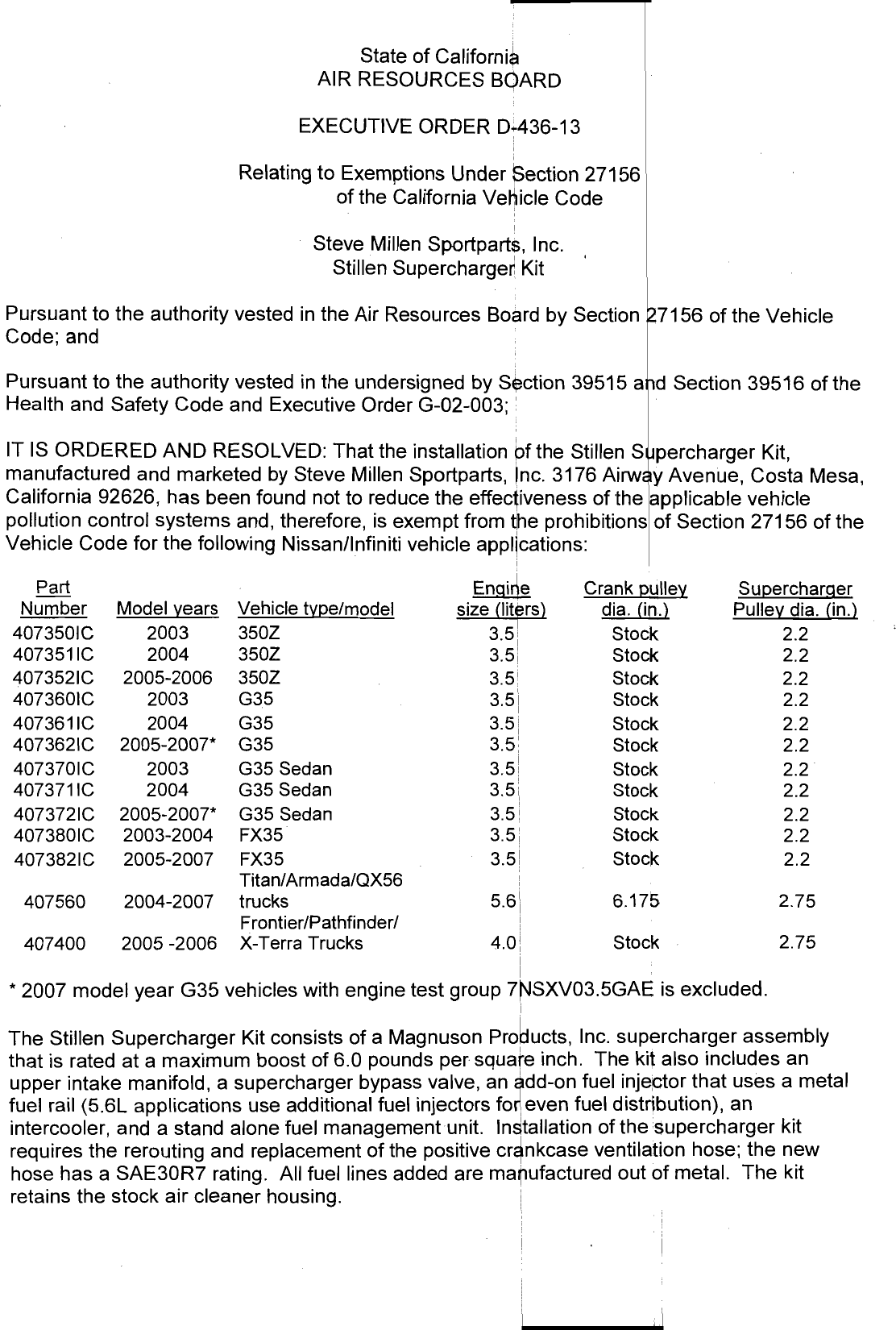

D-436-13 Document:



                                        State of Californié
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER Df436-13

                           Relating to Exemptions Under Section 27156
                                       of the California Vehicle Code

                                  — Steve Millen Sportpart§5, Inc.
                                       Stillen Supercharger Kit

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
 Code; and                                                .

 Pursuant to the authority vested in the undersigned by Séction 39515 and Section 39516 of the
 Health and Safety Code and Executive Order G-02-003'f                  ‘

 IT IS ORDERED AND RESOLVED: That the installation ofthe Stillen Supercharger Kit,
 manufactured and marketed by Steve Millen Sportparts, Inc. 3176 Airway Avenue, Costa Mesa,
 California 92626, has been found not to reduce the effectweness of the apphcable vehicle
 pollution control systems and, therefore, is exempt from fihe prohibitions of Section 27156 of the
Vehicle Code for the following Nissan/Infiniti vehicle applications:

   Part                    —                           Engide            Crank pulley    Supercharger
  Number     Model years   Vehicle type/model        size (Iitg‘ rs)       dia. (in.    Pulley dia. (in.)
 407 3501C      2003       350Z                           3.5)              Stock             2.2
 4073511C       2004       3507                           3.5)              Stock             2.2
 4073521C      2005—2006   3507                           3.5               Stock             2.2
 4073601C       2003       G35                            3.5)              Stock             2.2
 4073611C       2004       G35                            3.5)              Stock             2.2
 4073621C     2005—2007*    G35                           3.5;              Stock             2.2
 4073701C        2003      G35 Sedan                      3.5               Stock             2.2)
 4073711C       2004       G35 Sedan                      3.5|              Stock             2.2
 4073721C    2005—2007*     G35 Sedan                     3.5)              Stock             2.2
 407380IC     2003—2004    FX35                           3.5)              Stock             2.2
 4073821C    2005—2007     FX35                           3.5}              Stock             2.2
                           Titan/Armada/QX56                  |
   407560     2004—2007    trucks                         5.6}              6.175             2.175
                           Frontier/Pathfinder/                  |
  407400      2005 —2006    X—Terra Trucks                4.0|              Stock             2.75
                                                                     |
                                                                     |
 * 2007 model year G35 vehicles with engine test group 7NSXV03.5GAE is excluded.

  The Stillen Supercharger Kit consists of a Magnuson Prohucts Inc. supercharger assembly
  that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an
  upper intake manifold, a supercharger bypass valve, an jddon fuel injector that uses a metal
. fuel rail (5.6L applications use additional fuel injectors fo even fuel distribution), an
 intercooler, and a stand alone fuel management unit. Installation of the supercharger kit
 requires the rerouting and replacement of the positive crénkcase ventilation hose; the new
 hose has a SAE30R7 rating. All fuel lines added are manufactured out of metal. The kit
 retains the stock air cleaner housing.


                                                   _2
                                                             ‘\   .


This Executive Order is valid provided that the installatio‘w instructions for the Stillen
Supercharger Kit will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of t he Stillen Super charger Kit, as exermipt
by the Air Resources Board, which adversely affect the p erformance of t he vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Stillen Super charger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or C oncurrent with t ransfer to an ultimate
purchaser.

Marketing of the Stillen Supercharger Kit using any ident fication other th an that shown in this
Executive Order or marketing of the Stillen Supercharger Kit for an appli¢Pation other than those
listed in this Executive Order shall be prohibited unless p rior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Stillen
Supercharger Kit may have on any warranty either expre ssed or implied by the vehicle
manufacturer.

This Executive Order is granted based on prior emissionss test data gene rated on a 2004 model!
year Nissan 350Z with a 3.5 liter engine (4NSXVO3.5G7A\, LEV II LEV, P C). Testing consisted
of Cold—Start CVS—75 Federal Test Procedure, Suppleme ntal Federal Test Procedure
(USO6/S5C03), and an examination of the On—Board Diagrnostic II (OBD II system. Emission
levels of the 350Z with the Stillen Supercharger Kit instal ed, met the veh icle‘s applicable
emission standards. The following test results are in grarns per mile with the deterioration
factors applied:
                          CVS—75                                USO6/SC0O3
                   NMOG CO     NOx         HCHO             NMHC+NOx       CO
Standards 50k      0.075 3.4   0.05        0.015            0. 14/0.20     8.0/2.7
Device             0.065 1.5   0.05        0.001            0,.08/0.05     §.0/2.1

Examination of the OBD II system showed the Nissan/Inf niti Superchary er Kit does not affect
OBD II system operation.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMEN NT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING Z4ANTI—POLLUTIC)N BENEFITS OR ANY
ALLEGED BENEFITS OF THE STILLEN SUPERCHARG ER KIT.

No claim of any kind, such as "Approved by the Air Reso urces Board", m ay be made with
respect to the action taken herein in any advertising or ot her oral or written communication.



      STEVE MILLEN SPORTPARTS, INC. — STILLEN S UPERCHARGE.R KIT — D—436—13


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of réceipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.                                       |

Executed at El Monte, California, this     é / # day o# September 20@7.

                                             —




                                         nnette Hebert, Chief
                                     Mobile Source Operations Division      | >




       STEVE MILLEN SPORTPARTS, INC. — STILLEN                  UPERCHARG?R KIT — D—436—13


                                                                          8|



Document Created: 2007-09-28 15:08:49
Document Modified: 2007-09-28 15:08:49
