Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 1, 2001.
As of Wednesday, July 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModificationRemarks
1991-2001 Acura NSXReplace stock fuel pressure regulator; replace intake manifold; add fuel pump regulator unit; replace stock fuel pump fuse6 psi boost

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-455-10
  • Executive Order 455-10 / D455-10
  • ARB # D-455-10
  • Executive Order No: D-455-10
  • C.A.R.B. No. D-455-10
  • Resolution D-455-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-455-10 PDF

D-455-10 Document:

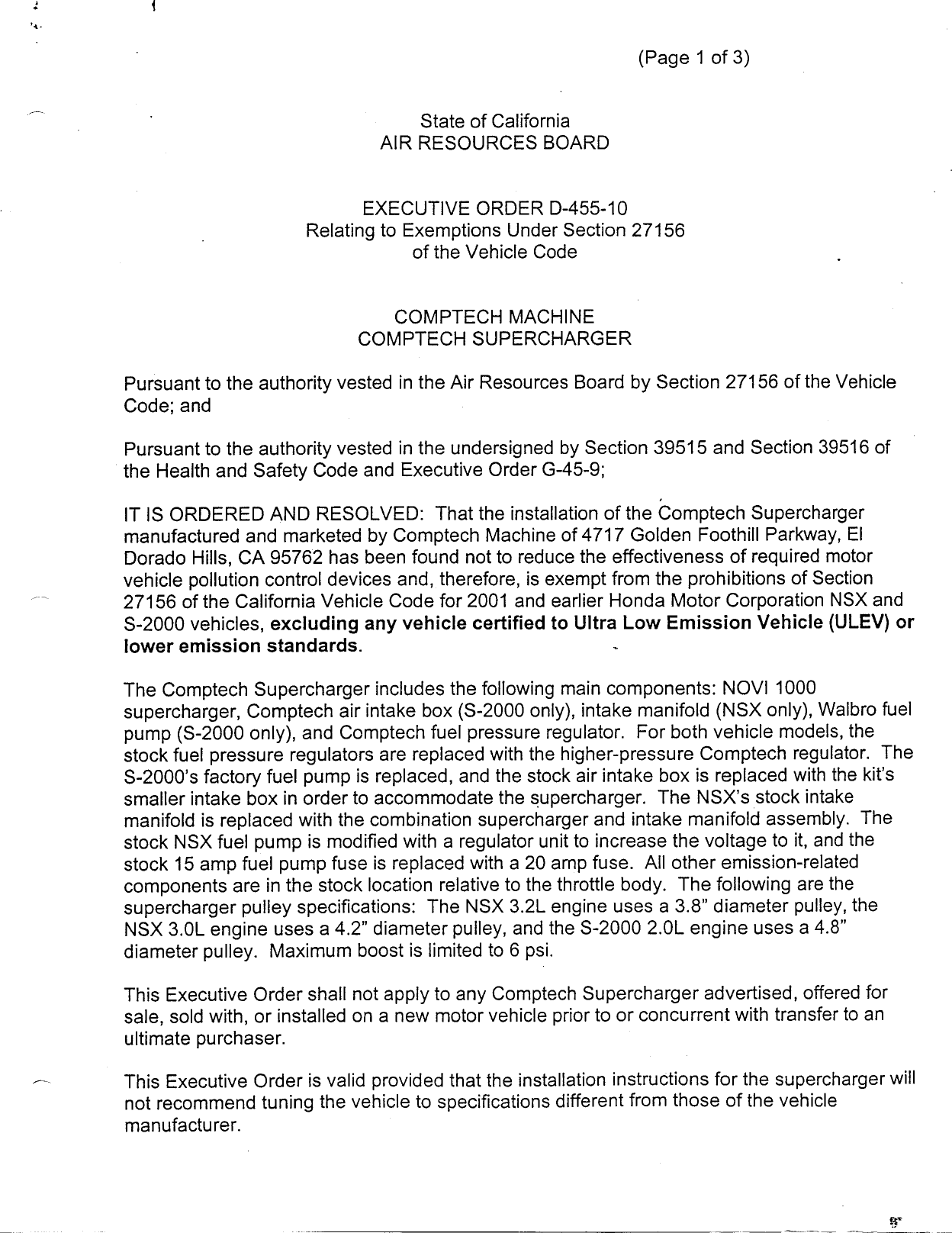

                                                                 (Page 1 of 3)


                                     State of California
                                AIR RESOURCES BOARD


                              EXECUTIVE ORDER D—455—10
                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                                COMPTECH MACHINE
                             COMPTECH SUPERCHARGER

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Comptech Supercharger
manufactured and marketed by Comptech Machine of 4717 Golden Foothill Parkway, El
Dorado Hills, CA 95762 has been found not to reduce the effectiveness of required motor
vehicle pollution control devices and, therefore, is exempt from the prohibitions of Section
27156 of the California Vehicle Code for 2001 and earlier Honda Motor Corporation NSX and
$—2000 vehicles, excluding any vehicle certified to Ultra Low Emission Vehicle (ULEV) or
lower emission standards.                                    —

The Comptech Supercharger includes the following main components: NOVI 1000
supercharger, Comptech air intake box (S—2000 only), intake manifold (NSX only), Walbro fuel
pump (S—2000 only), and Comptech fuel pressure regulator. For both vehicle models, the
stock fuel pressure regulators are replaced with the higher—pressure Comptech regulator. The
S$—2000‘s factory fuel pump is replaced, and the stock air intake box is replaced with the kit‘s
smaller intake box in order to accommodate the supercharger. The NSX‘s stock intake
manifold is replaced with the combination supercharger and intake manifold assembly. The
stock NSX fuel pump is modified with a regulator unit to increase the voltage to it, and the
stock 15 amp fuel pump fuse is replaced with a 20 amp fuse. All other emission—related
components are in the stock location relative to the throttle body. The following are the
supercharger pulley specifications: The NSX 3.2L engine uses a 3.8" diameter pulley, the
NSX 3.0L engine uses a 4.2" diameter pulley, and the S—2000 2.0L engine uses a 4.8"
diameter pulley. Maximum boost is limited to 6 psi.

This Executive Order shall not apply to any Comptech Supercharger advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the supercharger will
not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.




                                                                                                  z


 COMPTECH MACHINE                                         EXECUTIVE ORDER D—455—10
 COMPTECH SUPERCHARGER                                    (Page 2 of 3)



 Changes made to the design or operating conditions of the device, as exempted by the Air
 Resources Board (ARB), that adversely affect the performance of a vehicle‘s pollution control
 system shall invalidate this Executive Order.

— Marketing of this device using any identification other than that shown in this Executive Order
 or marketing of this device for an application other than those listed in this Executive Order _
 shall be prohibited unless prior approval is obtained from the.ARB.

 This Executive Order does not constitute any opinion as to the effect that the use of this device
 may have on any warranty either expressed or implied by the vehicle manufacturer.

 This exemption is issued based on submitted emissions test data from an independent
 laboratory on a 2000 model—year S$—2000 vehicle certified to the Low Emission Vehicle (LEV})
 standards:

                                                  NMOG         CO ,      NOX      HCHO
 Standards (g/mi)                                 0.075        3.4       0.2      0.015
 Device (g/mi) with dfs applied                   0.068        0.8       0.1      0.002


 Test results showed that the Comptech Supercharger when installed on the vehicle did not
 cause tailpipe emissions to exceed the applicable emission standards during the Cold Start
 CVS—75 Federal Test Procedure. This Executive Order is also based on the On—Board
 Diagnostic II (OBD II) testing conducted on the same test vehicle. Test data showed that the
 Comptech Supercharger when installed on the vehicle did not affect the vehicle‘s ability to
 perform its OBD II monitoring.

 However, the ARB finds that reasonable grounds exist to believe that use of the      Comptech
 Supercharger may adversely affect emissions of motor vehicles when operating         under
 conditions outside the parameters of the previously prescribed test procedures.      Accordingly,
 the ARB reserves the right to conduct additional emission tests, in the future, as   such tests are
 developed, that will more adequately measure emissions from all cycle phases.        If such test
 results demonstrate that the Comptech Supercharger adversely affects emissions during off—
 cycle conditions (defined as those conditions which are beyond the parameters of the Cold—
 Start CVS—75 Federal Test Procedure), this Executive Order shall be effectively rescinded as
 of the date the test results are validated. Further, if such test results or other evidence
 provides the ARB with reason to suspect that the Comptech Supercharger will affect durability
 of the emission control systems, Comptech Machine shall be required to submit durability data
 to show that the durability of the vehicle emission control system is not, in fact, affected and/or
 that the add—on modified part demonstrates adequate durability.

 In addition to the foregoing, the ARB reserves the right in the future to review this Executive
 Order and the exemption provided herein to assure that the exempted add—on or modified part
 continues to meet the standards and procedures of Title 13, California Code of Regulations,
 Section 2222, et seq.


   1

COMPTECH MACHINE                                            EXECUTIVE ORDER D—455—10
COMPTECH SUPERCHARGER                                       (Page 3 of 3)            .


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE COMPTECH
SUPERCHARGER.

No claimsof any kind, such as "Approved by the Air Resources Board" may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executive Orders D—455—1, dated July 1998, and D—455—4, dated May 1999, are superseded
and of no further force and effect.

Executed at El Monte, California, this    __/       day of March 2001.


                                                /


                                          . B. Smmerfield, Chief
                                         Mobile Source Operations Division



Document Created: 2005-09-01 12:43:28
Document Modified: 2005-09-01 12:43:28
