D-554-3 Document:

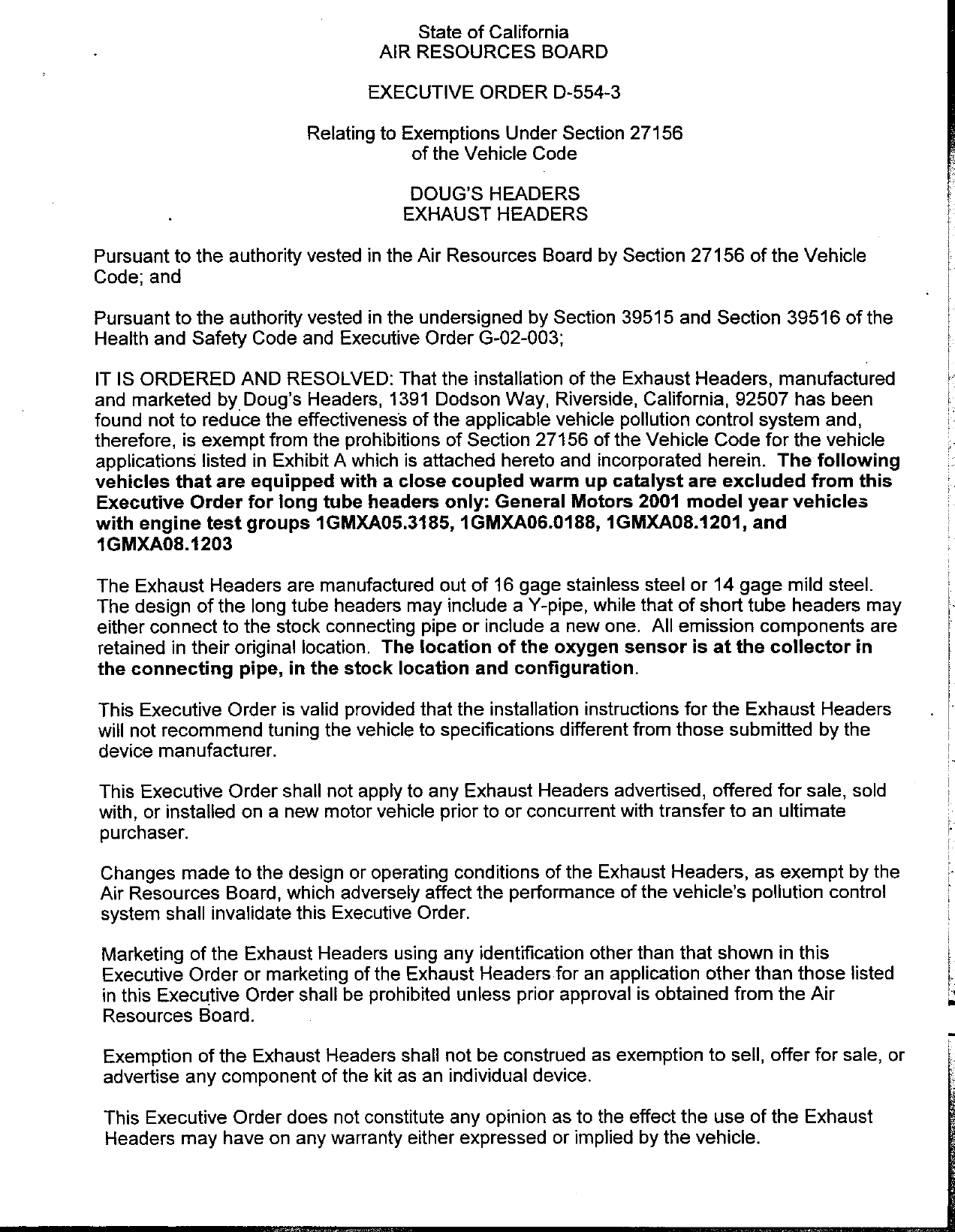

                                      State of California
                                  AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—554—3

                         Relating to Exemptions Under Section 27156
                                      of the Vehicle Code

                                      DOUG‘S HEADERS
                                     EXHAUST HEADERS

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Exhaust Headers, manufactured
and marketed byDoug‘s Headers, 1391 Dodson Way, Riverside, California, 92507 has been
found not to reduce the effectiveness of the applicable vehicle pollution control system and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the vehicle
applications listed in Exhibit A which is attached hereto and incorporated herein. The following
vehicles that are equipped with a close coupled warm up catalyst are excluded from this
Executive Order for long tube headers only: General Motors 2001 model year vehicles
with engine test groups 1GMXA05.3185, 1GMXA06.0188, 1GMXA08.1201, and
1GMXA08.1203

The Exhaust Headers are manufactured out of 16 gage stainless steel or 14 gage mild steel.          |
The design of the long tube headers may include a Y—pipe, while that of short tube headers may              >
either connect to the stock connecting pipe or include a new one. All emission components are           i
retained in their original location. The location of the oxygen sensor is at the collector in
the connecting pipe, in the stock location and configuration.

This Executive Order is valid provided that the installation instructions for the Exhaust Headers
will not recommend tuning the vehicle to specifications different from those submitted by the       l
                                                                                                    I
device manufacturer.

This Executive Order shall not apply to any Exhaust Headers advertised, offered for sale, sold      |
with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Changes made to the design or operating conditions of the Exhaust Headers, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

Marketing of the Exhaust Headers using any identification other than that shown in this
Executive Order or marketing of the Exhaust Headers for an application other than those listed      .
in this Executive Order shall be prohibited unless prior approval is obtained from the Air          »4
Resources Board.

 Exemption of the Exhaust Headers shall not be construed as exemption to sell, offer for sale, or
 advertise any component of the kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect the use of the Exhaust
 Headers may have on any warranty either expressed or implied by the vehicle.


                                              —2—


This Executive Order is granted based on prior submitted emissions test data (Executive Orders
D—554 and D—554—2) and emissions test data generated on a 2005 model year 6.0L Chevrolet
C1500 certified to the Super Ultra Low—Emission Vehicle (SULEV) emission standards, and a
2005 model year 5.4L Ford F—150 certified to the Low—Emission Vehicle II Low—Emission Vehicle
(LEV fI LEV) emission standards. Emission levels of the modified vehicles (short tube header
installed)—met the applicable emission standards over the Cold—Start CVS—75 Federal Test
Procedure (FTP) and the Supplemental FTP (USO6) test cycles. Results are in grams permile
with deterioration factors applied to the CVS—75 FTP test results:

Ford E—150                cvs—7s                                     usos
                  NMOG CO NOx HCHO                            NMHC+NOx    co
Standards         0.075 34 0.05 0.015                           0.60      11.                              |
Device            0.048 1.20.02 0.001                           0.01       6.5                             j
Chevrolet C1500              cvs—75                                     usos                               $
                  NMOG CO        NOx HCHO                     NMHC+NOx          co
Standards         0125 34        014 0.015                      0.40            10.5
Device            0.067 11       0.06 0.001                     0.05             0.6
This Executive Order is also based on an On—Board Diagnostic If (OBD 11) test conducted on the
same test vehicles Test data showed that the headers when installed on the vehicles did not
affect the vehicle‘s ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE EXHAUST HEADERS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

 Executed at El Monte, California, this 22     day of September 2005.                                  i


                                Q,M
                                      Allen Lyons, Chief                                               =
                                      Mobile Source Operations Division




                        DOUG‘S HEADERS—EXHAUST HEADERS—D—554—3


                                             Exhibit A
                                            Short Tube
Year    Engine          Application                             Part Number

98—99   LS—1            Chevy Camaro                            D3327
98—99   LS—1            Pontiac Firebird, Trans AM              D3327
92—95   350 LT—1        Chevy Corvette                          D3330
97—98   350 LS—11.S—6   |Chevy Corvette                         D3331
2000    350 LS—1/LS—6   |Chevy Corvette                         D3332
01—04   350 LS—1/LS—6   |Chevy Corvette                         D3333
04—05   4.8—5.3L        Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd    D3373
04—05   4.8—5.3L        Chevy/GMC Suburban, Tahoe & Yukon 2wd   D3373
04—05   4.8—5.3L        Chevy /GMC 1/2 & 3/4 Ton Pick—ups 4wd   D3373
04—06   4.8—5.3L        Chevy/GMC Suburban, Tahoe & Yukon 4wd   D3373

86—93   255—302W        Ford   Mustang                          D6673
86—93   255—302W        Ford   Mustang                          D6674
86—93   255—302W        Ford   Mustang                          D6675
94—95   255—302W        Ford   Mustang                          D6676
94—95   351W            Ford   Mustang                          D6677
96—98   4.6L 2V         Ford   Mustang                          D6678
99—04   4.6L 2V         Ford   Mustang                          D6680
97—03   5AL             Ford F150,F250 & F350 2&4wd Pick up     D6658
04—06   4.6—5.4Liter    Ford F150 2&4wd Pick—up                 D6é659




                                                                              it
                                                                              f
                                                                              B
                                                                              |[
                                                                               1
                                                                               |




                        Doug‘s Headers — Exhaust Headers — D—554—3

                                                Page 1


                                                                          Exhibit A
   .                                                                    Long Tube


Year        Engine     __|Application                                                                                 Part Number

73—87       265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 2 1/2" catalytic converter & heat riser                 D3367Y—1
73—87       265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 2 1/2" catalytic converter                              D3367Y—2
73—87   _   1265—400   |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 3" catalytic converter                                  D33G7Y—3
73—87       265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 3"catalytic converter & heat riser                      D3367Y—4
88—95       265—400    |Chevy/GMC       1/2   &   3/4 Ton   Pick—ups 2wd                                              D3383—1
88—95       265—400    |Chevy/GMC       1/2   &   3/4 Ton   Pick—ups 2wd                                              D3383—2
88—95       265—400    _|Chevy/GMC      1/2   &   3/4 Ton   Pick—ups 2wd                                              D3385Y—1
88—95       265—400    _|Chevy/GMC      1/2   &   3/4 Ton   Pick—ups 2wd                                              D33B5Y—2
88—95       396—454    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                                                          D338B8
96—98       5.7L       Chevy/GMC 1/2 & 374 Ton Pick—ups 2wd                                                           D3302
96—00       7.4—8.1L   |Chevy/GMC 1/2 & 314 Ton Pick—ups 2wd                                                          D3396
1999        4.8—6.0L   |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd.with air injection                                       D33653—1
1999        4.8—6.0L   |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                                                          D3353—2
00—01       4.8—6.0L   |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wdwith air injection                                        D3353—3
00—01       5.3—6.0L   |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                _                                         D3353


73—87       265—400    _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd, 2 1/2" catalytic converter & heatriser   D33G7Y—1
73—87       265—400    |Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd, 2 1/2" catalytic converter                D33G7Y—2
73—91       265—400    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd, 3" catalytic converter                     D3367Y—3
73—91       265—400    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd, 3" catalytic converter & heat riser        D33G7Y—4
88—95       265—400    |Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd                                            D3383—1
88—95       265—400    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                             D3383—2
88—95       265—400    _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd                                           D3385Y—1
88—95       265—400 |Chevy/GMC Blazer, Yukon,Jimmy, Suburban & Tahoe 2wd                                              D3385Y—2
96—98       5.7L    Chevy/GMC Blazer,Yukon,Jimmy, Suburban & Tahoe 2wd                                                D3302
96—00       7.4—8.1L   _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                            D3396
86—91       396—502    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                             D3399Y—1
92—95       396—502    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                             D338B8
1999        4.8—6.0L   |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wdwith air injection                           D3353—1
1999        4.8—6.0L   _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd                                           D3363—2
00—01       4.8—6.0L   |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd,with air injection                          D3363—3
00—01       5.3—6.0L   _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                            D3353


73—91       265—400    _|Chevy/GMC      1   Ton   Pick—ups   2wd,   2 1/2" catalytic converter & heat riser           D3367Y—1
73—91       265—400    |Chevy/GMC       1   Ton   Pick—ups   2wd,   2 1/2" catalytic converter                        D3367Y—2
73—91       265—400    _|Chevy/GMC      1   Ton   Pick—ups   2wd,   3" catalytic converter                            D3367Y—3
73—91       265—400    |Chevy/GMC       1   Ton   Pick—ups   2wd,   3" catalytic converter & heat riser               D3367Y—4
88—95       265—400    _|Chevy/GMC      1   Ton   Pick—ups   2wd                                                      D3383—1
88—95       265—400    |Chevy/GMC       1   Ton   Pick—ups   2wd                                                      D3383—2
88—95       265—400    |Chevy/GMC 1 Ton Pick—ups 2wd                                                                  D3385Y—1
88—95       265—400    |Chevy/GMC 1 Ton Pick—ups 2wd                                                                  D3385Y—2
96—98       5.7L       Chevy/GMC 1 Ton Pick—ups 2wd                                                                   ©3302—1
96—00       7.4—8.1L   |Chevy/GMC 1 Ton Pick—ups 2wd                                                                  D3396
86—91       396—502    _|Chewy/GMC 1 Ton Pick—ups 2wd                                                                 D3399Y—2         i
88—95       396—502    |Chevy/GMC 1 Ton Pick—ups 2wd                                                                  D3388            [.
00—01       6.0L       Chevy/GMC 1 Ton Pick—ups 2wd                                                                   D3353




                                                                                                                                    wo —~—
7391        265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, 2 1/2" catalytic converter & heat riser                 D3364Y—1
73—91       265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, 2 1/2" catalytic converter                              D3364Y—2
73—91       265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, 3"catalytic converter                                   D3364Y—3
7391        265—400    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, 3" catalytic converter & heat riser                     D3364Y—4
7391        265—400    _|Chevy Blazer, Jimmy 3" catalytic converter & no heat riser                                   D3364Y—5
7391        265—400    |Chevy Blazer, Jimmy 3" catalytic converter & heat riser                                       D3364Y—6
88—95       265—400    _|Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4d                                                          D3386
88—95       396—502     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups dvd                                                         D3389
96—00       7.4—8.1L    |Chevy/GMC 172 & 3/4 Ton Pick—ups Awd                                                         D3397
2001        7.4—8.1L    |Chevy/GMC 1/2 & 374 Ton Pick—ups 4wd                                                         D3398



                                            Doug‘s Headers — Exhaust Headers — D—554—3

                                                                             Page 1


                                                                        Exhibit A
                                                                     Long Tube


96—98   5.7L        Chevy/GMC     1/2     &   374 Ton   Pick—ups   4wd                                            D3302
1999    4.8—6.0L    |Chevy/GMC    1/2     &   3/4 Ton   Pick—ups   4wd.with air injection                         D3353—1
1999    4.8—6.0L    _|Chevy/GMC   1/2     &   3/4 Ton   Pick—ups   4wd                                            D3353—2
00—01   4.8—6.0L    |Chevy/GMC    1/2     &   3/4 Ton   Pick—ups   4wd, with air injection                        D3363—3
00—01   5.3—6.0L    |Chevy/GMC    1/2     &   3/4 Ton   Pick—ups   4wd                                            D3353


73—87   265—400     |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe Awd, 2 1/2" catalytic converter & heat riser   D3364Y—1
73—87   265—400     _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 4wd, 2 1/2" catalytic converter              D3364Y—2
73—91   265—400     |Chevy/GMC Biazer,Yukon,Jimmy,Suburban & Tahoe 4wd, 3" catalytic converter                    D3364Y—3
73—91   265—400     |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd, 3" catalytic converter & heatriser        D3364Y—4
88—95   265—400     _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd                                           D336G
88—95   396—502     _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 4wd                                          D33B9
96—00   7.4—8.1L.   |Ghevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd                                            D3397
2001    7.4—801L    _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 4d                                           D3398
96—98   5.7L        Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd                                             D3302
1999    4.8—6.0L    |Chevy/GMC Biazer, Yukon,Jimmy,Suburban & Tahoe 4wd, with air injection                       D3353—1
1999    4.8—6.0L    _{Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 4wd                                          D3353—2
00—01   4.8—6.0L    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd, with air injection                        D3353—3
00—01   5.3—6.0L    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd                                            D3363


73—91   265—400     _{Chevy/GMC      1   Ton   Pick—ups 4wd,    2 1/2" catalytic converter & heat riser           D3364Y—1
7391    265—400     _|Chevy/GMC      1   Ton   Pick—ups 4wd,    2 1/2" catalytic converter                        D3364Y—2
73—91   265—400     |Chevy/GMC       1   Ton   Pick—ups 4wd,    3" catalytic converter                            D3364Y—3
7391    265—400     _|Chevy/GMC      1   Ton   Pick—ups Awd,    3" catalytic converter & heat riser               D3364Y—4
88—95   265—400     _|Chevy/GMC      1   Ton   Pick—ups 4wd                                                       D3386
96—98   5.7L        Chevy/GMC        1   Ton   Pick—ups 4wd                                                       D3301
86—91   396—502     _|Chevy/GMC      1   Ton   Pick—ups 4wd                                                       D3389
88—95   396—502     |Chevy/GMC       1   Ton   Pick—ups 4wd                                                       D3397
2001    7.4—8.1L    |Chevy/GMC       1   Ton   Pick—ups 4wd                                                       D3398
00—01   6.0L        Chevy/GMC        1   Ton   Pick—ups 4wd                                                       D3353


88—95   43L         Chevy/GMC Pick—ups                                                                            D334G
96—01   4.3L        Chevy/GMC Pick—ups                                                                            D3347


82—92   265—400   |Chevy     Camaro,      Pontiac   Firebird,   Trans   Am                                        D3320
86—90   265—400   |Chevy     Camaro,      Pontiac   Firebird,   Trans   Am                                        D3322
1993    350 LT—1 _|Chevy     Camaro,      Pontiac   Firebird,   Trans   Am                                        D3323
94—95   350 LT—1_|Chevy      Camaro,      Pontiac   Firebird,   Trans   Am                                        D3325
96—97   350 LT—1_|Chevy      Camaro,      Pontiac   Firebird,   Trans   Am                                        D3326



75—87   265—400     |Chevy   Class   "C"   Motorhome, with catalytic converter                                    D3315
75—91   396—502     |Chevy   Class   "A"   Motorhome                                                              D3303Y
92—95   9295        Chevy    Class   "A"   Motorhome                                                              D3360
01—03   8.1L        Chevy    Class   "A"   Motorhome Workhorse P Chassis                                          D3317
01—03   81L         Chevy    Class   "A"   Motorhome Workhorse W Chassis                                          D3316


80—87   302—351W|Ford     F1507 F250/F350 244wd Pick —up                                                          D6648Y
80—82   351—400M|Ford     F150/ F250/—350 284wd Pick —up                                                          D6615
88—92   460 FI    Ford    F250/F350 28&4wd Pick—up                                                                D6614Y—1
88—92   460FI     Ford    F250/F 350 Super Duty 2&4wd Pick—up                                                     D6617
93—95   4G0FI     Ford    F250/F350 2&4wd Pick—up                                                                 D6614Y—5
96—97   4GOFI     Fard    F250/F350 244wd Pick—up                                                                 D6614Y—6
99—02   6.8L V—10 |Ford   Excursion Super Duty 284wd No EGR                                                       D6620
99—02   6.8L V—10 |Ford   Excursion Super Duty 284wd with EGR                                                     D6621
97—01   54L       Ford    Expedition 244wd No EGR                                                                 D6654
88—92   460F1     Ford    Class "A" Motorhome                                                                     D6630



                                         Doug‘s Headers — Exhaust Headers — D—554—3

                                                                             Page 2


                                                           Exhibit A
                                                          Long Tube


93—98   460F1       Ford    Class "A" Motorhome                                   D6631
88—92   460F]       Ford    Class "C" Motorhome                                   D6635
93—95   460F]       Ford    Class "C" Motorhome                                   D6636
96—97   460F1       Ford    Class "C"Motorhome                                    D6637
97—03   6.8L V—10   |Ford   Class "A" Motorhome No EGR                            D6610
97—03   6.8L V—10   |Ford   Class "A" Motorhome with EGR                          D6611
97—03   6.8L V—10   |Ford   Class "C" Motorhome NO EGR (E—350)                    D6612
97—03   68LV—10     |Ford   Class "C" Motorhome with EGR (E—350)                  D6613




                                     Doug‘s Headers — Exhaust Headers — D—554—3

                                                              Page 3



Document Created: 2006-03-17 09:42:20
Document Modified: 2006-03-17 09:42:20

Previous E.O. D-554-2 | Previous E.O. D-553 | Next E.O. D-554-4 | Next E.O. D-555
