Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 5, 2011.
As of Monday, September 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
the 2012 model year 5.0L Ford Boss Mustangs with a manual transmissionThe Ford Racing TracKey, consists of the following main components: An ECM reflash tool, replacement air filter cartridge, and a new ignition key. The Ford Racing TracKey is designed to enhance the sound and feel of the 5.0L engine. No changes are made to the vehicleÔÇÖs stock maximum horsepower level, and there are no user adjustments.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-598-8
  • Executive Order 598-8 / D598-8
  • ARB # D-598-8
  • Executive Order No: D-598-8
  • C.A.R.B. No. D-598-8
  • Resolution D-598-8
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-598-8 PDF

D-598-8 Document:

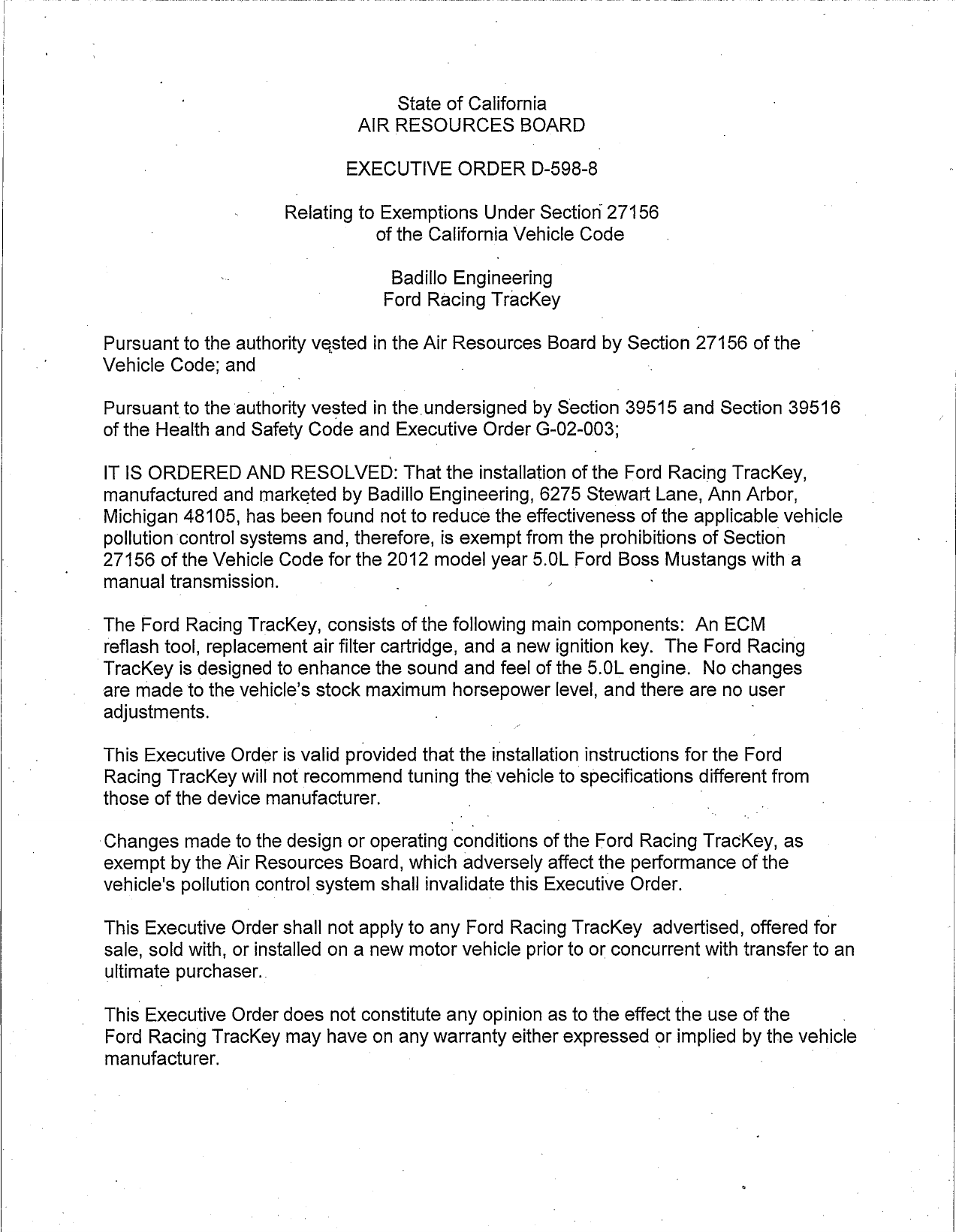

                                      State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—598—8

                        Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                     Badillo Engineering
                                    Ford Racing TrackKey

 Pursuant to the authonty vested in the Air Resources Board by Section 27156 of the _
 Vehicle Code; and

 Pursuantto the 'authority vested in the undersigned by Section 39515 and Section 39516
 of the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the Ford Racing TracKey,
 manufactured and marketed by Badillo Engineering, 6275 Stewart Lane, Ann Arbor,
 Michigan 48105, has been found not to reduce the effectiveness of the applicable vehicle
 pollution control systems and, therefore, is exempt from the prohibitions of Section
 27156 of the Vehicle Code for the 2012 model year 5.0L Ford Boss Mustangs with a
 manual transmission.

. The Ford Racing TracKey, consists of the following main components: An ECM
 reflash tool, replacement air filter cartridge, and a new ignition key. The Ford Racing
 TracKey is designed to enhance the sound and feel of the 5.0L engine. No changes
 are made to the vehlcle s stock maximum horsepower level, and there are no user
 adjustments.

 This Executive Order is valid provided that the installation instructions for the Ford
 Racing TracKey will not recommend tuning thevehicle to specifications dn‘ferent from
 those of the device manufacturer.

 ‘Changes made to the design or operating ‘conditions of the Ford Racing TracKey, as
 exempt by the Air Resources Board, which adversely affect the performance ofthe
 vehicle‘s pollution control system shall invalidate this Executive Order.

 This Executive Order shall not apply to any Ford Racing TrackKey advertised, offered for
 sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
 ultimate purchaser..

 This Executive Order does not constitute any opinion as to the effect the use of the
 Ford Racing TracKey may have on any warranty either expressed or implied by the vehicle
 manufacturer.                                                                      —      '


                                             2.


This Executive Order is granted based on submitted emission test data generated on a
2012 model year 5.0L Boss Mustang modified with the Ford Racing TracKey. Test results
showed that emission levels, with the TracKey calibration activated, met the applicable
emission standards when tested using the Cold—Start CVS—75 Federal Test Procedure
(FTP) and the Supplemental Federal Test Procedure (SFTP—US06) test cycles.
Examination of the OBD II system showed that the TracKey did not affect OBD II system
operation. Results from emissions testing conducted at the Roush Emissions Laboratory,
located in Livonia, Michigan, and confirmed at the Air Resources Board (ARB) laboratory in
EL Monte, California are shown below (in grams per mile).

    (Roush Laboratory)
    2012 Boss Mustang             CVS—75 FTP                         SFTP USO6
                          NMOG       CO    NOx    HCHO          NMHC+NOx          CO
    Standards*            0.070      2.1   0.04   0.0411          0. 14          8.0
    Device Test 1         0.030      1.5   0.01   0.001           0.08           3.1
    Device Test 2 .       0.027      1.6   0.01   0.001
    Average               0.029      1.6   0.01   0.001
    Average w/idf         0.062      1.9   0.02   0.001

    (ARB Laboratory)
    2012 Boss Mustang           CVS—75 FTP                          SFTP USO6
                          NMOG CO NOx             HCHO          NMHC+NOx      CO
    Standards*            0.070   21 0.04         0.011           0.14        8.0
    Device Test           0.025   1.6 0.01        0.001           0.09        2.2
    Device w/df           0.058   1.9 0.02        0.001

*LEV II ULEV CVS—75 FTP Useful Life emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE FORD RACING
TRACKEY.

Marketing of the Ford Racing TrackKey using any identification other than that shown in this
Executive Order or marketing of the Ford Racing TracKey for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtalned
from the Air Resources Board.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.


              BADILLO ENGINEERING — FORD RACING TRACKEY — D—598—8


                                              —3.


Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.


Execufed at El Monte, California, this     éf—flfi    day of October 2011.



                                         ut fodll
                               P,flAnnette ebert, Chief
                                   Mobile Source Operations Division




             BADILLO ENGINEERING — FORD RACING TRACKEY — D—598—8


                                   EVALUATION SUMMARY

Manufacturer Name: Badillo Engineering

Name of Device: Ford Racing TrackKey

. Background:
         Badillo Engineering, 6275 Stewart Lane, Ann Arbor, Michigan 48105, has applied for
  an exemption from the prohibitions in Section 27156 of the California Vehicle Code (VC) for
  the Ford Racing TracKey designed for 2012 model year 5.0L Ford Boss Mustangs
  equipped with a manual transmission.

Recommendation:
       Grant exemption to Badillo Engineering as requested, and issue Executive Order
D—598—8.           ‘

Device Description:
       The Ford Racing TracKey, consists of the following main components: . An ECM
reflash tool, replacementairfilter cartridge, anda new ignition key. The Ford Racing
TracKey is designed to enhance the sound and feel of the 5.0L engine. No changes are _
made to the vehicle‘s stock maximum horsepower level, and there are no user
adestments.

 Discussion/Basis for the Recommendation:
        To demonstrate the emissions impact of the Ford Racing TracKey, Badlllo
 Engineering conducted emissions testing on a 2012 model year Ford Boss Mustang,
 engine test group CFMXVO5.0VD5, certified to the low emission vehicle II ultra low
emission vehicle (LEV II ULEV) emission standards. Emissions testing consisted of two
 Cold—Start CVS—75 Federal Test Procedure (FTP) test cycles and one Supplemental
Federal Test Procedure (SFTP—USO06) test cycle in the baseline (silver key) and modified            6
(red key) configuration. Results from emissions testing conducted at the Roush Emissions        ;
Laboratory, located in Livonia, Michigan, are shown below (in grams per mile).       \
                       1                                         (


    TracKey (Red Key)            .__CVS—75 FTP         \                 SFTP USO6         _
         '   _              NMOG      CO     NOx    HCHO              NMHC+NOx        CO
    Standards               0.070     21     0.04   0.011               0.14         8.0
    Device Test 1           0.030     1.5    0.01   0.001            _ 0.08          3.1
    Device Test 2           0.027     1.6    0.01   0.001
    Average                 0.029     1.6    0.01   0.001
    Average w/idf           0.062     1.9    0.02   0.001

    Stock (Silver Key*) _      CVS—75 FTP                                . SFTP USO6
          |             NMOG CO NOx                 HCHO             NMHC+NOx        CO
    Standards*          0.070   21 0.04             0.011              0.14         8.0
    Device Test 1       0.024   1.3 0.02            0.001              0.05         2.3
    Device Test 2       0.024 . 1.2 0.01            0.001
    Average             0.024   1.3 0.02            0.001
    Average w/df        0.057   1.6 ©0.03           0.001

     *TracKey software installed but not activated with silver key, air filter cartridge
     installed.


                                                2.


  Confirmatory emissions and OBD II testing at ARB‘s Haagen—Smit Laboratory. Results
  are shown below (in grams per mile).

      TracKey (Red Key)               CVS—75 FTP                          SFTP USO6
                              NMOG     CO NOx         HCHO           NMHC+NOx       CO
      Standards               0.070    21 0.04        0.011            0.14        8.0
      Device Test             0.025     1.6 0.01      0.001            0.09        2.2
      Device w/idf            0.058    1.9 0.02       0.001

      Stock (Silver Key*)             CVS—75 FTP                          SFTP USO6
                              NMOG     CO NOx         HCHO           NMHC+NOx       CO
      Standards*              0.070    21 0.04        0.011            0.14        8.0
      Device Test             0.027    112 0.01       0.001            0.05        1.2
      Device w/idf            0.060    1.9 0.02       0.001

      *TracKey software installed but not activated, air filter cartridge installed.

‘_The emission test results in the modified configuration were below the applicable
  certification standards for all tests. Examination of the OBD II system showed the
  Ford Racing TracKey did not affect OBD II system operation for all levels of operation.

  Badillo Engineering‘s Ford Racing TracKey meets the criteria for exempting general criteria
  parts for those vehicles listed in the Executive Order.

  NMOG and HCHO were calculated using the following conversion factors:
  NMOG/NMHC=1.04 and HCHO/NMHC= 0.02. Useful Life additive deterioration factors
  (dfs) used were NMOG 0.0333, CO 0.300, NOx 0.011, and HCHO 0.0. Vehicle test weight
  and horsepower target coefficients were, 4000 lbs. and 46.42, 0.1767, 0.02461
  respectively. .



Document Created: 2011-10-10 16:00:05
Document Modified: 2011-10-10 16:00:05
