Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 31, 1981.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1980 and older vehicles with gasoline engine with engines less than or equal to 140 CID

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-117
  • Executive Order 117 / D117
  • ARB # D-117
  • Executive Order No: D-117
  • C.A.R.B. No. D-117
  • Resolution D-117
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-117 PDF

D-117 Document:

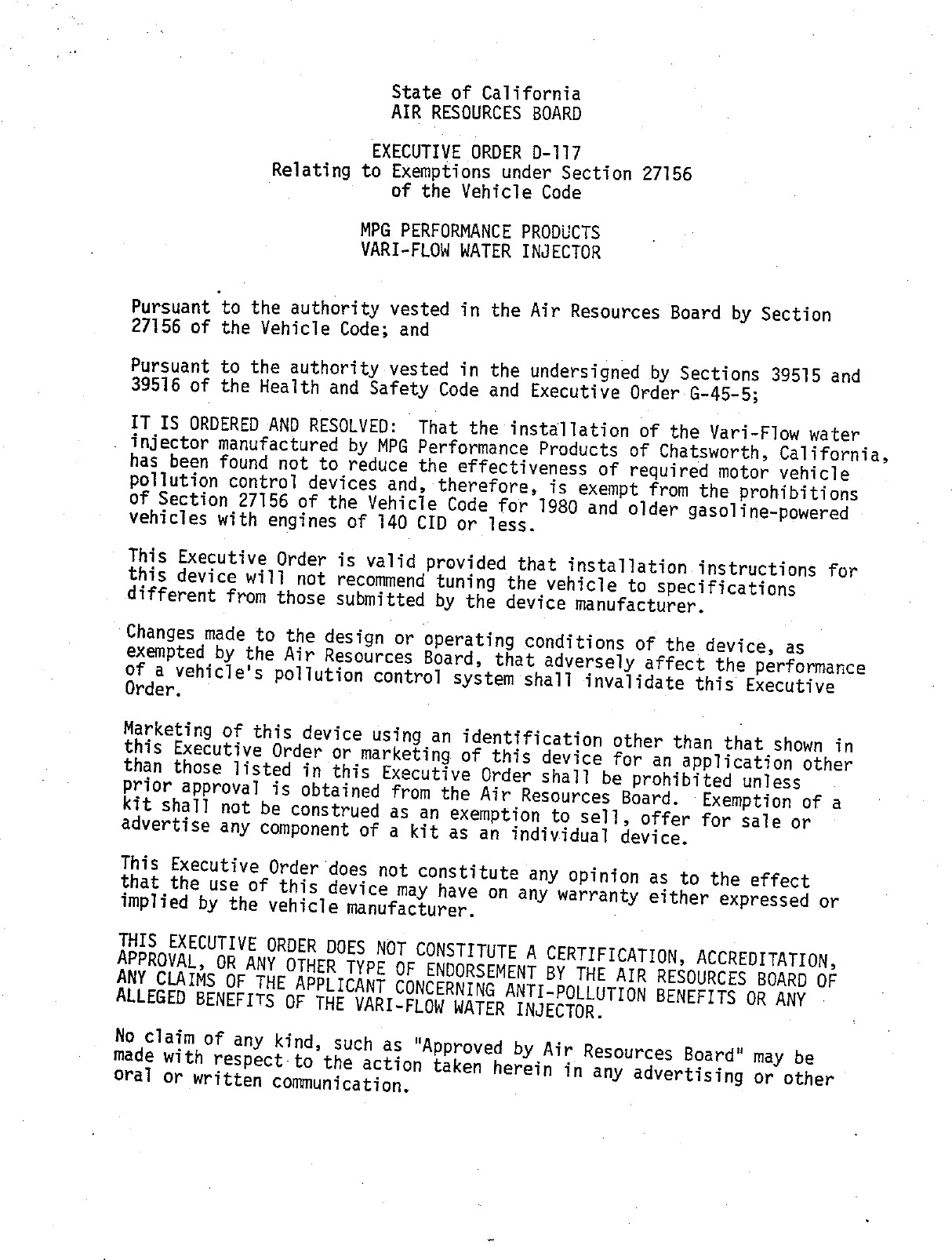

                         State of California
                         AIR RESQURCES BOARD

                       EXECUTIVE ORDER D—117 _
             Relating to Exemptions under Section 27156
                         of the Vehicle Code

                      MPG PERFORMANCE PRODLUCTS
                      VARI—FLOW WATER INJECTOR


Pursuant'to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order &@—45—5;

IT IS ORDERED AND RESOLVED: That the installation of the Vari—Flow water
injector manufactured by MPG Performance Products of Chatsworth, California,
has been found not to reduce the effectiveness of required motor vehicle
poliution control devices and, therefore, is exempt from the prohibitions
of Section 27156 of the Vehicle Code for 1980 and older gasoline—powered
vehicles with engines of 140 CID or less.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
gf a vehicle‘s pollution control system shall invalidate this Executive
 rder.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board. ~Exemption of a
kit shall not be construed as an exemption to sell, offer for sale or
advertise any component of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect
?hat.the use of this device may have on any warranty either expressed or
implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
fifi$R8Xfi%fiSOSFA¥EEOXgEEIEX§$ ggNENbgRSEMENT BY THE AIR RESOURCES BOARD OF
                               CERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE VARI—FLOW WATER INJECTOR.

No claim of any kind, such as "Approved by Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.


 Section 17500 of the Business and Professions Code makes untrue or
«misleading advertising unlawful, and Section 17534 makes violation
;punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644.   (a) No person shall install, sell, offer for sale, or
     —advertise, or, except in an application to the state board for
      certification of a device, represent, any device as a motor vehicle
      pollution control device for use on any used motor vehicle unless
      that device has been certified by the state board. No person shall
     sell, offer for sale, advertise, or represent any motor vehicle
     pollution control device as a certified device which, in fact, is
     not a certified device. Any violation of this subdivision is a
     misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he
deems advisable.


 Executed at El Monte, California, this   J?/day
                                              of July, 1981.


                                          Drachand Chief
                                    Mob11e Source Contro] Division


                          State of California
                          AIR RESOURCES BOARD

                             July 17, 1981



           EVALUATION OF THE MPG PERFORMANCE PRODUCTS COMPANY
                 "VARI—FLOW INJECTOR" IN ACCORDANCE WITH
      SECTION 2222, TITLE 13 OF THE CALIFORNIA ADMINISTRATIVE CODE



I.    INTRODUCTION

      MPG Performance Products of Chatsworth, California, has applied for

an exemption from Section 27156 of the California Vehicle Code {VC) for

an add—on device known as the "Vari—Flow Injector".     Exemption is sought

for all gasoline—powered motor vehicles.

      The device was evaluated by bench flow tests and back—to—back

Constant Volume Sampler, 1975 (CVS—75) emissions tests, and Highway Fuel
Economy tests (HFET}.
II.   DEVICE DESCRIPTION AND OPERATION

      The Vari—Flow Injector is a water injection system which sprays

water through a nozzle installed in the air cleaner housing into the air

horn (intake) of the carburetor.

      The major components of the system are a water reservoir, an electric

pump, a vacuum—actuated proportional control valve, and the spray nozzle.

Additional components are a water filter, oil pressure interlock switch,

manual on—off switch, and a solenoid valve (Figure 1).

      The Vari—Flow Injector is designed to inject water into the carburetor

inlet only during periods of increased demand for engine power, as evidenced

by Tow intake manifold vacuum.     When the engine is not running, an oil

pressure interlock switch disconnects the water pump and closes the

solenoid valve to stop the water flow.


      The Vari—Flow is available with five different size nozzles capable of

maximum flow rates ranging from 40 to 270 cc/min.       One nozzle, appropriate

to the size of the engine of the purchaser‘s car, is supplied with each

vari—flow unit.     Water flow starts at 11 inches of manifold vacuum and

increases to maximum flow rate at zero vacuum.

III. ARB TEST RESULTS

      At the request of the ARB staff, the applicant submitted four nozzles

for bench testing.     The Vari—Flow was assembled as shown in Figure 2

and the flow rates determined at appropriate manifold vacuum increments

are shown in Table 1.

                                      Table 1

                        Water Flow vs. Control Vacuum
                           Pump Voltage = 14.5 volt

PQINT      YACUUM                     WA T E R F L O W — cc/min
           in Hg       .016" Nozzle     .020" Nozzle  .025" Nozzle    .029" Nozzle

  1           o            30                   so        210             265
  2           3            18*                  65        180             230

  3           6            18                   45        125             170

  4           9            15                   20         60              65

  5          11             0                    0          0               0

  6          10             2                    5         10              10

  7           9            13                   20         60              70

  8           6            18                   45        135             165

  9           3            40                   65        170             235

 10           0            55                   80       210              270
           * Irratic Flow Rate Noted and Verified

         (1) Two—Hole Nozzle


       A plot of these data based upon second order polynomial equations
obtained by computer normalization is presented in Figure 3.               The large

difference between the .020" and the .025" nozzle was discussed with the

applicant.     The applicant then submitted a two—hole .020 nozzle for

testing.     This nozzle was not tested because it was apparent that the

flow rate would fit within the void area of the curves.

IV.    APPLICANT‘S TEST DATA

       The Air Resources Board specified two vehicles to be tested by the

applicant according to the CVS—75 test procedure.

       Data from the first vehicle was submitted on April 10, 1981.             The

applicant has not been able to complete the second vehicle in a timely

manner.

                                The submitted data are:

             Test Vehicle

             Year:                1980

             Make:                Chevrolet

             ModelT :            Chevette     (Engine size — CID)

             Odometer :           14,292
                                                                             CVS/HEFT
TEST                 CONDITION                 HC       CO          NOx       ECONOMY
DATE                                          g/mi     g/mi         g/mi        MPG*

4—9—81               Baseline                 187      3.099        .256      25.5/32.8
4—8—81               w/Device                 .223     2.850        .197      25.6/32.5



*Rounded values.


     The staff finds that there is no significant increase in emissions

resulting from the installation of the YVari—Flow water injector on this

vehicle.   The absence of second vehicle data makes it impossible to

ascertain the effect of the Vari—Flow on larger vehicles.

V.   CONCLUSIONS AND RECOMMENDATIONS

     The staff finds no evidence that the Vari—Flow water injector will

have a significant adverse effect upon the emissions from motor vehicles

under 140 cubjc inch displacement.

     The staff,. therefore, recommends that Executive Order D—117 exempting

the Vari—Flow water injector from the prohibitions of VC 27156 be granted.


                                                           Figure 1

                                               VERI—FLOW INJECTOR




                                    To 0) Teona
                                    on Oi Pressure _        m K’ ~—~ aroun
                                    Bwich

                            Rubbes Hose from
                                Outsi ade a!
                                   Contraier                                        to mozrct
                                                             soremom
        NeopreNe HosE
                                        To Manitora
                                        Vacuum Source
                                                                                                                    12Von
                                                                                                                    Switched

                                                                                                        GROUND      Souree
INLET




            SENSmG
            CowTrot.

                                                          NOZZLE                    tiowteD switch




                                                                                                      FUSE HOLDER



                                                        of. PrESSURE SWITCH              FOR MOTORKHOMES ONLY




                                                                                                            f*
                                                                                                                    tony




                                                                         conmessa                            ree
                                                                         Fiting     20


                                                                       To waes                       Thim



             To Ground
             it Pomp is
             not attached
             to metal


                            uB
                             ugsen HOSE            To
                                                  Water
                                                Reservoir


                         VAR\—— —   0 w

                         Bencoh     Irst




o   ]        R   .   :     OuT       1N




Progeet: 2vgott _        l                 t   ..   Figuee a


_0 000000 ®0©® 6 _ __ —_
                                         Vaari~—~FL ow
                                       ;,“Btwch Test .

                                  ~—   Equipment List
                                   n ,‘Pfilo‘jjac'\‘:zvson     —

                           Uniply Mdl. Tw 6050A D.C. Power Supply
                           '5"\&/\'pisc‘>‘w Mdl, 314   V. 0. M.
                           ;\j/éhi.—:‘F‘Léw-"WA'l-ev\ pum p
                           VARl"“FLOW wate m Rrese voimn .
                           :V§§:§~FLo;wjj§/Acuu~; sensing              Conmntrol Unit
                           LkS Gms;" o~—30 u'N./Hé. vACULAIMm q uagr
                           500 ml.      gernduate d _ey Lin dea
                            \/Ani~ FLow woresLlr
                           _Bleed Valve            |
                           Gast Mdl. 4ver—10m 400 x                      Va cuuam fraump
                           _ ;Si"vo‘pr'?l‘ h




                                                            . FlG 2.
                                                                   P3. 2


                                              Figure 3

                                            MPG Vari—Flow
                                       Water Flow vs. manifold vacuum
                                              Bench Data




300




250




200                                                                              029" Nozz{f”’—’_,.—"’
                                                                                      #
                                                                                          —
           Water Flow ce/min




150                                                                      /

                                                                  /’//17;25' Nozzle



 50




                                                                     a a *




      14                       1   I              [           T              T            $ O—~—31,
                                            Manifold Vacuum in Hg.
