D-133-4 Document:


CARB_D-133-4

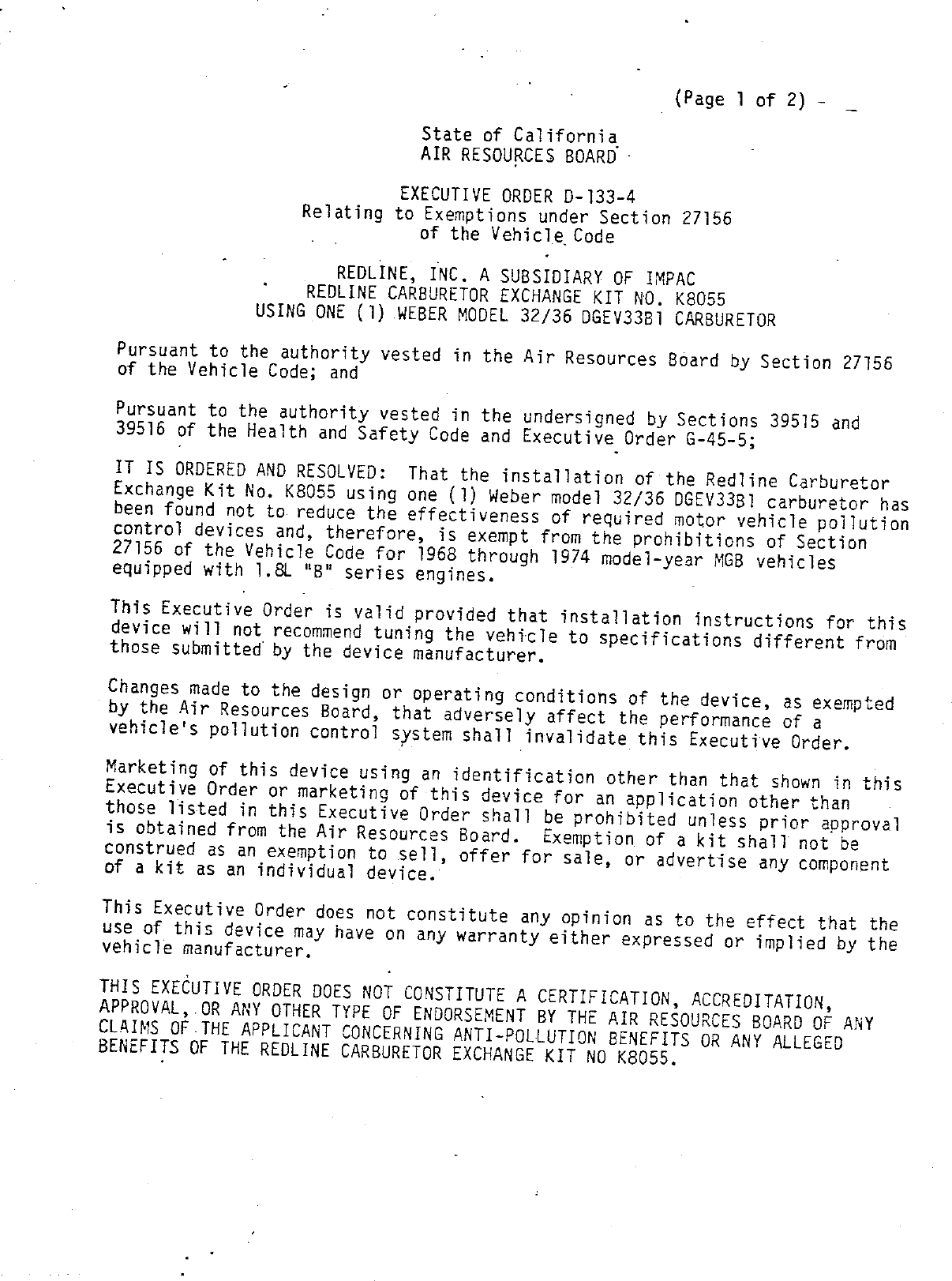

                —                        We             _ (Page 1 of 2) —
                               State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—133—4
                    Relating to Exemptions under Section 27156
                                of the Vehicle Code

                      REDLINE, INC. A SUBSIDIARY OF IMPAC
                   REDLINE CARBURETOR EXCHANGE KIT NO. K8055
              USING ONE (1) WEBER MODEL 32/36 DGEV33B1 CARBURETOR

Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:    That the installation of the Redline Carburetor
Exchange Kit No. K8055 using one (1) Weber model 32/36 DGEV3381 carburetor has
been found not to reduce the effectiveness of required motor vehicle pollution
control devices and, therefore, is exempt from the prohibitions of Section
27156 of the Vehicle Code for 1968 through 1974 mode1-year MGB vehicles
equipped with 1.8 "B" series engines.

This Executive Order is valid provided that installation instructions for this
device will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as exempted
by the Air Resources Board, that adversely affect the performance of a
vehicle‘s pollution control system shallvinva1idate this Executive Order.

Marketing of this device using an identification other than that shown in this
Executive Order or marketing of this device for an application other than
those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board.    Exemption of a kit shall not be
construed as an exemption to sell, offer for sale, or advertise any component
of a kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the
use of this device may have on any warranty either expressed or implied by the
vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, .OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF.THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE REDLINE CARBURETOR EXCHANGE KIT NO K8055.


REDLINE, INC,         .                         i   ,     EiECUTIVE ORDER D—133—4
                                                          (Page 2 of 2?)      Do



No claim of any kind, such as "Approved by Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or
written communication.

Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

    "43644.     (a)       No person shall install, sell, offer for sale, or
    advertise, or, except in an application to the state board for
    certification of a device, represent, any device as a motor vehicle
    pollution control device for use on any used motor vehicle unless that
    device has been certified by the state board.           No person shall sell,
    offer for sale, advertise, or represent any motor vehicle pollution
    control device as a certified device which, in fact, is not a certified
    device.     Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.   _‘


Executed at E1 Monte, California, this         ’C}gl    day of September, 1985.


                                              BobCoa hb
                                              K. D. Drachand, Chief
                                              Mobile Source Division


              State of California
              AIR RESOURCES BOARD




EVALUATION OF THE REDLINE CARBURETOR EXCHANGE KIT
  NO. K8055 USING ONE (1) MODEL 32/36 DGEV33B1
     WEBER CARBURETOR FOR EXEMPTION FROM THE
   PROHIBITIONS OF VEHICLE CODE SECTION 27156
    IN ACCORDANCE WITH SECTION 2222, TITLE 13
      OF THE CALIFORNIA ADMINISTRATIVE CODE




                SEPTEMBER, 1985


                 EVALUATIQN OF THE REDLINE CARBURETOR EXCHANGE
               KIT NO. K8055 USING ONE (1) MODEL 32/36 DGEV33B!1
                     WEBER CARBURETOR FOR EXEMPTION FROM THE
                   PROHIBITIONS OF VEKHICLE CODE SECTION 27156
                    IN ACCORDANCE WITH SECTION 2222, TITLE 13
                      OF THE CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Division
                              State of California
                              AIR RESOURCES BOARD
                              9528 Telstar Avenue
                              E1 Monte, CA 91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commerical products constitute
endorsement or recommendation for use.)


                                    SUMMARY



     Redline, Inc., a distributor of Italian made Weber carburetors, has

applied for exemption from the prohibitions of Vehicle Code Section 27156 for

the Redline Carburetor Exchange Kit No. K8055 using one (1) Weber model 32/36

DGEV33B1 carburetor.

      The Redline Carburetor Exchange Kit replaces the original equipment dual

S.U. HIF 1—Barrel carburetors on 1968—74 model—year MGB vehicles.   The

original equipment air cleaner is not retained in the Redline Kit

installation.   The Redline Carburetor Exchange Kit utilizes an open type air

cleaner which the staff has determined does not increase evaporative

emissions.   A delay valve is added to the gulp valive vacuum control line so

that the gulp valve functions pfoperly with the Weber carburetor.   An anti—

dieseling solenoid is installed in the idle circuit of the Weber carburetor to

prevent the engine from running on after the engine has been shut off.

      Comparative exhaust emission tests demonstrate that the aftermarket

Redline Carburetor Exchange Kit No. K8055 using Weber model 32/36 DG@EV33B1

carburetor does not adversely affect emissions.   Based on the results of the

tests and the evaluation of the Redline Carburetor Exchange Kit, the staff

recommends that the exemption be granted as requested for the 1968—74

model—year MGB vehicles equipped with 1.8L "B" series engines.


                                 CONTENTS

                                            Page Number



 SUMMARY                                         i.
contENTs                                        1.
 T.    INTRODUCTION                  '           1.
II. Conclustons                                  1.
ITI. RECOMMENDATIONS                             1.
IV. DEVICE DESCRIPTION                           2.
V.o    EVALUATION PROGRAM                       3.
vI. DISCUSSTON                                  4.

APPENDIX
      Carburetor Diagrams

           HIF $.U. 1—Barrei                  A—1
           Weber DGEV33B1                     A—2




                               i1.


EVALUATION OF THE REDLINE CARBURETOR EXCHANGE KIT NO. K8055 USING MODEL 32/36
DGEV33B1 WEBER CARBURETOR FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE CALIFORNIA
ADMINISTRATIVE CODE

I.     INTRODUCTION

       Redline, Inc. of Torrance, California, a subsidiary of Imported Parts

and Accessories Corporation (IMPAC), is a distributor of Italian—made Weber

carburetors.   The company has applied for exemption from the prohibitions of

Vehicle Code Section 27156 for a Carburetor Exchange Kit designated as Redline

Kit No. K8055 utilizing one (1) Weber model 32/36 DGEV33B1 carburetor.     The

Carburetor Exchange Kit is designed to replace the original equipment

manufacturer (OEM) dual S.U. HIF T—Barrel carburetors as found on 1968—1974

model—year MGB vehicles equipped with 1.81 "B" series engines.

       This report describes the evaluation of the Redline Carburetor Exchange

Kit and the findings.

I1.    CONCLUSIONS
       Comparative exhaust emission data and other information submitted by the

applicant demonstrated that the Redline kit using one (1) Weber mode! 32/36

DGEV33B1 carburetor meets the Air Resources Board (ARB) requirements for

exemption from the prohibitions of Vehicle Code Section 27156.

III.   RECOMMENDATIONS

       Based on the submitted comparative data of the Redline Carburetor

Exchange Kit, the staff recommends that Redline, Inc. be granted exemption

from the prohibitions of Vehicle Code Section 27156 for the Redline Carburetor

Exchange Kit No. K8055 using one (1) model 32/36 DGEY33B1 Weber carburetor for

1968—74 model—year vehicles equipped with 1.8L "B" series engines.


IV.   DEVICE DESCRIPTION

      The RedTine Carburetor Exchange Kit No. K8055 uses one (1) Weber model

32/36 DGEV33B1 carburetor to replace the OEM dual S.U. HIF 1—Barre]

carburetors.   The S.U. HIF 1—Barrel is a single barrel sidedraft carburetor;

its venturi area is automatically changed according to engine air intake.      The

amount of fuel passing through the main jet is governed by a tapered needle

which moves proportional to the engine air intake.    A choke valve and

auxiliary nozzle are used for cold starting.    Main components of the

carburetor consist of:     a float chamber, suction chamber, suction piston,

piston damper, metering needle and jet, throttle valve body, choke valve and

auxiliary nozzle (See Appendix A).

      The Weber 32/36 DGEV33B1 carburetor is a progressive two—barrel down

draft design (see Appendix A).    The Weber carburetor uses a mechanically—

operated secondary which starts to open after the primary throttle opens

approximately 68 percent.    A diaphram type accelerator pump is actuated by

throttle movement and injects fuel into the primary barrel.     The Weber is

fitted with an anti—dieseling valve in the idle circuit which shuts off the

fuel supply to the idle circuit whenever the ignition is switched off.     The

addition of this anti—dieseling valve upgrades the emission control of the MGB

vehicles since the OEM carburetors were not equipped with such a device.

      The DGEVY model Weber carburetor is fitted with an electric choke which

is more accurate and consistent than the manual choke used on the OEM

carburetors.

      Included in the Redline kit is the Weber carburetor, intake manifold,

air cleaner, throttle linkage, and all necessary hoses, clamps and fasteners

needed to install the Weber carburetor correctly.


                             INSTALLATION INSTRUCTIONS
                                                                                                                W
                                                                                                                um
                                                                                                               WEBER

READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE
BEGINNING THIS INSTALLATION. After unpacking, examine the carburetor and
other components for shipping damage. If any damage is found, notify shipper/
supplier immediately.


                         MGB (19568 — 1974) 1.8 Litre Eng.
                          For Kit Nos. K8055, 52—55202
              Using (1) Weber 32/36 DGAV—33B1 Carburetor
                  TOOLS AND EQUIPMENT                                              PARTS SUPPLIED WITH
                        NEEDED:       ‘                                              INSTALLATION KIT

Combination, box or open end wrenches ({metric)                        1 — Hardware Kit
Socket set with 12 mm socket                                           1 — Intake Manifold
Screwdriver (regular and Phillips)                                     1 — Weber 32/36 DGAV—33B1 Carburetor
 Pliers                                                                1 — Air Filter Assembly
Gasket Scraper
Rags                                                                   Note: A new fuel filter should be installed
Cleaning Solvent                                                              with this kit.
 Knife

                                             TUNE—UP SPECIFICATIONS
All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory,
EXCEPT FOR IDLE MIXTURE AND DISTRIBUTOR ADVANCE SETTINGS. Emissions tune—up should
be carried out by a suitably qualified Dealer or Independent garage, using infrared gas analyzing
equipment.
 Ignition Timing: 6° BTDC @ 850 RPM (with vacuum line removed)
 Idie Mixture: 2.5% £.5% CO
NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and electri—
cal connections in their fuel systems. It is essential when dismantling, that disconnected lines be
identified with a corresponding number tag or label system. To establish function, locate and identify
the source of each line.




1. Remove the vehicie‘s gas cap.                                    5. Disconnect the vent hose from the carbure—
                                                               *       tor to the charcoal canister.
2. Disconnect the battery.
                                                                    6. Disconnect the crankcase vent hose.
3. CAUTION: ENGINE SHOULD BE COLD
                                                                   7. Remove the stock choke cable.
   BEFORE PERFORMING THIS STEP. Drain
    the engine coolant from the radiator into a                    8. Disconnect the throttle cable and fuel line.
    suitable container.                                                 Plug the end of the fuel line to prevent any
4. Remove the stock air filter and attached                             leakage.
     hoses.




This is sold under the provisions of California Air Resources Board Executive Order No. D—133—4 (C.A.R.B. £.0. No. D—1 33— 4
Products with C.AR.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the California Vehicle Code.
Performance kits so noted are legal for use on public highways in California.
WEBER DISTRIBUTION


    . Remove the nuts and washers retaining the
      carburetors to the intake manifold.

 10. Remove the carburetors and the linkage as
      one unit. Remove the plastic heat insulators                                            T
      from the intake manifold.                          FIG. B
                                                                                                    charcoaL
 11. Remove the metal heat shield and throttle                                                   < CcanistEn
                                                                                                         vacuum
     cable bracket.                                                                                      FitTing

 12. Remove the Guip Valve and hose from the
     stock intake manifold. (Fig. A)




                                                                                    < omng
                                                                                    <——— waten Housing
                                                                             .’\V a /é%
                                                             STUD     ———>


                                                             WaSHER   —>
                                                             NYLOC NUT —p          Q <— outier Hose




                                                            (B) install the 4 carburetor studs in the
                                                            mounting flange of the new manifold using
                                                            the locking compound provided.

                                    FIG. A                  (C) Install the flange gasket, carburetor and
                                                           throttle cable bracket as shown in Fig. A.
                                                           Secure the carburetor and bracket in place
                                                           using the lockwashers and nuts provided in
                                                           the kit. Do Not over tighten the carburetor
                                                           nuts.

                                                           (D) Install the throttle cable trunion on the
                                                           carburetor as shown in Fig. B.Do nottighten
13. Remove the distributor advance hose and                the throttle cable trunion nut completely.
     plug the distributor vacuum diaphragm using           Some free movement should be present to
     one of the rubber plugs provided in the kit.          prevent bending the cable.
     (Refer to the front page of these instructions
     and the under hood decal for new timing               (E) Install the throttle return spring bracket
     specifications.)                                      on the choke diaphragm. Install the return
                                                           spring provided in the kit.
14. Remove the washers and nuts securing the
    intake manifold in place. Retain these parts      17. Remove the rags from the intake ports and
    for later use.                                        install the intake manifold and carburetor
                                                          using the original washers and nuts. Install
15. Remove the intake and exhaust manifolds.              the new intake/exhaust gasket supplied in
    Insert a clean rag in the intake ports to             kit. Use a suitable gasket sealing compound
    prevent dirt from entering the engine. Remove         on the intake gasket.
    any excess dirt and oil from the manifold
                                                      18. Install the Guip Valve hose fitting from the kit
    mounting area with a gasket scrapper.
                                                         in the front (# 1/2 runner)on the new intake
16. BENCH ASSEMBLY                                       (Fig. F) Install the charcoal canister vacuum
                                                         purge fitting in the rear location. (Fig. B) If
    (A) Install the water housing to the bottom          your vehicle is not equipped with either of
    of the new intake manifold using the stud,
                                                         these fittings, plugs are provided in the kit.
    aluminum washer, o—ring seal and nyloc
                                           nut           (BE SURE TO USE LOCKTITE WHEN
    provided in the kit. (Fig. B)                        INSTALLING PLUGS.


                                                                                 I   1
                                                               sowi vent    _———»|    |




                                                         vacuum becay
                                                         varve
                                                         (Brack sibe
                                                         Towanns cuce (2>
                                                                                                  / /m
                                                                                                     /      //
                                                                      CC
                                                         vauve)                                              FUEL LNE




                                                        24. Reconnect the fuel line and the charcoal

19. Disconnect and remove the metal heater                   canister hose to the bow! vent fitting
    core line that runs along the top of the valve             on the carburetor.
    cover. (Fig.C)    Install the water hose                   CAUTION: Do not reverse the fuel line
    extender from the kit in the front heater core           and bow! vent connections. (Fig. E)
    hose. Using the hose from the kit route the
    hoses as shown in Fig. B Hose clamps are
    provided in the kit.

20— Install the throttle cable jacket in the bracket
     and route the cable thru the trunion. Tighten
                                                           cus
     the trunion set screw to secure the cable in         vaave —»
                                                         emma
     place.                                                                                                 risow cor
                                                                                                         *~ ancamien nose

21. Check Throttle operation for free move—                                                <— ruel muereirting
    ment. Ifthere is any indication of sticking
    or binding, correct as necessary before
     proceeding.
                                                         FIG. E         «

22.Connect the vacuum hose forthe charcoal
    canisterto the rear fitting in the intake    25— Connect the wire loom supplied in the kit to
   manifold. Connect the large hose for the Gulp     the choke element and idle cut—off solenoid.
    Valve to the front fitting.                      Connect the remaining end of the wire to an
                                                            ignition activated 12v source.

                                                       26. Refill the radiator and reconnect the battery.
23, Install the plastic tee in the charcoal canister
    vacuum line. Cut a 4" piece of vacuum line         27. Install the plastic elbow supplied with the air
    supplied in the kit and install it on the tee.         filter to the underside of the filter base.
    Install the vacuum delay vaive with the Black          Install the filter assembly and connect the
    side towards the Gulp Vaive. Connect the               breather hose to the elbow fitting.
    delay valve to the top of the Gulp Valve using
    the remaining hose from the kit.(Fig. D)           28. Replace the gas cap.


                                                       29. Start the engine and check for vacuum and
                                                           fuel leaks. Correct as necessary before
                                                            proceeding.


30. Apply the Tune—Up Specifications decal
    supplied in the kit next to the original decal
    in the engine compartment of the vehicle.
    Adjust the vehicle to the specifications on
    the new decal.
31. Check for adequate hood clearance
    before closing hood.

32. The automatic choke on this carburetor is
    activated by depressing throttle pedal twice
    slowly and then ignition key is activated.




                                        DGV/DGAV LEAN BEST
                                      IDLE SETTING PROCEDURE


NOTE: Before adjusting carburetor, be sure                 . Once the idle mixture is set, fine tune the
engine is at operating temperature, (choke                   engine‘s idle speed; if necessary, by
fully off) air cleaner is removed and vacuum                 readjusting the idie speed screw. (Note:
lines are plugged off.                                       Turning "in" (clockwise) the idle speed
                                                             screw will increase engine speed. Turning
                                                             "out" (counterclockwise) the idle speed
  . The Weber DGV/DGAV idle speed screw
                                                             screw will decrease the engine speed.}
    should be adjusted to its "preliminary" set—
    point before adjusting the idle mixture. To            . If idle speed is reset, go back and repea
    set the idle speed screw follow these steps:             steps 6 and 7.
    Back "out" the idle speed screw until the tip
    of the screw no longer touches the throttle                   IDLE SPEED SCREW
    lever. Then slowly turn the screw in until it
    just comes in contact with the throttle lever.

  . From the "contact" position, turn the idie
    speed screw "in" one (1) full turn.

  . If a tachometer is available, install it prior to
    starting the engine. If a tachometer is not
    available set idle mixture "by ear."

  . Start engine, be sure choke is not engaged,                                      IDLE MIXTURE
    and proceed to adjust the idle mixture.                                             SCREW

  . Turn the idle mixture screw "in" (clockwise)
    until the engine RPM begins to fluctuate on         If after following these instructions you require
    the tachometer. (If adjusting by ear, until a
                                                        further assistance, please call the Weber Tech.
    noticeable drop in speed is heard.)                 Service dept. at the phone numbers listed
                                                        below, during normal business hours.
  .. Back "out" (counterclockwise) the idie mixture
     screw slowly, until the engine idle becomes
     steady. Try to obtain the leannest setting                 1—800—WEBER US (Qutside CA)
     without affecting the idle speed. If necessary,                    (932—3787)
     repeat steps 6 and 7 until the best setting is
     achieved.                                                   1—800—WEBER CA (CA Only)
                                                                        (932—3722)




WEBER DISTRIBUTION                                       9/85                              445.80551N



Document Created: 2005-09-01 12:39:44
Document Modified: 2005-09-01 12:39:44

Previous E.O. D-133-3 | Previous E.O. D-132 | Next E.O. D-133-5 | Next E.O. D-134
