Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 27, 1986.
As of Tuesday, September 17th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
32/34 DFT1975-1976 Volkswagon Rabbit & Scirocco vehicles (1.5 & 1.6L)For modification allowed, see manufacturer's instructions.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-133-9
  • Executive Order 133-9 / D133-9
  • ARB # D-133-9
  • Executive Order No: D-133-9
  • C.A.R.B. No. D-133-9
  • Resolution D-133-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-133-9 PDF

D-133-9 Document:


CARB_D-133-9

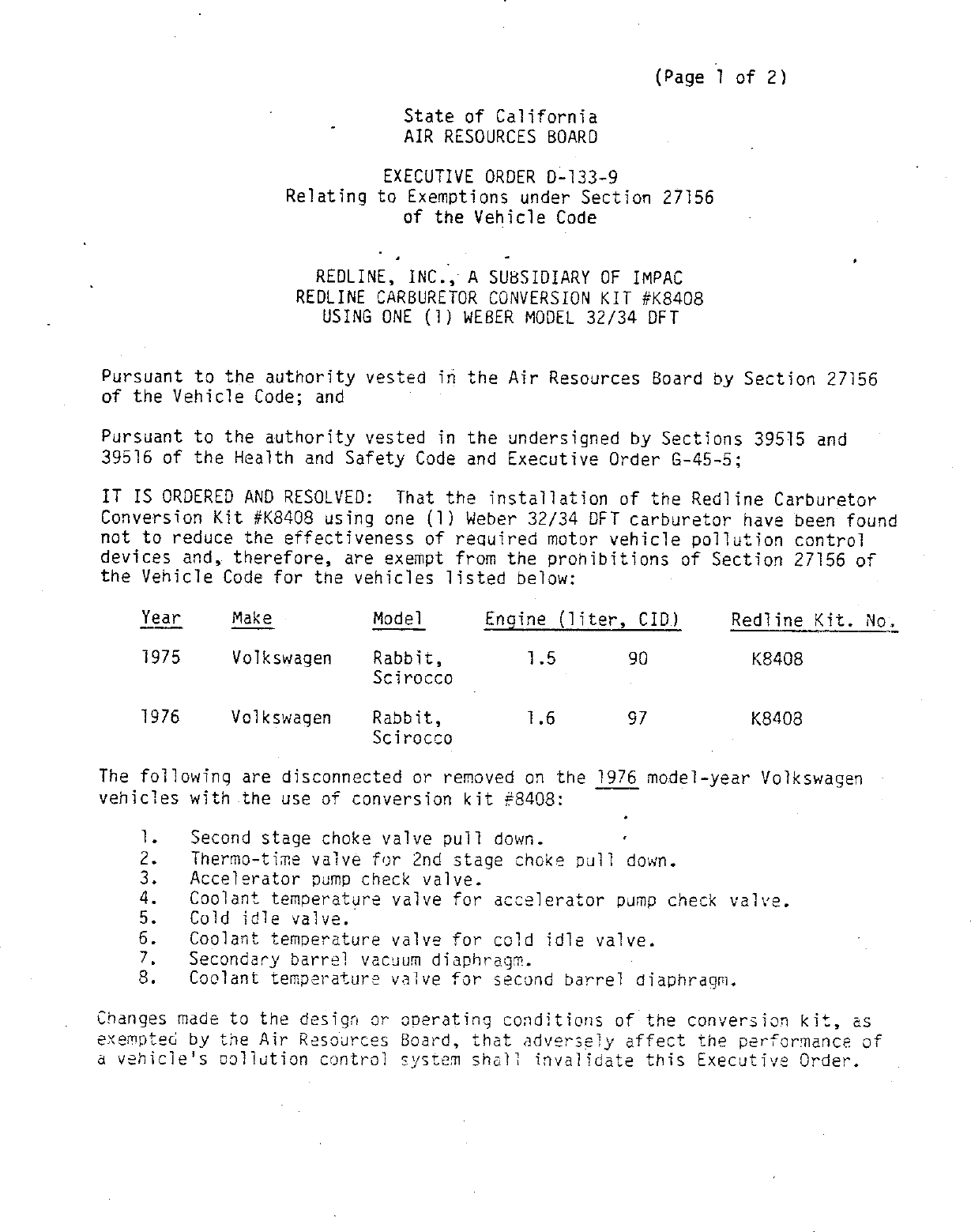

                                                              (Page 1 of 2)

                                 State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—133—9
                      Relating to Exemptions under Section 27156
                                 of the Vehicle Code


                        REDLINE, INC., A SUBSIDIARY OF ImPAC
                      REDLINE CARBURETOR CONVERSION KIT #K8408
                         USING ONE (1) WEBER MODEL 32/34 DFT


Pursuant to the authority vested in the Air Resources Board by Section 27156
of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:     That the installation of the Redline Carburetor
Conversion Kit #K8408 using one (1) Weber 32/34 DFT carburetor have been found
not to reduce the effectiveness of required motor vehicle pollution control
devices and, therefore, are exempt from the prohibitions of Section 27156 of
the Vehicle Code for the vehicles listed below:

    Year       Make           Mode]        Engine (liter, C10D)      Redline Kit. No
    1975       Volkswagen     Rabbit,          1.5       90            K8408
                              Scirocco

    1976       Volkswagen     Rabbit,          1.6       97            K8408
                              Scirocco

The following are disconnected or removed on the 1976 model—year Volkswagen
vehicles with the use of conversion kit #£8408:

    1.     Second stage choke valve puil down.        ©
    2.     Thermo—time valve for 2nd stage choke pull down.
    3.     Accelerator pump check valve.
    4.     Coolant temperature valve for accelerator pump check valve.
    5.     Cold idle valve.
    6.     Coolant temperature valve for cold idle valve.
    7.     Secondary barrel vacuum diaphragm.
    8.     Coclant temperature valve for second barrel diaphragm.

Changes made to the design or operating conditions of the conversion kit, as
exaempted by the Air Resources Board, that adversely affect the performance of
a vehicle‘s collution control system shall      invalidate this Executive Order.


 REDLINE, INC.                                   —       EXECUTIVE ORDER D—133—9
                 .                                   *   (Page 2 of 2)



 Marketing of this conversion kit using an identification other than that shown
 in this Executive Order or marketing of this conversion kit for an application
 other than those listed in this Executive Order shall be prohibited unless
 prior approval is obtained from the Air.Resources Board.           Exemption of a ,
  conversion kit shall not be construed as an exemption to sell, offer for sale,
* or advertise any component of a conversion kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect that the
 use of this device may have on any warranty either expressed or implied by the
 vehicle manufacturer.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
 CLAIMS OF THE APPLICANT CONCERNING ANTI—PQLLUTION BENEFITS OR ANY ALLEGED
 BENEFITS OF THE REDLINE CARBURETOR CONVERSION KIT #K8408.

 No claim of any kind, such as "Approved by Air Resources Board" may be made
 with respect to the action taken herein in any advertising or other oral or
 written communication.

 Section 17500 of the Business and Professions Code makes untrue or misleading
 advertising unlawful, and Section 17534 makes violation punishable as a
 misdemeanor.

 Section 43644 bf the Health and Safety Code provides as follows:

     "43644.  (a) No person shall install, sell, offer for sale, or advertise,
     or, except in an application to the state board for certification of a
     device, represent, any device as a motor vehicle pollution control device
     for use on any used motor vehicle unless that device has been certified by
     the state board. No person shall sell, offer for sale, advertise, or
     represent any motor vehicle pollution control device as a certified device
     which, in fact, is not a certified device. Any—violation of this
     subdivision is a misdemeanor."

 Any apparent violation of the conditions of this Executive Order will be
 submitted to the Attorney General of California for such action as he deems
 advisable.

                          ks   .     .0    gm    P
 Executed at El Monte, California, this    é»?       day of May, 1986.
                                                                4
                                                 Alboll         D
                                          lunuat_
                                          K. D. Drachand, Chief
                                          Mobile Source Division


                State of California
                AIR RESOURCES BOARD




EVALUATION OF THE REDLINE CARBURETOR CONVERSION KIT
          NO. K8408 USING ONE (1) 32/34 DFT
       WEBER CARBURETOR FOR EXEMPTION FROM THE
     PROHIBITIONS OF VEHICLE CODE SECTION 27156
      IN ACCORDANCE WITH SECTION 2222, TITLE 13
        OF THE CALIFORNIA ADMINISTRATIVE CODE




                      June, 1986


                EVALUATION OF THE REDLINE CARBURETOR CONVERSION
                  KIT NO. K8408 USING ONE (1) MODEL 32/34 DFT
                    WEBER CARBURETOR FOR EXEMPTION FROM THE
                  PROHIBITIONS OF VEHICLE CODE SECTION 27156
                   IN ACCORDANCE WITH SECTION 2222, TITLE 13
                     OF THE CALIFORNIA ADMINISTRATIVE CODE




                                      by
                            Mobile Source Division
                              State of California
                              AIR RESOURCES BOARD
                              9528 Telstar Avenue
                              El Monte, CA   91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                      SUMMARY



       Redline, Inc., a distributor of Italian made Weber carburetors, has

applied for exemption from the prohibitions of Vehicle Code Section 27156 for

the Redline Carburetor Conversion Kit No. K8408 using one (1) Weber model
32/34 DFT carburetor.

       The Redline Carburetor Conversion Kit is designed to replace the Zenith

carburetors found on 1975—1976 Volkswagen Rabbit and Scirocco passenger cars

with 1.5 and 1.6 liter engines.

       Comparative vacuum signal tests and other information submitted

demonstrate that the aftermarket Redline Carburetor Conversion Kit No. K8408

using one (1) Weber model 32/34 DFT carburetor does not adversely affect the

function of the emission control devices of the applicable vehicles.      Based on

the results of the tests and the evaluation of the Redline Carburetor

Conversion Kit, the staff recommends that the exemption be granted as

requested for the following vehicle applications:



   Year      Make             Mode?          Engine (liter, CID)   Redline Kit No.



1975         Volkswagen   Rabbit, Scirocco            1.5, 90          K8408

1976         Volkswagen   Rabbit, Scirocco            1.6, 97          K8408


                                        CONTENTS



                                                   Page Number



SUMMARY

CONTENTS                                                 1i

I.     INTRODUCTION

II.    CONCLUSION

III.   RECOMMENDATION

IV.    DEVICE DESCRIPTION

V.     DEVICE EVALUATION

VI.    DISCUSSION



APPENDIX

       OEM Carburetor Diagram

       Weber 32/34 DFT

       Installation Instructions:       K8408

       Carburetor Calibrations:     K8408

       Identification Label:    K8408

       Vacuum Signal Data




                                            11


EVALUATION OF THE REDLINE CARBURETOR CONVERSION KIT NO. K8408 USING ONE (1)
MODEL 32/34 DFT WEBER CARBURETOR FOR EXEMPTION FROM THE PROHIBITIONS OF
VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13 OF THE
CALIFORNIA ADMINISTRATIVE CODE



I.       INTRODUCT I ON

         Redline, Inc. of Compton, California, a subsidiary of Imported Parts and

Accessories Corporation (IMPAC), is a distributor of Italian made Weber

carburetors.      The company has applied for exemption from the prohibitions of

Vehicle Code Section 27156 for a Carburetor Conversion Kit designated as

Redline Kit No. K8408 using one (1) Weber model 32/34 DFT carburetor to

replace the original equipment manufacturer (OEM) Zenith two—barrel

carburetors found on the following vehicles:



      Year      Make              Mode]1     Engine (liter, CID)   Redline Kit No.



1975             Volkswagen   Rabbit, Scirocco        1.5, 90        K8408

1976             Volkswagen   Rabbit, Scirocco        1.6, 97         K8408



         This report describes the evaluation of the Redline Carburetor

Conversion Kit and the findings.

II.      CONCLUSION

         Comparative vacuum signal data and other information submitted by the

applicant demonstrated that the Redline Kit No. K8408 using one (1) 32/34 DFT

Weber carburetor meets the Air Resources Board (ARB) requirements for

exemption from the prohibitions of Vehicle Code Section 27156.


III.    RECOMMENDATION
       Based on the submitted information and the test data on the Redline

Carburetor Conversion Kit, the staff recommends that Redline,   Inc. be granted

exemption from the prohibitions of Vehicle Code Section 27156 for the Redline

Carburetor Conversion Kit No. K8408 for use on the vehicles described above

and that Executive Order No. D—133—9 be issued.

IV.    DEVICE DESCRIPTION

       The Redline Carburetor Conversion Kit No. K8408 uses one (1}) model 32/34

DFT Weber carburetor as an economical replacement for the OEM carburetors

found on the 1975—76 Volkswagen Rabbit and Scirocco passenger cars described

previously.   These vehicles are equipped with Zenith model 2B2 carburetors

which are of the progressive two—barrel design (See Appendix 1}.

       The Weber 32/34 DFT is a progressive two—barrel carburetor which is

similar in basic design to the OEM carburetors (See Appendix 2).   The Weber

32/34 DFT is a slightly different version of the Weber DFT (Ford 740)

carburetors used as original equipment on some Ford imports orignally sold in

California.   It has provisions for vacuum operated emission control systems,

including distributor vacuum advance/retard units, EGR and air injection

control systems.

       A variety of emission control devices are used on these vehicles.     Some

are integral to the OEM carburetor and others are external devices which

either control specific functions of the OEM carburetor or are activated by

movement of the throttle.   The installation of the Weber carburetor retains

most of these devices or duplicates the functions of the devices in a

different manner.   The 1975 model—year Volkswagens require no modifications,

however, some devices cannot be retained in the 1976 model—year vehicles.      The


following engine coolant temperature controlled valves and the related vacuum

actuating valves are disconnected and plugged after the installation of the

Weber carburetor on 1976 Volkswagen Rabbits and Sciroccos:

       1)     Thermo—time valve for 2nd stage choke pull down vaive

      2)      Coolant temperature valve for accelerator pump check valve

      3)      Coolant temperature valve for cold idle valve

      4)      Coolant temperature valve for 2nd barrel diaphragm valve

      The Redline Kit No. K8408 comes complete with a Weber DFT carburetor, an

air cleaner adaptor, installation instructions (See Attachment 3) and all the

hoses, gaskets and hardware necessary to install the Weber carburetor on the

Volkswagen Rabbit or Scirocco passenger cars.     The carburetor calibration for

kit No. K8408 is shown in Appendix 4.     A facsimile of the identification label

is shown in Appendix 5.

V.    DEVICE EVALUATION
      The applicant performed comparative auxiliary vacuum signal tests at

Import Certification Laboratories in Anaheim, California.     A 1976 Volkswagen

Rabbit with a 1.6 liter engine and a 5—speed manual transmission was used as

the test vehicle.     It would be expected that vehicles of previous model—years

would have the same degree of performance/emissions impact as the vehicle

tested when using the same Redline Kit.     The submitted data are shown in

Appendix 6.

      VI.     DISCUSSION
      The results of the auxiliary vacuum signal tests show no significant

change in vacuum signals for the Weber carburetor compared to the OEM Zenith

carburetor.    Three of the four disconnected and plugged vacuum actuating

valves for the OEM carburetor are for the control of fuel delivery during the


engine warm—up period.   The fourth vaive prevents the second barrel of the

carburetor from opening until after the engine has been warmed up.     The

control of air/fuel ratio during engine warm—up has been designed into the

choke system of the Weber carburetor without the need of any auxiliary

mechanism and the opening of the second barrel is done mechanically through

the accelerator pedal.   The effect on emissions due to the elimination of

these four valves and substitution by a simple choke control during engine

warm—up and mechanical control for the second barrel operation is judged to be

minimal.
      The above demonstrates that the installation of the Redline Kit

No. K8408 and the modifications to the original exhaust emission control

system required for the installation will not have an adverse effect on

emissions from the 1976 Volkswagen Rabbit test vehicle which was selected to

be representative of all the vehicles on this exemption application.     It would

be expected that the conversion kit No. K8408 would achieve the same level of

emission control when installed on the same type of vehicles to replace OEM

carburetors of similar designs.

      Redline has submitted all the required information and fulfilled the

requirements for an exemption.


                                                                                                                            U
                                                    INSTALLATION INSTRUCTIONS                                               hm
                                                                                                                            WEBER
.     READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE
      BEGINNING THIS INSTALLATION. AFTER UNPACKING, EXAMINE THE
      CARBURETOR AND OTHER COMPONENTS FOR SHIPPING DAMAGE.
      THESE INSTRUCTIONS SHOULD BE RETAINED WITH VEHICLE RECORDS
      AFTER INSTALLATION OF THIS KIT FOR SMOG INSPECTION PURPOSES.

                                              VOLKSWAGEN
                                                  RABBIT & SCIROCCO
                                                                 (‘75 — ‘76)
                                         FOR KIT NOS. K8408, 52—53302
                                    USING (1) WEBER 32/34 DFT CARBURETOR

                    TOOLS AND EQUIPMENT NEEDED                                                PARTS SUPPLIED WITH
                                                                                                 INSTALLATION KIT:

                    Combination, box or open—end wrenches                              1 — Weber 32/34 DFT—38A Carb.
                    (metric)                                                                   2l
                    Socket Set (metric)                                                1 — Air Filter Adaptor
                    Screwdrivers (regular and Phillips)                                1 — Carburetor Adaptor
                    Pliers                                                                                  .
                   Wiping Rags               Gasket Scraper                            1 — Hardware Kit
                    Knife                    Cleaning Soivent         ~         — +~— NOFE: Afuelfilter should
                                             Gasket Sealer                            be installed with this kit.

                                                                 TUNE—UP SPECIFICATIONS
    All tune—up specifications for the Weber Carburetor remain the same as those specified by the Factory
    for the original unit. Emissions tune—up should be carried out by a suitably qualified Dealer or
    Independent garage, using infrared gas and analyzing equipment.

    NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and
    electrical connections in the fue!l systems. It is essential when dismantling, that disconnected lines
    should be identified with a corresponding number tag or label system. To establish function, locate
    and identify the source of each ling. Use the under hood emissions diagram, or a factory service
    manual for reference when identifying hoses. (Modified vacuum diagrams showing the Weber
    installation are provided in these instructions)



       DISASSEMBLY
                                                                            cap and drain approximently 1 quart of fluid from
    1. Remove the vehicle‘s gas cap.                                        the cooling system.

    2. Disconnect the battery.                                            4. Remove the stock air filter albow and hose.

    3. CAUTION: Engine should be cold when                                5.Disconnect the throttle cable from the trunnion
      performing this step.                Remove the radiator              and remove the cable sheath from the carburetor.


    This is sold under the provisions of California Air Resources Board Executive Order No, D—133—9 (C.A.R.B. E.0. No. D—133—9) Products with
    C.A.R.B. E.0. numbers are exemptfrom the prohibitions of Section 27156 of the California Vehicle Code. Performance kits so noted are legal
    for use on public highways in California.
    WEBER DISTRIBUTION


18. Install the EGR microswitch and bracket on the left        carburetor.     Secure in place       using   clamp
    front carburetor mounting stud. (FIG. 2)                   provided in the kit. (FIG. 3)

19. Install the carburetor mounting nuts supplied in the    24.Connect the fuel line to the fuel inlet fitting on
    kit. Tighten the nuts down in a criss—cross pattern.       the Weber carburetor. (FIG. 3)
    Do not over—tighten the carburetor mount—
    ing nuts. Max. torque should not exceed 7               25.Install the air filter adapter and bridge on the
    ft. Ibs.                                                    Weber carburetor as shown in Fig. 2.

20. Connect the wire loom, supplied in the kit, to the      26.1975 vehicles only:      Use a rubber plug from
   choke element and idle cut—off solenoid. Use the            the kit to plug—off the secondary venturi vacuum
   shrink    tubing    supplied  to    insulate    these       port on the Weber carburetor. (Fig. 3)
   connections.      (Use     a non—flamable        heat
   source to shrink tubing.)          Connect the re—       27.Refer to the following diagrams for correct
   maining end of the wire loom to the original idle cut—      vacuum hose routing for your specific vehicle.
   off solencid connector.
                                                               FIG. 4 = ‘75 MODELS
21. Connect the extension wire from the kit to the             FIG. 5 = ‘76 MODELS
    original ground wire for the EGR microswitch.
    Install the ground spade connector to the carb—            When you have completed the necessary
   uretor as shown in FIG. 2. Connect the ground               vacuum hose routing instructions for your
   wire to the spade lug on the carburetor.                    vehicle, proceed to step #28.

22. Reconnect the stock "hot" wire(s) to the EGR micro—     28. Replace the fluid in the cooling system.
    switch.
                                                            29.Install the throttle cable through the hole of the
23. VEHICLES WITH FUEL RETURN LINE: Con—                       carburetor adapter plate and connect the cable
   nect the stock hose to the fitting on the Weber             to the carburetor. Adjust the cable and lock
                                                               down the nuts to secure the cable in place.

   UNIVERSAL DFT                                                                                           FIG. 3
   WITH VACUUM PORTS IDENTIFIED v           SECONDARY
                                        ENTURI


                                                                                                     FAST IDLE
                                                                                                     SPEED SCREW




                                                                                   VACUUM ADVANCE


                                                                         IDLE CUT—OFF SOLENOID


                                 ‘75 RABBIT/SCIROCCO                                                                 maipy
                                          (50 STATES)                                                               §2—53302




                                                                                                           To weser
                                                                                                            vacuumt
                                                                                                         ADVANCE PORT




                                                                                                              car valve




  ALL DEVICES CIRCLED SHOULD BE DISCONNECTED AND REMOVED.
  NUMBERED C ‘Ss ON THE ILLUSTRATION CORRESPOND TO THE APPROPRIATE STEPS LISTED BELOW.


 &    (A) Removethe hase originally connected to the carbustor from the anti—backfire vaive.
      (B) Removethe hase ariginally cannected to the tes for the power brake servo from the cold idle temperature vaive. Plug off
      trhe temperature valve port with a rubberplug from the kit.
      (C) Using the rubber hose from the kit, run a vacuum line from the anti—backfire valve to the power brake servo tee.

      Remove the vacuum hose originally connected to the secondary throttle valve temperature vaive from the carburetar. Plug off
ORA




      the temperature vaive port with a rubberplug from the kit.
B




      Romove the vacuum hose originally connected to the secondary throttle vaive temperature valve from the carburetor secondary
      throttle vaive vacuum unit. Plug off the temperature valve port with a rubber plug from the kit.

      Remove the vacuum hose originally connected to the acceleration pump temperature valve from the caruretor acceleration
F




      pump check valve. Plug off the temperature valve port with a rubber plug from the kit.
A@




      Remove the vacuum hose originally connected to the cold idle temperature vaive from the carburetor‘s cold idle vaive. Plug off
      the temperature valve port with a rubberplug from the kit.                ©
@




      Remove the vacuum hose and tee fifting connected to the acceleration pump temperature vaive and the cold idie temperature
      valve. Plug off the ports with a rubber plug from the kit.
               AFTER COMPLETEING THESE STEPS, RETURN TO STEP #28 OF THE KIT INSTRUCTIONS
                                a


                                                                                                                         I€
                                                     INSTALLATION NSTRUCTIONS                                               wWEBER
                                                                                                                           Lamsorenons

       READ & UNDERSTAND ALL STEPS OF THESE INSTRUCTIONS BEFORE
       BEGINNING THIS INSTALLATION. AFTER UNPACKING, EXAMINE THE
       CARBURETOR AND OTHER COMPONENTS FOR SHIPPING DAMAGE.
       THESE INSTRUCTIONS SHOULD BE RETAINED WITH VEHICLE RECORDsS
       AFTER INSTALLATION OF THIS KIT FOR SMOG INSPECTION PURPOSES.

                                               VOLKSWAGEN
                                                   RABBIT & SCIROCCO
                                                                  (*75 — ‘76)
                                          FOR KIT NOS. K8408, 52—53302
                                     USING (1) WEBER 32/34 DFT CARBURETOR

                     TOOLS AND EQUIPMENT NEEDED                                                PARTS SUPPLIED WiTH
                                                                                                 INSTALLATION KIT:

                     Combination, box or apen—end wrenches                              1 — Weber 32734 DFT—9A Carb.
                     {metric)                                                                   hm
                     Socket Set (metric)                                                1 — Air Filter Adaptor
                    gcrewdrivers ({regular and Phillips)                                1 — Carburetor Adaptor
                       liers                                                                                 4
                    Wiping Rags               Gasket Scraper                            1 — Hardware Kit
                    Knife                     Cleaning Soivent                  — +~— NOTE: Afuelfilter should
                                              Gasket Sealer                           be installed with this kit.

                                                                  TUNE—UP SPECIFICATIONS
§     All tune—up specifications for the Weber Carburetor remain the same as those. specified by the Factory
    4 for the original unit. Emissions tune—up should be carried out by a suitably qualified Dealer or
      Independent garage, using infrared gas and analyzing equipment.

      NOTE: Late model vehicles fitted with Emission Control Systems have many vacuum lines and
      electrical connections in the fuel systems. it is essential when dismantiing, that disconnected lines
      should be identified with a corresponding number tag or label system. To establish function, focate
      and identify the source of each line. Use the under hood emissions diagram, or a factory service
      manual for reference when identifying hoses. (Modified vacuum diagrams showing the Weber
      installation are provided in these instructions)



        DISASSEMBLY
                                                                             cap and drain approximently 1 quart of fluid from
     1. Remove the vehicle‘s gas cap.                                        the cooling system.

     2. Disconnect the battery.                                           4. Remove the stock air filter albow and hose.

     3. CAUTION: Engine should be cold when 5.Disconnect the throttle cable from the trunnion
        performing this step. Remove the radiator and remove the cable sheath from the carburetor.


     This is soid under the provisions of California Air Resources Board Executive Order No, D—133—9 (C.A.R.B, E.0. No. D—133—9) Products with
     C.A.R.B. E.0. numbers are exempt from the prohibitions of Section 27156 of the Califonia Vehicle Code. Performance kits so noted are legal
     for use on public highwaysin Califonia.
     WEBER DISTRIBUTION


    NOTE: Some Rabbits may have a push—in
    type throttle cable sheath. These are identified
    by the lack of a threaded section on the
    carburetor end and they are white. If your
    vehicle has this type of calbe, it must be
    updated to the cable with the threaded end.
    (V.W. Part No. 532—721—555C).                                                                    WEBER


 6.Disconnect     the   fuel   line. from   the   stock
    carburetor.   Plug the end of the fuel line to
    prevent leakage.

 7.Disconnect the fuel return line, if equipped.
   (Fuel return line can be identified by a "tee" in
    the line leading to the fuel inlet side of the fuel
   pump; or a hose which is connected directly to           STUDS (4)
   the original carburetor near the fuel iniet fitting.)

 8. Disconnect all vacuum hoses atftached to the                                                ALLEN
    stock carburetor. Use the underhood emis—                                                  BOLTS (4)
    sions diagram, or a factory service manual to
    identify and label the vacuum hoses.

 9. Disconnect the choke element, 2nd stage EGR
   microswitch (CA only) and idle cut—off solencid          ADAPTOR          _
   wires.
                                                              PLATE *

10.Remove the water choke hoses from the
   carburetor.                                                                             ISOLATOR
                                                                                          4 BLOCK            ‘
11.Remove the carburetor mounting boits and
   carefuily remove the carburetor from the intake
   manifold. Insert a clean rag in the intake port.

12. Install the U—shaped water by—pass tube in the
   choke hoses and clamp securely in place.                  INTAKE MANIFOLD
13. Thoroughly clean the carburetor mounting sur—
    face.

14.VEHICLES WITH FUEL RETURN ONLY:
   Remove the brass plug located directly
   underneath the fuel inlet fitting on the Weber                                                  FIG. 2
   carburetor. (FIG. 3) Install the barbed fitting,
   supplied in the kit, in the location where the
   plug was.                                                    AIR FILTER       BRIDGE    CHEESEHEAD
                                                                                             ecefice
                                                                                            SCREW & LW.
    INSTALLATION
15. Remove the rag from the intake port and install
   Ithe carburetor adapter using the allen boits in
   the kit. (FIG. 1}
                                                                                 5                    LocknuT
16. Instail the four carburetor mounting studs in the      GRounp
    adapter plate using the locking compound to
   secure them in place (FIG. 1)

17. Install the carburetor flange gasket and Weber              Y\
    carburetor as shown in FIG. 1. NOTE: Weber             EGR MICRO—SWITCH                  THROTTLE cABLE
    carburetor is installed with the idie cut—off sole—
   noid facing the front of the vehicle.


18. Install the EGR microswitch and bracket on the left         carburetor.     Secure in place       using    clamp
    front carburetor mounting stud. (FIG. 2)                    provided in the kit. (FIG. 3)

19. Instali the carburetor mounting nuts supplied in the     24.Connect the fuel line to the fuel infet fitting on
    kit. Tighten the nuts down in a criss—cross pattern.        the Weber carburetor. (FIG. 3)
   Do not over—tighten the carburetor mount—
   ing nuts. Max. torque should not exceed 7                 25.install the air filter adapter and bridge on the
   ft. lbs.                                                      Weber carburetor as shown in Fig. 2.

20. Connect the wire loom, supplied in the kit, to the       26.1975 vehicles only: Use a rubber plug from
    choke element and idie cut—off solencid. Use the            the kit to plug—off the secondary venturi vacuum
    shrink    tubing    supplied  to   insulate     these       port on the Weber carburetor. (Fig. 3)
    connections.     (Use      a non—flamable        heat
    source to shrink tubing.)          Connect the re—       27.Refer to the following diagrams for correct
    maining end of the wire loom to the original idie cut—      vacuum hose routing for your specific vehicle.
    off solencid connector.
                                                                FIG. 4 = ‘75 MODELS
21. Connect the extension wire from the kit to the              FIG. 5 = ‘76 MODELS
   original ground wire for the EGR microswitch.
   Install the ground spade connector to the carb—              When you       have completed the           necessary
   uretor as shown in FIG. 2. Connect the ground                vacuum hose       routing    instructions   for your
   wire to the spade lug on the carburetor.                     vehicle, proceed to step #28.

22. Reconnect the stock "hot" wire(s) to the EGR micro—      28. Replace the fluid in the cooling system.
   switch.
                                                             29.Install the throttle cable through the hole of the
23. VEHICLES WITH FUEL RETURN LINE: Con—                        carburetor adapter plate and connect the cable
   nect the stock hose to the fitting on the Weber              to the carburetor. Adjust the cable and lock
                                                                down the nuts to secure the cable in place.

   UNIVERSAL DFT                                                                                             FIG. 3
   WITH VACUUM PORTS IDENTIFIED               SECONDARY
                                       vENTURI     VACUUM

                                                                                            LOCKNUT
                                                                                                       FAST IDLE
                                                                                                       SPEED SCREW




                                                                                    VACUUM ADVANCE

                                                                           IDLE CUT—OFF SOLENOID


    NOTE:          Check    throttle    operation   for free
    movement.        If there‘s any indication of stick—
    ing or binding correct as                 necessary BE:—
    EORE proceeding.

 30. install the air filter elbow and hose.

 31. Reconnect the battery and replace the gas cap.

 32. Start the engine and check for fue! and vacuum
     leaks. Correct as necessary before proceeding.

33. Adjust idle speed, fast idle speed and idie       mixture
    to factory specifications. (Weber fast idle        adjust—
    ment is listed below, idle speed and idie         mixture
    adjustments are on a tag attached                 to the
    carburetor.)

34.instail the Weber vacuum diagram notification
    label adjacent to the stock vacuum diagram under
    the hood.

35.Check      for    adequate      hood       clearance   BE—
    FORE closing hood.


   WEBER MODEL DFT FAST iDLE ADJUST—
   MENT: With the engine warmed up and Off,
   open the throttie and manually engage the
   choke by closing the choke plates (butterflies).
   Release the throttle then the choke plates. The
   fast idle cam should be activated and the fast
   idle speed screw should be positioned on the
   cam shoulder. Start the engine Do not
   depress     the throttle     pedal    or choke wili
   become inoperative. To adjust the fast idie
   speed, loosen the locknut and tum the fast idle
   screw in (clockwise} to decrease speed. Once
   fast idle speed is set, tighten the locknut in
   place.



If after these Instructions, you require further
assistance,   please    call the Weber    Tech.
Service Dept. at the phone numbers listed
below, during normal business hours.

        1—800—WEBER US (OUTSIDE CA)
              (932—3787)

       1—800—WEBER CA (CA ONLY)
             (932—3722)


                                     ‘75 RABBIT/SCIROCCO                                                              ie
                                          (50 STATES)                                                                s2eas0e




                                                                                                            To WEBER
                                                                                                             vacuum
                                                                                                          ADVANCE PORT




                                                                                                               EGR VALVE
        DNeRTER
         vave ~I




    ALL DEVICES CIRCLED SHOULD BE DISCONNECTED AND REMOVED.
    NUMBERED C1 ‘S ON THE ILLUSTRATION CORRESPOND TO THE APPROPRIATE STEPS LISTED BELOW.


@1     (A) Remove the hose originally connected to the carbuatarfrom the anti—backfire valve.
       (B) Remove the hose originally connected to the tee for the power brake servo from the cold idle temperature vaive. Plug off
       trhe temperature valve port with a rubber plug from the kit.
       (C) Using the rubber hose from the kit, run a vacuum line from the anti—bacidire valve to the power brake servo tes.
a




       Remove the vacuum hose originally connected to the secondary throttle vaive temperature valve from the carburetar. Plug off
       the temperature vaive port with a rubber plug from the kit.
A




       Romove the vacuum hase originally connected to the secondary throttle vaive temperature vaive from the carburetor secondary
       throttle vaive vacuum unit. Plug off the temperature vaive port with a rubber plug from the kit.
A




       Remove the vacuum hose originally connected to the acceleration pump temperature vaive from the caruretor acceleration
       pump check vaive. Plug off the temperature vaive port with a rubberplug from the kit.
@




       Remove the vacuum hose originally connected to the cold idle temperature vaive from the carburetor‘s cold idle valve. Plug off
       the temperature valve port with a rubber plug from the kit.               ©
n




       Remove the vacuum hose and tee fitting connected to the acceleration pump temperature valve and the cold idle temperature
       valve. Plug off the ports with a rubber plug from the kit.
                AFTER COMPLETEING THESE STEPS, RETURN TO STEP #28 OF THE KIT INSTRUCTIONS
                                 a


                                    ‘76 RABBIT/SCIROCCO                                                               Fio.s              ‘
                                         (50 STATES)                                                                  keans



                   TWO—WAY VALVE




                           (;L 7z                               j                                                      to wesen
                                                                                                                        vacuum
                                            *oiAveiC
                                             VALVE                     °                                             ADvaNCE port


                to wesen                                                                                               €]
                secombany *
                veNTUR PORT




                                                                                                                        EGR vaLve



                                                                                                                                        TWOwaAY
                   vatve                                                                                                                  vALVE
                                                                                                                                        (Ca onty




                   ATR PUWMP




— ALL DEVICES CIRCLED SHOULD BE DISCONNECTED AND REMOVED.
  NUMBERED J ‘S ON THE ILLUSTRATION CORRESPOND TO THE APPROPRIATE STEPS LISTED BELOW.


1      (A) Remove the hose originally connected to the carbustor from the anti—backfire vaive.
       (B) Remove the hose originally connected to the tee for the powerbrake servo from the cold idie temperature vaive. Plug off
       tthe temperature vaive port with a rubber plug from the kit.
       (C) Using the rubber hose from the kit, run a vacuum line from the anti—backfire vaive to the power brake servo tee.

[Z]    Remove the vacuum hose originally connected to the secondary throttle vaive temperature valve from the carburetor. Plug off
       the temperature vaive port with a rubber plug from the kit.

&      Romove the vacuum hose originally connected to the secondary throttle vaive temperature valve from the carburetor secondary
       throttle vaive vacuum unit. Plug off the temperature vaive port with a rubber plug from the kit.

&      Remove the vacuum hose originally connected to the acceleration pump temperature valve from the caruretor acceleration
       pump check valve. Plug off the temperature vaive port with a rubber plug from the kit.

       Remove the vacuum hose criginally connected to the cold idle temperature valve from the carburetor‘s cold idle valve. Plug off
       the temperature vaive port with a rubber plug from the kit.

       Remove the vacuum hose and tee fitting connected to the acceleration pump temperature valve and the cold idle temperature
       valve. Plug off the ports with a rubber plug from the kit.
                AFTER COMPLETEING THESE STEPS, RETURN TO STEP #28 OF THE KIT INSTRUCTIONS
      WEBER DISTRIBUTION                                              6/86                                           445.8404—1IN



Document Created: 2005-09-01 12:40:29
Document Modified: 2005-09-01 12:40:29

Previous E.O. D-133-8 | Previous E.O. D-132 | Next E.O. D-133-10 | Next E.O. D-134
