Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 3, 2000.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
The following BMW vehicle applications: 525i,1991 to 1995,2.5L 325i,1992 to 1995,2.5L M3,1994 to 1995,3.0L M3,1996 to 1999,3.2L 328i,1996 to 1999,2.8L Z3,1996 to 1999,2.8L 528i,1997 to 1999,2.8L M Roadster,1998 to 2000,3.2L, M Coupe,1998 to 2000,3.2L The 1999 model-year engine family, XBMXV02.8LEV, certified to a LEV emission standard is excluded.Stage 1 Kit: Kit includes a Vortech V-1S supercharger with a 3.43" diameter pulley and a 5.14" diameter crankshaft pulley with a max. boost pressure of 6.5 psi., Lucas 28.8 lb./hr. injectors which replace the stock injectors, a new ECU calibration, Turbotronics 9 or 10 (air flow meter bridge circuit), inlet and discharge supercharger tubing, and an open element K&N-type air filter. The PCV system is modified with a two way valve to redirect crankcase gases during boost conditions. The supercharger kit does not utilize an air bypass valve. Stage 3 Kit: Same components and modifications as the Stage 1 Kit with the inclusion of a new increased diameter throttle body. Stage 4 Kit: Same components and modifications as the Stage 1 Kit with the inclusion of a new increased diameter throttle body, new air flow meter, and a new intake manifold (applicable to vehicles equipped with an on-board-diagnostic II (OBD II) system). Intercooled Supercharger Kit: Same components and modifications as the Stage 1 Kit with the inclusion of a new increased diameter throttle body, new air flow meter, new intake manifold (applicable to vehicles equipped with an OBD II system), new high pressure fuel regulator, and an intercooler. The supercharger uses a 3.03" diameter pulley and a 5.5" diameter crankshaft pulley with a max. boost pressure of 10 psi.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-176-15
  • Executive Order 176-15 / D176-15
  • ARB # D-176-15
  • Executive Order No: D-176-15
  • C.A.R.B. No. D-176-15
  • Resolution D-176-15
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-176-15 PDF

D-176-15 Document:

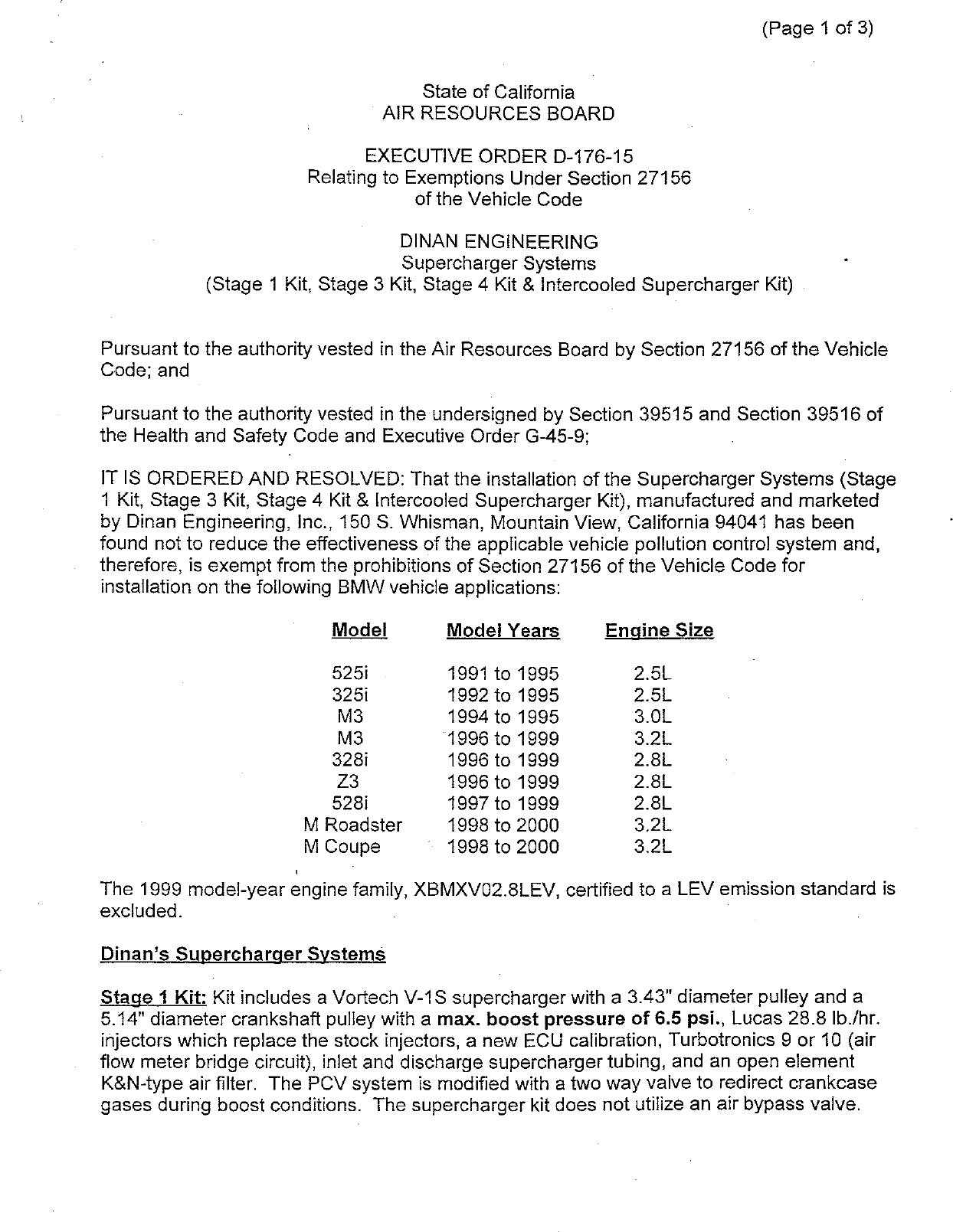

                                                                               (Page 1 of 3)


                                      State of California
                                  AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—176—15
                        Relating to Exemptions Under Section 27156
                                     of the Vehicle Code

                                   DINAN ENGINEERING
                                    Supercharger Systems
            (Stage 1 Kit, Stage 3 Kit, Stage 4 Kit & Intercooled Supercharger Kit)


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—45—9;                     .

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Systems (Stage
1 Kit, Stage 3 Kit, Stage 4 Kit & Intercooled Supercharger Kif), manufactured and marketed
by Dinan Engineering, Inc., 150 S. Whisman, Mountain View, California 94041 has been
found not to reduce the effectiveness of the applicable vehicle pollution control system and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for
installation on the following BMW vehicle applications:

                           Model         Model Years        Engine Size

                           5251          1991   to   1995      2.5L
                           3251          1992   to   1995      2.5L
                            M3           1994   to   1995      3.0L
                            M3           1996   to   1999      3.2L
                           328i          1996   to   1999      2.8L
                            23           1996   to   1999      2.8L
                           5281          1997   to   1999      2.8L
                        M Roadster       1998   to   2000      3.2L
                        M Coupe        ~ 1998 to 2000          3.2L

The 1999 model—year engine family, XBMXVO2.8LEV, certified to a LEV emission standard is
excluded.                                                                                 .

Dinan‘s Supercharger Systems

Stage 1 Kit: Kit includes a Vortech V—18 supercharger with a 3.43" diameter pulley and a
5.14" diameter crankshaft pulley with a max. boost pressure of 6.5 psi., Lucas 28.8 lb./hr.
injectors which replace the stock injectors, a new ECU calibration, Turbotronics 9 or 10 (air
flow meter bridge circuit), inlet and discharge supercharger tubing, and an open element
K&N—type air filter. The PCV system is modified with a two way valve to redirect crankcase
gases during boost conditions. The supercharger kit does not utilize an air bypass valve.


DINAN ENGINEERING                                             EXECUTIVE ORDER D—176—15
Supercharger Systems                                          (Page 2 of 3)


Stage 3 Kit: Same components and modifications as the Stage 1 Kit with the inclusion of a
new increased diameter throttle body.

Stage 4 Kit: Same components and modifications as the Stage 1 Kit with the inclusion of a
new increased diameter throttle body, new air flow meter, and a new intake manifold
{applicable to vehicles equipped with an on—board—diagnostic II (OBD II) system).

Intercooled Supercharger Kit: Same components and modifications as the Stage 1 Kit with
the inclusion of a new increased diameter throttle body, new air flow meter, new intake
manifold (applicable to vehicles equipped with an OBD II system), new high pressure fuel
regulator, and an intercooler. The supercharger uses a 3.03" diameter pulley and a 5.5"
diameter crankshaft pulley with a max. boost pressure of 10 psi.

Dinan recommends use of high octane fuel with the Supercharger Systems.

This Executive Order is valid provided that the installation instructions for the Supercharger
Systems will not recommend tuning the vehicle to specifications different from those of the
vehicle manufacturer.

This Executive Order shall not apply to any Dinan Engineering, Inc. Supercharger Systems
advertised, offered for sale, or sold with or installed on a motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Supercharger Systems, as
exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of the Supercharger Systems using any identification other than that shown in this
Executive Order or marketing of the Supercharger Systems for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtained from
the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Supercharger Systems may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on the following submitted emissions test data on a
1998 BMW M—Roadster certified to a transitional low—emission vehicle standard. The vehicle
in the modified configuration, with the Intercooled Supercharged Kit installed, met the
applicable emission standards. Testing consisted of one Cold Start CVS—75 Federal Test
Procedures in the modified configuration. The following test results are in grams per mile
with deterioration factors applied:                         —

                           1998 BMW M—Roadster


                  NMOG CO         NOx       HCHO
Standard          0.125    34     0.4     0.015
Device w/dfs      0.109    2.7     0.2    0.002


DINAN ENGINEERING                                              EXECUTIVE ORDER D—176—15
Supercharger Systems                                           (Page 3 of 3)


This Executive Order is also based on On Board Diagnostic II (OBD 1I) testing conducted on
the same vehicle. Test data showed that the Supercharger System when installed on the
vehicle did not affect the vehicle‘s ability to. perform its OBD II monitoring.

The ARB finds that reasonable grounds exist to believe that use of the Supercharger
Systems may adversely affect emissions of motor vehicles when operating under conditions
outside the parameters of the previously prescribed test procedures. Accordingly, the ARB
reserves the right to conduct additional emission tests, in the future, as such tests are >
developed, that will more adequately measure emissions from all cycle phases. If such test
results demonstrate that the Supercharger Systems adversely affect emissions during
off—cycle conditions (defined as those conditions which are beyond the parameters of the
Cold—Start CVS—75 Federal Test Procedure), this Executive Order shall be effectively
rescinded as of the date the test results are validated. Further, if such test results or other
evidence provides the ARB with reason to suspect that the Supercharger Systems will affect
the durability of the emission control system, Dinan—Engineering, Inc. shall be required to
submit durability data to show that the durability of the vehicle emission control system is not,
in fact, affected and/or that the add—on or modified part demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF DINAN ENGINEERING‘S
SUPERCHARGER SYSTEMS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination after hearing that grounds for
revocation exist.

Executed at El Monte, California, this   ,SNZday       August 2000.




                                    R. B. Sétmmerfield,  Chief
                                    Mobile Source Operations Division


                                                                                   [   grnce. l2




                                                                    (Page 1 of 2
                                 State of Cailfornta
                                 AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—177
                      Relating to Exemptions Under Section 27156
                                 of the Vehicle Code

                               PRODUCTS FOR POWER
                "NEW AFTERMARKET OXIDATIQN CATALYTIC CONVERTER"

WHEREAS, Vehicle Code Section 27156      Title 13 California Code of
Regulations (hersafter "CCR"} Section\2222(h}, authorize the California Alr
Resources Board (ARB) and its Exegutive Officer to exempt new aftermarket
catalytlic converters from the\profibitions of Vehicle Code Section 271§56.

WHEREAS, Products for Power         s applied to ths%ARB for exemption from the
prohibitions of Vehiclie Cod        ection 27156 for,  e two—way catalytic
converter series 4000:                                   '
                        2                           /
WHEREAS, pursuant t    e authority ves{{“ In the Executive Officer by Health
and Safety Code SectwOn 39515 and in &he h!ef Mobile Source Division by
Health and Safety C#de Section 39516(A$d Executive Order G—45—5, the Air
Resources Boar&       firids that the abové\c    termarket cataiytlc converter
complles with the Callfornia Vehic              ode Section 27156 and Title 13,



 fohIBltiBes ofVehiple:Codd)gection27156—for‘inist#idationonthe—approved_
appflcat1ofl vehicies subject to the following conditions:

   f\\jThis exemptlon shaf! not apply to any catalytlic converters
       advertised, offered for sale or sold with, or installed on, a motor
       vehicle prlor‘   or concurrent with transfer to an ultimate
        purchaser . {                                        ~

   2.   No charigeg    are permltted to the converter as described in the
                 on for exemption.  Any changes to the converter, applicable
        mode! year, or other factors addressed in this order must be
        evaluated and approved by the Alr Resources Board prior to marketing
        in California.

   3.   Marketing of the converter using an identification other than that
        shown in the exemption application or marketing of the converter for
        an application other than those listed in the application catalog
        shall be prohibited unless prior approval is obtained from the Alr
        Resources Board.  Exemption of this product shail not be construed as
        an exemption to seil, offer for sale, or advertise any component of
        the product as an individual device.


PRODUCTS FOR POWER                               EXECUTIVE ORDER D—177
‘"NEW AFTERMARKET OXIDATION CATALYTIC CONVERTER" (Page 2 of 2)



   4.   Any oral or written references to this Executlive Order or !ts content
        by Products for Power, its principals, agents, empioyees,
        distributors, dealers, or other representatives must Include the
        disciaimer that the Executive Order or the exemption It provides is
        not an endorsement or approval of any emissions reduction claims for
        the catalytlc converter and is only a finding that the converter is
        exempt from the prohibltions of Vehicle Code Section 27156.

Violation of any of the above conditions shail be grounds for revocation of
this order.  The order may be revoked only after ten day written notice of
intention to revoke it, during which perilod the holder of the order may
request in writing a hearing to contest the proposed revocation.    |if a
hearing is requested, 1t shall be held within ten days of receipt of the
request, and the order may not be revoked untll a determination is made;
after the hearing, that grounds for revocation exist.

Executed at Ei Monte, California, this   7%2»5;; of May, 1988.



Document Created: 2005-09-01 12:41:22
Document Modified: 2005-09-01 12:41:22
