Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 20, 1974.
As of Monday, June 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1974 and older, EXCEPT: (1) 1973-1974 Mercedes-Benz, Mazda, Audi, Porsche, (2) GM with coil integrated into distributor, (3) 1966-1970 vehicles with Dana or Carter NOx device using an electronic speed sensor

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-20-2
  • Executive Order 20-2 / D20-2
  • ARB # D-20-2
  • Executive Order No: D-20-2
  • C.A.R.B. No. D-20-2
  • Resolution D-20-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-20-2 PDF

D-20-2 Document:

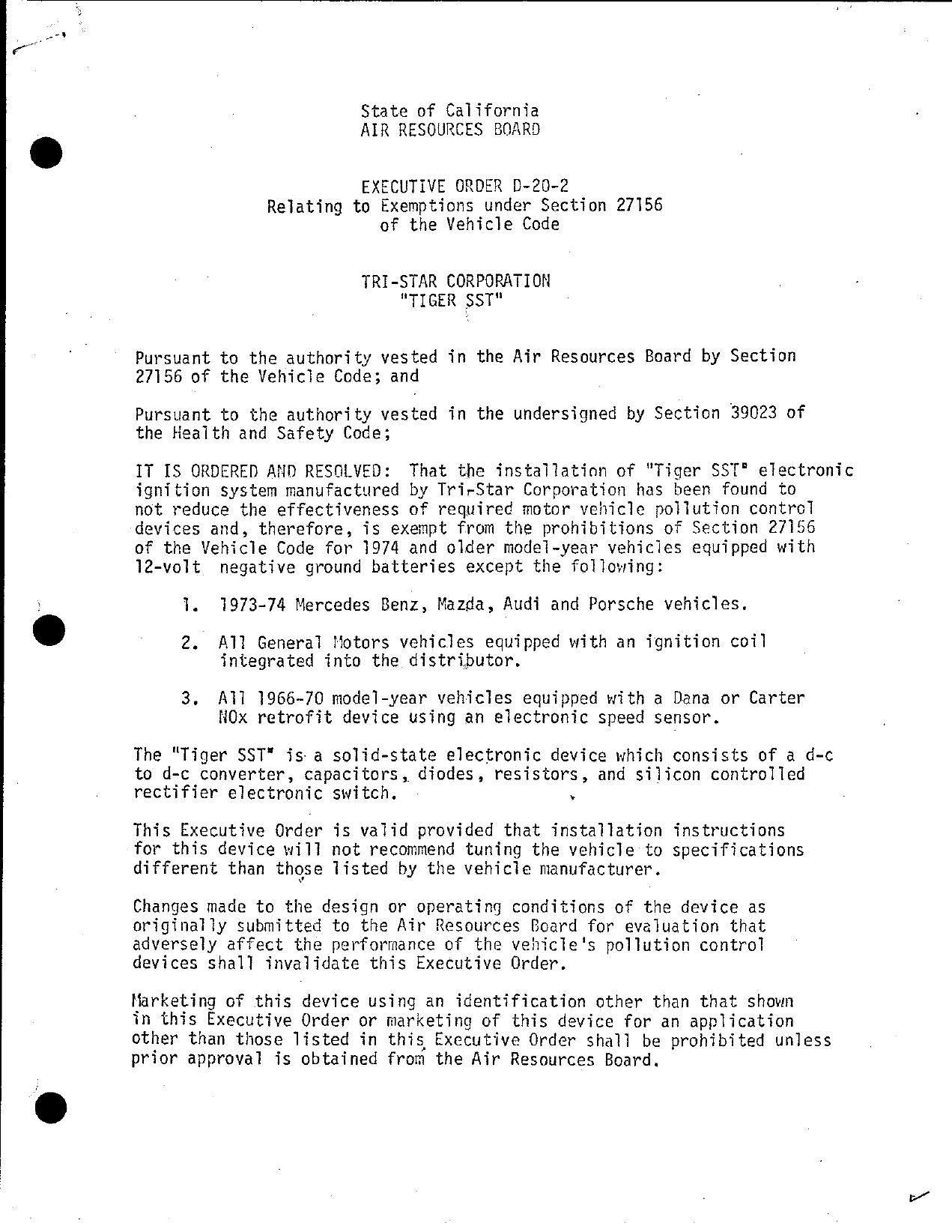

                         State of California
                         AIR RESOURCES BOARD


                         EXECUTIVE ORDER D—20—2
               Relating to Exemptions under Section 27156
                           of the Vehicle Code


                         TRI—STAR CORPORATION
                             "TIGER SST"

Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39023 of
the Health and Safety Code;

IT IS ORDERED AND RESOLYED: That the installation of "Tiger SST" electronic
ignition system manufactured by Trir—Star Corporation has been found to
not reduce the effectiveness of required motor vehicle poliution control
devices and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for 1974 and older model—year vehicles equipped with
12—volt negative ground batteries except the following:

     1.   1973—74 Mercedes Beni, Mazda, Audi and Porsche vehicles.

     2.   All General Motors vehicles equipped with an fgnition coil
          integrated into the distributor.

     3.   All 1966—70 model—year vehicles equipped with a Dana or Carter
          NOx retrofit device using an electronic speed sensor.

The "Tiger SST" is a solid—state electronic device which consists of a d—c
to d—c converter, capacitors, diodes, resistors, and silicon controlled
rectifier electronic switch.                  v

This Executive Order is valid provided that installation instructions
for this device will not recommend tuning the vehicle to specifications
different than thgse listed by the vehicle manufacturer.

Changes made to the design or operating conditions of the device as
originally submitted to the Air Resources Board for evaluation that
adversely affect the performance of the vehicle‘s pollution control
devices shall invalidate this Executive Order.

Marketing of this device using an identification other than that shown
in this Executive Order or marketing of this device for an application
other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.


 Tri—Star Corporation
 "TIGER SST"                                               Executive Order D—20—2


 This Executive Order does not constitute any opinion as to the effect
 that the use of this device may have on any warranty either expressed or
 implied by the vehicle manufacturer.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
 APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
 ANY CLATNS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
 ALLEGED BENEFITS OF THE "TIGER SST" DEVICE.

 No claim of any kind, such as "Approved by Air Resources Board" may be made
 with respect to the action taken herein in any advertising or other oral
—or written communication.

 Section 17500 of the Business and Professions Code makes unlawful, untrue
 or misleading advertising, and Section 17534 makes violation punishable as
 a misdemeanor.

 Sections 39130 and 39184 of the Health and Safety Code provide as follows:

      "39130.   No person shall install, sell, offer for sale, or advertise,
      or, except in an application to the board for certification of a
      device, represent, any device as a motor vehicle pollution control
      device unless that device has been certified by the board. No
      person shall sell, offer for sale, advertise, or represent any motor
      vehicle pollution control device as a certified device which, in
      fact, is not a certified device,.   Any violation of this section is
      a misdemeanor."

      "39184.   (a) No person shall install, sell, offer for sale, or adver—
      tise, or, except in an application to the board for accreditation of a
      device, represent, any device as a motor vehicle pollution control:
      device for use on any used motor vehicle unless that device has been
      accredited by the board.   No person shall sell, offer for sale, adver—
      tise, or represent any motor vehicle pollution control device as an
      accredited device which, in fact, is not an accredited device. Any
      violation of this subdivision is a misdemeanor."

. Any apparent violation of the conditions of this Executive Order will be sub—
 mitted to the Attorney General of California for such action as he deems
 advisable.




 Executed at Sacramento, California, this <P         day of June, 1974.

                                   Original signed by
                                   William Simmons
                                   WILLIAM SIMMONS
                                   Executive Officer


                           State of California
                           AIR RESOURCES BOARD

                               June 10, 1974
                               Staff Report

                Evaluation of the Tri—Star Corporation
                            "Tiger Pulsar"


The Tri—Star Corporation, Grand Junction, Colorado, has applied for exemp—

tion from the prohibitions of Section 27156 of the Ca]ifornia Vehicle Code

for the "Tiger Pulsar" electronic capacitive discharge ignition system.

Except for the labeling, the device is the same as the "Tiger 500" which

was previously exempted.   The applicant supplied enough information to

substantiate that "Tiger 500" and "Tiger Pulsar" are electronically

identical.


The attached staff report describes the "Tiger 500" device; it also shows

that the "Tiger 500" has no adverse effect on the existing emission control
system and recommends the "Tiger 500" for exemption from the prohibitions
of Section 27156 of the California Vehicle Code:


Since the "Tiger 500" and the "Tiger Pulsar" electronic capacitive dis—

charge ignition systems are in fact identical except for the labeling,

it is the ARB staff opinion that the "Tiger Pulsar" device should be
exempted from the prohibitiens of Section 27156 of the California Vehicle

Code.


                              State of California

                              AIR RESOURCES BOARD

                               February 8, 1974

                                Staff Report


                     Evaluation of the Tri—Star Corporation
                                   ll'r.iger.   500!!


                      Capacitive Discharge Ignition
                 Systems for Exemption to the Prohibitions
                 of Section 27156 of the Motor Vehicle Code


1.    Introduction

      The Tri—Star Corporation, Grand Junction, Colorado, has applied for

      exemption to the prohibitions of Section 27156 of the Motor Vehicle

      Code for the "Tiger 500" capacitive discharge ignition system.

      Section 27156 prohibjts the installation of any device which reduces

      the effectiveness of motor vehicle emission control systems.     The

      applicant intends to sell the aevice as an "add—on" part to the

      standard ignition system of 1974 and older model—year vehicles.


I1.   System Description

      For a general description of capacitive discharge ignition systems,

      see staff report "Evaluation of Capacitive Discharge and Transis—

      torized Ignition Systems for Compliance with the Requirements of
      Section 27156 of the Motor Vehicle Code", dated February 14, 1973.


      The "Tiger 500" device consists of circuits for a d—c to d—c

      converter, storage capacitor and a silicon controlled rectifier which

      serves as an electronic switch, and a trigger conditioner.




                                        ]U


Tri—Star Corporation                                      February 8, 1974




111. Emission Testing

    The applicant submitted an electrical schematic and described the

    system operation in addition to supplying CVS test data on three

    vehicles.   Based on the manufacturer‘s data and claims regarding no

    significant ignition system deterioration, there were no adverse ef—

    fects expected.     The emission data supplied was acquired at an altitude

    of 5,000 feet ana consequently confirmatory sea level tests were

    conducted by the ARB laboratory.


    The "Tiger 500" device was tested by the ARB laboratory on the following

    vehicles:


        1973 Chevrolet, 350 CID,;, 2 Bb1. Carb., EGR/AIR, Auto. Trans.

        1973 Mercury, 302 CID, 2 Bb1. Carb., EGR, Auto. Trans.

        1973 Plymouth, 360 CID, 2 Bbi. Carb., EGR/AIR, Auto. Trans.


    The idle air fuel mixture and ignition systems of both vehicles were

    prechecked to insure proper engine operation.    For all tests, with

    and without the device, the engine settings were adjusted to the

    vehicle manufacturer‘s specifications.


    The results of the ARB tests are shown below:




                                     2.


Tri«—Star Corporation                                          February 8, 1974




                                                 Hot CVS — grams/mile

                                             C           C0        NOx

      1973 Plymouth — Baseline             0.87         6.33       2. 38
                         Device            0.94         5.88       2. 38
                        _% Change          8.05        ~7.11        0

      1973 Mercury     — Baseline          2.45        14.09       2.53
                         Device            2.61        14.90       2.60
                         % Change          6.53         5.75       2.77

      1973 Chevrolet~ Baseline
                (Avg. 3 tests)             1.80        18.10       2.07
                         Device
                   (Avg. 3 tests)          1 .79       17.20       2. 06
                         % Change         =0.56        ~4.97      —0.48


      Baseline and device spark timing advances were measured and with no

      significant difference noted in the engine timing between the two

      installations.


      Open circuit voltages were measured at fdle and 2,200 engine rpm on

      a 1973 Pontiac.

                                              Open Circuit Spark Voltage
                                              Idle {600 rpm) 2,200 rpm

          Baseline                            22,000 volits    22,000 volts

          Device                              30,000 volts     28,000 volits


IV.   Conclusions and Recommendations
      It is the staff‘s opinion that the Tri—Star Corporation "Tiger 500"

      capacitive discharge ignition system will not adversely affect motor

      vehicle exhaust emissions when evaluated with respect to the exhaust

      emissions obtained with a conventional ignition system of a "tuned"



                                     3.


Tri~Star Corporation                         '           February 8, 1974




     engine.   This device may also have a beneficialveffect in the control

     of exhaust emissions if it maintains the "tuned" condition of the

     engine for a longer period of time.   Therefore, the "Tiger 500" capaci—

     tive discharge ignition system should be exempt from the prohibitions

    of Section 27156 of the Motor Vehicle Code for the mode] years shown

    in Executive Order D—20.
