Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2002.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
4GD218-0501999-2003 Mini/mid-size truck/SUV 4.3L V6The kit includes a supercharger, brackets and ducting, and, as applicable, an auxiliary fuel pump, replacement fuel injectors, a fuel management unit, reprogramming of the vehicle computer, a manifold air pressure sensor bleed assembly. Crank pulley 7.5", supercharger pulley 3.125"

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-213-19
  • Executive Order 213-19 / D213-19
  • ARB # D-213-19
  • Executive Order No: D-213-19
  • C.A.R.B. No. D-213-19
  • Resolution D-213-19
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-213-19 PDF

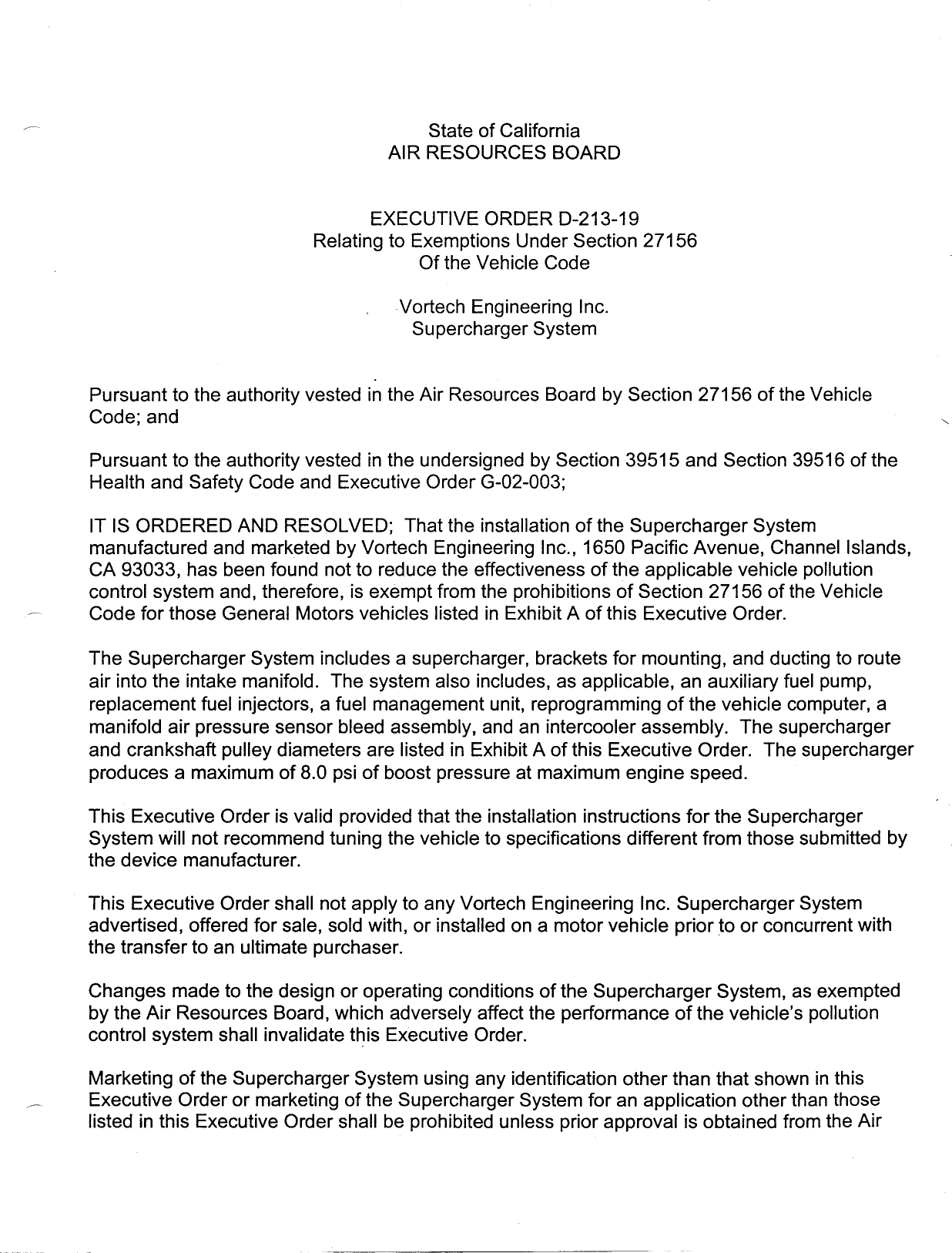

D-213-19 Document:



                                         State of California
                                     AIR RESOURCES BOARD



                                   EXECUTIVE ORDER D—213—19
                            Relating to Exemptions Under Section 27156
                                         Of the Vehicle Code

                                      Vortech Engineering Inc.
                                        Supercharger System


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED; That the installation of the Supercharger System
manufactured and marketed by Vortech Engineering Inc., 1650 Pacific Avenue, Channel Islands,
CA 93033, has been found not to reduce the effectiveness of the applicable vehicle pollution
control system and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
Code for those General Motors vehicles listed in Exhibit A of this Executive Order.

The Supercharger System includes a supercharger, brackets for mounting, and ducting to route
air into the intake manifold. The system also includes, as applicable, an auxiliary fuel pump,
replacement fuel injectors, a fuel management unit, reprogramming of the vehicle computer, a
manifold air pressure sensor bleed assembly, and an intercooler assembly. The supercharger
and crankshaft pulley diameters are listed in Exhibit A of this Executive Order. The supercharger
produces a maximum of 8.0 psi of boost pressure at maximum engine speed.

This Executive Order is valid provided that the installation instructions for the Supercharger
System will not recommend tuning the vehicle to specifications different from those submitted by
the device manufacturer.

This Executive Order shall not apply to any Vortech Engineering Inc. Supercharger System
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with
the transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Supercharger System, as exempted
by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of the Supercharger System using any identification other than that shown in this
Executive Order or marketing of the Supercharger System for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air


Resources Board. Exemption of the system shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Vortech
Engineering Inc. Supercharger System may have on any warranty either expressed or implied by
the vehicle manufacturer.

This Executive Order is granted based on emission test data generated on a 2002 Chevrolet
Corvette passenger car certified to the Low—Emission Vehicle (LEV) emission standards.
Emission levels of the vehicle with the Supercharger System installed met the applicable
emission standards during the Cold Start CVS—75 Federal Test Procedure and the Supplemental
Federal Test Procedure (SCO3 and USO6). Results are in grams per mile with deterioration
factors added to CVS—75 test results:

              SFTP (SCO3)            SFTP (USO6)
               (grams/mile)           (grams/mile)                FTP (grams/mile)
           NMHC+NOx        CO     NMHC+NOx       CO      NMOG*         CO    NOx     HCHO*

Standard       0.20        2.]7       0.14        8.0     0.075        3.4   0.2     0.015
  Test
 Results      0.037       0.342      0.093      0.329     0.031     0.95     0.06    0.001


Vortech Engineering Inc. also demonstrated that the Supercharger System did not affect the
ability of the vehicle‘s OBDII system to monitor various emissions related functions. Boost
pressure was measured during a wide—open—throttle acceleration conducted by the independent
emissions test laboratory. Results were measured to be no greater than 8.0 psi.

If test results or other evidence provides the ARB with reason to suspect that the Supercharger
System will affect the durability of the emission control system, Vortech Engineering Inc. shall be
required to submit durability data to show that the durability of the vehicle emissions control
system is not, in fact, affected and/or that the add—on or modified part demonstrates adequate
durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF VORTECH ENGINEERING INC.—‘S SUPERCHARGER SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising of other oral or written communication.



           VORTECH ENGINEERING INC.— SUPERCHARGER SYSTEM — D—213—19


                                                                                l2 lnv2l ndvaccsmnen neccnens os




Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made, after the hearing, that grounds for
revocation exist.


Executed at El Monte, California, this Z[f'r day of November 2002.




                                   Allewgyons, Chief
                                   Mobile Source Operations Division




           VORTECH ENGINEERING INC.— SUPERCHARGER SYSTEM — D—213—19


   )             ,                                    e
                                                        Exhibit A


                                                                                          S/C_
       .                                                            Engine pulley pulley
Part Number    Mode! years Vehicle type/model                   (liters)    (in.)         (in.)
4GD218—050     1999—2003   Mini/mid—size truck/SUV                 4.3     7.5 (Stock)    3.125
4GM218—050     1999—2002   Mid—size truck/SUV                    5.0/5.7 7.0 (Stock)        3.6
4GL218—010     2000—2003   Mid—size truck/SUV LS1              4,8/5.3/6.07.54 (Stock)     3.33
4GL218—030        1999     Mid—size truck/SUV LS1              4.8/5.3/6.€7.54 (Stock)      3.33
4GL218—100     1999—2003 Mid—size truck/SUV LS1 w/charge cooler4.8/5.3/6.07.54 (Stock)    3.33
4GK218—010    . 1998—2002 F—body LS1, std.                           5.7        8          3.7
4GK218—060     1998—2000 F—body LS1, w/charge cooler                 5.7        8         3.125
4GK218—080     2001—2002 F—body LS1, w/charge cooler                 5.7        8         3.125
4GR218—010     1997—2003 C5 Corvette LS1/LS6 w/charge cooler         5.7   7.36 (Stock)    3.6
4GR218—020     1997—2003 C5 Corvette LS1/LS6 w/charge cooler         5.7   7.36 (Stock)    3.6
4GR218—030     1997—2003 CS Corvette LS1/LS6 w/charge cooler         5.7   7.36 (Stock)    3:6
4GR218—040     1997—2003 CS Corvette LS1/LS6 w/charge cooler        ©5.7   7.36 (Stock)    3.6



Document Created: 2005-09-01 12:45:46
Document Modified: 2005-09-01 12:45:46
