Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 8, 2004.
As of Monday, October 7th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
6573200-2002 GM Camaro Firebird LS1 Chrom

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-61
  • Executive Order 215-61 / D215-61
  • ARB # D-215-61
  • Executive Order No: D-215-61
  • C.A.R.B. No. D-215-61
  • Resolution D-215-61
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-61 PDF

D-215-61 Document:


CARB_D-215-61

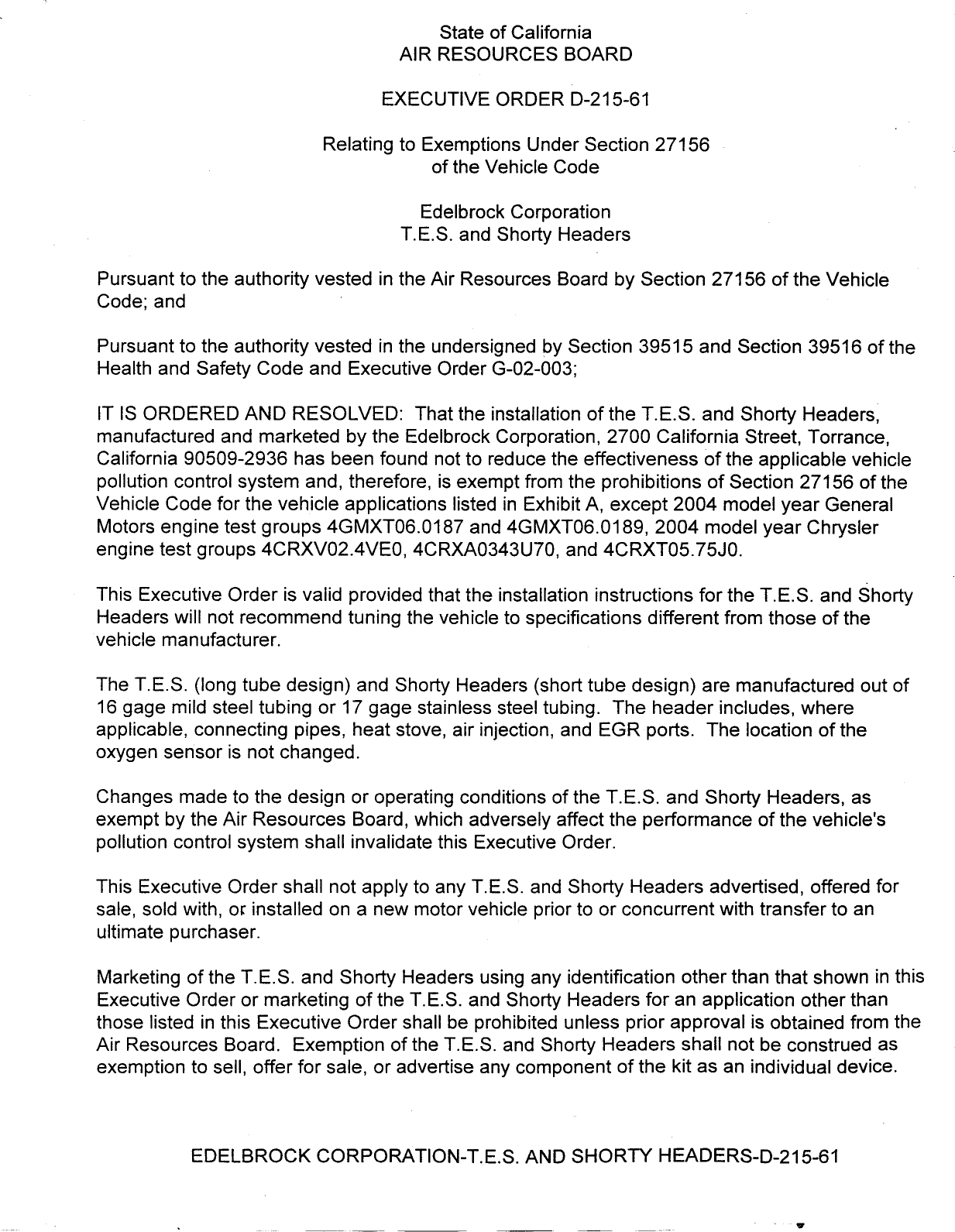

                                        State of California
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—215—61

                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code

                                      Edelbrock Corporation
                                    T.E.S. and Shorty Headers

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and                    '

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the T.E.S. and Shorty Headers,
manufactured and marketed by the Edelbrock Corporation, 2700 California Street, Torrance,
California 90509—2936 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the vehicle applications listed in Exhibit A, except 2004 model year General
Motors engine test groups 4GMXTO06.0187 and 4GMXTO6.0189, 2004 model year Chrysier
engine test groups 4CRXVO2.4VEO, 4CRXAO343U70, and 4CRXTO5.75J0.

This Executive Order is valid provided that the installation instructions for the T.E.S. and Shorty
Headers will not recommend tuning the vehicle to specifications different from those of the
vehicle manufacturer.

The T.E.S. (long tube design) and Shorty Headers (short tube design) are manufactured out of
16 gage mild steel tubing or 17 gage stainless steel tubing. The header includes, where
applicable, connecting pipes, heat stove, air injection, and EGR ports. The location of the
oxygen sensor is not changed.

Changes made to the design or operating conditions of the T.E.S. and Shorty Headers, as
exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any T.E.S. and Shorty Headers advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the T.E.S. and Shorty Headers using any identification other than that shown in this
Executive Order or marketing of the T.E.S. and Shorty Headers for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board. Exemption of the T.E.S. and Shorty Headers shall not be construed as
exemption to sell, offer for sale, or advertise any component of the kit as an individual device.




           EDELBROCK CORPORATION—T.E.S. AND SHORTY HEADERS—D—215—61


                                                 3.


This Executive Order does not constitute any opinion as to the effect the use of the T.E.S. and
Shorty Headers may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on prior evaluation which determined that Edelbrock
Corporation‘s T.E.S. and Shorty Headers do not cause an adverse effect on emissions of
selected vehicles (D—215—56 and D—215—57), nor does it affect the vehicles‘ ability to perform On—
Board Diagnostic I1 (OBD !1) system monitoring. The same effect on emissions and OBD 11
system monitoring is expected from use of the T.E.S. and Shorty Headers on the vehicles listed
in this Executive Order.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE EDELBROCK CORPORATION‘S T.E.S. AND SHORTY
HEADERS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that groundsfor
revocation exist.                                                         .

Executed at El Monte, California, this 8fl       day of July 2004.




                                     MoBile Source Operations Division




           EDELBROCK CORPORATION—T.E.S. AND SHORTY HEADERS—D—215—61


                                         Exhibit A
                                     SHORTY HEADERS
     PN      |                                   Application
Chevrolet GMC
(Passenger Cars)
    6573         00—02 Camaro Firebird LS1, Chrome
    65730        00—02 Camaro Firebird LS1, Painted
    65732        00—02 Camaro Firebird LS1, Ceramic—Coated
(Full—Size Blazer/Jimmy/Yukon/Tahoe/Escalade/Hummer H2)
     6527     83—86 K—5 Blazer full—size 5.0L., 5.7L with carb & A.1.R., Chrome
    65270     83—86 K—5 Blazer full—size 5.0L, 5.7L with carb & A.1.R., Painted
    65272     83—86 K—5 Blazer full—size 5.0L, 5.7L with carb & A.1.R., Ceramic—Coated
     6566     92—95 K—5 Blazer/Tahoe/Yukon full size 5.0L, 5.7L TBI without A.1.R., Chrome
    65660     92—95 K—5 Blazer/Tahoe/Yukon full size 5.0L, 5.7L TBI without A.L.R., Painted
    65662    ©92—95 K—5 Blazer/Tahoe/Yukon full size 5.0L, 5.7L TBI without A.L.R., Ceramic—Coated
     6567    {93—95 Blazer/Tahoe/Yukon full—size 5.0L, 5.7L T.B.1. with A.1.R., Chrome
    65670    193—95 Blazer/Tahoe/Yukon full—size 5.0L, 5.7L T.B.1. with A.1.R., Painted
    65672     93—95 Blazer/Tahoe/Yukon full—size 5.0L, 5.7L T.B.1. with A.1.R., Ceramic—Coated
     6502     2003 Hummer H2 6.0L without A.1.R. & E.G.R., Chrome
    65020    2003 Hummer H2 6.0L without A.L.R. & E.G.R., Painted
    65022    2003 Hummer H2 6.0L without A.1.R. & E.G.R., Ceramic—Coated
     6510    196—99   Tahoe/Yukon 5.7L without A.1.R., Chrome
    65100     96—99   Tahoe/Yukon 5.7L without A.LR., Painted
    65102    196—99   Tahoe/Yukon 5.7L without A.1.R., Ceramic—Coated
     6525    198—00   Tahoe/Yukon/Escalade 5.7L with A.1.R., Chrome
    65250    {98—00   Tahoe/Yukon/Escalade 5.71 with A.1.R., Painted
    65252    :98—00   Tahoe/Yukon/Escalade 5.7L with A.1.R., Ceramic—Coated
     6500*   ©99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L without A.LR., Chrome
    65000*   {99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L without A.1.R., Painted
    65002*   :99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L without A.1.R., Ceramic—Coated
     6501*   ‘99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L with A.1.R., Chrome
    65010*    99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L with A.1.R., Painted
    65012*   :99—04   Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L with A.I.R., Ceramic—Coated
     6502*   ‘02—04   Tahoe/Yukon 4.8L, 5.3L, 6.0L without A.1.R. & E.G.R., Chrome
    65020*   ‘02—04   Tahoe/Yukon 4.8L, 5.3L, 6.0L without A.1.R. & E.G.R., Painted
    65022*   ;02—04   Tahoe/Yukon 4.8L, 5.3L, 6.0L without A.1.R. & E.G.R., Ceramic—Coated
(Pick—Ups)
    6527     (79—87 C—10 5.7L with carb, A.L.R., Chrome
    65270    \79—87 C—10 5.7L with carb, ALR., Painted
    65272     79—87 C—10 5.7L with carb, A.LR., Ceramic—Coated
    6527      81—86 K—10/K—20 5.0L, 5.7L with carb & A.L.R., Chrome
    65270    {81—86 K—10/K—20 5.0L, 5.7L with carb & A.LR., Painted
—   65272    181—86 K—10/K—20 5.0L, 5.7L with carb & A.LR., Ceramic—Coated
     6527     81—87 1500/2500 5.0L, 5.7L with carb & A.1.R., Chrome
    65270     81—87 1500/2500 5.0L, 5.7L with carb & A.L.R., Painted
    65272     81—87 1500/2500 5.0L, 5.7L with carb & A.L.R., Ceramic—Coated
     6527    187 1500/2500 (8400 GVW or lower) 5.7L T.B.1. with A.1.R., Chrome
    65270    |87 1500/2500 (8400 GVW or lower) 5.71 T.B.1. with A.1.R., Painted .
    65272     87 1500/2500 (8400 GVW or lower) 5.7L T.B.1. with A.1.R., Ceramic—Coated
     6566    188—95 1500—2500 5.0L, 5.7L T.B.1. without A.1.R., Chrome



                                              Page 1 of 4


                                                  Exhibit A
                                              SHORTY HEADERS
      65660    {88—95    1500—2500 5.0L, 5.7L T.B.1. without A.1.R., Painted
      65662    {(88—95   1500—2500 5.0L, 5.7L T.B.1. without A.1.R., Ceramic—Coated
       6567    (88—95    1500—2500 5.0L, 5.7L T.B.1. with A.1.R., Chrome
      65670    ;88—95    1500—2500 5.0L, 5.7L T.B.1. with A.1.R., Painted
      65672    (88—95    1500—2500 5.0L, 5.7L T.B.1. with A.1.R., Ceramic—Coated
       6510    ‘96—98    1500—2500 Heavy—Duty/3500 5.0L, 5.7L without A.1.R., Chrome
      65100    [96—98    1500—2500 Heavy—Duty/3500 5.0L, 5.7L without A.L.R., Painted
      65102    {96—98    1500—2500 Heavy—Duty/3500 5.0L., 5.7L without A.L.R., Ceramic—Coated
       6525    98—99     1500 5.71 with A.1.R., Chrome
      65250    |98—99    1500 5.7L with A.L.R., Painted
      65252    198—99    1500 5.7L with A.1.R., Ceramic—Coated
       6500*   ©99—04    1500/2500 4.8L, 5.3L, 6.0L with E.G.R., without A.1.R., Chrome
      65000*   99—04     1500/2500 4.8L., 5.3L, 6.0L with E.G.R., without A.1.R., Painted
      65002*   ©99—04    1500/2500 4.8L., 5.3L, 6.0L with E.G.R., without A.1.R., Ceramic—Coated
       6501*   ©99—04    1500/2500 4.8L., 5.3L with A.1.R. & E.G.R., Chrome
      65010*   ©99—04    1500/2500 4.81., 5.3L with A.L.R. & E.G.R., Painted
      65012*    99—04    1500/2500 4.8L, 5.3L with A.1.R. & E.G.R., Ceramic—Coated
       6502*   ‘01—04    1500/2500 4.8L, 5.3L., 6.0L without A.1.R. & E.G.R., Chrome
      65020*   101—04    1500/2500 4.8L, 5.3L., 6.0L without A.1.R. & E.G.R., Painted
      65022*    01—04    1500/2500 4.8L, 5.3L, 6.0L without A.1.R. & E.G.R., Ceramic—Coated
       6518    :02—03    2500/3500   8.1L     with A.I.R. & E.G.R., Chrome
      65180    ©02—03    2500/3500   8.1L     with A.I.R. & E.G.R., Painted
      65182     02—03    2500/3500   8.11..   with A.I.R. & E.G.R., Ceramic—Coated
      6519     :02—03    2500/3500   8.1L     without A.1.R., with E.G.R., Chrome
      65190    02—03     2500/3500   8.1L     without A.1.R., with E.G.R., Painted
      65192     02—03    2500/3500   8.1L     without A.1.R., with E.G.R., Ceramic—Coated _
(Chevy Avalanche)
—     6502*    02—04 1500/2500 5.3L, 6.0L without A.1.R. & E.G.R., Chrome
_©65020°       02—04 150072500 5.3L, 6.0L without A.1.R. & E.G.R., Painted
      65022*    02—04    1500/2500   5.3L,    6.0L   without A.1.R. & E.G.R., Ceramic—Coated
       6500*    02—04    1500/2500   5.3L,    6.0L   with E.G.R., without A.1.R., Chrome
      65000*   :02—04    1500/2500   5.3L.,   6.0L   with E.G.R., without A.1.R., Painted
      65002*   102—04    1500/2500   5.3L,    6.0L   with E.G.R., without A.1.R., Ceramic—Coated
       6501*    02—04    1500/2500   5.3L,    6.0L   with A.LR. & E.G.R., Chrome
      65010*   ©02—04    1500/2500   5.3L,    6.0L   with A.L.R. & E.G.R., Painted
      65012*    02—04    1500/2500   5.3L,    6.0L   with A.L.R. & E.G.R., Ceramic—Coated
      6518     02—03 2500 8.1L with ALR. & E.G.R., Chrome
    65180      ©02—032500 8. 1Lwith A.LR. & E.G.R., Painted
    _65182     02—03 2500 8.1L with A.L.R. & E.G.R., Ceramic—Coated
      6519      02—03 2500 8. 1L without A.1.R., with E.G.R., Chrome
      65190    ©02—03 2500 8. 1L without A.LR., with E.G.R., Painted
      65192     02—03 2500 8. 1L without A.LR., with E.G.R., Ceramic—Coated
(Suburban)
    6527       77—91 150072500 5.0L, 5.7L carb, T.B.1. with A.1.R., Chrome
      65270    77—91 1500/2500 5.0L, 5.7L carb, T.B.1. with A.1.R., Painted
      65272    77—91 1500/2500 5.0L., 5.7L carb, T.B.1. with A.1.R., Ceramic—Coated
      6566      92—95 1500/2500 5.0L, 5.7L T.B.1. without A.LR., Chrome
      65660     92—95 1500/2500 5.0L, 5.7L T.B.1. without A.1.R., Painted
    _65662     ~92—951500/2500 5.0L, 5.7L T.B.1. without A.L.R., Ceramic—Coated


                                                        Page 2 of 4


                                             Exhibit A
                                         SHORTY HEADERS
     6567       (92—95   1500/2500 5.0L, 5.7L T.B.1. with A.1.R., Chrome
   65670        192—95   1500/2500 5.0L, 5.7L T.B.1. with A.1.R., Painted
   65672        {92—95   1500/2500 5.0L, 5.7L T.B.1. with A.1.R., Ceramic—Coated
     6510        96—97   1500/2500 HD, 8—lug 5.0L, 5.7L, C.P.}. without A.1.R., Chrome
   65100         96—97   1500/2500 HD, 8—lug 5.0L, 5.7L, C.P.1. without A.1.R., Painted
   65102        {96—97   1500/2500 HD, 8—lug 5.0L, 5.7L, C.P.1. without A.1.R., Ceramic—Coated
     6525        98—00   1500 5.7L with A.1.R., Chrome
   65250         98—00   1500 5.7L with A.1.R., Painted
   65252         98—00   1500 5.7L with A.1.R., Ceramic—Coated
    6500*       199—04   1500/2500 4.8L, 5.3L, 6.0L with E.G.R., without A.L.R., Chrome
   65000*       {99—04   1500/2500 4.8L., 5.3L, 6.0L with E.G.R., without A.1.R., Painted
   65002*       99—04    1500/2500 4.8L., 5.3L, 6.0L with E.G.R., without A.1.R., Ceramic—Coated
    6501+*      199—04   1500/2500 4.8L, 5.3L with A.L.R. & E.G.R., Chrome                                       B
   65010*       :99—04   1500/2500 4.8L, 5.3L with A.LL.R. & E.G.R., Painted
   65012*       ©99—04   1500/2500 4.8L., 5.3L with A.I.R. & E.G.R., Ceramic—Coated
    6502* .      02—04   1500/2500 4.8L., 5.3L, 6.0L without A.1.R. & E.G.R., Chrome
   65020*        02—04   1500/2500 4.8L, 5.3L, 6.0L without A.LR. & E.G.R., Painted
   65022*       :02—04   1500/2500 4.8L., 5.3L, 6.0L without A.LR. & E.G.R., Ceramic—Coated
     6518       ‘02—03 2500 8.1L with A.L.R. & E.G.R., Chrome
    65180        02—03 2500 8.1L with A.L.R. & E.G.R., Painted
    65182        02—03 2500 8.1L with A.L.R. & E.G.R., Ceramic—Coated
    6519        ©02—03 2500 8.1L without A.L.R., with E.G.R., Chrome
    65190     _____02—03 2500 8. 11. without A.L.R., with E.G.R., Painted
 65192           02—032500 8. 1L withoutAI.R., with E.G.R., Ceramic—Coated
                 * 2004 Model Year General Motors engine test groups 4GMXTO6.0187 and 4GMXT06.0189
                 are excluded from this Executive Order.


CHRYSLER
    47490        00—04 P.T. Cruiser 2.4L non turbo, Painted, except engine test group 4CRXVO2.4VEO
    47492        00—04P.T. Cruiser 2.4L non turbo, Ceramic—Coated, except engine test group 4CRXVO2.4VEO
DODGE                                                               K
    6669*       ©03—04 Dodge Ram Truck 5.7L V8 Hemi, Painted                                                     —
   66692*        03—04 Dodge Ram Truck 5.7L V8 Hemi, Ceramic—Coated                                          _
    6851         87—91 Dodge Dakota Pick—up 3.9L F.1., Painted                                               _
    68512        87—91 Dodge Dakota Pick—up 3.9L F.1., Ceramic—Coated                                                _
    6564        "96—03 Durango/Dakota/Ram Pick—up 1500/2500 5.2L, 5.9L F.1. without E.G.R., Chrome
    65640        96—03 Durango/Dakota/Ram Pick—up 1500/2500 5.2L, 5.9L F.l. without E.G.R., Painted
    65642        96—03 Durango/Dakota/Ram Pick—up 1500/2500 5.2L, 5.9L F.1. without E.G.R., Ceramic—Coated
   65690*       ©03—04 Dodge Ram Pick—up 1500/2500 with 5.7L V8, Painted
~ 65692*°      03—04Dodge Ram Pick—up 1500/2500 with 5.7L V8, Ceramic—Coated
___ 6679*        04 Dodge Ram Pick—up 1500/2500 with 5.7L V8, Painted                                            _
   66792+*       04 Dodge Ram Pick—up 1500/2500 with 5.7L V8, Ceramic—Coated
                 * 2004 Model Year Chrysler engine test groups 4CRXAO343U70 and 4CRXTO5.75J0 are
                 excluded from this Executive Order.

FORD/MERCURY/LINCOLN
    6845        ©86—93 Mustang/Mark/Capri 5.0L F.1., Painted                                                 _
    68452       :86—93 Mustang/Mark/Capri 5.0L F.1., Ceramic—Coated


                                                   Page 3 of 4


                                                 Exhibit A
                                             SHORTY HEADERS
     6883     86—93 Mustang/Mark/Capri 5.0L F.1. Equal Length, Painted
    68832     86—93 Mustang/Mark/Capri 5.0L F.1. Equal Length, Ceramic—Coated
     6745     94—95 Mustang 5.0L F.!. with E.G.R., Painted
    67452     94—95 Mustang 5.0L F.1. with E.G.R., Ceramic—Coated
    47480     00—03 Focus ZX3 2.0L Z—tec, Painted                 :
    47482     00—03 Focus ZX3 2.0L Z—tec, Ceramic—Coated
(Trucks)                                                                        >
     6848     85—92   Bronco   Full   Size   5.0L    F.1.   without A.L.R.,   Painted
    68482     85—92   Bronco   Full   Size   5.0L    F.1.   without A.1.R.,   Ceramic—Coated
    6649      88—96   Bronco   Full   Size   5.8L    F.1.   without A.1.R.,   Painted
    66492     88—96   Bronco   Full   Size   5.8L    F.1.   without A.1.R.,   Ceramic—Coated
    6563     99—03 Expedition/F—150/F—250 5.4L F.1. with E.G.R., without air ride suspension, Chrome
    65630     99—03 Expedition/F—150/F—250 5.4L F.1. with E.G.R., without air ride suspension, Painted
    65632     99—03 Expedition/F—150/F—250 5.4L F.1. with E.G.R., without air ride suspension, Ceramic—Coated
     6848    90—92    F—150/F—250     5.0L    F.1.   without A.L.R.,   Painted
    68482    90—92    F—150/F—250     5.0L    F.1.   without A.1.R.,   Ceramic—Coated
     6649    88—96    F—150/F—250     5.8L.   F.1.   without A.1.R.,   Painted
    66492    88—96    F—150/F—250     5.8L    F.1.   without A.1.R.,   Ceramic—Coated
JEEP/AMC
             (72—91 Jeep Cherokee, Wagoneer, J Series Pick Up & 72—81 Jeep CJ5, CJ7, CJ8 with 304, 360, 401
             §V8$ & 70—79 AMC—AMX, Javelin, Matador, Rebel, Hornet, Gremlin with 304, 360, 390, 401 cu. in.
    65810    ‘V8s all with A.L.R., Painted
             (72—91 Jeep Cherokee, Wagoneer, J Series Pick Up & 72—81 Jeep CJ5, CJ7, CJ8 with 304, 360, 401
             ‘V8s & 70—79 AMC—AMX, Javelin, Matador, Rebel, Hornet, Gremlin with 304, 360, 390, 401 cu. in.
    65812    :V8s all with A.LR., Ceramic—Coated
             72—91 Jeep Cherokee, Wagoneer, J Series Pick Up & 72—81 Jeep CJ5, CJ7, CJ8 with 304, 360, 401
              ‘V8s & 70—79 AMC—AMX, Javelin, Matador, Rebel, Hornet, Gremlin with 304, 360, 390, 401 cu. in.
    65910     V8s all without A.1.R., Painted                                                           |
            _ :72—91 Jeep Cherokee, Wagoneer, J Series Pick Up & 72—81 Jeep CJS5, CJ7, CJ8 with 304, 360, 401
            ‘V8s & 70—79 AMC—AMX, Javelin, Matador, Rebel, Hornet, Gremlin with 304, 360, 390, 401 cu. in.
    65912    V8s all without A.1.R., Ceramic—Coated
             (91—99 Jeep Wrangler & Cherokee, 72—81 Jeep Grand Cherokee, 91—92 Jeep Comanche with 4.0L 6
    65920    ‘cyl., Painted
             f91-99 Jeep Wrangler & Cherokee, 72—81 Jeep Grand Cherokee, 91—92 Jeep Comanche with 4.0L 6
    65922    |cyl., Ceramic—Coated




                                                            Page 4 of 4


                                                    Exhibit A
                                        TUBULAR EXHAUST SYSTEMS (T.E.S.)
                                               (Long Tube Design)

    PN    |                                                              Application
CHEVROLET/IPONTIAC PASENGER CARS
(Camaro/Firebird)
   6871    (82—87 Standard 5.0L LG—4, 2 1/4" Inlet Slip—on Cat., Auto & Std. Trans., Painted
  68711     (82—87 Standard 5.0L LG—4, 2 1/4" Inlet Slip—on Cat., Auto & Std. Trans., Chrome
  68712      |82—87 Standard 5.0L LG—4, 2 1/4" Inlet Slip—on Cat., Auto & Std. Trans., Ceramic—Coated
  6874     183—86 H.O. (High Output) 5.0L 4—bbi carb, 4—bolt cat., Auto & Std. Trans., Painted
  68741    |83—86 H.O. (High Output) 5.0L 4—bb! carb, 4—bolt cat., Auto & Std. Trans., Chrome
  68742     183—86 H.O. (High Output) 5.0L 4—bb! carb, 4—bolt cat., Auto & Std. Trans., Ceramic—Coated
   6873    |85 IROC & Fomula 5.0L, 5.7L T.P.1., 4—boit cat., Auto & Std. Trans., Painted
   6872        |86—90 IROC, 2—28, Formula 5.0L, 5.7L T.P.1., 3" Inlet slip—on single cat., Auto & Std. Trans., Painted
  68721       (86—90 IROC, Z—28, Formula 5.0L, 5.7L T.P.1., 3" Inlet slip—on single cat., Auto & Std. Trans., Chrome
  68722       186—90 IROC, Z—28, Formula 5.0L, 5.7L T.P.I., 3" Inlet slip—on single cat., Auto & Std. Trans., Ceramic—Coated
   6875       188—92 RS & Formula 5.0L T.8.1. 2 1/4" Inlet slip—on cat., Auto & Std. Trans., Painted
  68751       (88—92 RS & Formula 5.0L T.B.1. 2 1/4" Inlet stip—on cat., Auto & Std. Trans., Chrome
  68752       188—92 RS & Formula 5.0L T.B.1. 2 1/4" Inlet slip—on cat., Auto & Std. Trans., Ceramic—Coated
   6876    ©89—92 IROC, 2—28, T/A, Formula 5.0L, 5.7L T.P.1., dual—cat., Auto & Std. Trans., Painted
  68761     ©:89—92 IROC, 2—28, T/A, Formula 5.0L, 5.7L T.P..1., dual—cat., Auto & Std. Trans., Chrome
  68762     (89—92 IROC, 2—28, T/A, Formula 5.0L, 5.7L T.P.1., dual—cat., Auto & Std. Trans., Ceramic—Coated
   6893    ©(93 Z—28, T/A & Formula 5.7L, LT1, single cat., Auto & Std. Trans., Painted
   6894    (94—95 Z—28, T/A & Formula 5.7L, LTA1, single cat., Auto & Std. Trans., Painted
  68941    :94—95 Z—28, T/A & Formula 5.7L, LT1, single cat., Auto & Std. Trans., Chrome
  68942       194—95 Z—28, T/A & Formula 5.7L, LT1, single cat., Auto & Std. Trans., Ceramic—Coated
   6602    (95—97 Z—28, T/A & Formula 5.7L, LT1, dual cat., Auto & Std. Trans., Painted
  66021   195—97 Z—28, T/A & Formula 5.7L, LT1, dual cat., Auto & Std. Trans., Chrome
  66022    ©95—97 Z—28, T/A & Formula 5.7L, LT1, dual cat., Auto & Std. Trans., Ceramic—Coated
   6672       98—99 Camaro/Firebird 5.7L LS1, Auto & Std. Trans., Painted
(Impala SS)
   6603   |94—96 Impala SS 5.7L LT1, 2WD Auto & Std. Trans., Painted
  66031   ©94—96 Impala SS 5.7L LT1, 2WD Auto & Std. Trans., Chrome
_ 66032   ©:94—96 Impala SS 5.7L. LT1, 2WD Auto & Std. Trans., Ceramic—Coated
(Monte Carlo/El Camino)
   6878       183—88 Standard 5.0L LG—4, 2—1/4" Inlet slip—on cat., 2WD Auto & Std. Trans., Painted
  68781   ©83—88 Standard 5.0L LG—4, 2—1/4" Inlet slip—on cat., 2WD Auto & Std. Trans., Chrome
  68782    ©83—88 Standard 5.0L LG—4, 2—1/4" Inlet slip—on cat., 2WD Auto & Std. Trans., Ceramic—Coated
  6879    183—88 High Output (H.0.), 4—bolt cat., 2WD Auto & Std. Trans., Painted
  68791   (83—88 High Output (H.0.), 4—bolt cat., 2WD Auto & Std. Trans., Chrome
 68792        :83—88 High Output (H.0.), 4—bolt cat., Z2WD Auto & Std. Trans., Ceramic—Coated
CHEVROLET/GMC TRUCKS & VANS
7(Astro/Safari Van)
   6890    ©86—91 Astro/Safari Van 4.3L T.B.1. V6 without A.1.R., 2WD Auto Trans., Painted
(Blazer/Jimmy S—10/$—15)
 ~ 6885    (83—85 S—10/S—15 2.8L Carbureted, 2 WD Auto & Std. Trans., Painted
~— 6887    (83—85 S—10/5—15 2.8L Carbureted, 4 WD Auto & Std. Trans., Painted



                                                               Page 1 of 5


                                                  Exhibit A
                                       TUBULAR EXHAUST SYSTEMS (T.E.S.)
                                                     (Long Tube Design)

   6895     86—93 S10/5—15 2.8L. T.B.1. with 2—1/4" Slip—on Cat., 2WD Auto & Std. Trans., Painted
   6897      86—93 S10/5—15 2.8L T.B.1. with 2—1/4" Slip—on Cat., 4WD Auto & Std. Trans., Painted
   6855    88—95 S10/5—15 4.3L T.B.1./C.P.1., 2WD Auto Trans., Painted
   6835    88—95 S410/5415 4.3L T.B.L./C.P.1., 2WD Std. Trans., Painted
   6856    ©88—95 S10/5—15 4.3L T.B.1./C.P.1., 4WD Auto Trans., Painted
  68561     88—95 S—10/5415 4.3L T.B.1/C.P.1., 4WD Auto Trans., Chrome
  68562      §8—95 S—10/5415 4.3L T.B.1/C.P.1., 4WD Auto Trans., Ceramic—Coated
   6836      38—95 S40/56—415 4.3L T.B.1.7G.P.1., 4WD Std. Trans., Painted
   6709    ©96—97 S10/5—15 4.3L C.P.1. only, 4dWD Auto Trans., Painted
(Pick—Up S—10/S—15/Sonoma)
   6886.     ©83—85   S—10/S—15 2.8L with Carb, 2WD Auto & Std. Trans., Painted
   6887    ©‘83—85    S—10/5—15 2.8L with Carb, 4WD Auto & Std. Trans., Painted
   6854    ©‘88—95    S—10/S—15/Sonoma 4.3L T.B.1./C.P.1., 2WD Auto Trans., Painted
  68541     ©88—95    S—10/8—15/Sonoma 4.3L T.B.1./C.P.1., 2WD Auto Trans., Chrome
  68542     ©88—95    S—10/8—15/Sonoma 4.3L T.B.1./C.P.1., 2WD Auto Trans., Ceramic—Coated
   6834    ©83—85     S—10/8—15 2.8L with Carb, 2WD Std. Trans., Painted
  6856      83—85     S—10/S—15 2.8L with Carb, 4WD Auto Trans., Painted
  6836      83—85     S—10/8—15 2.8L with Carb, 4WD Std. Trans., Painted
   6896    86—93 S—10/5—15 2.8L T.B.1. 2—1/4" Inlet Slip—on Cat., 2WD Auto & Std. Trans., Painted
   6897    ©86—93 S—10/5—15 2.8L T.B.1. 2—1/4" Infet Slip—on Cat., 4WD Auto & Std. Trans., Painted
   6708     :96—97 S—10/S—15/Sonoma 4.3L C.P.1. only, 2WD Auto Trans., Painted
   6711     96—97 S—10/S—15/Sonoma 4.3L C.P.1. only, 2WOD Std. Trans., Painted
   6709     96—97 S—10/8—15/Sonoma 4.3L C.P.1. only, 4WD Auto Trans., Painted
   6715     98 S—10/S—15/Sonoma 4.3L C.P.1. only, 2WD Auto & Std. Trans., Painted
(Full Size Blazer/Jimmy/Yukon/Tahoe)
   6863    86—86 K—5 Blazer Full size 5.0L, 5.7L with Carb & A.L.R., 4WD Auto Trans., Painted
   6857    87—91 K—5 Blazer Full size 5.7L without A.1.R., 4WD Auto Trans., Painted
   6858    87—91 K—5 Blazer Full size 5.7L with A.L.R., 4WD Auto Trans., Painted
   6666    92—93 K—5 Blazer Full size 5.71 T.B.1. without A.LR., Clamp—on Cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66661    92—93 K—5 Blazer Full size 5.7L T.B.1. without A.1.R., Clamp—on Cat., 2WD & 4WD, Auto & Std. Trans., Chrome
  66662     92—93 K—5 Blazer Full size 5.7L T.B.1. without A.1.R., Clamp—on Cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
   6617    :93—95 Blazer/Tahoe/Yukon Full size 5.0L, 5.7L T.B.1. With A.1.R., Single Weld—on Cat., 2WD & 4WD, Auto & Std. Trans., Painted
    .      93—95 Blazer/Tahoe/Yukon Full size 5.0L, 5.7L T.B.4. without A.1.R., Single Weld—on Cat., 2WD & 4WD, Auto & Std. Trans.,
   6616    Painted
           93—95 Blazer/Tahoe/Yukon Full size 5.0L., 5.71 T.B.1. without A.L.R., Single Weld—on Cat., 2WD & 4WD, Auto & Std. Trans.,
  66161    Chrome
  _        93—95 Blazer/Tahoe/Yukon Full size 5.0L, 5.7L T.B.1. without A.1.R., Single Weld—on Cat., 2WD & 4WD, Auto & Std. Trans.,
  66162    Ceramic—Coated
  6615     96—97 Tahoe/Yukon 5.7L without A.L.R., Dual—Cat., Z2WD & 4WD Auto Trans., Painted
~66151     96—97 Tahoe/Yukon 5.7L without A.L.R., Dual—Cat., 2WD & 4WD Auto Trans., Chrome
  66152     96—97Tahoe/Yukon 5.7L without A.LR., Dual—Cat., Z2WD & 4WD Auto Trans., Ceramic—Coated
   6625    98—00 Tahoe/Yukon/Escalade 5.7L with A.L.R., dual—cat., 2WD, Auto Trans., Painted
   6600    99—00 Tahoe/Yukon/Escalade 4.8L., 5.3L, 6.0L without A.L.R., 2WD, Auto Trans., Painted
   6622    99—00 Tahoe/Yukon/Escalade 4.8L, 5.3L, 6.0L with A.1.R., 2WD, Auto Trans., Painted
(Pick—Up 1500/2500 Series with 4.3L Engines)
   6888    88—93 1500/2500 4.3L. T.B.1. withoutA.L.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted



                                                             Page 2 of 5


  UT   14   JU*I 1   1JUU #.0L Q.D .4. U”I’ WUVULm.LIN; WoOrutur vaL, n 0 TVVLU, AUWU 0 ui.    11aing., |   amnouy


(Pick—Ups with 5.0L/5.7L Engines)
  6827      79—80 C—10 5.7L with carb, A.1.R. & cat., 2WD, Auto Trans., Painted
  6828      81—86 K—10/K—20 5.0L, 5.7L with carb & A.LR., 4WD, Auto Trans., Painted
  6827      :81—87 1500/2500 5.0L, 5.7L with carb, A.L.R. (both sides) & cat., 2WD, Auto Trans., Painted
  6833      :87 1500/2500 (8400 GVW or lower) 5.7L T.B.!. with A.1.R., 2WD, Auto Trans., Painted
   6666     ©88—95 1500/2500 5.0L, 5.7L T.B.1. without A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66661      88—95 1500/2500 5.0L, 5.7L. T.B.1. without A.1.R., clamp—on cat., Z2WD & 4WD, Auto & Std. Trans., Chrome
  66662     ©88—95 1500/2500 5.0L, 5.7L T.B.1. without A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
  6667      88—95 1500/2500 5.0L, 5.7L T.B.1. with A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
 66671      88—95 1500/2500 5.0L, 5.7L T.B.1. with A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Chrome
66672       88—95 1500/2500 5.0L, 5.71 T.B.1. with A.L.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
~6801       88—95 1500/2500 (lowered) 5.0L, 5.7L T.B.1. without A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  6616      93—95 1500/2500 5.0L, 5.7L T.8B.1. without A.1.R., weld—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66161     93—95 1500/2500 5.0L, 5.7L T.B.1. without A.1.R., weld—on cat., 2WD & 4WD, Auto & Std. Trans., Chrome
  66162     93—95 1500/2500 5.0L, 5.7L T.B.1. without A.1.R., weld—on cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
  6617      93—95 1500/2500 5.0L., 5.7L T.B.1. with A.1.R., weld—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  6610      96—98 1500 5.0L, without A.1.R., weld—on cat., Z2WD & 4WD, Auto & Std. Trans., Painted
 6615       96—98 1500 5.7L without A.LR., dual—cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66151     96—98 1500 5.7L without A.1.R., dual—cat., 2WD & 4WD, Auto & Std. Trans., Chrome
  66152      96—98 1500 5.7L without A.1. R., dual—cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
  6625      98—99 1500 5.7L with A.1.R., dual—cat., 2WD & 4WD, Auto Trans., Painted
  6665      96—982500Heavy Duty/3500 5.7L without A.1.R., dual—cat., 2Wd & 4WD, Auto & Std. Trans., Painted
(Pick—Ups with 4.8L/5.3L/6.0L Engines)
  6600      99—00 1500/2500 4.8L, 5.3L without A.1.R., 2WD & 4WD, Auto Trans., Painted
  6622       99—00 150072500 4.8L, 5.3L with A.L.R., Z2WD & 4WD, Auto Trans., Painted
  6633      99—02 2500 6.0L without A.1.R., 2WD & 4WD, Auto Trans., Painted, excludes close coupled catalyst models
(Pick—Ups with 7.4L Engines)
  6660      90 454 SS 7.4L T.B.1. with A.L.R., Z2WD, Auto Trans., Painted
  66601     90 454 SS 7.4L T.B.!. with A..R., 2WD, Auto Trans., Chrome
  66602     90 454 SS 7.4L T.B.1. with A.LR., 2WD, Auto Trans., Ceramic—Coated
   6659     88—95 2500/3500 Ex. Cr. Cb. 7.4L T.B.1. without A.J.R., 2WD & 4WD., Auto & Std. Trans., Painted
~ 6660      $8—95 2500/3500 Ex. Cr. Cb. 74L T.B.1. with A.L.R., Z2WD & 4WD., Auto & Std. Trans., Painted
~~66601     88—95 2500/3500 Ex. Cr. Cb. 7.4L T.B.1. with A.LR., 2WD & 4WD., Auto & Std. Trans., Chrome
66602_88—95 2500/3500 Ex. Cr. Cb. 7.4L T.B.1. with A.L.R., 2WD & 4WD., Auto & Std. Trans., Ceramic—Coated
 6608       :96—00 2500/3500 7.4L C.P.1. with A.L.R., dual—cat., 2WD & 4WD, Auto & Std. Trans., Painted
   6609     96—00 2500/3500 7.4L C.P.1. without A.1.R., dual—cat., 2WD & 4WD, Auto & Std. Trans., Painted
   6611     :87—89 Crew Cab 3500; 4—door, 7.4L T.B.1. with A.1.R., 2WD, Auto Trans., Painted
   6659     92—95 Crew Cab 3500; 4—door, 7.4L T.B.!. without A.1.R., 2WD & 4WD, Auto & Std. Trans., Painted
   6660     92—95 Crew Cab 3500; 4—door, 7.4L T.B.1. with A.1.R., 2WD & 4WD, Auto & Std. Trans., Painted
~~66601     92—95 Crew Cab 3500; 4—door, 7.4L T.B.1. with A.LR., 2WD & 4WD, Auto & Std. Trans., Chrome
  66602      92—95 Crew Cab 3500; 4—door, 7.4L T.B.1. with A.1.R., 2ZWD & 4WD, Auto & Std. Trans., Ceramic—Coated
(Suburban)



                                                             Page 3 of 5


                                                    Exhibit A
                                        TUBULAR EXHAUST SYSTEMS (T.E.S.)
                                               (Long Tube Design)

   6827     81—87 1500/2500 5.0L, 5.7L carbureted with A.L.R. & cat., 2WD, Auto Trans., Painted
   6864     :87—91 1500/2500 5.7L T.B.1. without A.1.R., 4WD, Auto Trans., Painted
   6865     .87—91 1500/2500 5.7L T.B.1. with A.L.R., 4WD, Auto Trans., Painted
   6666     ©92—95   1500/2500   5.0L, 5.7L T.B.1. without A.1.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66661     92—95    1500/2500   5.0L, 5.7L T.B.1. without A.L.R., clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Chrome
  66662      92—95   1500/2500   5.0L, 5.7L T.B.1. without A.1.R., clamp—on cat., Z2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
  6801      ©92—95   1500/2500   (lowered) 5.0L, 5.7L T.B.1. without A.LR., clamp—on cat., 2WD, Auto Trans., Painted
  6802       92—95   1500/2500   (lowered) 5.0L, 5.7L T.B.1. with A.1.R., clamp—on cat., 2WD, Auto Trans., Painted
   6616     93—95 1500/2500 5.0L., 5.7L. T.B.1. without A.1.R., single cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66161     .93—95 1500/2500 5.0L, 5.7L T.B.1. without A.L.R., single cat., 2WD & 4WD, Auto & Std. Trans., Chrome
  66162     93—95 1500/2500 5.0L, 5.7L T.B.1. without A.L.R., single cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—Coated
   6617     :93—95 1500/2500 5.0L, 5.7L T.B.1. with A.1.R., single cat., 2WD &4WD, Auto & Std. Trans., Painted
   6615     96—97 1500 5.7L without A.1.R., dual—cats., 2WD & 4WD, Auto Trans., Painted
  66151     96—97 1500 5.7L without A.1.R., dual—cats., 2WD & 4WD, Auto Trans., Chrome
  66152      96—97 1500 5.71 without A.1.R., dual—cats., 2WD & 4WD, Auto Trans., Ceramic—Coated
   6610     96—97 1500 5.0L without A.1.R., single cat., 2WD & 4WD, Auto & Std. Trans., Painted
   6625     98—99 1500 5.7L with A.LR., dual cats., 2WD & 4WD, Auto Trans., Painted
   6665     96—97 2500 Heavy Duty, 8—lug, 5.7L C.P.I. without A.L.R., dual cat., 2WD & 4WD, Auto & Std. Trans., Painted
  6661      92—95    2500 7.4L T.B.1, withoutA.L.R., 2WD & 4WD, Auto & Std. Trans., Painted
  6608      96—00    2500 7.4L C.P.1. with A.1.R., dual—cats., 2WD & 4WD, Auto & Std. Trans., Painted
  6609      96—00    2500 7.4L C.P.I. without A.1.R., dual—cats., 2WD & 4WD, Auto & Std. Trans., Painted
  6600      99—00    1500/2500 4.8L, 5.3L without A.1.R., 2WD & 4WD, Auto Trans., Painted
  6622      99—00 1500/2500 4.8L, 5.3L withA.IR., 2WD & 4WD, Auto Trans., Painted
  6633      99—02 2500 6.0L without A.1.R., 2WD & 4WD, Auto Trans., Painted, excludes close coupled catalyst models
DODGE                                                         |
   6664     97—98 Dakota Pick—up, 5.2L, 5.9L F.1. With single inlet clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Painted
  66641     97—98 Dakota Pick—up, 5.2L, 5.9L F.1. With single inlet clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Chrome
66642       97—98 Dakota Pick—up, 5.2L, 5.9L F.1. With single inlet clamp—on cat., 2WD & 4WD, Auto & Std. Trans., Ceramic—GCoated
  6664      98—99 Durango, 5.2L, 5.9L F.1. Clamp—on cat., 4WD, Auto Trans., Painted
  66641     98—99 Durango, 5.2L, 5.9L F.1. Clamp—on cat., 4WD, Auto Trans., Chrome
 66642      98—99 Durango, 5.2L, 5.9L F.1. Clamp—on cat., 4WD, Auto Trans., Ceramic—Coated
~6668       2(}‘6(“)'99r§r}go/0akota, 5.2L, 5.9L F.1., weld—on cat., 2WD & 4WD, Auto Trans., Painted
  6601      94—99 Ram Pick—up 1500/2500, 5.2L, 5.9L F.L., weld—on cat., 2Wd & 4WD, Auto & Std. Trans., Painted
  66011     94—99 Ram Pick—up 1500/2500, 5.2L, 5.9L F.1., weld—on cat., 2Wd & 4WD, Auto & Std. Trans., Chrome
—66012      94—99 Ram Pick—up 1500/2500, 5.2L., 5.9L. F.1., weld—on cat., 2Wd & 4WD, Auto & Std. Trans., Ceramic—Coated
  6605      94—99 Ram Pick—up 8.0L V10 without EGR, with single cat., 2WD & 4WD, Auto Trans., Painted
  6606*     92—99 Viper (all models), 8.0L V10, Std. Trans., Ceramic—Coated
FORD TRUCKS
(Bronbb)
  6846      83—85 Bronceo It, 2.8L with carb, 2Wd & 4WD, Auto & Std. Trans., Painted
   6843 _   91—92 Explorer, 4.0L F.1. without A.1.R. or E.G.R., 2Wd & 4WD, Auto & Std. Trans., Painted
(Pick—Up)
   6846     83—85 Ranger, 2.8L with carb, 2WD & 4WD, Auto & Std. Trans., Painted
JEEP
~6880 _84—86JeepCherokee & Comache,2.8L with carb, Z2WD & 4WD, Auto & Std. Trans., Painted


                                                              Page 4 of 5


                                            Exhibit A
                                 TUBULAR EXHAUST SYSTEMS (T.E.S.)
                                                (Long Tube Design)                       ‘

 6881   81—91 Jeep Grand Wagoneer, & 81—88 Jeep J—10 & J—20 Pick—Up, 5.9L with A.1.R., 4WD, Auto & Std. Trans., Painted
 6604   92—98 Jeep Grand Cherokee, 5.2L, 5.9L, 2WD & 4WD, Auto Trans., Painted
MAZDA
 6843   {91—92 Navajo, 4.0L. F.1. without A.L.R. or E.G.R., 2WD & 4WD, Auto & Std. Trans., Painted
TOYOTA TRUCKS
 6607   +‘95—97 Tacoma, 4—Runner, 3.4L, 4WD, Auto & Std. Trans., Painted




                                                         Page 5 of 5



Document Created: 2005-09-01 12:39:57
Document Modified: 2005-09-01 12:39:57

Previous E.O. D-215-60 | Previous E.O. D-214 | Next E.O. D-215-62 | Next E.O. D-216
