Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 26, 2010.
As of Wednesday, July 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
1996 to 2010 model year Ford Mustangs equipped with a V8 engineThe E-Force Supercharger Kit consists of the following main components: Eaton supercharger, intake manifold, bypass valve, high flow injectors, mass air flow sensor, intercooler, 85mm single bore throttle body, and a reflashed ECM. A new air cleaner housing that uses the stock air cleaner lid is used on 1996 to 2009 model year applications. On 2010 model year Mustang applications, a new complete air cleaner housing is supplied with an air cleaner lid modified with hydrocarbon paper, which is the same as stock. Boost is limited to 5 pounds per square inch. The stock crankshaft pulley and thermostat is retained. On 2005 and 2006 model year Mustangs the thermostat is relocated and rebuilt to a configuration similar to the 2007 and newer model year Mustangs. A new thermostat with the stock temperature setting is included for these applications. The new ECU calibration has no user adjustments. The breather hose may be replaced with an SAE30R9 rated hose or a Ford replacement equivalent. 1996 to 2004 model year Mustang GT models use a 3.25ÔÇØ diameter supercharger pulley, 2005 to 2010 model year Mustang GT models use a 3.88ÔÇØ diameter supercharger pulley, and 1996 to 2001 model year Mustang Cobra models use a 3.5ÔÇØ diameter supercharger pulley.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-215-72
  • Executive Order 215-72 / D215-72
  • ARB # D-215-72
  • Executive Order No: D-215-72
  • C.A.R.B. No. D-215-72
  • Resolution D-215-72
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-215-72 PDF

D-215-72 Document:

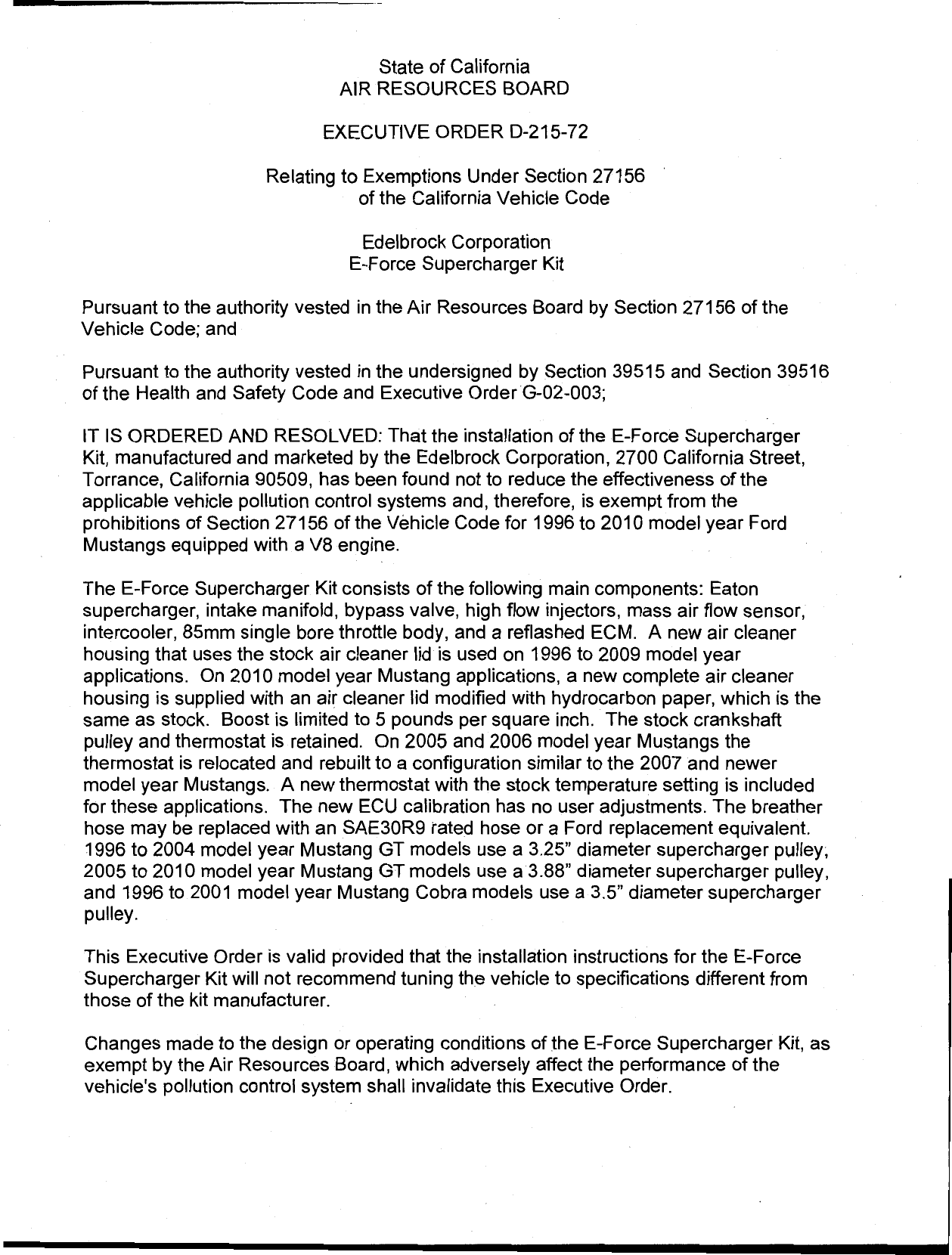

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—215—72

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                  Edelbrock Corporation
                                 E—Force Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the instaliation of the E—Force Supercharger
Kit, manufactured and marketed by the Edelbrock Corporation, 2700 California Street,
Torrance, California 90509, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 1996 to 2010 model year Ford
Mustangs equipped with a V8 engme

The E—Force Supercharger Kit consists of the following main components: Eaton
supercharger, intake manifold, bypass valve, high flow injectors, mass air flow sensor,
intercooler, 85mm single bore throttle body, and a reflashed ECM. A new air cleaner
housing that uses the stock air cleaner lid is used on 1996 to 2009 model year
applications. On 2010 model year Mustang applications, a new complete air cleaner
housing is supplied with an air cleaner lid modified with hydrocarbon paper, which is the
same as stock. Boost is limited to 5 pounds per square inch. The stock crankshaft
pulley and thermostat is retained. On 2005 and 2006 model year Mustangs the
thermostat is relocated and rebuilt to a configuration similar to the 2007 and newer
model year Mustangs.. A new thermostat with the stock temperature setting is included
for these applications. The new ECU calibration has no user adjustments. The breather
hose may be replaced with an SAE30R9 rated hose or a Ford replacement equivalent.
1996 to 2004 model year Mustang GT models use a 3.25" diameter supercharger pulley,
2005 to 2010 model year Mustang GT models use a 3.88" diameter supercharger pulley,
and 1996 to 2001 model year Mustang Cobra models use a 3.5" diameter supercharger
pulley.

This Executive Order is valid provided that the installation instructions for the E—Force
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer.

Changes made to the design or operating conditions of the E—Force Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.


                                             2.


This Executive Order shall not apply to any E—Force Supercharger Kit advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer
to an ultimate purchaser.

Marketing of the E—Force Supercharger Kit using any identification other than that shown
in this Executive Order or marketing of the E—Force Supercharger Kit for an application
other than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
E—Force Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.                                    '

This Executive Order is granted based on submitted emission test data generated on
one test vehicle modified with the E—Force Supercharger Kit. Test results showed that
emission levels, with the supercharger kit installed, met the applicable emission
standards when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test
cycle and the Supplemental Federal Test Procedure (SFTP) test cycle. Examination of
the OBD II system showed that the supercharger kit did not affect OBD II system
operation. Results from emissions testing conducted at the Auto Club Emissions
Laboratory, located in Diamond Bar, California, are shown below (in grams per mile).

    2008 Ford Mustang             CVS—75 FTP                           SFTP USO6/SCO3
                            NMOG CO NOx            HCHO           NMHC+NOx      CO
    Standards*, 5OK         0.040   1.7 0.05       0.008 .          0.14/0.20   8.0/2.7
    Device Test 1**         0.028   112 0.02       0.000            0.02/0.01   3.0/0.4
    Device Test 2**         0.032 c 11 0.02        0.000               —
    Average                 0.030    11    0.02    0.000
    Average w/idf           0.032    1.2   0.03    0.001

*LEV II ULEV CVS—75 FTP emissions standards.
** Two FTP tests were required because the Auto Club has a CVS measurement
system.

OBD II testing was also conducted on a modified 2006 model year Mustang, which
showed that the supercharger system with the modified radiator thermostat did not
affect the OBD II system operation.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.




              EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—72


                                               —3—


 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
 AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE E—FORCE
 SUPERCHARGER KIT.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

  Violation of any of the above conditions shall be grounds for revocation of this order. The
  order may be revoked only after a ten—day written notice of intention to revoke the order, in
— which period the holder of the order may request in writing a hearing to contest the     _
  proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
  the request and the order may not be revoked until a determination is made after the
 hearing that grounds for revocation exist.

 Executed at El Monte, California, this       Zé      day of March 2010.




                                      Annette Hebert, Chief
                                      Mobile Source Operations Division




                 EDELBROCK — E—FORCE SUPERCHARGER KIT — D—215—72
