Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 8, 1992.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1992 and older GM vehicles equipped with 262 CID (4.3L) to 400 CID (6.6L) V-8 gasoline engines.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-225-3
  • Executive Order 225-3 / D225-3
  • ARB # D-225-3
  • Executive Order No: D-225-3
  • C.A.R.B. No. D-225-3
  • Resolution D-225-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-225-3 PDF

D-225-3 Document:

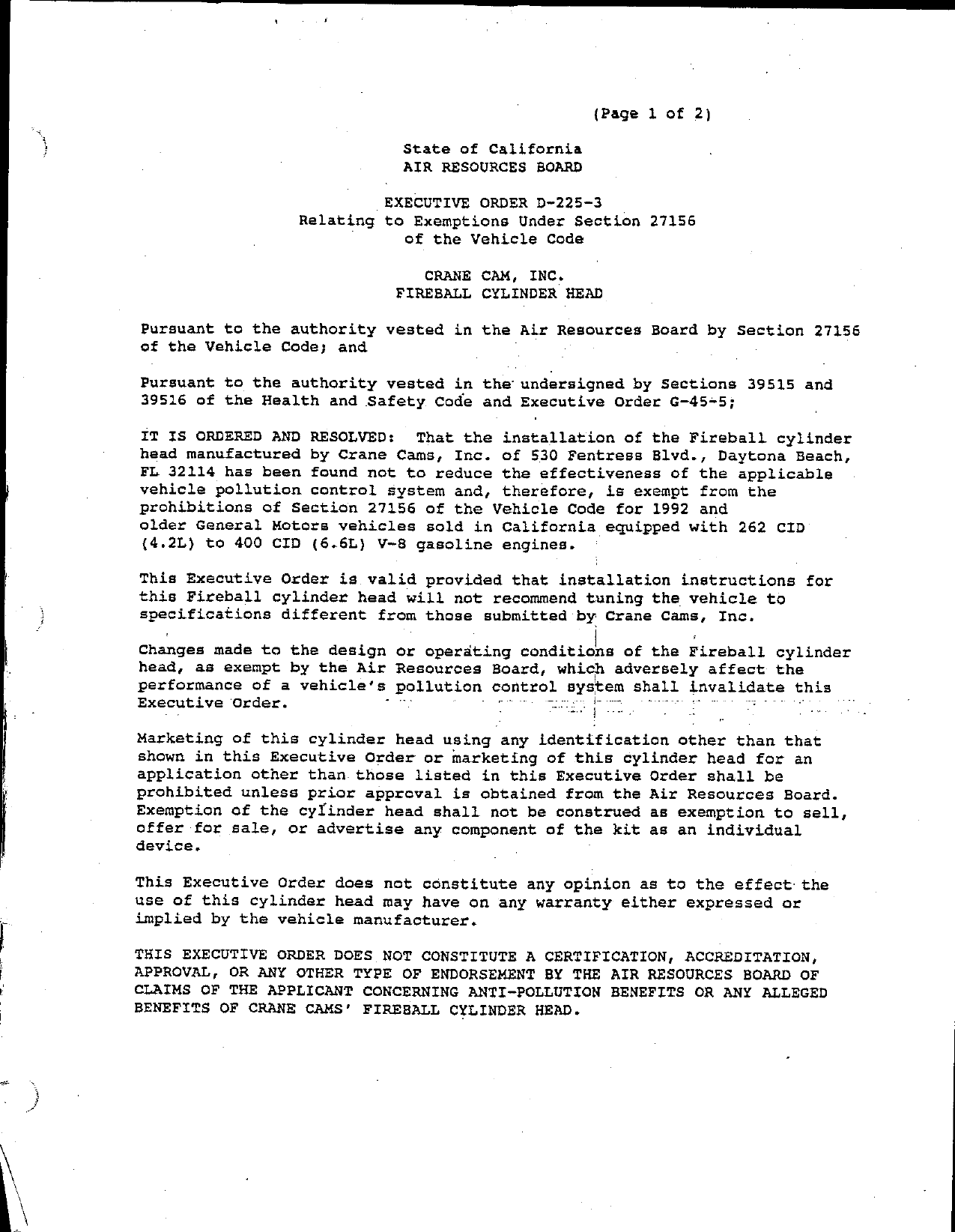

                                                           (Page 1 of 2)

                                     State of California
                                     AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D~225—3
                          Relating to Exemptions Under Section 27156
                               ‘     of the Vehicle Code

                                       CRANE CAM, INC.
                                    FIREBALL CYLINDER HEAD

         Pursuant to the authority vested in the Air Resources Board by Section 27156
         of the Vehicle Code; and

         Pursuant to the authority vested in the'undérsigned by Sections 39515 and
         39516 of the Health and Safety Code and Executive Order G—45—5;

         IT IS ORDERED AND RESOLVED:  That the installation of the Fireball cylinder
         head manufactured by Crane Cams, Inc. of 530 Fentress Blvd., Daytona Beach,
         FL 32114 has been found not to reduce the effectiveness of the applicable
         vehicle pollution control system and, therefore, is exempt from the
         prohibitions of Section 27156 of the Vehicle Code for 1992 and
         clder General Motors vehicles sold in California equipped with 262 CID
         {4.2L} to 400 CID (6.6L) V—8 gasoline engines.

         This Executive Order is valid provided that installation instructions for
         this Fireball cylinder head will not recommend tuning the vehicle to
         specifications different from those submitted by Crane Cams, Inc.

         Changes made to the design or operating conditions of the Fireball cylinder
         head, as exempt by the Air Resources Board, which adversely affect the
         performance of a vehicle‘s pollution control system shall invalidate this
                                                         J .—  —
         Executive ‘Order.                     ©     SE3 f T

         Marketing of this cylinder head using any identification other than that
         shown in this Executive Order or marketing of this cylinder head for an
         application other than those listed in this Executive Order shall be
         prohibited unless prior approval is obtained from the Air Resources Board.
         Exemption of the cylinder head shall not be construed as exemption to sell,
         offer for sale, or advertise any component of the kit as an individual
         device.

         This Executive Order does not constitute any opinion as to the effect the
         use of this cylinder head may have on any warranty either expressed or
         implied by the vehicle manufacturer.

         THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
         APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
         CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
         BENEFITS OF CRANE CAMS‘ FIREBALL CYLINDER HEAD.
4

    ue


CRANE CAMS, INC.                                    .EXECUTIVE ORDER D—225—3
FIREBALL CYLINDER HEAD                               (Page 2 of 2)




No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Viclation of any of the above conditions shall be grounds for
revocation of this order.  The order may be revoked only after ten day
written notice of intention to revoke the order, in which period the holder
of the order may request in writing a hearing to contest the proposed
revocation.  If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.
                                  >        e
Executed at El Monte, California, this         —   ay of January,   1992.




                                      Assistant Division Chief
                                      Mobile Source Division




    mscc   es   —   —    ol   |                               —


                        State of California
                        AIR RESOURCES BOARD




        EVALUATION OF CRANE CAMS, INC. FIREBALL CYLINDER HEAD
          FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
     SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                  THE CALIFORNIA CODE OF REGULATIONS




                            January 1992
ul


                           State of California
                           AIR RESOURCES BOARD




          EVALUATION OF CRANE CAMS, INC. FIREBALL CYLINDER HEAD
            FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
       SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
                    THE CALIFORNIA CODE OF REGULATIONS




                                     by

                          Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          El Monte, CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policles of the Air Resources
Board, nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                   SUMMARY




      Crane Cams, Inc. has applied for an exemption from the prohibitions of

 Vehicle Code Section 27156 for their Fireball cylinder head for installation

on 1992 and older General Motors (GM) vehicles equipped with 262 CID (4.2L)

 to 400 CID (6.6L) V~8 gasoline engines.     Crane Cams has submitted a

 completed application and all the required information, as well as exhaust

 emission test data performed at Crane Em;ssions Laboratory which

 demonstrated that the specified Fireball cylinder head does not have any

 adverse effects on the exhaust emission of the affected vehicles.

      Based on the submitted information, results of the emission tests

 performed at Crane Emissions Laboratory, and an engineering evaluation, the

 staff concludes that the installation of Crane Cams‘ Fireball cylinder head

 will not adversely affect exhaust emission on the specified vehicles.

      The staff recommends Crane Cams, Inc. be granted an exemption as

 requested and that Executive Order D—225—3 be issued.


                            TABLE OF CONTENTS




                                                      —Page Number


SUMMARY

CONTENTS                                                   11

I.         INTRODUCTION

II.        CONCLUSION

III.       RECOMMENDAfION

IV.        FIREBALL CYLINDER HEAD DESCRIPTION

           PISCUSSION OF THE FIREBALL CYLINDER HEAD

           APPENDIX

           INSTALLATION INSTRUCTIONS




                                       1i


            EVALUATION OF CRANE CAMS, INC. FIREBALL CYLINDER HEAD
  EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE
      WITH SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




 I.     INTRODUCTION
        Crane Cams, Inc. of 530 Fentress Blvd., Daytona Beach, Florida 32114,

 bas applied for an exemption from the prohibitions of Vehicle Code Section

 27156 on their Fireball cylinder head for installation on 1992 and older

 General Motors vehicles.     Crane Cams has submitted a completed application

  and all the required information, as Qell as exhaust emission test data

 performed at Crane Emissions Laboratory which show that the Fireball

  cylinder head does not have any adverse effects on the exhaust emission for

  those affected vehicles.

  II.   CONCLUSION
        Based on the submitted information, results of the emission tests

 performed at Crane Emissions Laboratory, and an engineering evaluation, the

  staff concludes that the Crane Cams‘ ‘Fireball cylinder head will not

 adversely affect exhaust emission on those vehicles for which the exemption

 is requested.

 III. RECOMMENDATION
        The staff recommends that Crane Cams, Inc. be granted an exemption as

 requested and that Executive Order D—225~3 be issued.

* IV.   FIREBALL CYLINDER HEAD DESCRIPTION

        The Fireball cylinder head is specifically designed for installation on

 1992 and older General Motors vehicles powered by 262 CID (4.2L) to 400 CID

 (6.6L) V—8 gasoline engines.    ‘The Fireball cylinder head operates in

 conjunction with the original equipment manufacturer‘s (OEM) emission

                                       ~1—


control systems already certified with the stock engine.         The purpose of

using the modified Fireball cylinder head is to increase the overall engine

performance and reliability which is accomplished according to the

manufacturer, through labor intensive machining and the use of the finest

materials available.        The intake and exhaust ports are machined to match the

gasket and manifold surfaces, thus eliminating reversion at those junctures.

The interior surfaces of the ports have been machined in the critical areas

to reduce backpressure and maintain laminar flow.        The valve seats are

machined to provided optimum sealin§ and increase flow.          The combustion

chambers are polished to eliminate hot spots which could cause detonation or

pre—ignition.

     The following are the Fireball cylinder head specifications:

              1.     Head Casting ———————— Cast Iron

              2.     Valveg —————_—_———___~ 2.02" Diameter Intake (Stainless Steel)
                            ______________ 1.6" Diameter Exhaust (Stainless Steel)

              3.     Chamber Volume —————— 67 ce

              4.     Spark Plug —————————~ Angled

              5.     Valve Seals ————————~— Nitrile

              6.     Valve Locks ——~~————— Chrome—Moly
                     & Retainers

              7.     Valve Springs ——————— Dual Chrome—Silicon

v.   DISCUSSITON OF THE FIREBALL CYLINDER HEAD

     Crane Cams submitted emission testing conducted at Crane Emissions

Laboratory.        A 1984 federally—certified Chevrolet Camaro powered by a 305

CID engine was used as the test vehicle for the Fireball cylinder head.           To

calibrate the Camaro to California specifications, Crane Cams changed the

prom based on documentation given to Crane Cams by General Motors.         This

                                          —2—


calibration change was verified and accepted by the ARB when Crane Cams was

testing for their Compucam 2000 series camshafts on the same GM

applications.    The dynamometer inertia weight and loading used during the

testing were 3625 lbs. and 7.8 hp, respectively.

     The emission tests consisted of two cold—start CVS—75 Federal Test

Procedure in the modified configuration.         The test results are shown in

Table 1.

                                    Table ;

                              cvs—75s TEst RESULTS
                          (Crane Emissions Laboratory)



                Test                  Exhaust emission (gm/mi)

       Modge                                Ec       co      Hox
       Fireball Head Test 1             0.33         5.48    0.66

       Fireball Head Test 2             0.26         4.77    0.66

       Average of Test 1 & 2            °.295       C 5.13   O.66

       Standard                         0.39         7.0     0.7




The CVS—75 emission tegt results at Crane Emissions Laboratory indicate that

HC, CO and NOx emission of the Fireball cylinder head to be below the

emission standard set for that engine family.

     The ARB did nét conduct confirmatory tests to validate the emission

test results submitted by Crane Cams.       However, an engineering analysis was

performed to determine the Fireball cylinder head‘s effect on the engine‘s

valve characteristics, lift and duration.         The Fireball cylinder head is

functionally identical to the original equipmént manufacturer (OEM)

                                      —3—


except for its intake and exhaust valve sizes.     A typical GM cylinder head

may have intake valves ranging from 1.72 to 1.94 inches and 1.5 to 1.6

inches on exhaust.   Crane Cams consolidated these variation by designing

their cylinder head to be at the top end of the OEM scale, 2.02 inches on

intake and 1.6 inches on exhaust.     The exhaust valve diameter is still

within acceptable OEM range while the intake valve diameter translates to a

5 percent increase over OEM.     This change is insignificant when compared to

Crane Cams previously exempted camshafts}which increase valve lift and

duration up to 20 percent.     Staff‘s analys;s supports Crane Cams‘ test

results which show the Fireball cylinder head to have no adverse effect on

exhaust emissions of the affected vehicles.

     Crane Cams has submitted all the required information and fulfilled the

requirements for an exemption.     The test results and engineering evaluation

confirmed that Crane Cams Fiteball cy1inder head meet the requirements for

the exemption.


APPENDIX


                  SPECIAL INSTALLATION INSTRUCTIONS
                               Crane Cams FireBall It Cylinder Heads
                       Chevrolet V—8, 1957—91, 267—400 Cubic Inches
3       Crana Cams FireBall Cylinder Heads utilize the latest           These heads should be installed using quality bolts or
    In DART precision cast fron cylinder heads from World           studs, threads cleaned and lightly oiled. Be sure to "chase*
    Products, Inc. We then prepare these heads to provide a         {clean) the threads in your black with the correct size tap to
    moderately priced yet powerful boit—on raging and               eliminate any dirt or other matter that might affect the final
    performance head assembly.                                assembly torquing of your heads. Follow your shop
       Each head is individually inspected, then ported and . manual or the instructions supplied with the boits or studs
    polished to provide maximum airflow with minimum port           for specific torque ratings and installation procedures.
    restrlctions. All vaive train components used are of the :     When Installing, be sure to use a quality head gasket
    finest quality, engineered, manufactured and tested to the ({such as Fel—Pro) and make sure that your engine block
    stringent quality control standards that have made Crane deck surface is clean and trus. If you have any problems
    Cams the world‘s largest racing and performance camshaft contact the Crane Cams technical assistance line Monday
    and valve train company.                                   through Friday, 8:00 am to 8:00 pm, at: 904/258—6174.
                                                  Installation Procedures
    1. Disconnect the negalive battery cable.

    2, Place a sultable container beneath the vehicle and drain the coolant thoroughly. Retain the coolantif you Intend to
       reuse it later,

    3. Remove the carburetor (or fuel Injection) linkage and remove the intake manifold. You may wantto label and
       separately bag the fasteners as they are removed from the engine, for easier re—assembly.

    4. Loosen and remove all drive belts. Some engines may require removal of the fan shroud and cooling fan.

    5. Before removing the LEFT cylinder head:
             a. Remove of} dipstick.
             b. Remove air and vacuum pumps with mounting bracket, if present. Move these Items out of the way
               with hoses aitached,.

     6. Before removing the RIGHT cylinder head:
             a. Remove alternator.
             b. Disconnect power steering gear pump and brackets attaching them to the cylinder head.

     7. Disconnect spark plug wires and remove spark plug wire clips from the rocker arm cover studs.

     8. Remove the exhaust manifold boits from the head being removed,.

     9. Using compressed alr, blow off all loose dirt and foreign matter or use a cloth to wipe it away.

     10. Remove rocker arm cover. Remove rocker arm adjusting nuts, pivot balls and rockers. Remove pushrods,
     11. Loosen and remove all cylinder head bolts from head being removed.. Repeat Step 10 for opposite head.

     12. Thoroughly clean away old head gasket and any remaining gasket residue from engine block deck. You may want to
         place a few clean shop towels or rags in the cylinder bores to catch any dirt or gasket residue.

     13. Carefully clean head bolt (or stud) threads using a wire brush. Use the correct size tap to "chase" the bolt hole
         threads in the engine block, Lightly ofl threads before re—installation.

     14. To install Crane FireBall iI heads use a quality liquid bolt sealer to prevent coolant leaks or seepage .

     15. Install Crane FireBall II heads and torque to 80 ft. lbs. in sequence shown. After both Crane FireBall II cylinder
        heads have been Installed, Install accessory items in reverse order of removal (Steps 11 through 1}. Torque Intake
        manifold bolts to 45 ft, tbs. {cast Iron), aluminum Intake manifold bolts should be torques to 30 ft. lbs. Torque
;       exhaust manifold boits to 25 ft. lbs. Torqus Intake manifold bolts in sequence shown.


                     SPECIAL INSTALLATION INSTRUCTIONS
                                  Crane Cams FireBall IICylinder Heads
    \                     Chevrolet V—8, 1957—91, 267—400 Cubic Inches
        Crane Cams FireBall Cylinder Heads utilize the latest              These heads should be installed using quality bolts or
    in DART precision cast iron cylinder heads from World              studs, threads cleaned and lightly oiled. Be sure to "chase"
    Products, Inc. We then prepare these heads to provide a            (clean}) the threads in your block with the correct size tap to
    moderately priced yet powerful boit—on racing and                  eliminate any dirt or other matter that might affect the final
    performance head assembly.                                         assembly torquing of your heads. Follow—your shop
        Each head is individually inspected, then ported and           manual or the instructions supplied with the bolts or studs
    polished to provide maximum airflow with minimum port              for specific torque ratings and installation procedures.
    restrictions. All valve train components used are of the                When instaffing, be sure to use a quality head gasket
    finest quality, engineered, manufactured and tested to the         (such as Fel—Pro) and make sure that your engine block
    stringent quality control standards that have made Crane           deck surface is clean and true. If you have any problems
    Cams the world‘s largest racing and performance camshaft           contact the Crane Cams technical assistance line Monday
    and vaive train company.                                           through Friday, 8:00 am to 8:00 pm, at: 904/258—6174.
                                                     Installation Procedures
    1. Disconnect the negative battery cable.
    2. Place a suitable container beneath the vehicle and drain the coolant thoroughly. Retain the coolant if you intend to
       reuse it later.

    3. Remove the carburetor {or fuel injection) linkage and remove the intake manifold. You may want to label and
       separately bag the fasteners as they are removed from the engine, for easier re—assembly.

     4. Loosen and remove all drive beits. Some engines may require removal of the fan shroud and cooling fan.

        5. Before removing the LEFT cylinder head:
)               a. Remove oil dipstick.
                b. Remove air and vacuum pumps with mounting bracket, if present, Move these items out of the way
                   with hoses attached.

        6. Before removing the RIGHT cylinder head:
                a. Remove alternator.
                b. Disconnect power steering gear pump and brackets attaching them to the cylinder head.

        7. Disconnect spark plug wires and remove spark plug wire clips from the rocker arm cover studs.

        8. Remove the exhaust manifold boits from the head being removed.

        9. Using compressed air, blow off all loose dirt and foreign matter or use a cloth to wipeit away.

        10. Remove rocker arm cover. Remove rocker arm adjusting nuts, pivot balis and rackers. Remove pushrods.

        11. Loosen and remove all cylinder head bolts from head being removed. Repeat Step 10 for opposite head.

        12. Thoroughly clean away old head gasket and any remaining gasket residue from engine block deck. You may want to
            place a few clean shop towels or rags in the cylinder bores to catch any dirt or gasket residue.

        13. Carefully clean head bolt (or stud) threads using a wire brush.   Use the correct size tap to "chase" the bolt hole
           threads in the engine block. Lightly oil threads before re—installation.

        14. To install Crane FireBall 11 heads use a quality liquld bolt sealer to prevent coolant leaks or seepage .

        15. Install Crane FireBall II heads and torque to 80 ft. lbs. in sequence shown. After both Crane FireBall !I cylinder
            heads have been installed, install accessory items in reverse order of removal (Steps 11 through 1). Torque intake
            manifold boits to 45 ft. Ibs. (cast iron}, aluminum intake manifold boits should be torques to 80 ft. lbs. Torque
            exhaust manifold bolts to 25 ft. lbs. Torque intake manifold boits in sequence shown.



Document Created: 2005-09-01 12:40:23
Document Modified: 2005-09-01 12:40:23

Previous E.O. D-225-2 | Previous E.O. D-224 | Next E.O. D-225-4 | Next E.O. D-226
