Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 30, 1973.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1966-1973 model year vehicles

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-3
  • Executive Order 3 / D3
  • ARB # D-3
  • Executive Order No: D-3
  • C.A.R.B. No. D-3
  • Resolution D-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-3 PDF

D-3 Document:

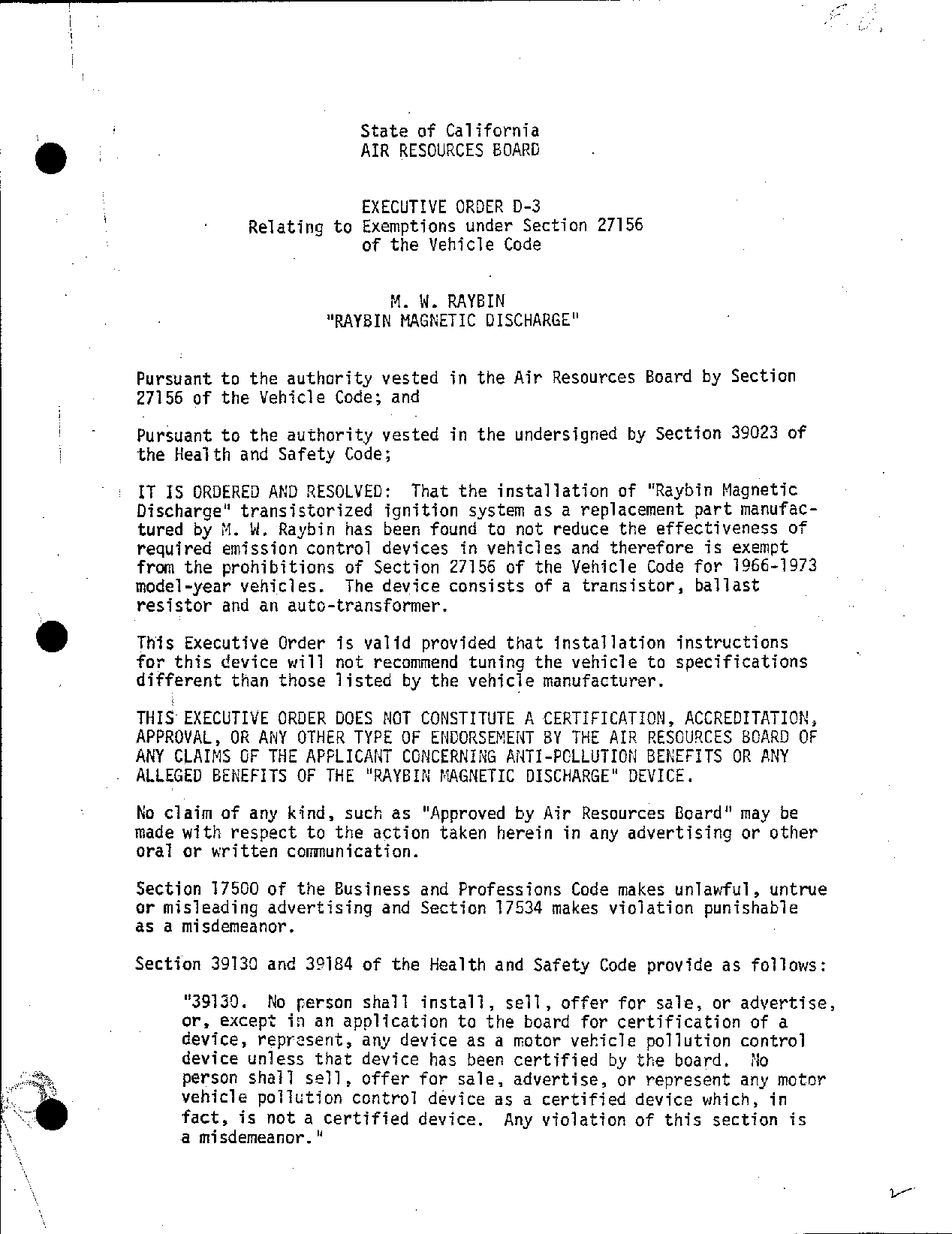

                       State of California
                       AIR RESOURCES BOARD


                        EXECUTIVE ORDER D—3
            Relating to Exemptions under Section 27156
                        of the Vehicle Code


                           M. W. RAYBIN
                    "RAYBIN MAGNETIC DISCHARGE"


Pursuant to the authority vested in the Air Resources Board by Section
27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39023 of
the Health and Safety Code;

IT IS ORDERED AND RESOLYED: That the installation of "Raybin Magnetic
Discharge" transistorized ignition system as a replacement part manufac—
tured by M. W. Raybin has been found to not reduce the effectiveness of
required emission control devices in vehicles and therefore is exempt
from the prohibitions of Section 27156 of the Vehicle Code for 1966—1973
model—year vehicles. The device consists of a transistor, ballast
resistor and an auto—transformer.

This Executive Order is valid provided that installation instructions
for this device will not recommend tuning the vehicle to specifications
different than those listed by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—PQOLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE "RAYBIN MAGNETIC DISCHARGE" DEVICE.

No claim of any kind, such as "Approved by Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Section 17500 of the Business and Professions Code makes unlawful, untrue
or misleading advertising and Section 17534 makes violation punishable
as a misdemeanor.                                                  —

Section 39130 and 39184 of the Health and Safety Code provide as follows:

     "39130. No person shall install, sell, offer for sale, or advertise,
     or, except in an application to the board for certification of a
    device, represent, any device as a motor vehicle pollution control
    device unless that device has been certified by the board. No
    person shall sell, offer for sale, advertise, or represent any motor
    vehicle pollution control dévice as a certified device which, in
    fact, is not a certified device. Any violation of this section is
    a misdemeanor."


EXECUTIVE ORDER D—3                          "Raybin Magnetic Discharge"




     "39184. No person shall install, sell, offer for sale, or advertise,
    .or, except in an application to the board for accreditation of a
     device, represent, any device as a motor vehicle pollution control
     device for use on any used motor vehicle unless that device has been
     accredited by the board. No person shall sell, offer for sale, adver—
     tise, or represent any motor vehicle pollution control device as an
     accredited device. Any violation of this section is a misdemeanor."

Any apparent violation of the policy or laws will be submitted to the
Attorney General of California for such action as he deems advisable.



                      |                    sA         .
Executed at Sacramento, California, this   §5? day of March, 1973.




                                ~ JOHN A. MAGA
                                  Executive Officer


                        State of California

                        AIR RESOURCES BOARD

                            March 16, 1973

                             Staff Report

            Evaluation of M. W. Raybin "Raybin Magnetic
             Discharge" Transistorized Ignition System
            for Exemption to the Prohibitions of Section
                   27156 of the Motor Vehicle Code




       Introduction

      M. W. Raybin, Lawndale, California, has applied for exemption to

       the prohibitions of Section 27156 of the Motor Vehicle Code for

       the "Raybin Magnetic Discharge" transistorized ignition system.

      Section 27156 prohibits the installation of any device which reduces

       the effectiveness of motor vehicle emission control systems.   The

      ‘applicant intends to sell the device as an "after—market" part to

       replace the standard ignition system.


      The Air Resources Board has adopted criteria for the evaluation of

       "after—market" devices for compliance with Section 27156.   The basis

       for evaluation is defined in the "Air Resources Board Criteria for

       Determining Compliance with Section 27156 of the Motor Vehicle Code".


II.    System Description

       For a general description of transistorized ignition systems, see
      staff report "Evaluation of Capacitive Discharge and Transistorized

       Ignition Systems for Compliance with the Requirements of Section

      27156 of the Motor Vehicle Code", dated February 14, 1973.


"Raybin Magnetic Discharge"                     >      March 16, 1973



       The "Raybin Magnetic Discharge" device consists of a transistor,

       ballast resistor and an auto—transformer to impact an electrical

       pulse (200 volts) across the primary of the ignition coil.    The

       system has a spark energy capability of 60 millijoules.


111.   Emission Testing

       %ecause of the number of applications received from manufacturers

       of transistorized ignition systems, it was decided to test one

       éransistorized device with ignition design characteristics repre—

       séntative of this group.    A Solid State Products, Inc. "SSP Stagé

       I%" system was selected for testing.    The results of these tests

       age shown in the staff report "Evaluation of Capacitive Discharge

       and Transistorized Ignition Systems for Compliance with the

       Requirements of Section 27156 of the Motor Vehicle Code".     These

       tests verify that a transistorized ignition‘system does not adversely

       effect the exhaust emissions of a "tuned" engine.


IV.    Conclusions and Recommendations‘

       It is the staff‘s opinion that the M. W. Raybin “Raybin Magnetic

       Discharge" transistorized ignition system will not adversely effect

       motor vehicle exhaust emissions when evaluated with respect to the

       exhaust emissions obtained with a conventfiona] ignition system of a

       "tuned" engine.    This device may also have a beneficial effect in the

       control of exhaust emissions in that it maintains the "tuned" con—

       dition of the engine for a longer period of time.   Therefore, "Raybin


"Raybin Magnetic Discharge"                          March 16, 1973



     Magnetic Discharge" transistorized ignition system should be

     exempt from the prohibitions of Section 27156 of the Motor

      Vehicle Code.


                                                                          D 3

                   State of California

                   AIR RESOURCES BOARD

                    February 14, 1973

                      Staff Report


            Evaluation of Capacitive Discharge and
             Transistorized Ignition Systems for
             Compliance with the Requirements of
           Section 27156 of the Motor Vehicle Code




 Introduction

 Section 27156 of the California Motor Vehicle Code prohibits the

 installation of a device, apparatus or mechanism which, when used

 with a required motor vehicle emission control system, alters or

 modifies the emission control system in such a manner that it

 reduces the effectiveness of the emission control system.


 In order to determine whether a device constitutes a violation of

~ Section 27156, the device manufacturer shall submit an application

 requesting that the Air Resources Board make an evaluation of the

 device‘s effect on emissions.    By established policy, the evaluation

 is limited to the emission effects and does not include evaluations

 of vehicle driveability and performance and device durability.


 Several applications have been received from manufacturers of

 capacitive discharge and transistorized ignition systems requesting

an evaluation of their devices.


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code                                 February 14, 1973




II.    System Description

      A.   Standard Inductive System

           The conventional ignition system is of the magnetic inductance

           type.        The basic components of the system are a battery,

           ignition coil, breaker points, condenser, rotor and spark plugs.

           The schematic of a typical system is shown below:

                    ~           Resistor
               .            '     ALY             ;       ‘

               |        \\\ET                    €4       5           Secondary Circuit
                         Switch                  §        3
                         Primary Circuit         _‘       Ttoil        g         ‘}
             —                    _L       ae                          Rotor           Spark
               1                  —~       {l{{ Breaker                          ? Plugs
                   | Capacitor _lfi           [Points
             ,;”




           The system has two circuits, primary and secondary.                        When con—

           tinuity is established by closing of the switch and breaker

           points, current will flow in the primary circuit building up a

           magnetic field around the coil.                    When the breaker points are

           opened, the maéneti; field slowly collapses and induces a current

           flowing in the same direction in the primary circuit.                       The
           current charges a capacitor until the capacitor builds a poten—

           tial opposing flow and discharges                   back through the primary

           circuit.       This causes a sudden collapse of the remaining magnetic

           field and induces a high voltage in the secondary coil winding.

           The secondary coil voltage is also cut by the collapsing magnetic

           field.


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of                   —
Section 27156 of the Moter Vehicle Code           —       February 14, 1973




          The secondary circuit consists of the high tension coil, wires,

          and a mechanical device for the proper timing of the voltage

          to the spark plugs.


          The external resistor in the primary circuit is to reduce the

          current at low speeds—while not—appreciably restricting the

          current flow at high speeds.      The resistor is bypassed during

          starting of the engine.


          Transistorized Inductive Ignition Systems with Breaker Points

          A typical transistorized system maintains the same basic com—

          ponents as the standard system except the condenser is replaced

          with a transistor and the coil is replaced by a coil of a

          special design.      A typical transistorized system is shown below:


                  Switch




                Resistor
                              oo
          J]:




                           Breaker
                           Points




         The transistor acts as a switch in the primary circuit, replacing

         the breaker points ofkthe standard system in this function.          The

         breaker points now serve as a switch for the triggering current

         to the transistor. With the points closed, the current flow from


                                     3.


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code                February 14, 1973




         the emitter to ground (triggering) circuit through the points

          is considerably reduced, thereby improving the life of the

          points.    Opening of the points stops the flow of triggering

         current and cuts off the transistor current.


         The transistor also acts as a current amplifier.     The primary

         current flowing through the emitter—collector circuit in series

         with the low—tension coil and battery is greatly amplified

         over the triggering current.     The inductance of the coil and

         the ballast resistor limit the current flow through the coil.


         Zener diodes are used to protect the transistor by clipping or

         eliminating the primary voltage pulse below the minimum voltage

         rating for the emitter to collector.

         The coil used in the transistorized system has a higher ratio

&        of turns in the secondary/primary coils.    The increased number

         of turns in the secondary coil reduces the reverse voltage in

         the primary cfrcuit without reducing the high voltage output of

         the coil.    The high revérse voltage and current of the conven—

         tional system sometimes cause arcin§ across the breaker points

         of the conventional system.


         The advantages of the transistorized igniticn system are:

         1.   Increased point life due to reduction in current flow


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code                      February 14, 1973




                   through thé breaker points.     Other distributor maintenance

                    is required.

          2.        Increased output voltage available for higher engine speeds.

          3.        Increase in spark energy.


         Breakerless Transistorized Induction IgnitionSystems

          in the breakerless ignition system, the transistor base current

          is controlled by a triggering circuit and a breakerless pick—up

         used in place of the distributor points.           The trigger unit is

         activated by a magnetic pulse generator or photocell mounted ifi

         the distributor.           A typical circuit is shown below.       The

         remaining circuit is as previously described.




               |
               —                    viBte—]
                      Magnetic Pulse §
               I_     __Generator        !                      —_—
                                                                        f

                                              es              _—L
         The advantage of this system are:

         1.        Perfodic maintenance of the distributor is eliminated.

         2.        Increased output voltage available for higher. engine speeds.

         3.        Increase in spark energy{


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of                                v
Section 27156 of the Motor Vehicle Code                                February 14, 1973




     D.     Capacitor Discharge Ignition Systems with Breaker Points

            A capacitor discharge‘system consists of three basic circuits.

            A power circuit which converts battery voltage to a higher

            voltage.    A tank capacitor which stores and discharges the high

            voltage current supplied by the power circuit.                 A switching

            circuit which accepts signals from the engine and discharges

            the ténk capacitor into the primary windings of the transformer.

           A typical schematic is shown below:

                       .          Electronic
                     Switch       Switch
                           200 ue
                                +——Bmt                 |G
                                                                         Rotor
          wsw':——w



                                                       Meriand I
                                                mt w



                                    {Tank
                                     Capac—        j                   8         gf Spark
                          Power       itor
                         Circuit                                                     Plugs
                                    Breaker ] Transformer                        é      °
                                   Po1nts




           The advantages of a, capacitor discharge ignition system are:

           1.   Increase disfributor point Tife due to reduction in éurrent

                flow through the breaker points.       Other distributor

                maintenance remains the same.

           2.   Increase spark plug life due to faster output voltage

                rise time.

           3.   Increased output voltage at higher engins speeds.

           4.   Improved engine startability at low temperatures .


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code                  February 14, 1973




       E.   Breakeriess Capacitor Discharge Ignition System

            The breakerless C—D system contains the same basic elements

            as the contact—triggered system except the triggering circuit

            is controlled by a breakerless pick—up in place of the distrib-‘

            utor points.    As in the breakerless transistor system, the
            pick—up may be a magnetic pulse or optical trigger source.       in

            addit{on to the advantages previously described for C—D systems,

            breakerless systems have the following advantages:

            1.   Eliminates periodic maintenance of the distributor.


111.   Emission Testing

       To determine the effect of transistorized and capacitor discharge

       ignition systems on exhaust’emissjons, hot CVS tests were performed

       on devices considered to be typical of each type.     The systems

       selected were Delta Products, Inc., Mark Ten B Capacitor Discharge

       ignition System and a Solid State Products, Inc., model 200—IZN

       transistorized ignitiod'system.     Each system was used with the

       vehicle distributor breaker points,.
                                  ©                                    /
       The vehicle used in these tests was a 1968 Piymouth, 318 CID.       The

       vehicle‘s ignition system was put into a "tuned" condition and the

       tests were run with the timing, dwell, idle CO, and idle RPM set

       to thé vehicle manufacturer‘s specifications.     Raseline tests were

       then performed.     The devices were installed per the device manufac—

       turer‘s instructions and the tests were repeated.     The following are


                                     7.


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for .
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code                               February 14, 1973




     the resulits of the ARB emission and ignition coil output tests:                     .

                        Emissions —      grams/mile          Change in Emissions—%

                         Be, _c0_ _Nox_                          Dheo 600 NOx_
     Basel ine           1.68    11.33        5.54                —        —      —

     Mark 108            1.23   11.18         5.76               26.8     1.3    ~4.0

     SSP         .       1.58   11.650        5.52               6.0     —2.0     0


      (—) Indicates an increase.


                            Open Circuit Voltage — Volts
                            _Idle_                    3,000_RPM
     Baseline               24,000                     20,000

     Mark 10B               24,000       '             24 ,000

     SSP                    23,000               |    23,000


     The emission test data indicate that both devices produce slight

     reductions in hydrocarbons and very slight increases in oxides of

     nitrogen.       Carbon mohoxide emissions remained basical]y constant.

     All changes in emissions were considered insignificant and in the

     range of test repeatability.


     The coil voltage output was lower than what would be obtained with

     the vehicle in a fully "tuned" condition.              This was attributed to

     a degradation of the ignition wiring.             Howéver, the diagnosis checks

     indicated there was adequate voltage available to meet engine demand

     requirements for each of the three systems.                 The voltages measured



                                         8.


Evaluation of Capacitive Discharge and
Transistorized Ignition Systems for
Compliance with the Requirements of
Section 27156 of the Motor Vehicle Code               February 14, 1973




      at the higher engine RPM reflect the increases in voltage output

      at the higher engine speeds that are obtained with the capacitive

      discharge and transistorized systems.


IV.   Conclusions and Recommendations

      It is the staff‘s opinion that capacitive discharge and transis—

      torized ignition systems will not adversely effect motor vehicle

      exhaust emissions whenvevaluated with respect to the exhaust

      emissions obtained with a conventional ignition system of a "tuned"

      engine.   These devices may also have a beneficial effect in the

      contrbl of exhaust emissions in that they maintain the "tuned"

      condition of the engine for a longer period of time.   Therefore,

      capacitive discharge and transistorized ignition systems should be

      exempt from the prohibitions of Section 27156 of the Motor Vehicle
      Code.



Document Created: 2005-09-01 12:45:37
Document Modified: 2005-09-01 12:45:37

| Previous E.O. D-2 | Next E.O. D-3-1 | Next E.O. D-4
