Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 6, 2013.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-48
  • Executive Order 425-48 / D425-48
  • ARB # D-425-48
  • Executive Order No: D-425-48
  • C.A.R.B. No. D-425-48
  • Resolution D-425-48
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-48 PDF

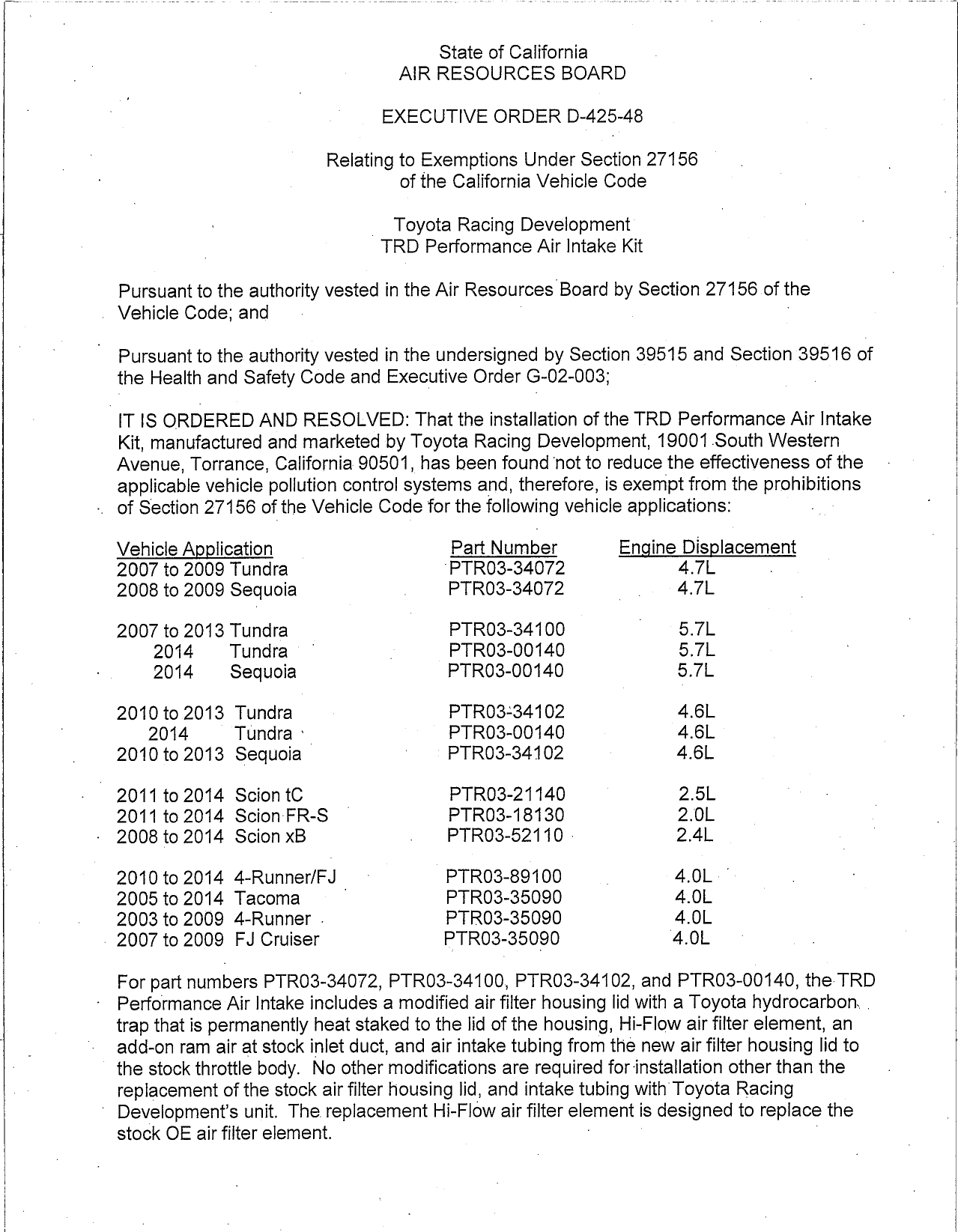

D-425-48 Document:



                                                         State of California
                                                     AIR RESOURCES BOARD

                                                 EXECUTIVE ORDER D—425—48

                                Relating to Exemptions Under Section 27156
                                         of the California Vehicle Code

                                             _    Toyota Racing Development
                                                 TRD Performance Air Intake Kit

  Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
_ Vehicle Code; and

  Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 df
  the Health and Safety Code and Executive Order G—02—003;                                             .

  IT IS ORDERED AND RESOLVED: That the installation of the TRD Performance Air Intake
  Kit, manufactured and marketed by Toyota Racing Development, 19001 South Western
 Avenue, Torrance, California 90501, has been found not to reduce the effectiveness of the
  applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
. of Section 27156 of the Vehicle Code for the following vehicle applications:          20

 Vehicle Application                                         Part Number         Engine Disglacement
 2007 to 2009 Tundra                                         ~PTRO3—34072              4.7L      .
 2008 to 2009 Sequoia                                .       PTRO3—34072         ol    4,.7L

 2007 to 2013 Tundra                                     |   PTRO3—34100           '   5.7L
     2014     Tundra                             .           PTRO3—00140               5.7L
     2014     Sequoia                                        PTRO3—00140               5.7L

 2010 to 2013 Tundra                                         PTRO3+34102               4.6L
    2014      Tundra :                                       PTRO3—00140               4.6L
 2010 to 2013 Sequoia                                '       PTRO3—34102               4.6L

— 2011 to 2014 Scion tC                                      PTRO3—21140               2.5L
  2011 to 2014 ScionFR—S             _                       PTRO3—18130               2.OL
  2008 to 2014 Scion xB                                  .   PTRO3—52110 —             24L

  2010   to   2014   4—Runner/FJ         >                   PTRO3—89100     .         4.0L _
  2005   to   2014   Tacoma      ‘                           PTRO3—35090               4.OL
  2003   to   2009   4—Runner .                              PTRO3—35090               4.O0L
— 2007   to   2009   FJ Cruiser                              PTRO3—35090               4.OL

 For part numbers PTRO3—34072, PTRO3—34100, PTRO3—34102, and PTRO3—00140, the: TRD
 Performance Air Intake includes a modified air filter housing lid with a Toyota hydrocarbon. .
 trap that is permanently heat staked to the lid of the housing, Hi—Flow air filter element, an
 add—on ram air at stock inlet duct, and air intake tubing from the new air filter housing lid to
 the stock throttle body. No other modifications are required for installation other than the
 replacement of the stock air filter housing lid, and intake tubing with Toyota Racing
' Development s unit. Thereplacement Hi—Flow air filter elementis designed to replace the
 stock OE air fitter element.


                                                _2


 For part numbers PTRO3—21101, PTRO3—21140, and PTRO3—52110, the TRD Performance
 Air Intake includes a modified air filter housing hd with a Toyota hydrocarbon trap that is
 permanently heat staked to the lid of the housing, a Hi—Flow air filter element, an add—on ram
 air at stock inlet duct, and air intake tubing from the new air filter housing lid to the stock
 throttle body. No other modifications are required for installation other than the replacement
of the stock air filter housing lid, and intake tubing with Toyota Racing Development‘s unit.
The replacement Hi—Flow air filter element is designed to replace the stock OE air filter
element.

 For part number PTRO3—18130, the TRD Performance Air Intake includes a modified upper
and lower air box case, red rubber coupler between air box and throttle body, and a Hi—Flow
 air filter element. No other modifications are required for installation. Stock mass air flow
 sensor is retained and installed in its stock flocation. There is no hydrocarbon trap used for
‘this vehicle application.

 For part numbers PTRO3—89100 and PTRO3—35090, the TRD Performance Air Intake
 includes a modified upper and lower air box with a Toyota hydrocarbon trap that is
 permanently heat staked to the upper air box lid, Hi—Flow air filter element, an add—on ram
aair at stock inlet duct, and air intake tubing fromthe new air filter housing lid to the stock
throttle body No other modifications are
                                       requxred for installation. Stock mass air flow
sensor is retained.

This Executive Order is valid provided that the installation instructions for the TRD
Performance Air Intake Kit will not recommend tuning the vehicle to specifications different
from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the TRD Performance Air Intake Kit,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TRD Performance Air Intake Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser


 This Executive Order does not constitute any opinion as to the effect the use of the TRD
 Performance Air Intake Kit may have on any warranty either expressed or implied by the
 vehicle manufacturer.

 This Executive Order is granted based on previously submitted emission test data from
 Toyota Racing Development (D—425—21 and D—425—22) on a 2008 model year Toyota xB
 with a 2.4 liter engine (8TYXVO2.4BEB) and a 2007 model year Toyota Tundra with a 5.7
 liter engine (7ZTYXTO5.7BEV), both certified to the Low Emission Vehicle II Ultra Low
 Emission Vehicle (LEV If ULEV) emission standards. The emission test results with the
_TRD Cold Air Intake installed were below the applicable certification emission standards.
 Examination of the OBD !I system, showed no effect on the vehicles‘ OBD II system
 operation. The same emission and OBD II test results would be expected with the TRD
 Performance Air Intake Kit installed on the requested vehicles.




TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—48 _


                                               —3.


 Marketing of the TRD Performance Air Intake Kit using any identification other than that
 shown in this Executive Order or marketing of the TRD Performance Air Intake Kit for an
 application other than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board. .

 The Air Resources Board reserves the right in the future to review this Executive Order
 and the exemption provided herein to assure that the exempted add—on or modified part
 continues to meet the standards and procedures of Title 13, California Code of
 Regulations, Section 2222, et seq.    _

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
  AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
. ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD
  PERFORMANCE AIR INTAKE KIT.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

 Vlolatlon of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—day written notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the
 proposed revocation.. If a hearing is requested, it shall be held within ten days of receipt of .
 the request andthe order may not be revoked until a determination is made after the
 hearing that grounds for revocation exist.                                                '

 Executed at El Monte, California, this      &*‘/\"    day of November 2013.


                               9 %&M/\-&O)
                                  Frik White, Chief
                                    obileSource Operations Division




TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—48





Document Created: 2014-02-04 15:29:17
Document Modified: 2014-02-04 15:29:17

Previous E.O. D-425-47 | Previous E.O. D-424 | Next E.O. D-425-49 | Next E.O. D-426
