Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 27, 2016.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-36
  • Executive Order 488-36 / D488-36
  • ARB # D-488-36
  • Executive Order No: D-488-36
  • C.A.R.B. No. D-488-36
  • Resolution D-488-36
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-36 PDF

D-488-36 Document:

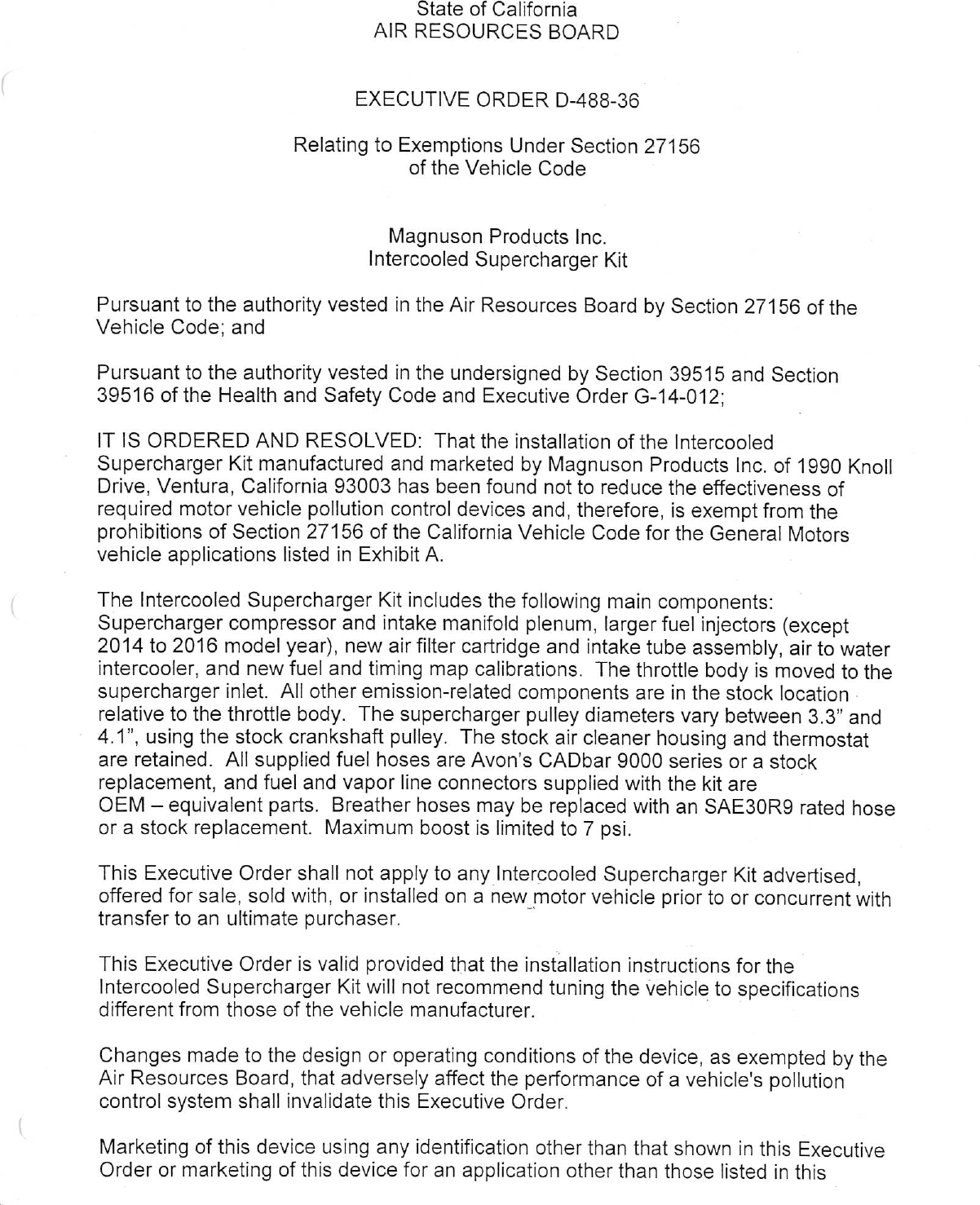

                                     State of California
                               AIR RESOURCES BOARD



                             EXECUTIVE ORDER D—488—36

                      Relating to Exemptions Under Section 27156
                                   of the Vehicle Code


                                 Magnuson Products Inc.
                               Intercooled Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Intercooled
Supercharger Kit manufactured and marketed by Magnuson Products Inc. of 1990 Knoll
Drive, Ventura, California 93003 has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the California Vehicle Code for the General Motors
vehicle applications listed in Exhibit A.

The Intercooled Supercharger Kit includes the following main components:
Supercharger compressor and intake manifold plenum, larger fuel injectors (except
2014 to 2016 model year), new air filter cartridge and intake tube assembly, air to water
intercooler, and new fuel and timing map calibrations. The throttle body is moved to the
supercharger inlet. All other emission—related components are in the stock location
relative to the throttle body. The supercharger pulley diameters vary between 3.3" and
4.1", using the stock crankshaft pulley. The stock air cleaner housing and thermostat
are retained. All supplied fuel hoses are Avon‘s CADbar 9000 series or a stock
replacement, and fuel and vapor line connectors supplied with the kit are
OEM — equivalent parts. Breather hoses may be replaced with an SAE30RY rated hose
or a stock replacement. Maximum boost is limited to 7 psi.

This Executive Order shall not apply to any Intercooled Supercharger Kit advertised,
offered for sale, sold with, or installed on a newmotor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the
Intercooled Supercharger Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this


                                             2.


Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of this
device may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on previously submitted emissions and OBD II
test data that was generated in support of Executive Order D—488—19. Emission levels
of the modified vehicle met the applicable emission standards, and an examination of
the OBD II system showed the supercharger kit did not affect OBD II system operation.

In addition, the Air Resources Board reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
INTERCOOLED SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.


Executed at El Monte, California, this Z 7 day of June 2016.




           % Chief
           Emissions Compliance, Automotive Regulations and Science Division




   MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36


                                                      Exhibit A




                                                                   Engine                         Pulley Size   Max Boost
   Year         Make                   Model                       Size (L)   __Kit Part Number     (mm)          (PS))
   2016       Chevrolet        C15 Silverado XFE 2wd                 5.3L     01—19—53—179—BL
              Chevrolet          C15 Silverado 2wd                            01—19—53—183—BL         87            7
                GMC             C15 Sierra XFE 2wd                            01—19—53—187—BL
                GMC               C15 Sierra 2wd                              01—19—53—191—BL
              Chevrolet         K1500 Suburban 4wd
              Chevrolet          K1500 Tahoe 4wd                              01—23—53—183—BL         102           7
                GMC              C1500 Yukon 2wd
              Chevrolet          K1500 Tahoe 4wd
              Chevrolet         ©1500 Siverado 2wd
                GMC               K15 Sierra 4wd
                GMC              K1500 Yukon 4wd
              Chevrolet          K15 Silverado 4wd
                GMC             ©1500 Yukon XL 2wd
                GMC             ©1500 Yukon XL 4wd
              Chevrolet         C1500 Suburban 4wd
                GMC             K1500 Yukon XL 4wd

   2016       Cadillac             Escalade 2wd                      6.2L     01—19—62—181—BL
              Cadillac             Escalade 4wd                               01—19—62—186—BL
              Cadillac           Escalade ESV 2wd                             01—19—62—189—BL         84            7
              Cadillac           Escalade ESV 4wd                             01—19—62—193—BL
              Chevrolet          C15 Silverado 2wd                            01—19—62—195—BL
              Chevrolet          K15 Silverado 4wd
                GMC               C15 Sierra 2wd                              01—23—62—186—BL         99            7
                GMC              C©1500 Yukon 2wd                             01—23—62—195—BL
                GMC             C©1500 Yukon XL 2wd
                GMC                K15 Sierra 4wd
                GMC              K1500 Yukon 4wd
                GMC             K1500 Yukon XL 4wd
                GMC             K10 Yukon XL AWD
              Cadillac          Escalade ESV AWD
               GMC               C10 Yukon XL 2wd
               GMC             K10 Yukon Denali AWD
               GMC                 C10 Yukon 2wd
              Cadillac             Escalade AWD

                                                                   Engine                         Pulley Size   Max Boost
   Year        Make                   Model                        Size (L)__Kit Part Number         (mm)         (PSN)
2015 / 2016   Chevrolet          C25 Silverado 2wd                   6.0L     01—23—60—027—BL        5g"
              Chevrolet          C35 Silverado 2wd                            01—23—60—025—BL          "            *
              Chevrolet          K25 Silverado 4wd
              Chevrolet          K35 Silverado 4wd
                GMC               C25 Sierra 2wd
                GMC               C35 Sierra 2wd
                GMC               K25 Sierra 4wd
                GMC               K35 Sierra 4wd

2015 / 2016   Chevrolet          C35 Silverado 2wd                   6.0L     01—23—60—027—BL        ag"
              Chevrolet          K35 Silverado 4wd                            01—23—60—025—BL         —             7
              Chevrolet         K3500 Suburban 4wd
                GMC               C35 Sierra 2wd
                GMC               K35 Sierra 4wd




                    MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36

                                                     Page 1 of 5


                                                      Exhibit A



                                                                   Engine                        Pulley Size   Max Boost
  Year          Make                   Model                       Size (L)   Kit Part Number       (mm)         (PS))
2014—2015     Chevrolet        C15 Silverado XFE 2wd                 5.3L     01—19—53—179—BL
              Chevrolet          C15 Silverado 2wd                            01—19—53—183—BL        87            7
                GMC             C15 Sierra XFE 2wd                            01—19—53—187—BL
                GMC                C15 Sierra 2wd                             01—19—53—191—BL
              Chevrolet         K1500 Suburban 4wd
              Chevrolet          K1500 Tahoe 4wd                              01—23—53—183—BL        102           7
                GMC              C1500 Yukon 2wd
              Chevrolet          K1500 Tahoe 4wd
              Chevrolet         C1500 Siverado 2wd
                GMC               K15 Sierra 4wd
                GMC              K1500 Yukon 4wd
              Chevrolet          K15 Silverado 4wd
                GMC             C©1500 Yukon XL 2wd
                GMC             C©1500 Yukon XL 4wd
              Chevrolet         C1500 Suburban 4wd
                GMC             K1500 Yukon XL 4wd

2014 — 2015   Cadillac             Escalade 2wd                      6.2      01—19—62—181—BL
              Cadillac             Escalade 4wd                               01—19—62—186—BL.
              Cadillac           Escalade ESV 2wd                             01—19—62—189—BL        84            7
               Cadillac          Escalade ESV 4wd                             01—19—62—193—BL.
              Chevrolet          C15 Silverado 2wd                            01—19—62—195—BL
              Chevrolet          K15 Silverado 4wd
                GMC               C15 Sierra 2wd                              01—23—62—186—BL        99            7
                GMC              C1500 Yukon 2wd                              01—23—62—195—BL
                GMC             C1500 Yukon XL 2wd
                GMC                K15 Sierra 4wd
                GMC              K1500 Yukon 4wd
                GMC             K1500 Yukon XL 4wd
                GMC             K10 Yukon XL AWD
              Cadillac          Escalade ESV AWD
                GMC              C10 Yukon XL 2wd
                GMC            K10 Yukon Denali AWD
                GMC               C10 Yukon 2wd
              Cadillac             Escalade AWD

                                                                                                 Pulley Size   Max Boost
   Year        Make                 _ Model                                   Kit Part Number        (in}        (PSN)
   2013       Chevrolet       G1500 Express 2wd Cargo                5.3      01—19—59—995—BL        37            7
                GMC           G1500 Savana 2wd Cargo                          01—19—59—995—CH         "
              Chevrolet      H1500 Express AWD Cargo                          01—19—59—996—BL        3.7           7
              Chevrolet    G1500 Express Conv 2wd Cargo                       01—19—59—996—CH         ‘
              Chevrolet      H1500 Express AWD Pass
              Chevrolet           C10 Tahoe 2wd
                GMC               C10 Yukon 2wd
              Chevrolet           K10 Tahoe 4wd
                GMC               K10 Yukon 4wd
              Chevrolet       G1500 Express 2wd Pass
              Chevrolet          C10 Suburban 2wd
                GMC        H1500 Savana Conv AWD Cargo
              Chevrolet    G1500 Express Conv 2wd Cargo
                GMC           G1500 Savana 2wd Pass
                GMC              C10 Yukon XL 2wd
              Chevrolet          K10 Avalanche 4wd
              Chevrolet          K10 Suburban 4wd
                GMC               K10 Yukon 4wd
                GMC        G1500 Savana Conv 2wd Cargo
                GMC          H1500 Savana AWD Cargo
                GMC          H1500 Savana AWD Pass
              Chevrolet        C1500 Avalanche 2wd

                    MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36

                                                     Page 2 of 5


                                                     Exhibit A



                                                                   Engine                        Pulley Size   Max Boost
   Year        Make                   Model                        Size (L)   Kit Part Number       (in)         (PS1)
2007 — 2013     GMC                Canyon 2wd                        5.3      01—19—80—031—BL        3.8           7
                GMC                Canyon 4wd                                 01—19—60—031—CH         '
                GMC              Canyon Crew 2wd
                GMC              Canyon Crew 4wd
              Chevrolet            Colorado 2wd
              Chevrolet            Colorado 4wd
              Chevrolet         Colorado Crew 2wd
              Chevrolet         Colorado Crew 4wd

                                          tra                          s        —
                                 C15 Siverado 2wd                             01—19—59—985—CH
                                  K15 Sierra 4wd                              01—19—59—993—BL
                                 K15 Silverado 4wd                            01—19—59—993—CH
                                  C15 Sierra 2wd                              01—19—59—995—BL.
                                                                              01—19—59—995—CH
                                                                               1—19—59—996—BL.
                                                                              01—19—59—996—CH
                                                                              01—19—80—00
                                                                              01—19—60—001—0H
                                                                              O1—1
                                                                              01—19—60—003—CH




                                                                   Engine                        Pulley Size   Max Boost
   Year         Make                  Model                        Size (L)   Kit Part Number        (in}        (PSN)
2007 — 2013   Chevrolet          C1500 Tahoe 2wd                     5.3      01—19—59—985—BL.       3.7           7
                GMC              ©1500 Yukon 2wd                              01—19—59—985—CH          "
              Chevrolet          K1500 Tahoe 4wd                              01—19—59—993—BL
                GMC                K1500 Yukon 4wd                            01—19—59—993—CH
                GMC                 C15 Sierra 2wd                            01—19—59—995—BL
              Chevrolet            C15 Silverado 2wd                          01—19—59—995—CH
                GMC                 K15 Sierra 4wd                            01—19—59—996—BL
              Chevrolet            K15 Silverado 4wd                          01—19—59—996—CH
                GMC               C15 Sierra 2wd XFE                          01—19—60—001—BL
              Chevrolet         C15 Silverado 2wd XFE                         01—19—50—001—CH
              Chevrolet       G1500 Express 2wd Cargo                         01—19—60—003—BL.
              Chevrolet        G1500 Express 2wd Pass                         01—19—50—003—CH
              Chevrolet    G1500 Express Conv 2wd Cargo
                GMC            G1500 Savana 2wd Cargo
                GMC            G1500 Savana 2wd Pass
                GMC         G1500 Savana Cony 2wd Cargo
              Chevrolet       H1500 Express AWD Cargo
              Chevrolet       H1500 Express AWD Pass
              Chevrolet    H1500 Express Cony AWD Cargo
                GMC           H1500 Savana AWD Cargo
                GMC            H1500 Savana AWD Pass
                GMC        H1500 Savana Conv AWD Cargo
              Chevrolet          C©1500 Avalanche 2wd
              Chevrolet          C1500 Suburban 2wd
                GMC              ©1500 Yukon XL 2wd
              Chevrolet          ©1500 Avalanche 4wd
              Chevrolet          C1500 Suburban 4wd
                GMC              ©1500 Yukon XL 4wd
                GMC              K 1500 Yukon XL 4wd



                    MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36

                                                     Page 3 of 5


                                                        Exhibit A



                                                                     Engine                        Pulley Size   Max Boost
   Year         Make                      Model                      Size (L)   Kit Part Number        (in)        (GED)
2007 — 2013     GMC                 C©1500 Yukon 2wd                   6.2      01—19—60—007—BL        3.3           7
                GMC             K1500 Yukon Denali AWD                          01—19—60—007—CH          ‘
                GMC                  C15 Sierra 2wd                             01—19—60—008—BL
                GMC                  C15 Sierra 4wd                             01—19—60—008—CH        38
                GMC                  C15 Sierra AWD
               Cadillac               Escalade 2wd                              01—19—60—015—BL        3.3
               Cadillac            Escalade 4wd/AWD                             01—19—60—015—CH          ‘
              Chevrolet            C15 Silverado 2wd                            01—19—60—016—BL.       3
              Chevrolet            K15 Silverado 4wd                            01—19—60—016—CH         3
                GMC              C1500 Yukon XL 2wd
                GMC              C1500 Yukon XL 4wd                             01—19—60—018—BL        3.3
               Cadillac            Escalade ESV 2wd                             01—19—60—018—CH         "
               Cadillac            Escalade ESV 4wd                             01—19—60—019—BL        3.3
               Cadillac           Escalade EXT AWD                              01—19—60—019—CH         "
              Chevrolet          C1500 Avalanche 2wd
              Chevrolet          C©1500 Suburban 2wd
              Chevrolet          C1500 Avalanche 4wd
              Chevrolet          C1500 Suburban 4wd




                                                                     Engine                        Pulley Size   Max Boost
   Year         Make                     Model                       Size (L)   Kit Part Number        (in}        (PSN)
2007 — 2013   Chevrolet          CK20 Silverado 2500HD                 6.0      01—19—60—018—BL        3.4           7
                GMC               CK20 Sierra 2500HD                            01—19—60—018—CH          "
              Chevrolet          CK30 Silverado 3500HD                          01—19—60—007—BL        3
                GMC               CK30 Sierra 3500HD                            01—19—60—007—CH          A
              Chevrolet     CK31 Silverado 3500 Cab/Chassis                     01—19—60—015—BL        3
                GMC           CK31 Sierra 3500 Cab/Chassis                      01—19—60—015—CH          *A
              Chevrolet   G30 Express Commercial Cutaway 3500
                GMC        CK31 Savana Special Cutaway 3500
                GMC                  C25 Sierra 2wd
              Chevrolet            C25 Silverado 2wd
                GMC                  K25 Sierra 4wd
              Chevrolet            K25 Silverado 4wd
                GMC                  C35 Sierra 2wd
              Chevrolet            C35 Silverado 2wd
                GMC                  K35 Sierra 4wd
              Chevrolet            K35 Silverado 4wd
                GMC                  C35 Sierra 2wd
              Chevrolet            C35 Silverado 2wd
                GMC                  K35 Sierra 4wd
              Chevrolet            K35 Silverado 4wd




                    MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36

                                                       Page 4 of 5


                                                      Exhibit A




                                                                  Engine                       Pulley Size     Max Boost
   Year        Make                   Model                       Size (L)   Kit Part Number       (In)          (PSN)
   2007       Chevrolet          K1500 Tahoe 4WD                   4.8L       01—12—60—006
LEV2 / ULEV   Chevrolet        K1500 Avalanche 4WD                            01—12—60—007            3.7°         7
              Chevrolet        K 1500 Suburban 4WD                                                     '
                GMC              ©1500 Yukon 2WD
                GMC            ©1500 Yukon XL 2WD
                GMC              K1500 Yukon 4WD
                GMC             K1500 yukon XL 4WD
              Chevrolet         C15 Silverado 2WD
              Chevrolet         K15 Sitverado 4WD
                GMC               C15 Sierra 2WD
                GMC               K15 Sierra 4WD

   2007       Chevrolet          K1500 Tahoe 4WD                    5.3L      01—12—60—006       .
LEV2 / ULEV   Chevrolet        K1500 Avalanche 4WD                            01—12—50—007     H‘ggs,‘,’mp         §
              Chevrolet        K 1500 Suburban 4WD                           01—12—60—019—SL           ‘
                GMC              C1500 Yukon 2WD                             01—12—60—019—P0    Standard
                GMC            ©1500 Yukon XL 2WD                                              Compression         7
                GMC              K1500 Yukon 4WD                                                      3.4"
                GMC             K1500 yukon XL 4WD
              Chevrolet          C15 Silverado 2WD
              Chevrolet          K15 Silverado 4WD
                GMC                C15 Sierra 2WD
                GMC                K15 Sierra 4WD
              Chevrolet            Trailblazer 2WD
              Chevrolet            Trailblazer 4WD
              Chevrolet         Trailblazer EXT 2WD
              Chevrolet         Trailblazer EXT 4WD

   2007       Chevrolet          C25 Silverado 2wd                  6.0L      01—12—60—006      High Com
LEV2/ ULEV    Chevrolet          C35 Silverado 2wd                            01—12—50—007           93 q6 P      65
              Chevrolet          K25 Silverado 4wd                            01—12—60—013           "
              Chevrolet          K35 Silverado 4wd                            01—12—60—014       Standard
                GMC               C25 Sierra 2wd                                               Compression         7
                GMC               C35 Sierra 2wd                                                      32"
               GMC                 K25 Sierra 4wd
               GMC                 K35 Sierra 4wd
              Hummer                     H2




                   MAGNUSON PRODUCTS INC. — INTERCOOLED SUPERCHARGER KIT — D—488—36

                                                    Page 5 of 5





Document Created: 2017-06-20 10:06:33
Document Modified: 2017-06-20 10:06:33

Previous E.O. D-488-35 | Previous E.O. D-487 | Next E.O. D-488-37 | Next E.O. D-489
