Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 2, 2002.
As of Saturday, October 12th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1993-1998 Cummins M11 on-road diesel enginesThe system consists of Cummins low NOx rebuild calibration, Cummins ReCon PX replacement fuel injectors, and Cummins oxidation catalyst.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-535
  • Executive Order 535 / D535
  • ARB # D-535
  • Executive Order No: D-535
  • C.A.R.B. No. D-535
  • Resolution D-535
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-535 PDF

D-535 Document:


CARB_D-535

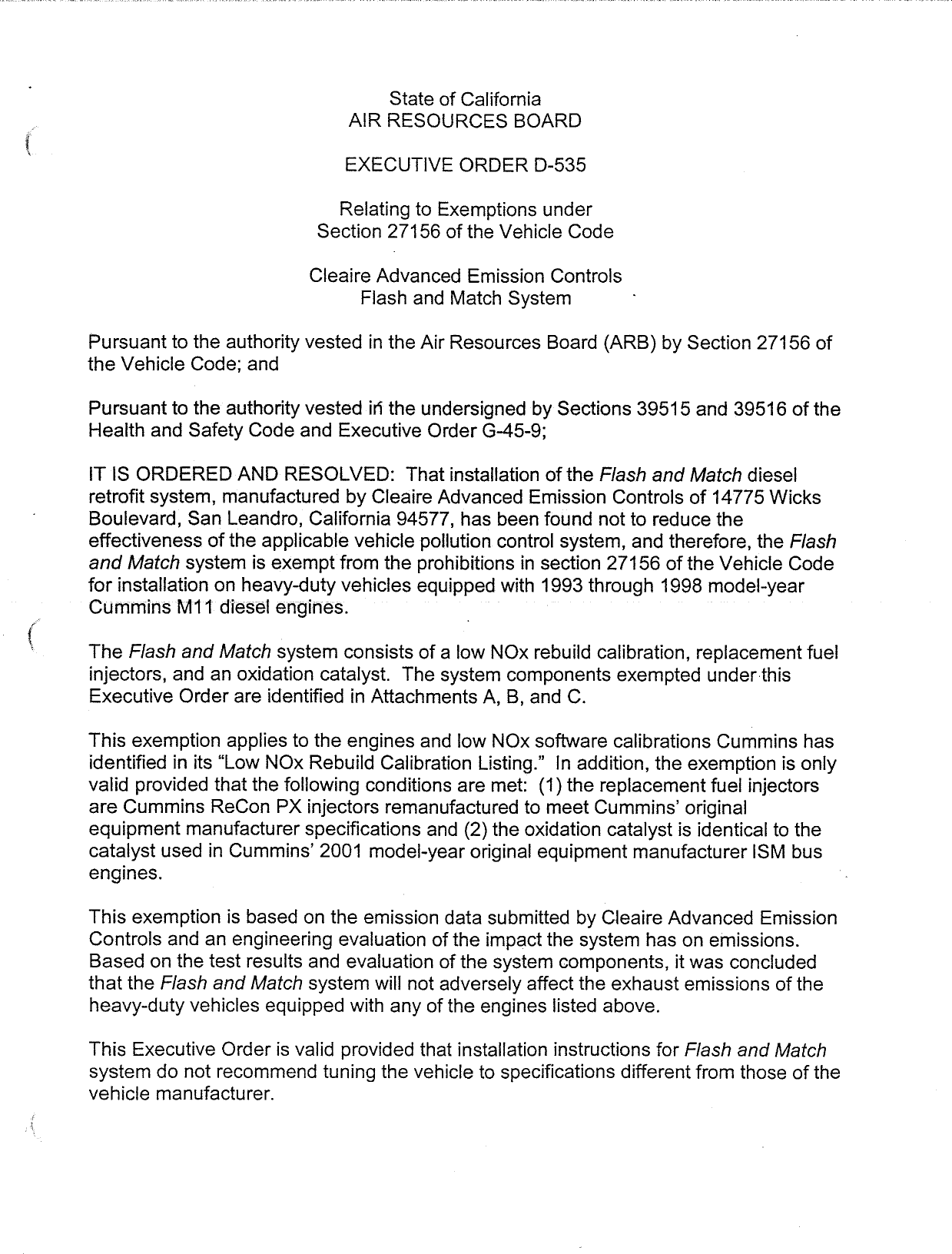

                                    State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—535

                               Relating to Exemptions under
                            Section 27156 of the Vehicle Code

                           Cleaire Advanced Emission Controls
                                 Flash and Match System

Pursuant to the authority vested in the Air Resources Board (ARB) by Section 27156 of
the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That installation of the Flash and Match diesel
retrofit system, manufactured by Cleaire Advanced Emission Controls of 14775 Wicks
Boulevard, San Leandro, California 94577, has been found not to reduce the
effectiveness of the applicable vehicle pollution control system, and therefore, the Flash
and Match system is exempt from the prohibitions in section 27156 of the Vehicle Code
for installation on heavy—duty vehicles equipped with 1993 through 1998 model—year
Cummins M11 diesel engines.

The Flash and Match system consists of a low NOx rebuild calibration, replacement fuel
injectors, and an oxidation catalyst. The system components exempted under this
Executive Order are identified in Attachments A, B, and C.

This exemption applies to the engines and low NOx software calibrations Cummins has
identified in its "Low NOx Rebuild Calibration Listing." In addition, the exemption is only
valid provided that the following conditions are met: (1) the replacement fuel injectors
are Cummins ReCon PX injectors remanufactured to meet Cummins‘ original
equipment manufacturer specifications and (2) the oxidation catalyst is identical to the
catalyst used in Cummins‘ 2001 model—year original equipment manufacturer ISM bus
engines.                                                                                    '

This exemption is based on the emission data submitted by Cleaire Advanced Emission
Controls and an engineering evaluation of the impact the system has on emissions.
Based on the test results and evaluation of the system components, it was conciuded
that the Flash and Match system will not adversely affect the exhaust emissions of the
heavy—duty vehicles equipped with any of the engines listed above.

This Executive Order is valid provided that installation instructions for Flash and Match
system do not recommend tuning the vehicle to specifications different from those of the
vehicle manufacturer.


                                             _7

Changes made to the design or operating conditions of the Flash and Match system, as
exempt by the ARB, which adversely affect the performance of the vehicle‘s pollution
control system, shall invalidate this Executive Order.

Marketing of the Flash and Match system using identification other than that shown in
this Executive Order or for an application other than that listed in this Executive Order
shall be prohibited unless prior approval is obtained from the ARB.

This Executive Order shall not apply to any Flash and Match system advertised, offered
for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Flash and Match system may have on any warranty either expressed or implied by the
vehicle manufacturer.                          —

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the ARB reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of California Code of
Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF CLEAIRE
ADVANCED EMISS!ION CONTROL‘S FLASH AND MATCH SYSTEM.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing —
is requested, it shall be held within ten days of reéceipt of the request, and the Executive
Order may not be revoked until a determination is made after a hearing that grounds for
revocation exist.

Executed at El Monte, California, this      2*     day of January 2002.




                                    %R. B. Summerfield, Chief
                                         Mobile Source Operations Division

                     CLEAIRE ADVANCED EMISSION CONTROLS
                        FLASH AND MATCH SYSTEM — D—535


Lns




      Attachment A: Cummins Low NOx Rebuild Calibration Listing




             CLEAIRE ADVANCED EMISSION CONTROLS
                FLASH AND MATCH SYSTEM — D—535


                                    LOW NOx REBUILD CALIBRATION LISTING

     ivailable From: March 1, 2000

    CPL: 1855                       Engine Model: M11

    ENGINE POWER INFORMATION                            ECM ELECTRONIC DATA PLATE INFORMATION
                                                                   Original Software Calibration (SC                                    Low NOx
         HP       Torque {Ib—ft)      Governed Speed                  gptions and Supercession(s )                                      SC option   Notes
         330           1250                2000                      (2798), 2818, 2834, 2889, 2050, 2124, 2285,2474, 2542               20234
         330           1250                1800                2787, 2797, 2817, 28933, 2888, 20d5, 2040, 2125, 2286,2475, 2543          20235
         310           1150                2000                2785, (2796), 2816, 2832, 2887, 2023, 2054, 2129, 2287, 2476, 2544        20236
         310           1150                1800             2786, (27985), 2815, 2831, 2886, 2922, 2096, 2053, 2130, 2288, 2477, 2545    20237
        ©280           1050                2000                 2784, 2794, 2814, 2630, 285, 2021, 2058, 2133, 2202, 2480, 2548          20238
         280           1050                1800                         2820, 2884, 2020, 2057, 2134, 2203, 2481, 2550                   20239
       280 ESP         1050                1800                     (2792), 28a3, 2028, 2061, 2181, 2208, 2801, 2485, 2sse               20241


    CPL: 1856                       Engine Model: M11

    ENGINE POWER INFORMATION                            ECM ELECTRONIC DATA PLATE INFORMATION
                              L                                    Original Software Calibration (SC)                                   Low NOx
         EP        Torque (Ib—ft)     Governed Speed                    Options and Supercessions                                       SC option   Notes
         370           1350                2000                   2791, 2804, 2825, 2841. 2896, 2043, 2117, 2278, 2465, 2520             20228
         370           1350                1800                2790, 2803, 2824, 28402805, 2032, 2042, 2118, 2279, 2466,2532             20229
         350           1350                2000                     (2802), 2823, 2839, 2894, 2045, 2119, 2280, 2469, 2535               20230
         350           1350                1800                2789, 2801, 2822, 2038, 2803, 2933, 2944, 2120, 2281, 2470, 2537          20231
         330           1350                2000                     (2800), 2821, 2837, 2892, 2047, 2122, 2283, 2472, 2539               20232
         330           1350                1800                2788, 2799, 2820, 2836, 2891, 2094, 2046, 2123, 2284, 2473, 2541          20233

    lCPL: 1857                      Engine Model: M1

(
|    ‘NGINE POWER INFORMATION

         HP
                   C       L
                 Torque (Ib—ft) Governed Speed
                                                        ECM ELECTRONIC DATA PLATE INFORMATION
                                                                Original Software Calibration (SC)
                                                                     Options and Supercessions
                                                                                                                             Low NOx
                                                                                                                             SC option              Notes
       310 ESP       1150            1800                   2805, 2819, 2035, 2800, 2029, 2060, 2180, 2207, 2300, 2484, 2563   20240




       Cummins Engine Company, Inc.                       Page 1 Of 1                                                                    March 1, 2000


                                 LOW NOx REBUILD CALIBRATION LISTING

Available From: December 1, 2000

CPL: 2036                        Engine Model: M1i

ENGINE POWER INFORMATION                              ECM ELECTRONIC DATA PLATE INFORMATION
                                                             Original Software Calibration (SC       Low
     HP        Torque (Ib—ft)     Governed Speed                %ptions and Supercession(s       )   se o:t%;     Notes
     330            1250                1800                             SC    2264                  SC   20289
     330            1250                1800                             SC    2261                  SC   20290
     310            1150                2100                             SC    2266                  SC   20291
     280            1050                2100                             SC    2268                  SC   20292
     330            1250                2100                             SC    2262                  SC   20293
     310            1150                1800                             SC    2265                  SC   20294
     280            1050                1800                             SC    2267                  SC   20295

CPL: 2037                        Engine Model]: M11

ENGINE POWER INFORMATION                              ECM ELECTRONIC DATA PLATE INFORMATION
                                                            Original Software Calibration (SC Low NOx
     HP         Torque (ib—ft)     Governed Speed              gptions and Sugercession(s |   SC option           Notes
     400            1450                1800                             SC 2189              SC 20296
     370            1350                1800                             SC 2191              SC 20297
     350            1350                1800                             $C 2194              SC 20298
     350            1350                1800                             SC 2197              SC 20299
     330            1350                1800                             SC 2198              SC 20300
     370            1450                2100                             SC 2190              SC 20301
     370            1350                2100                             SC 2192              SC 20302
     370            1350                1800                             SC 2440              SC 20303

CPL: 2370                        Engine Model: MH

ENGINE POWER INFORMATION                              ECM ELECTRONIC DATA PLATE INFORMATION
                                                             Original Software Calibration (SC       Low NOx
     HP         Torque {Ib—ft)     Governed Speed               gptions and Supercession_(§      )   SC option    Notes
     330            1250                1800                             SC    2601                  SC   20304
     330            1250                1800                             SC    2598                  SC   20305
     310            1150                2100                             SC    2603                  SC   20306
     280            1050                1800                             SC    2605                  SC   20307
     330            1250                2100                             SC    2599                  SC   20308
     310            1150                1800                             SC    2602                  SC   20309
     280            1050                1800                             SC    2604                  SC   20310
     305            1150                2100                             SC    2698                  SC   20311

CPL: 2371                        Engine Model: M11

ENGINE POWER INFORMATION                              ECM ELECTRONIC DATA PLATE INFORMATION
                                                            Original Software Calibration (SC Low NOx
      HP        Torque (Ib—ft)     Governed Speed               gptions and Supercession(s       |   SC option    Notes
     370             1350               1800                              SC 2588                    SC 20312
     350             1350               1800                              SC 2591                    SC 20313
     350             1350               1800                              SC 2594                    SC 20314
     330             1350               1800                              SC 2595                    SC 20315
     370             1450               1800                              SC   2587                  SC   20316
     330             1350               2100                              SC   2589                  SC   20317
     330             1350               2100                              SC   2596                  SC   20318
     420             1450               2100                              SC   2620                  SC   20318
     370             1350               1800                              SC   2621                  SC   20320
     370             1350               1800                              SC   2627                  SC   20321
     335             1350               2100                              SC 2631                    SC 20322




Cummins Engine Company, Inc.                          Page 1 Of 1                                      March 1, 2000


        Attachment B: Replacement Fuel Injfector




          1855, 1856, 1857       3087557 PX

       2036, 2037, 2370, 2371    3411753 PX




        Attachment C: Diesel Oxidation Catalyst




,(‘      5100 to 5199 series        27112




      CLEAIRE ADVANCED EMISSION CONTROLS
         FLASH AND MATCH SYSTEM — D—535


                               EVALUATION SUMMARY

Manufacturer Name: Cleaire Advanced Emission Controls

Name of Device: Flash and Match and Flash and Catch Diesel Retrofit Systems

Background:
      Cleaire Advanced Emission Controls (Cleaire) of 14775 Wicks Boulevard, San
Leandro, California 94577 has requested exemption of its Flash and Match and Flash
and Catch diesel retrofit systems from the prohibitions in section 27156 of the California
Vehicle Code (VC). The systems are designed for use on 1993 through 1998 model—
year Cummins M11 heavy—duty diesel engines. The exemptions apply to the engines
and low NOx software calibrations Cummins has identified in its "Low NOx Rebuild
Calibration Listing." In addition, the exemptions are only valid provided that the
following conditions are met: (1) the replacement fuel injectors are Cummins ReCon PX
injectors remanufactured to meet Cummins‘ original equipment manufacturer (OEM)
specifications; (2) for the Flash and Match system, the oxidation catalyst is identical to
the catalyst used in Cummins‘ 2001 model—year OEM ISM bus engines; and (3) for the
Flash and Catch system, the filter is Engelhard Corporation‘s DPX Catalyzed Soot Filter
or Johnson Matthey‘s CRT Particulate Filter exempted by the ARB and is used only on
engines that meet the operating conditions (i.e. particulate matter emission level, NOx
to PM ratio, engine exhaust temperature, and diesel fuel sulfur level) specified by
Engelhard Corporation and Johnson Matthey.

Recommendation:
      Grant exemption to Cleaire as requested and issue Executive Orders D—535 and
D—535—1.                                                                     |

Device Description:
       Cleaire‘s Flash and Match and Flash and Catch systems are exhaust emission
control devices designed primarily to reduce oxides of nitrogen (NOx) and particulate
matter (PM) emissions from diesel engines. It also reduces hydrocarbon and carbon
monoxide emissions from diesel engines. The Flash and Match system consists of re—
programming of the electronic control module (ECM), replacement fuel injectors, and a
diesel oxidation catalyst. The Flash and Catch system consists of the same ECM re—
program and replacement injectors but instead of the catalyst includes a diesel PM filter.
The system components are identified in Attachments A, B, and C of Executive Orders
D—535 and D—535—1.

        The ECM re—program is identical to the calibration change required under
 Cummins‘ Consent Degrees with the United States Environmental Protection Agency
 (U.S. EPA) and the Air Resources Board (ARB). The calibration retards fuel injection
‘timing to reduce NOx emissions during highway operations. The low NOx software
calibrations and the applicable engines are identified in Cummins‘ "Low NOx Rebuild
Calibration Listing" (Attachment A). The replacement infectors are Cummins ReCon PX
injectors, remanufactured to meet Cummins‘ OEM specifications. The catalyst is
manufactured by Engelhard Corporation and canned by Fleetguard Nelson. It is
identical to the catalytic muffler used in Cummins 2001 model—year OEM ISM bus
engines. The catalyst measures 9.5 inches in diameter and 12 inches in length is


       identified by Cummins part number 3926265 and Fleetguard Nelson part number
       27112.

                The PM filters used in the Flash and Catch system include Engelhard
       Corporation‘s DPX Catalyzed Soot Filter and Johnson Matthey‘s CRT Particulate Filter.
       Both filters are passive, continuously regenerating cordierite wall—flow filters. The DPX
       filters are exempted under Executive Orders D—384—5, D—384—6, and D—384—7, and the
       CRT filters are exempted under Executive Order D—393—3. Exemption of the Flash and
       Catch system is valid provided that the engines meet the following conditions: (1) the
       engines were originally certified to meet a PM emission standard of 0.10 grams per
       brake—horsepower—hour or lower; (2) the engine exhaust temperature is greater than or
       equal to 225° C (DPX filter ) or 275° C (CRT filter) for 40 to 50 percent of the duty cycle;
       (3) NOx to PM ratio is at least 8 (CRT filter) ; and (4) the engine is operated using dxesel
       fuel with a maximum sulfur content of 50 parts per million by weight.

       Discussion/Basis for the Recommendation:
               The ECM calibration change has already been evaluated and approved by the—
       U.S. EPA and the ARB under the Consent Decrees. Under the Consent Decrees,
       Cummins is required to ensure that the calibration results in lower highway NOx
       emissions (steady—state emissions) and does not cause any increases in emissions for
       all other regulated pollutants. The replacement fuel injectors are remanufactured to
       meet Cummins OEM specifications, and the oxidation catalyst is identical to the one
       certified on Cummins 2001 model—year new ISM bus engines. To further demonstrate
       that the systemhas—no adverse impact on emissions, Cleaireconductedchassis
       dynamometer emission testing with the Flash and Match system. Comparison of
       baseline and modified emissions during Urban Dynamometer Driving Schedule showed
       that the Flash and Match system does not have any significant adverse impact on the
       vehicle‘s transient emissions.
               Cleaire did not provide any emission data for the Flash and Catch system.
       However, based on the emission results of the Flash and Match system and based on
       the ARB‘s previous evaluations of PM filters, it was concluded that replacing the catalyst
       with a PM filter would not result in any adverse emission impact. As a result, it is
       concluded that the Flash and Match and Flash and Catch systems meet the
       requirements for a VC 27156 exemption for the engines listed in the Executive Order.
Lams
