Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 23, 2006.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDFSee PDFThe Doug's Headers Brand Exhaust Headers are manufactured out of 14 gage mild steel. The design of the long tube headers may include a Y-pipe, while that of short tube headers may either connect to the stock connecting pipe or include a new one. All emission components are retained in their original location. The location of the oxygen sensor is at the collector in the connecting pipe, in the stock location and configuration.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-57-19
  • Executive Order 57-19 / D57-19
  • ARB # D-57-19
  • Executive Order No: D-57-19
  • C.A.R.B. No. D-57-19
  • Resolution D-57-19
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-57-19 PDF

D-57-19 Document:


CARB_D-57-19

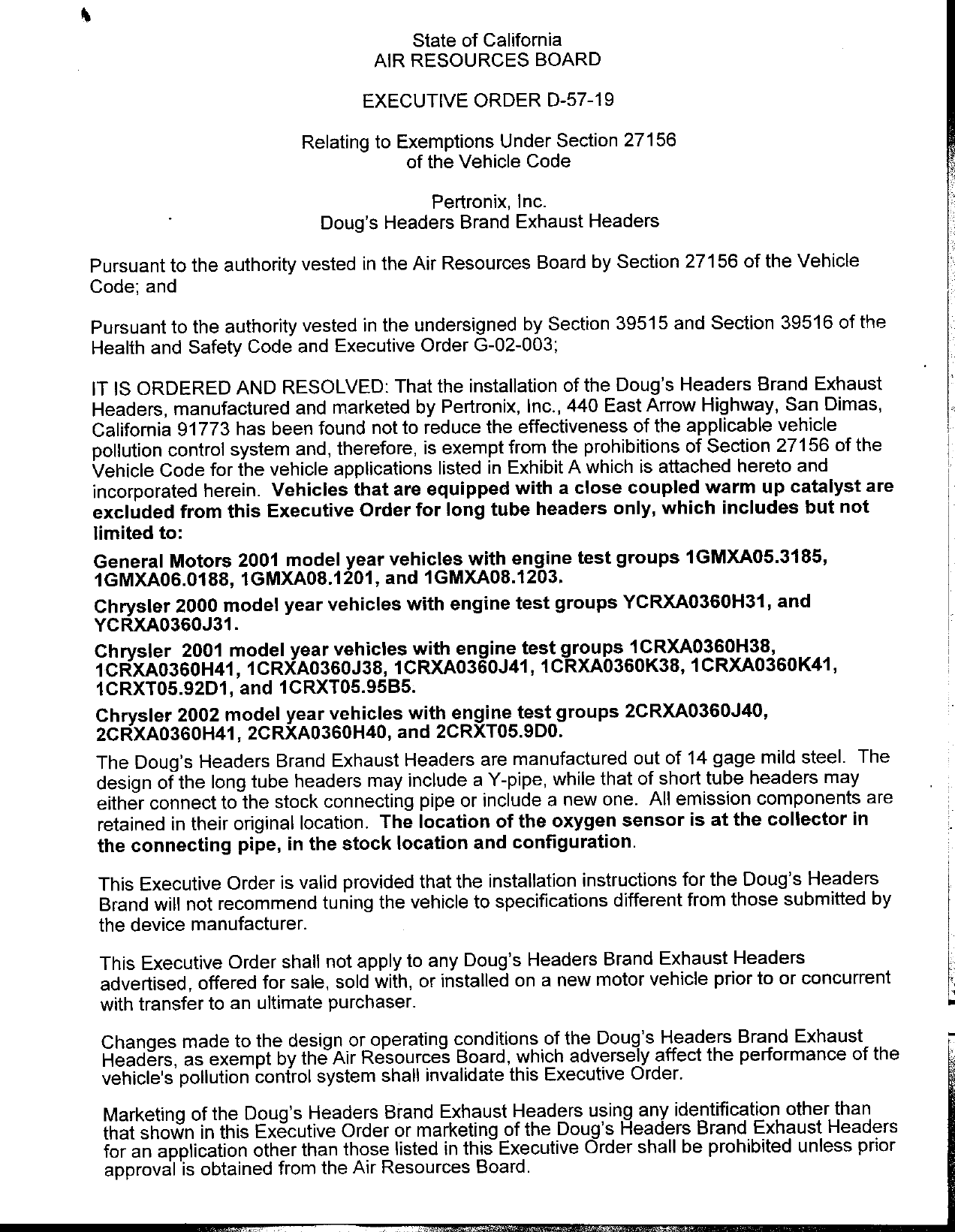

                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—57—19

                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                        Pertronix, Inc.
                            Doug‘s Headers Brand Exhaust Headers

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT 1S ORDERED AND RESOLVED: That the installation of the Doug‘s Headers Brand Exhaust
Headers, manufactured and marketed by Pertronix, Inc., 440 East Arrow Highway, San Dimas,
California 91773 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the vehicle applications listed in Exhibit A which is attached hereto and
incorporated herein. Vehicles that are equipped with a close coupled warm up catalyst are
excluded from this Executive Order for long tube headers only, which includes but not
limited to:
General Motors 2001 model year vehicles with engine test groups 1GMXAO05.3185,
1GMXA06.0188, 1GMXA08.1201, and 1GMXAO8.1203.
Chrysler 2000 model year vehicles with engine test groups YCRXAO360H31, and
YCRXAO360J31.
Chrysier 2001 model year vehicles with engine test groups 1CRXAO36OH38,
1CRXAO360OH41, 1CRXAO360J38, 1CRXAO36OJ41, 1CRXAO3GOK38, 1CRXAO3GOK41,                                |
1CRXTO5.92D1, and 1CRXTO05.95B5.
Chrysler 2002 model year vehicles with engine test groups 2CRXAO360J40,
2CRXAO3G6OHA41, 2CRXA0360H40, and 2CRXTO5.9D0.
The Doug‘s Headers Brand Exhaust Headers are manufactured out of 14 gage mild steel. The
design of the long tube headers may include a Y—pipe, while that of short tube headers may
either connect to the stock connecting pipe or include a new one. All emission components are
retained in their original location. The location of the oxygen sensor is at the collector in
the connecting pipe, in the stock location and configuration.

This Executive Order is valid provided that the installation instructions for the Doug‘s Headers
Brand will not recommend tuning the vehicle to specifications different from those submitted by
the device manufacturer.

This Executive Order shall not apply to any Doug‘s Headers Brand Exhaust Headers
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Doug‘s Headers Brand Exhaust                =
Headers, as exempt by the Air Resources Board, which adversely affect the performance of the          ;
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Doug‘s Headers Brand Exhaust Headers using any identification other than
that shown in this Executive Order or marketing of the Doug‘s Headers Brand Exhaust Headers
for an application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.


                                                 «2.


Exemption of the Doug‘s Headers Brand Exhaust Headers shall not be construed as exemption
to sell, offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Doug‘s
Headers Brand Exhaust Headers may have on any warranty either expressed or implied by the
vehicle. *

This Executive Order is granted based on a prior evaluation which determined that the Doug‘s
Headers Brand Exhaust Headers do not cause an adverse effect on emissions of selected
vehicles (D—554—2 and D—554—3), nor does it affect the vehicles‘ ability to perform On—Board
Diagnostic II (OBD 11) system monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF PERTRONIX, INC.‘S DOUG‘S HEADERS BRAND EXHAUST
HEADERS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this Pz?Aiday of March 2006.




                                   —     llen Lyons, Chief
                                       Mobile Source Operations Division




         PERTRONIX, INC.—DOUG‘S HEADERS BRAND EXHAUST HEADERS—D—57—19


                                             Exhibit A
                                            Short Tube
Year    Engine          Application                             Part Number

98—99   LS—~1           Chevy Camaro                            D3327
98—99   LS—1            Pontiac Firebird, Trans AM              D3327
92—95   350 LT—1        Chevy Corvette                          D3330
97—98   350 LS—1.S—6    |Chevy Corvette                         D3331
2000    350 LS—1/LS—6   jChevy Corvette                         D3332
01—04   350 LS—1/LS—6   |Chevy Corvette                         D3333
04—05   4.8—5.3L.       Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd    D3373
04—05   4.8—5.3L        Chevy/GMC Suburban, Tahoe & Yukon 2wd   D3373
04—05   4.8—5.3L        Chevy /GMC 1/2 & 3/4 Ton Pick—ups 4wd   D3373
04—06   4.8—5.3L.       Chevy/GMC Suburban, Tahoe & Yukon 4wd   D3373

86—93   255—302W        Ford Mustang                            D6673
86—93   255—302W        Ford Mustang                            D6674
86—93   255—302W        Ford Mustang                            D6675
94—95   255—302W        Ford Mustang                            D6676
94—95   351W            Ford Mustang                            D6677
96—98   4.6L 2V         Ford Mustang                            D6678
99—04    4.6L 2V        Ford Mustang                            D6680
97—03    5.4L           Ford F150,F250 & F350 284wd Pick up     D6658
04—06   14.6—5.4Liter   Ford F150 284wd Pick—up                 |Dé659




                          Pertronix, Inc. — Doug‘s Headers — D—57—19

                                                Page 1


                                                                        Exhibit A
                                                                      Long Tube


Year     Engine      __|Application                                                                                                  Part Number

73—87    265—400     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 2 1/2" catalytic converter & heat riser                                  D3367Y—1
73—87    265—400     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups2wd, 2 1/2" catalytic converter                                                D3367Y—2
7387     265—400     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 3"catalytic converter                                                    D3367Y—3
73—87    265—400     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd, 3" catalytic converter & heat riser                                      DS367Y—4
88—95    265—400     _|Chevy/GMC      1/2 & 3/4 Ton   Pick—ups 2wd                                                                   D3383—1
88—95    265—400     |Chevy/GMC       1/2 & 374 Ton   Pick—ups 2wd                                                                   D3383—2
88—95    265—400     _|Chevy/GMC      1/2 & 3/4 Ton   Pick—ups2wd                                                                    D3385Y—1
88—95    265—400     _|Chevy/GMC      1/2 & 3/4 Ton   Pick—ups 2wd                                                                   D3385Y—2
88—95    396—454     |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                                                                           D33B8
96—98    5.7L        Chevy/GMC 1/2 & 374 Ton Pick—ups 2wd                                                                            D3302
96—00    7.4—8.1L    |Chevy/GMGC 1/2 & 3/4 Ton Pick—ups 2wd                                                                          D3396
1999     4.8—6.0L__|Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd.with air injection                                                          D3353—1
1999     4.8—6.0L__|Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                                                                             D3363—2
00—01    4.8—6.0L.   |Ghevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd.with air injection                                                        D3353—3
00—01    5.3—6.0L    _}Chevy/GMC 1/2 & 3/4 Ton Pick—ups 2wd                                                                          D3353


73—87    265—400 _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd,                      2 1/2" catalytic converter & heat riser   D3367Y—1
73—87    265—400 _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd,                      2 1/2" catalytic converter                D3367Y—2
7391     265—400 |Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd,                      3" catalytic converter                    D3367Y—3
7391     265—400 _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd,                      3" catalytic converter & heat riser       D3367Y—4
88—95    265—400 _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                                 D33B3—1
88—95    265—400 _|Chevy/GMC Blazer,Yukon,Jimmy, Suburban & Tahse 2wd                                                                D3383—2
8895     265—400 _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                                 D3385Y—1
88—95    265—400 |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                                  D3365Y—2
96—98    5.71     Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahce 2wd                                                                  D3302
96—00    7.4—8.1L._|Chew/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                                 D3396
86—91    396—502 |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                                  D3399Y—1
9295     396—502     |Chewy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd                                                             D38
1999     4.8—6.0L    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd.with air injection                                           D3353—1
1999     4,8—6.0L    _|Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd                                                            D33653—2
00—01    4.8—6.0L    |Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe 2wd,with air injection                                          D3353—3
00—01    5.3—6.0L    |Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 2wd                                                              D33G3


7391     265—400     |Chevy/GMC       1   Ton   Pick—ups   2wd,   2 1/2" cataiytic converter & heat riser                            D3367Y—1
73—91    265—400     _|Chevy/GMC      1   Ton   Pick—ups   2wd,   2 1/2" catalytic converter                                         D3367Y—2
7391     265—400     (Chevy/GMC       1   Ton   Pick—ups   2wd,   3" cataiytic converter                                             D336/Y—3
73.91    265—400     |Chevy/GMC       1   Ton   Pick—ups   2wd,   3" catalytic converter & heat riser                                D3367Y—4
88—95    265—400      |Chevy/GMC 1 Ton Pick—ups 2wd                                                                                  D3383—1
88—95    265—400      |Chevy/GMC 1 Ton Pick—ups 2wd                                                                                  D3363—2
88.95    265—400      |Chevy/GMC 1 Ton Pick—ups 2wd                                                                                  D3385Y—1
88.95    265—400      |Chevy/GMC 1 Ton Pick—ups 2wd                                                                                  D3385Y—2
96—98    5.71         Chevy/GMC 1 Ton Pick—ups 2wd                                                                                   D3302—1        i
96—00
86—91
         7.48.1L
         396—502
                      |Chevy/GMC 1 Ton Pick—ups 2wd
                      |Chevy/GMC 1 Ton Pick—ups 2wd
                                                                                                                                     D3396
                                                                                                                                     D3s99Y—2
                                                                                                                                                   i
88—95    396—502      Chevy/IGMC 1 Ton Pick—ups 2wd                                                                                  D33688
00—01    6.0L         Chevy/GMC 1 Ton Pick—ups 2wd                                                                                   D3sss


73—91    265—400      |Chevy/GMC 1/2 & 314 Ton Pick—ups 4wd, 2 1/2" catalytic converter & heat riser                                 D3364Y—1
7391     265—400      |Chevy/GMC 1/2 & 374 Ton Pick—ups Awd, 2 1/2" catalytic converter                                              D3364Y—2
73—91    265—400      |Chewy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, 3" catalytic converter                                                  D3364Y—3
7391     265—400      |Chevy/GMC 1/2 & 3/4 Ton Pick—ups Awd, 3" catalytic converter & heat riser                                     D3364Y—4
7391     265—400      |Chevy Blazer, Jimmy 3" catalytic converter & no heat riser                                                    D3364Y—5
73.91    265—400      |Chevy Blazer, Jimmy 3" catalytic converter & heat riser                                                       D3364Y—6
 88—95   265—400      |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd                                                                          D3366
 88—95    396—502     |Cheyy/GMC 1/2 & 374 Ton Pick—ups 4wd                                                                          D3389
 96—00   7.4—8.1L     |Chewy/GMC 1/2 & 3/4 Ton Pick—ups 4d                                                                           Dasor
 2001    7.4—8.1L.    |Chevy/GMC 172 & 3/4 Ton Pick—ups4wd                                                                           D3398


                                           Pertronix, Inc. — Doug‘s Headers — D—57—19

                                                                           Page 1


                                                                  Exhibit A
                                                                Long Tube


96—98   5.7L      Chevy/GMC 1/2 & 314 Ton Pick—ups 4wd                                                                             D3302
1999    4.8—6.0L__|Chevy/GMC 1/2 & 34 Ton Pick—ups 4wd,with air injection                                                          D3353—1
1999    4.8—6.0L    |Chevy/GMC 1/2 & 374 Ton Pick—ups 4wd                                                                          D3363—2
00—01   4.8—6.0L    |Chevy/GMC 1/2 & 3/4 Ton Pick—ups 4wd, with air injection                                                      D3353—3
00—01   5.3—6.0L    |Chevy/GMC 1/2 & 374 Ton Pickcups 4wd                                                                          D3363


73—87   265—400     |Chevy/GMC    Blazer,Yukon,Jimmy,Suburban         &   Tahoe   Awd,   2 1/2" catalytic converter & heat riser   D3364Y—1
73—87   265—400     |Chevy/GMC    Blazer,Yukon,Jimmy,Suburban         &   Tahoe   Awd,   2 1/2" catalytic converter                D3364Y—2
73—91   265—400     _|Chevy/GMC   Blazer,Yukon,Jimmy,Suburban         &   Tahoe   Awd,   3" catalytic converter                    D3364Y—3
7391    265—400     _|Chevy/GMC   Blazer, Yukon,Jimmy,Suburban        &   Tahoe   Awd,   3" catalytic converter & heat riser       D3364Y—4
88—95   265—400  |Chevy/GMC       Blazer, Yukon,Jimmy,Suburban        &   Tahoe   4wd                                              D3386
88—95   396—502  |Chevy/GMC       Blazer, Yukon,Jimmy,Suburban        &   Tahoe   Awd                                              D3389
96—00   7.4—8.1L |Chevy/GMC       Blazer, Yukon,Jimmy,Suburban        &   Tahoe   Awd                                              D3397
2001    7.4—801L_|Chevy/GMC       Blazer, Yukon,Jimmy,Suburban        &   Tahoe   4wd                                              D3398
96—98   5.7L     Chevy/GMC        Blazer,Yukon.Jimmy,Suburban         &   Tahoe   4wd                                              D3302
1999    4.8—6.0L |Chevy/GMC       Blazer,Yukon,Jimmy,Suburban         &   Tahoe   4wd, with air injection                          D3353—1
1999    4.8—6.0L  _|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd                                                              D3353—2
00—01   4.8—6.01._|Chevy/GMC Blazer,Yukon,Jimmy,Suburban & Tahoe 4wd, with air injection                                           D3353—3
00—01   5.3—6.0L    |Chevy/GMC Blazer, Yukon,Jimmy,Suburban & Tahoe Awd                                                            D3353



73—91   265—400     _|Chevy/GMC   1   Ton   Pick—ups 4wd,   2 1/2" catalytic converter & heat riser                                D3364Y—1
7391    265—400     |Chevy/GMC    1   Ton   Pick—ups 4wd,   2 1/2" catalytic converter                                             D3364Y—2
73—91   265—400     |Chevy/GMC    1   Ton   Pick—ups dwd,   3" catalytic converter                                                 D3364Y—3
73—91   265—400     |Chevy/GMC    1   Ton   Pick—ups 4wd,   3" catalytic converter & heat riser                                    D3364Y—4
88—95   265—400     _|Chevy/GMC   1   Ton   Pick—ups 4wd                                                                           D3386
96—98   5.71        Chevy/GMC     1   Ton   Pick—ups dwd                                                                           D3301
86—91   396—502     _|Chevy/GMC   1   Ton   Pick—ups 4wd                                                                           D3389
88—95   396—502     |Chevy/GMC    1   Ton   Pick—ups 4wd                                                                           D3397
2001    7.4—8.1L.   _|Chevy/GMC   1   Ton   Pick—ups 4wd                                                                           D3398
00—01   6.0L        Chevy/GMC     1   Ton   Pick—ups dvd                                                                           D3353


B8—95   43L         Chevy/GMC Pick—ups                                                                                             D3346
96—01   4.3L        Chevy/GMC Pick—ups                                                                                             D3347


82—92   265—400     [Chevy Camaro, Pontiac Firebird, Trans Am                                                                      D3320
86—90   265—400     |Chevy Camaro, Pontiac Firebird, Trans Am                                                                      D3322
1993    350 LT—1_|Chevy Camaro, Pontiac Firebird, Trans Am                                                                         D3323
94—95   350 LT—1_[Chevy Camaro, Pontiac Firebird, Trans Am                                                                         D3325
96—97   350 LT—1_|Chevy Camaro, Pontiae Firebird, Trans Am                                                                         D3326



75—87   265—400     _|Chevy Class "C" Motorhome, with catalytic converter                                                          D3315
75—91   396—502     {Chevy   Class "A"   Motorhome                                                                                 Ds3O3Y
9295    9295        Chevy    Class "A"   Motorhome                                                                                 D3360
01—03   8.1L        Chevy    Class "A"   Motorhome Workhorse P Chassis                                                             D3317
01—03   81L         Chevy    Class "A"   Motorhome Workhorse W Chassis                                                             D3316


94—00   318—360      |Dodge Ram 1500 2wd                                                                                           D44G2
97—00   318—00       Dodge Dakota 2wd                                                                                              D449G
97—00   318—360      [Dodge Dakota 4wd                                                                                             D4497
2001    318—360      |Dodge Ram 1500 4wd                                                                                           D4460
 2002    318—360     |Dodge Ram 1500 4wd                                                                                           D4465


 2003    5.7L Hemi |Dodge Ram 1500 2wd                                                                                              D4458
 2003    5.71 Hemi |Dodge Ram 1500 4w                                                                                              D445G6
 2003    5.71 Hemi|Dodge Ram 2500/3500 Awd                                                                                         D4457



                                         Pertronix, Inc. — Doug‘s Headers — D—57—19

                                                                     Page 2


                                                           Exhibit A
                                                          Long Tube


2004     5.7L Hemi|Dodge Ram 1500 284wd                                             D4459
2004     5.7Hemi|Dedge Ram 2500/3500 4wd                                            D4470
2004     5.7L Hemi|Dodge Durango 244WD                                              D4476


80—87    302—351W/Ford      F1507 F250/F 350 2844wd Pick —up                        D6648Y
80—82    351—400M|Ford      F150/ F250/F350 284wd Pick —up                          D6é615
88—92    460 FI   Ford      F250/F350 2844wd Pick—up                                D6614Y—1
88—92    46OFI    Ford      F250/F350 Super Duty 284wd Pick—up                      D6é617
93.95    4G0FI     Ford     F250/F350 284wd Pick—up                                 D6614Y—5
96—97    4GOF     Ford      F250/F350 2& 4wd Pick—up                                D6614Y—6
99—02    6.8L V—10 |Ford Excursion Super Duty 2&4wd No EGR                          D6620
99—02    6.8L V—10 [Ford    Excursion Super Duty 284wd with EGR                     D6621
97—01    5.4L       Ford    Expedition 244wd No EGR                                 D6654
88—92    4G0FI      Ford    Class "A" Motorhome                                     D663O
93—98    460F1      Ford    Class "A" Motorhome                                     D6631
88—92    46OFI      Ford    Class "C" Motorhome                                     D6G35
9395     460F       Ford    Class "C" Motorhome                                     D6636
96—97    460F       Ford    Class "C"Motorhome                                      D6637
97—03    6.8L V—10Ford      Class "A" Motorhome No EGR                              D6610
97—03    6.8L V—10 |Ford    Class "A" Motorhome with EGR                            D6611
|97—03    6.8L V—10 |Ford   Class "C" Motorhome NO EGR (E—350)                      D6612
9703      6.8L V—10 |Ford   Class "C" Motothome with EGR (E—350)                    De613




                                       Pertronix, Inc. — Doug‘s Headers — D—57—19

                                                              Page 3



Document Created: 2006-03-24 09:13:54
Document Modified: 2006-03-24 09:13:54

Previous E.O. D-57-18 | Previous E.O. D-56 | Next E.O. D-57-20 | Next E.O. D-58
