Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 30, 2015.
As of Friday, October 4th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-645-5
  • Executive Order 645-5 / D645-5
  • ARB # D-645-5
  • Executive Order No: D-645-5
  • C.A.R.B. No. D-645-5
  • Resolution D-645-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-645-5 PDF

D-645-5 Document:


CARB_D-645-5

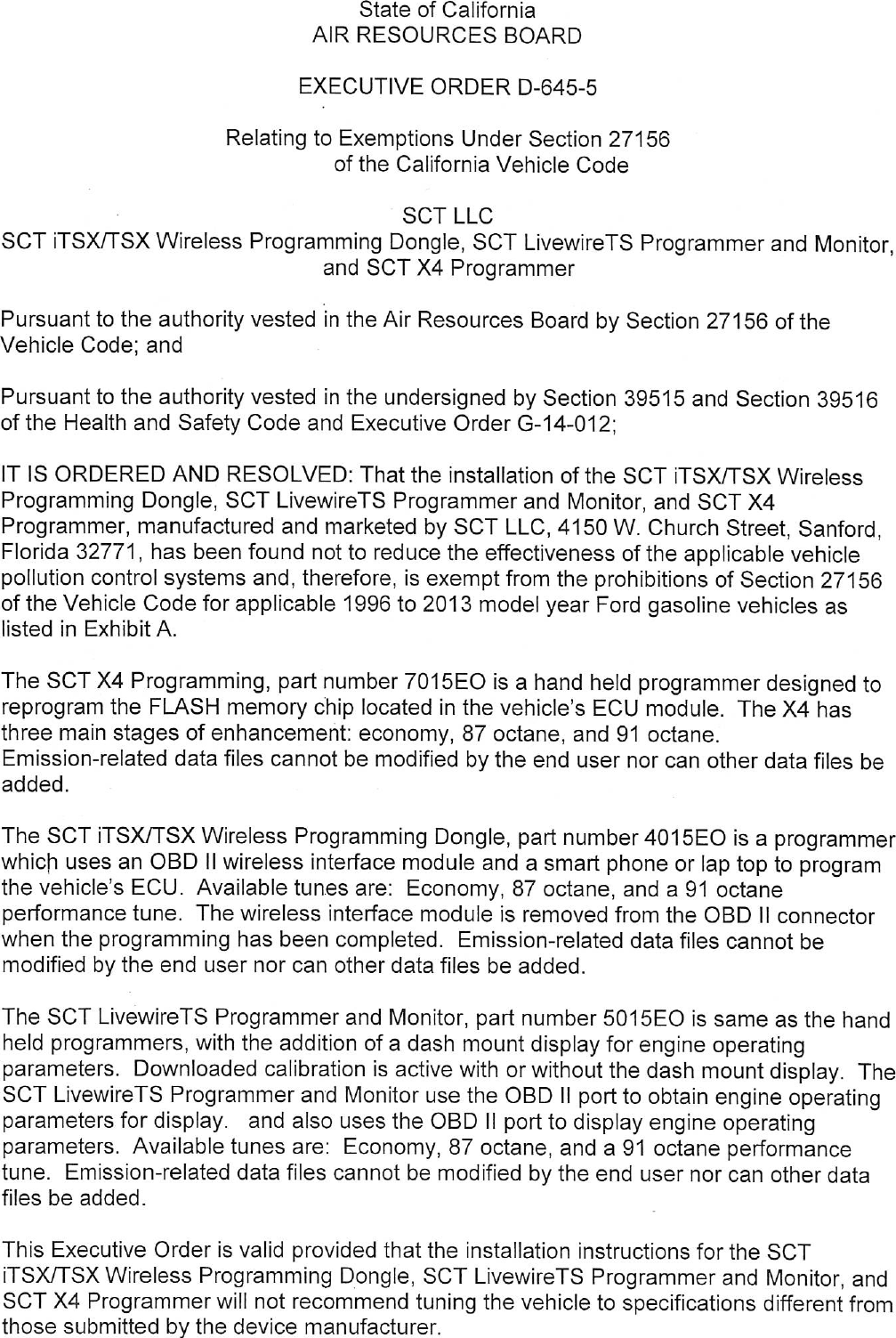

                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—645—5

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                         SCT LLC
SCT iTSXTSX Wireless Programming Dongle, SCT LivewireTS Programmer and Monitor,
                           and SCT X4 Programmer

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the SCT iTSX/TSX Wireless
Programming Dongle, SCT LivewireTS Programmer and Monitor, and SCT X4
Programmer, manufactured and marketed by SCT LLC, 4150 W. Church Street, Sanford,
Florida 32771, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for applicable 1996 to 2013 model year Ford gasoline vehicles as
listed in Exhibit A.

The SCT X4 Programming, part number 7015EO is a hand held programmer designed to
reprogram the FLASH memory chip located in the vehicle‘s ECU module. The X4 has
three main stages of enhancement: economy, 87 octane, and 91 octane.
Emission—related data files cannot be modified by the end user nor can other data files be
added.

The SCT iTSX/TSX Wireless Programming Dongle, part number 4015E0O is a programmer
which uses an OBD 1| wireless interface module and a smart phone or lap top to program
the vehicle‘s ECU. Available tunes are: Economy, 87 octane, and a 91 octane
performance tune. The wireless interface module is removed from the OBD II connector
when the programming has been completed. Emission—related data files cannot be
modified by the end user nor can other data files be added.

The SCT LivewireTS Programmer and Monitor, part number 5015EO is same as the hand
held programmers, with the addition of a dash mount display for engine operating
parameters. Downloaded calibration is active with or without the dash mount display. The
SCT LivewireTS Programmer and Monitor use the OBD II port to obtain engine operating
parameters for display. and also uses the OBD II port to display engine operating
parameters. Available tunes are: Economy, 87 octane, and a 91 octane performance
tune. Emission—related data files cannot be modified by the end user nor can other data
files be added.

This Executive Order is valid provided that the installation instructions for the SCT
iTSX/TSX Wireless Programming Dongle, SCT LivewireTS Programmer and Monitor, and
SCT X4 Programmer will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.


                                              3.


Changes made to the design or operating conditions of the SCT iTSX/TSX Wireless
Programming Dongle, SCT LivewireTS Programmer and Monitor, and SCT X4
Programmer, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any SCT iTSX/TSX Wireless Programming Dongle,
SCT LivewireTS Programmer and Monitor, and SCT X4 Programmer advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the SCT iTSX/TSX Wireless Programming Dongle, SCT LivewireTS
Programmer and Monitor, and SCT X4 Programmer using any identification other than that
shown in this Executive Order or marketing of the SCT iTSX/TSX Wireless Programming
Dongle, SCT LivewireTS Programmer and Monitor, and SCT X4 Programmer for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the SCT
iTSX/TSX Wireless Programming Dongle, SCT LivewireTS Programmer and Monitor, and
SCT X4 Programmer may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on prior submitted emissions test conducted on a
2011 model year 5.0L Ford Mustang, certified to the Low Emission Vehicle II Ultra Low
Emission Vehicle (LEV II ULEV) emission standards, and on two Ford vehicles, 2008
model year 4.6L Mustang certified to the LEV II ULEV emission standards and a 2007
model year 5.4L Shelby certified to the LEV II LEV emission standards. Test results
showed that emission levels, with the device installed, met the applicable emission
standards when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test
cycle, 2008 model year Mustang only, and the Supplemental Federal Test Procedure
(SFTP USO6) test cycle, Shelby and 2011 model year Mustang. Examination of the OBD
II system showed the programmer did not affect OBD II system operation. Results from
emissions testing conducted at Automotive Testing and Development Services, Inc.,
located in Ontario, California, are shown below (in grams per mile with deterioration
factors applied).

    2008 Mustang            CVS—75 FTP
                           NMOG CO NOx              HCHO
    Standards, 50k         0.040  1.7 0.05          0.008
    Device Test            0.023  0.4 0.01          0.000

    2007 Shelby             SFTP USO6
                           NMHC+NOx           cCO
    Standards              0.14              8.0
    Device Test            0.08              0.7

    2011 Mustang            SFTP USO6
                           NMHC+NOx           Co
    Standards              0.14              8.0
    Device Test            0.04              0.4

                              SCT LLC — PROGRAMMER — D—645—5


                                             «4.


The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE SCT ITSXTSX
WIRELESS PROGRAMMING DONGLE, SCT LIVEWIRETS PROGRAMMER AND
MONITOR, AND SCT X4 PROGRAMMER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.                              o

Executed at El Monte, California, this   50            day of June 2015.


                  Al n—
          Annette Hebert, Chief
      WEmissions Compliance, Automotive Regulations and Science Division




                           SCT LLC — PROGRAMMER — D—645—5




                                         Exhibit A



Make      Model           Model Year             Engine Size        HP Gain
Ford      Mustang         2004 — 2010            3.9L / 4.0L        9 whp
Ford      Mustang         2005 — 2010            4.6L 3V            14 whp
Ford      Shelby GT500    2007 — 2012            5AL 4V             48 whp
Ford      Mustang         1996 — 2004            3.9L               16 whp
Ford      Mustang         1996 — 2004            4.6L 2V            9 whp
Ford      Mustang         2011 — 2013            5.0L               10 whp
Ford      Mustang Cobra 1996 — 2001              4.6L 4V            13 whp
Ford      Mustang Cobra 2003 — 2004              4.6L 4V S/C        25 whp
Mercury   Marauder        2003 — 2004            4.6L AV            22 whp
Ford      Mustang Mach 2003 — 2004               4.6L AV            8 whp
          I
Ford      Crown Victoria 1999 — 2008             4.6L 2V            9 whp
Ford      Thunderbird     2002 — 2005            3.9L               12 whp
Lincoln   LS              2000 — 2006            3.9L               12 whp
Ford      Taurus SHO      1996 — 1999            3 AL               10 whp
Ford      Edge            2007 — 2009            3.5L               14 whp
Ford      Excursion       2000 — 2005            5.AL 2V            18 whp
Ford      Lightning —     1999 — 2004            5.AL 2V / 4V SIC   21 whp
           Harley Truck
Ford      GT Supercar     2005—2006              5.4L 2V / 4V SIC   28 whp
Ford       Focus Zetec    1999 — 2004            2.0L               6 whp
Ford      SVT Focus       2003 — 2004            2.0L               8 whp
Ford        Fusion        2006 — 2009            2.3L               14 whp
Ford        Fusion        2006 — 2010            3.0L               14 whp
Ford        F—150 Truck   2004 — 2008            4.2L               12 whp
Ford        F—150 Truck   1997 — 2008            4.6L               9 whp
Ford        F—150/250     1997 — 2009            5.AL               19 whp
           Truck
Ford        FE—250 Truck  2004 — 2009            G.9L               26 whp
Ford        Explorer      1997 — 2007            3.B8L / 4.0L       9 whp
Ford        Explorer      2002 — 2006            4.6L               9 whp
Ford        Expedition     1997 — 2005           4.6L               9 whp.
Ford        Expedition     1997 — 2006           5AL                9 whp
Ford        Excursion      1999 — 2005           5AL                26 whp
Ford        Econoline Van 2004 — 2008            4.2L               12 whp
Ford        Econoline Van  1997 — 2008           4.6L               9 whp
Ford        Econoline Van  1997 — 2008           5.AL               19 whp
Ford        Econoline Van 2004 — 2008            6.8L.              26 whp





Document Created: 2015-08-17 17:01:45
Document Modified: 2015-08-17 17:01:45
