Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 23, 2013.
As of Tuesday, September 10th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1996-2010 model-year Tier 1 and Tier 2 off-road compression-ignition engines with displacements from 3 to 17 liters. The exemption covers engines used in mobile applications.The exemption does not cover engines used in stationary applications such as pumps, compressors, or generators. This exemption excludes engines originally equipped with an aftertreatment emission control system such as a catalytic converter or a diesel particulate filter.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-702U
  • Executive Order 702U / D702U
  • ARB # D-702U
  • Executive Order No: D-702U
  • C.A.R.B. No. D-702U
  • Resolution D-702U
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-702U PDF

D-702U Document:


CARB_D-702U

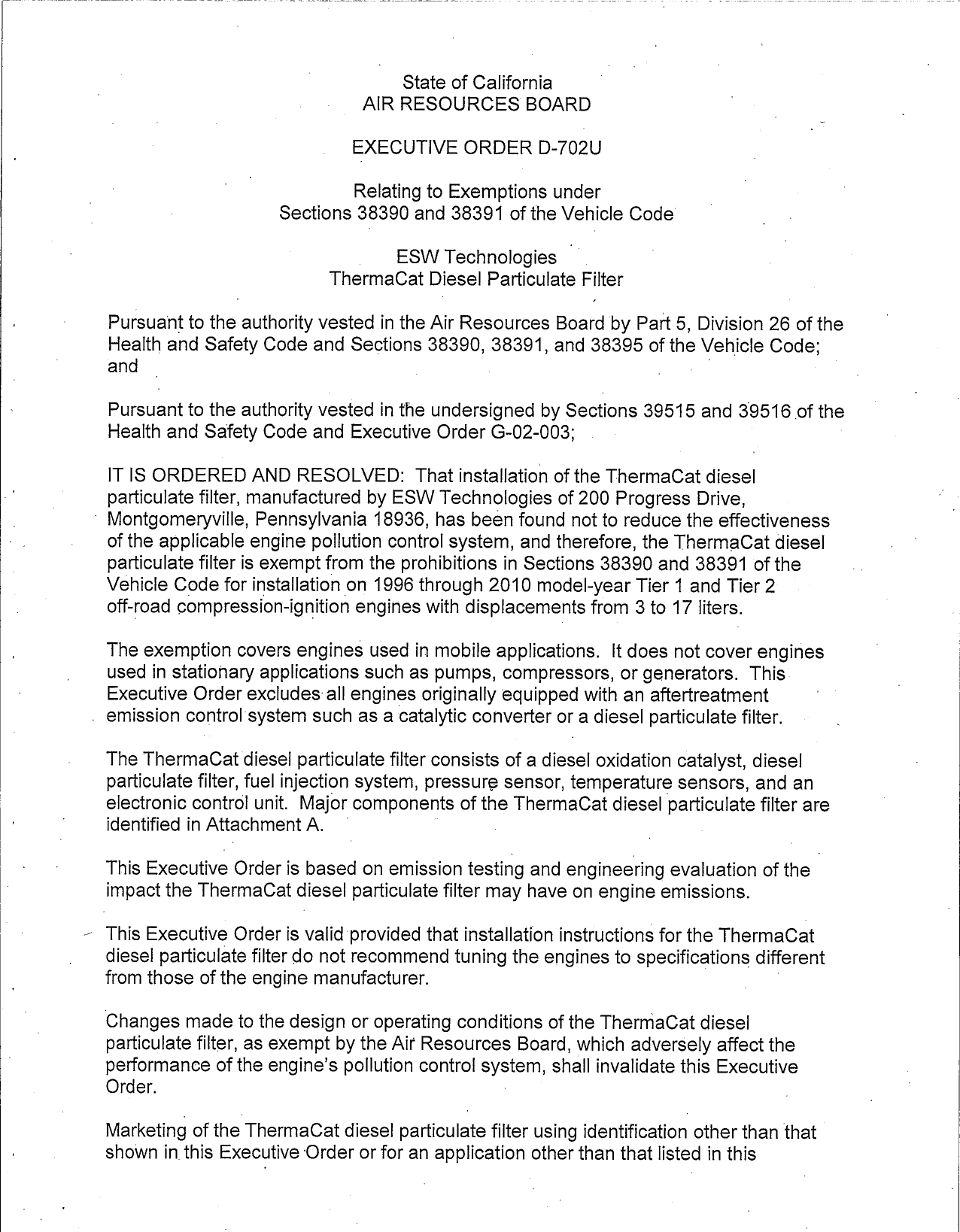

                                      State of California
                                 AlIR RESOURCES BOARD

                                EXECUTIVE ORDER D—702U

                                Relating to Exemptions under
                       Sections 38390 and 38391 of the Vehicle Code

                                      ESW Technologies |
                             ThermaCat Diesel Particulate Filter

 Pursua'nt to the authority vested in the Air Resources Board by Part 5, Division 26 of the
 Health and Safety Code and Sections 38390, 38391, and 38395 of the Vehicle Code;
 and                                                                   .

 Pursuant to the authority vésted in the undersigned by Sections 39515 and 39516 of the
 Health and Safety Code and Executive Order G—02—003;

  IT IS ORDERED AND RESOLVED: That installation of the ThermaCat diesel
  particulate filter, manufactured by ESW Technologies of 200 Progress Drive,
~ Montgomeryville, Pennsylvania 18936, has been found not to reduce the effectiveness
  of the applicable engine pollution control system, and therefore, the ThermaCat diesel
  particulate filter is exempt from the prohibitions in Sections 38390 and 38391 of the
  Vehicle Code for installation on 1996 through 2010 model—year Tier 1 and Tier 2
  off—road compression—ignition engines with displacements from 3 to 17 liters.

 The exemption covers engines used in mobile applications. It does not cover engines
 used in stationary applications such as pumps, compressors, or generators. This
  Executive Order excludesall engines originally equipped with an aftertreatment
. emission control system such as a catalytic converter or a diesel particulate filter.

 The ThermaCat diesel particulate filter consists of a diesel oxidation catalyst, diesel
 particulate filter, fuel injection system, pressure sensor, temperature sensors, and an
 electronic control unit. Major components of the ThermaCat diesel particulate filter are
 identified in Attachment A. _

 This Executive Order is based on emission testihg and engineelring evaluation of the |
 impact the ThermaCat diesel particulate filter may have on engine emissions.

 This Executive Order is valid provided that installation instructions for the ThermaCét
 diesel particulate filter do not recommend tuning the engines to specifications dn‘ferent
 from those of the engine manufacturer.

 Changes made to the design or operating conditions of the ThermaCat diesel
 particulate filter, as exempt by the Air Resources Board, which adversely affect the
 performance of the engine‘s pollution control system shall invalidate this Executive
 Order.

 Marketing of theThermaCat diesel particulate filter using identification other than that
 shown inthis Executive Order or for an application other than that listed in this


                                              7.

Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.                         |

This Executive Order shall not apply to any ThermaCat diesel particulate filter
advertised, offered for sale, sold with, or installed on an engine, vehicle, or equipment
prior to or concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
ThermaCat diesel particulate filter may have on any warranty either expressed or
implied by the engine manufacturer.                         '

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken hereinin any advertising or other oral or written
communication.                                        ‘       ‘
         >                                             4&

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2474, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ESW
TECHNOLOGIES‘ THERMACAT DIESEL PARTICULATE FILTER.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determipation is made after a hearing that grounds for
revocation exist.

Executed at El Monte, California, this    (Q’B     day of May 2013.




                                   %' M/
                                         rik White, Chief
                                 (,%Mdbile Source Operations Division




                           ESW TECHNOLOGIES
               THERMACAT DIESEL PARTICULATE FILTER —D—702U


 Diesel Oxidation Catalyst +
  Diesel Particulate Filter        1   E145—M000—AX
    Fuel lnjector/Nozzle |         1   — E147—P901—A

   Electronié Control Unit                -
   (containing fuel pump,          1     E147—P900—A¥
   backpressure sensor)                |           .

       Thermocouple            [   2    E147—P906—A .




            ESW TECHNOLOGIES
THERMACAT DIESEL PARTICULATE FILTER — D—702U




                                          EVALUATION SUMMARY

 Manufacturer Name: ESW Technologies

 Name of Device: ThermaCat diesel particulate filter

 Background:
        ESW Technologies (ESW) of 200 Progress Drive, Montgomerywlle Pennsylvama 18936
has requested exemption of its ThermaCat diesel particulate filter from the prohibitions in
Section 38391 of the California Vehicle Code. The ThermaCat diesel particulate filter is
designed for use on 1996 through 2010 model—year Tier 1 and Tier 2 off—road compression—
ignition engines with displacements from 3 to 17 liters.

Recommendation:
          Grant exemption to ESW as requested and issue Executive Order D—702U. The
  exemption covers ThermaCat diesel particulate filter installed on 1996 through 2010 model—year
  Tier 1 and Tier 2 off—road compression—ignition engines with displacements from 3 to 17 liters.
. The exemption covers engines used in mobile applications. It does not cover engines used in
  stationary applications such as pumps, compressors, or generators. This exemption is not valid
for any engines originally equipped with an aftertreatment emission control system such as a
catalytlc converter or a diesel particulate filter. Major components of the ThermaCat diesel
partlculate filter are identified in Attachment A.                   —

Device Description:                                      '
         The ThermaCat diesel particulate filter is an actively regenerated filtration system _
designed to reduce hydrocarbons, carbon monoxide, and particulate matter emissions from diesel
engines. It consists of a diesel oxidation catalyst (DOC), diesel particulate filter (DPF), fuel
injfection system, backpressure sensor, temperature sensors, and an electronic control unit
(ECU). Particulate matter in the engine exhaust is captured on the ceramic wall—flow
filter. The filter is catalyzed to maximize passive regeneration. DOC, installed upstream of
the DPF, also promotes regeneration by increasing the exhaust temperature. When a pre—
determined condition is met (backpressure and exhaust temperature), fuel is injected in the
exhaust pipe between the exhaust manifold and the DOC. Fuel injection further increases
exhaust temperatures by promoting oxidation of hydrocarbons and raising the exhaust
temperature to the level required to support regeneration. The amount of injected fuel is
controlled by the ECU. The DOC—DPF module is installed with exhaust pressure and temperature
sensors. The system requires annual maintenance which includes cleanmg of the injector nozzle,
_DPF ash removal, and overall system check.

Discussion/Basis for the Recommendation:                                            |
       In support of its exemption request, ESW provided the following emission data:
                        C1 8—Mode Test Results*                                  *
                              (g/ohp—hr)                 THC      CO     NOx          PM

                              Baseline tests             0.155   1.104   5.256       0.1086
 Thermacat without                             w*
    fuel injection         Degreened tests               0.007   0.057   4.842       0.0059
   Thermacat   with
    fuel injection         Degreened testsw              0.007   0.057   4.843       0.006§

                       Tier 1 emission standards          1.0     8.5     6.9         0.4

                      Caterpillar certification levels    0.1     0.2     5.5         0.2


                                                                                      (Page 2 of 2)

Notes:
* Reported data are averages of three hot start tests.
** The device was degreened for 25 hours.
Test engine: 1996 Caterpillar 14.6 liter 3406 289 hp engme engine family TCP14. RZDBRJ
Test system: DOC ESW & DPF ESW
Test: 180 8178 C1 8—mode steady—state engine dynamometer test
Emission tests were conducted at ESW America, Inc. (ESWA; also known as Air Testing Services (ATS))
in Montgomeryville, Pennsylvania.

Data on the off—road engine showed no adverse emission impact from using the Thermacat
diesel particulate filter. To further support its exemption request, ESW provided field use
information. The Thermacat diesel particulate filter was installed on a Caterpillar dozer (engine
family 1CPXL10.5MRG; Tier 1) and operated for 1,020 hours. No problems or issues were
encountered during its operation.. Similar results are expected when the system is used on any
of engines include in this application.



Document Created: 2013-05-29 15:21:20
Document Modified: 2013-05-29 15:21:20
