Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 7, 2011.
As of Wednesday, December 12th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
19258004 and 19258008All 1995 and older passenger cars and trucks with up to 6500 lbs. test weight (7200 lbs. GVWR)The LC9-5.3L V8 E-ROD Kit is a complete engine and emission control package designed to change engines from all 1995 and older passenger cars and trucks with up to 6500 lbs. test weight (7200 lbs. GVWR). The kit is derived from a federally certified 2012 model year General Motors truck engine (test group CGMXT05.3373) but with modifications to the original emission control module (ECM) calibration, exhaust system, evaporative system, and air intake system. The main components of the kit with their corresponding part numbers are listed in Attachment A. Installation of the LC9-5.3L V8 E-ROD Kit requires complete removal of the stock pre-1996 model year engine, including its exhaust and evaporative emission control system. The stock fuel tank, hoses and fuel pump are retained but need to be reconfigured to meet the installation requirements of the LC9-5.3L V8 E-ROD Kit. The kit is equipped with a fully functioning on-board diagnostic II (OBD II) system except for the diagnostics related to the evaporative system and transmission. The stock vehicle check engine light is retained or needs to be added for older vehicles that were not originally equipped with a check engine light in the dashboard. The exhaust system, catalytic converters and oxygen sensors must be installed in the location/orientation as prescribed in the installation instructions provided with the kit.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-126-31
  • Executive Order 126-31 / D126-31
  • ARB # D-126-31
  • Executive Order No: D-126-31
  • C.A.R.B. No. D-126-31
  • Resolution D-126-31
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-126-31 PDF

D-126-31 Document:

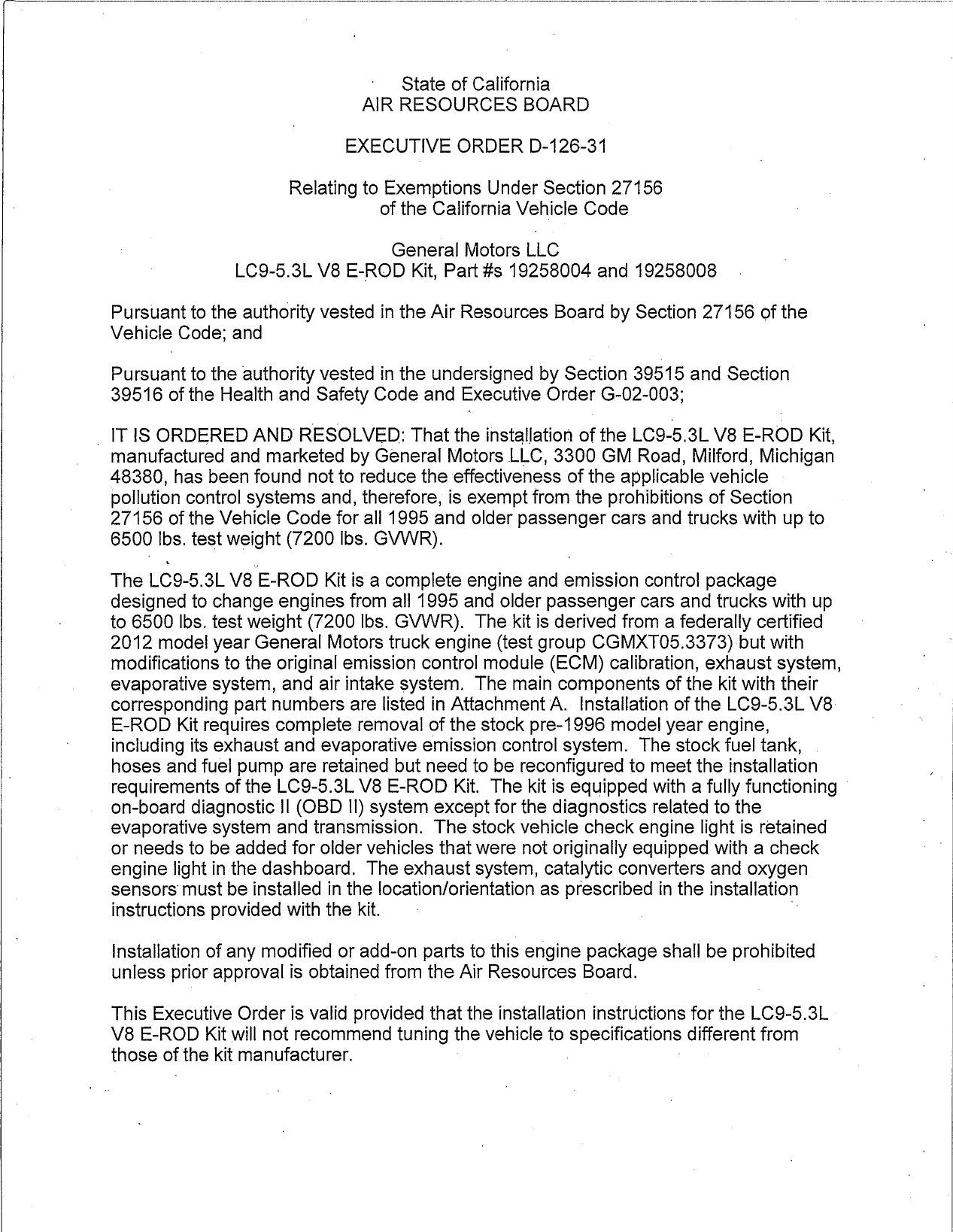

                                     State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—126—31

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                General Motors LLC
                LC9—5.3L V8 E—ROD Kit, Part #s 19258004 and 19258008

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section
 39516 of the Health and Safety Code and Executive Order G—02—003;

_ IT IS ORDERED ANDRESOLVED: That the installation of the LC9—5.3L V8 E—ROD Kit,
  manufactured and marketed by General Motors LLC, 3300 GM Road, Milford, Michigan
 48380, has been found not to reduce the effectiveness of the applicable vehicle
 pollution control systems and, therefore, is exempt from the prohibitions of Section
 27156 of the Vehicle Code for all 1995 and older passenger cars and trucks with up to
 6500 Ibs. test weight (7200 Ibs. GVWR).

 The LC9—5.3L V8 E—ROD Kit is a complete engine and emission control package
 designed to change engines from all 1995 and older passenger cars and trucks with up
 to 6500 Ibs. test weight (7200 Ibs. GVWR). The kit is derived from a federally certified
 2012 model year General Motors truck engine (test group CGMXTO05.3373) but with
 modifications to the original emission control module (ECM) calibration, exhaust system,
 evaporative system, and air intake system. The main components of the kit with their
 corresponding part numbers are listed in Attachment A. Installation of the LC9—5.3L V8
 E—ROD Kit requires complete removal of the stock pre—1996 model year engine,
 including its exhaust and evaporative emission control system. The stock fuel tank,
 hoses and fuel pump are retained but need to be reconfigured to meet the installation
 requirements of the LC9—5.3L V8 E—ROD Kit. The kit is equipped with a fully functioning °
 on—board diagnostic II (OBD II) system except for the diagnostics related to the
 evaporative system and transmission. The stock vehicle check engine light is retained
 or needs to be added for older vehicles that were not originally equipped with a check
 engine light in the dashboard. The exhaust system, catalytic converters and oxygen
 sensors must be installed in the location/orientation as prescribed in the mstallatlon
 instructions provided with the kit.

 Installation of any modified or add—on parts to this engine package shall be prohibited
 unless prior approval is obtained from the Air Resources Board.

 This Executive Order is valid provided that the installation instructions for the LC9—5.3L
 V8 E—ROD Kit will not recommend tuning the vehicle to specnflcatlons different from
 those of the kit manufacturer.


                                            7.


Changes made to the design or operating conditions of the LC9—5.3L V8 E—ROD Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the LC9—5.3L V8 E—ROD Kit using any identification other than that shown
in this Executive Order or marketing of the LC9—5.3L V8 E—ROD Kit for an application
other than those listed in this Executive Order shall be prohibited unless prior approval
is obtained from the Air Resources Board. Exemption of the LC9—5.3L V8 E—ROD Kit
shall not be construed as an exemption to sell, offer for sale, or advertise any
component of the LC9—5.3L V8 E—ROD Kit as an individual device.

This Executive Order is granted based on submitted technical information and emission
test data generated on a 1999 Chevrolet Silverado with an automatic transmission,
modified with the LC9—5.3L V8 E—ROD Kit with aged components. Test results showed
that emission levels, with the LC9—5.3L V8 E—ROD Kit installed, met light—duty truck 2
Low Emission Vehicle II Low Emission Vehicle (LEV II LEV) emission standards when
tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) and the
Supplemental Federal Test Procedure (SFTP) test cycles. Results from emissions
testing conducted by General Motors are shown below (in grams per mile).

                                   CVS—75 FTP                         SFTP USO6 —
                           NMOG     CO NOx        HCHO           NMHC+NOx     CO
    Standards*             0.090    4.2 0.07      0.011            0.40        10.5
    Device Test 1          0.058    11   0.03     0.000            0.05        0.5
    Device Test 2          0.068    1.3 0.04      0.000            0.32        1.8
    Device Test 3          0.075    1.3 0.02      0.000            0.27        1.3

*LEV II LEV CVS—75 FTP 120K emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE LC9—5.3L V8 E—
ROD KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest


            GENERAL MOTORS LLC — LC9—5.3L V8 E—ROD KIT — D—126—31


                                           —3.


the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocationexist.

Executed at El Monte, California, this day
                                         ofJuly 2011.




                                    Annette Hebert, Chief
                                    Mobile Source Operations Division




           GENERAL MOTORS LLC — LC9—5.3L V8 E—ROD KIT — D—126—31




                           LC9 — 5.3L V8 E—ROD KIT CONTENT
                                                 Attachment 2




                                                        9e
                                                        ce          6rorne
                                                                   ies
                                            19257246    INSTRUCTION MANUAL                          19257246
EMISSIONS CERTICATION LABEL                 19258207    EMISSIONS CERTICATION LABEL                 19258207
Engine                  >                               Engine
ENGINE ASM—5.3L                             12618482    ENGINE ASM—5.3L                             12618482
EXHAUST MANIFOLD (LH) — included with kit   12611638    EXHAUST MANIFOLD (LH) — included with kit   12611638
EXHAUST MANIFOLD (RH) — included with kit   12611639    EXHAUST MANIFOLD (RH) — included with kit   12611639
ENGINE ELECTRICAL HARNESS                   19244808    ENGINE ELECTRICAL HARNESS                   19244808
 MAP SENSOR JUMPER HARNESS                  19202598         MAP SENSOR JUMPER HARNESS              19202598
 Harness                                    19244447         Harness                                19244447
AIR FILTER ELEMENT                          19202661    AIR FILTER ELEMENT                          19202661

Controls      .                                         Controls .
MODULE ASM—ENG CONT                         19258006    MODULE ASM—ENG CONT                         19258010
  DATA FILE—ECM ENG CALN                    19258007         DATA FILE—ECM ENG CALN                 19258011
  MODULE                         .          19210737         MODULE                                 19210737
SENSOR ASM—HTD OXY (POSN 2) (2)             12581966    SENSOR ASM—HTD OXY (POSN 2) (2)             12581966
SENSOR ASM—HTD OXY (POSN 3) (2)             12611165    SENSOR’ ASM—HTD OXY (POSN 3) (2)            12611165
MASS AIRFLOW SENSOR                         15865791    MASS AIRFLOW SENSOR                         15865791
MASS AIRFLOW SENSOR BRKT                    19166574    MASS AIRFLOW SENSOR BRKT                    19166574
ACCELERATOR PEDAL                           10379038    ACCELERATOR PEDAL                           10379038

Exhaust                                                 Exhaust
CONVERTER ASM—3WAY CTLTC (LH)               92225676    CONVERTER ASM—3WAY CTLTC (LH)               92225676
CONVERTER ASM—3WAY CTLTC (RH)               92225677    CONVERTER ASM—3WAY CTLTC (RH)               92225677
OXYGEN SENSOR MOUNTING BOSS (4)             15156588    OXYGEN SENSOR MOUNTING BOSS (4)             15156588
CLAMP — EXHAUST      |                      92202996    CLAMP — EXHAUST                             92202996
NUT— EXH MANIFOLD OUTLET PIPE (4)           15032594    NUT— EXH MANIFOLD OUTLET PIPE (4 )          15032594

Evaporative                                             Evaporative
CANISTER ASM—EVAP EMIS       _       (      17113332    CANISTER ASM—EVAP EMIS                      17113332
